GMKtec NucBox K8 Mini PC AMD® Ryzen™ 7 8845HS

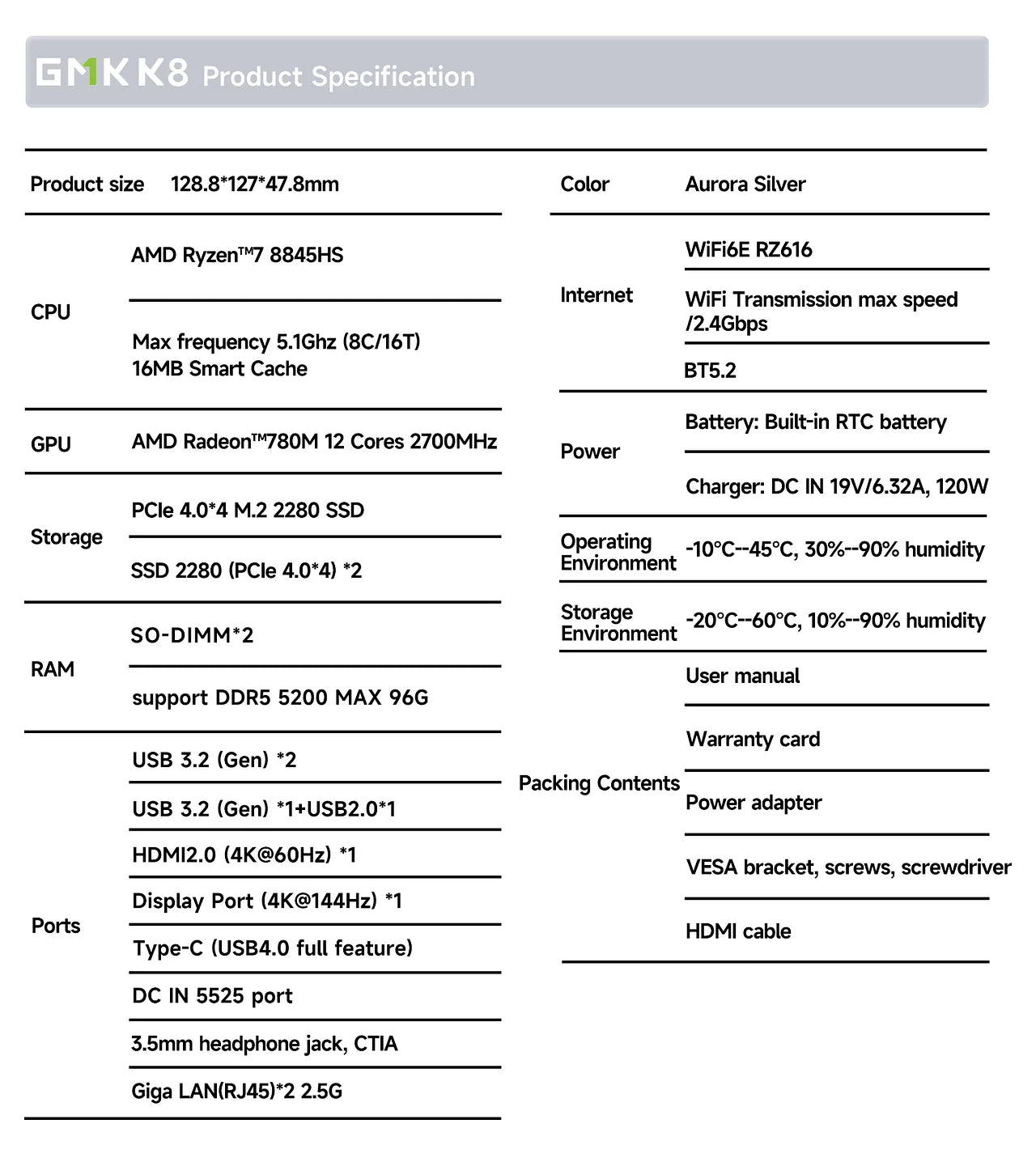

Parameter	Details
Model	GMKtec NucBox K8
CPU Model	AMD Ryzen™ 7 8845HS
CPU	AMD Ryzen™ 7 Processor with Radeon™ Graphics, 8 Cores, 16 Threads TSMC 4nm FinFET Process Base Frequency 3.8GHz, Max Boost up to 5.1GHz 8MB L2 Cache / 16MB L3 Cache TDP 35W–54W, Peak 65W Zen 4 Architecture with AI Engine up to 16 TOPS
CPU Socket / Package	TSMC 4nm FinFET
GPU	AMD Radeon™ 780M Graphics 12 Cores, up to 2700MHz RDNA 3 Architecture

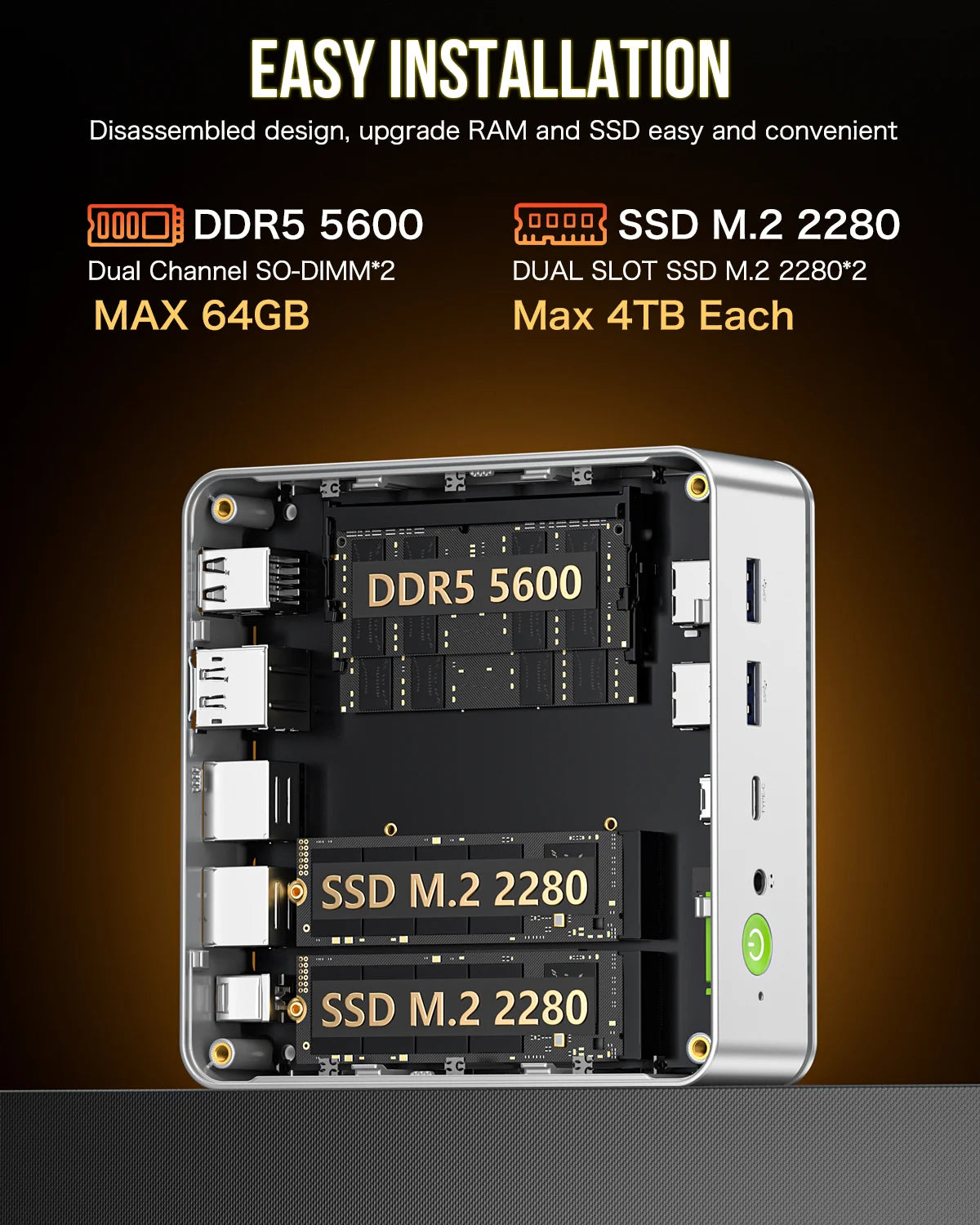

Memory (RAM)	2 × SO-DIMM Slots Dual-Channel DDR5-5600 Memory 32GB standard configuration Supports up to 64GB
Storage (ROM)	PCIe 4.0 ×4 M.2 2280 SSD 512GB / 1TB options SATA SSD not supported
Storage Expansion	2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Maximum storage expansion up to 4TB
Graphics Output	Triple display output via HDMI + DisplayPort + USB4 Supports up to 4096 × 2160 resolution

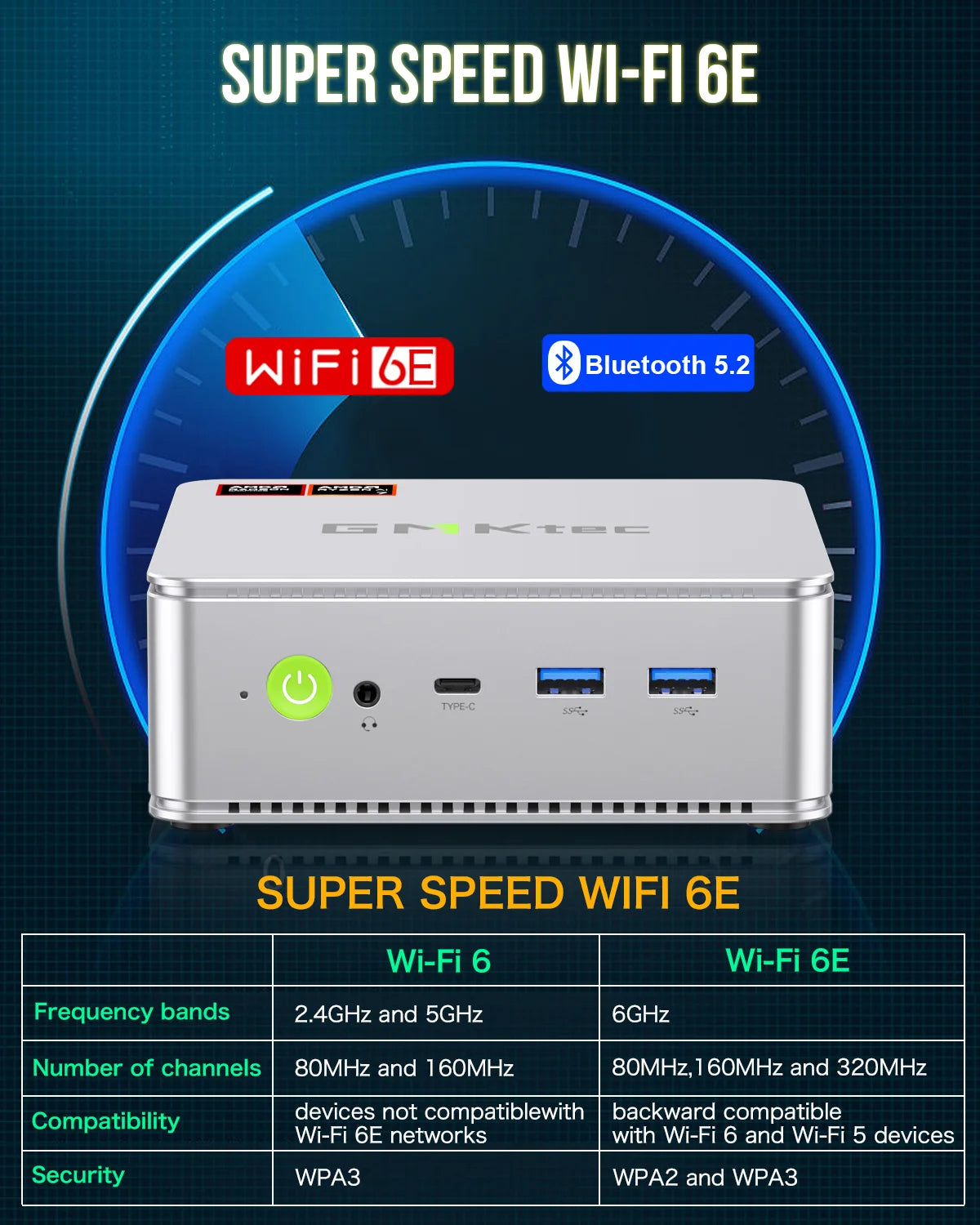

Network	Wi-Fi 6 (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek 8125)
Power	Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W

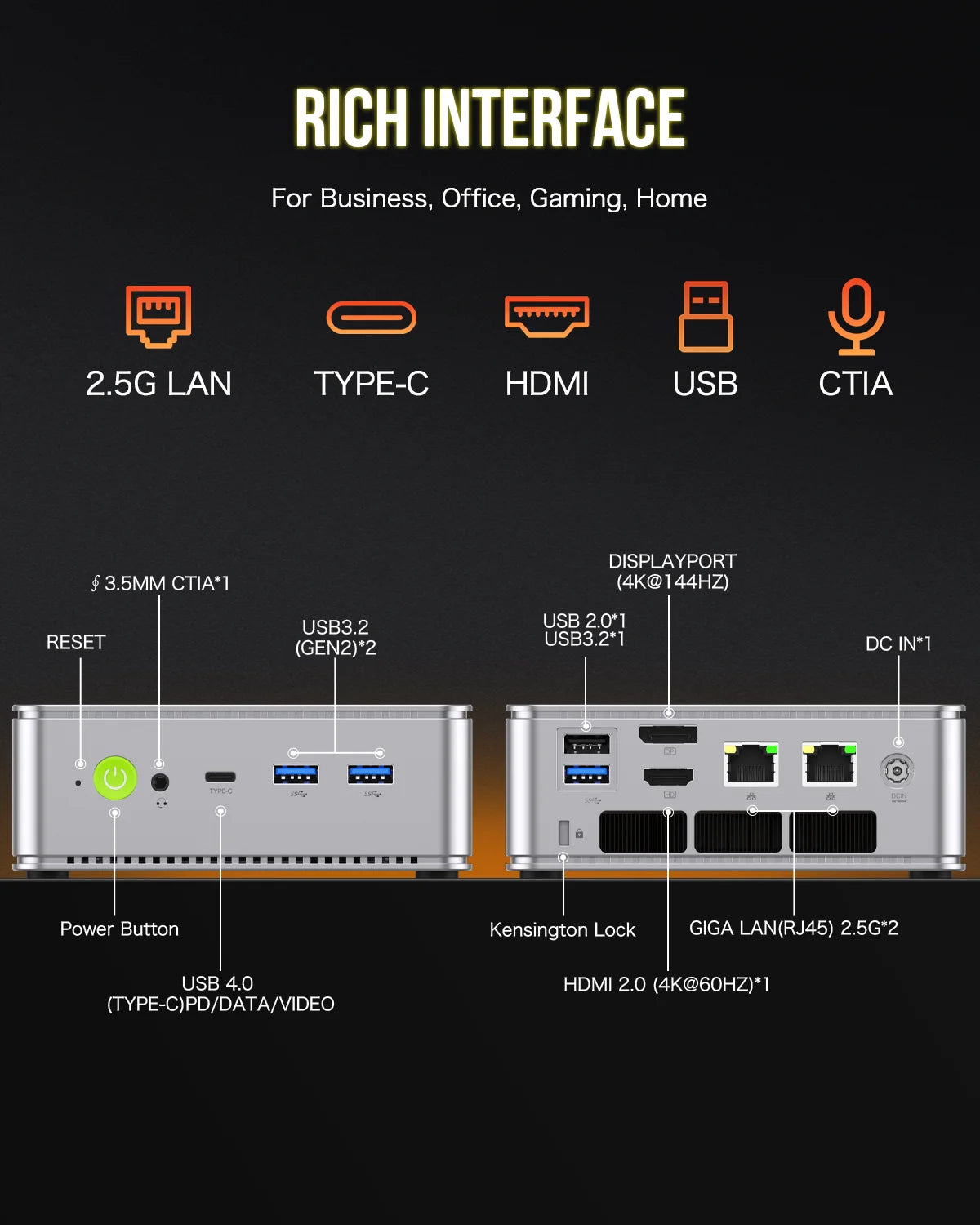

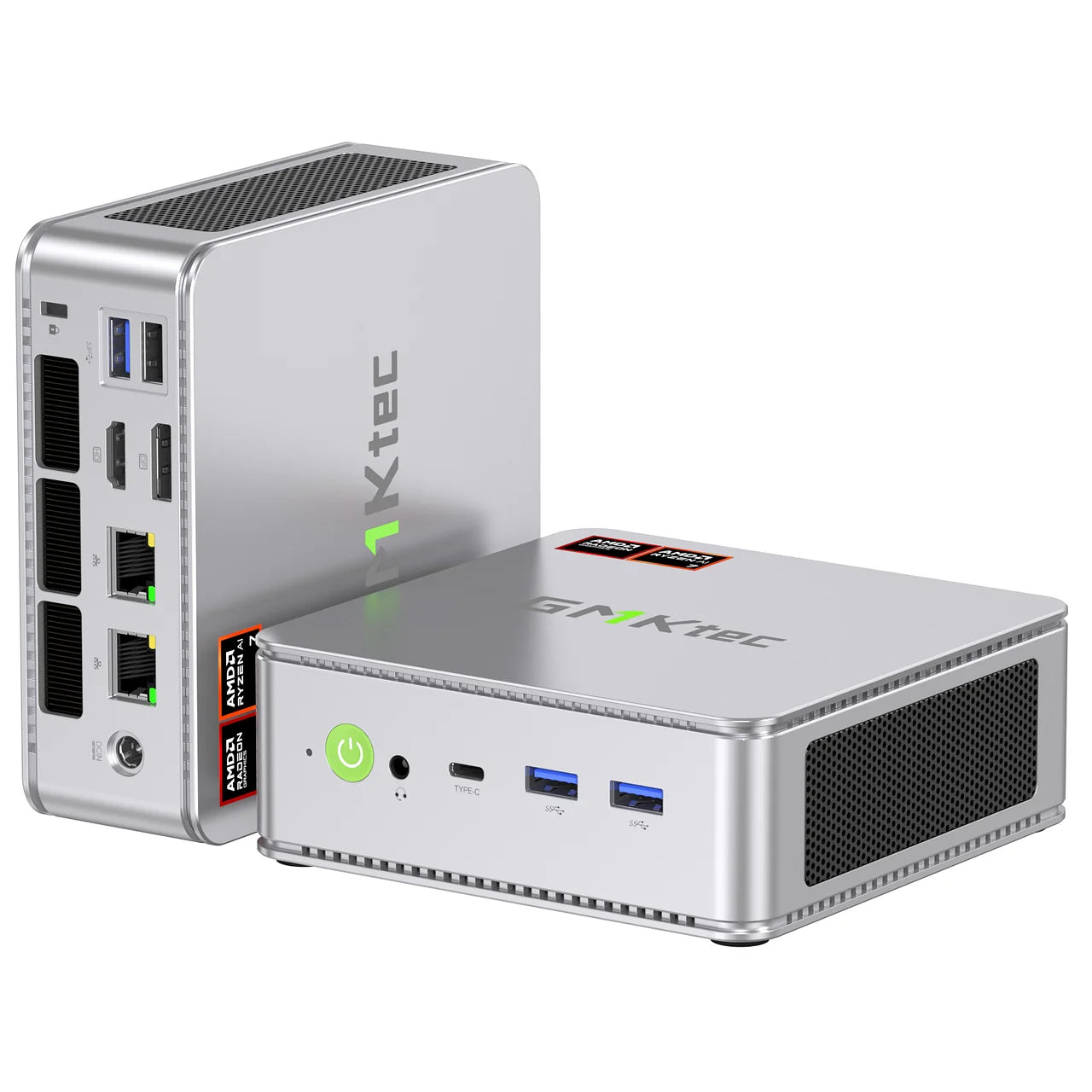

External Ports	USB-A: 3 × USB 3.2 Gen2 + 1 × USB 2.0 HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DisplayPort (up to 4K@60Hz) USB4: 1 × USB4 Full-Function Port (USB 3.1 Gen2 / PD / DP / Data) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button
USB4 Notice	The USB4 port supports data transfer, video output, and Power Delivery. PD input requires 100W or above, and PD output supports up to 15W.
Operating System	Windows 11 Pro / Linux Supported
Language Support	13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic

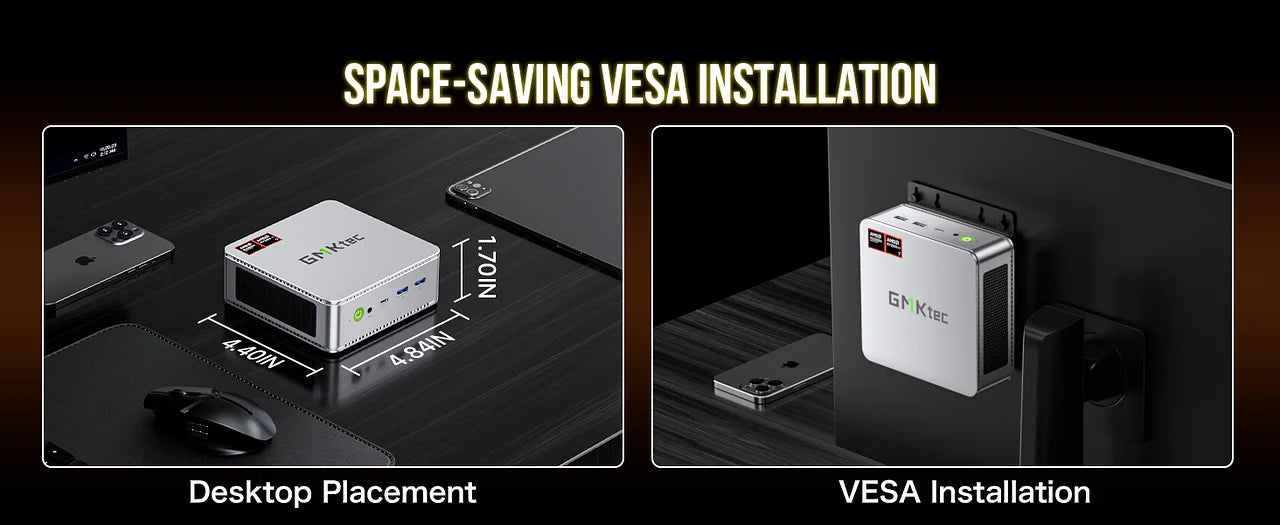

Chassis Dimensions	128.8 × 127 × 51.8 mm
Weight	Approx. 525 g
Color	Metallic Silver
Working Temperature	0°C – 40°C
Warranty	1-Year Limited Warranty
Certifications	CE, FCC, CCC, RoHS

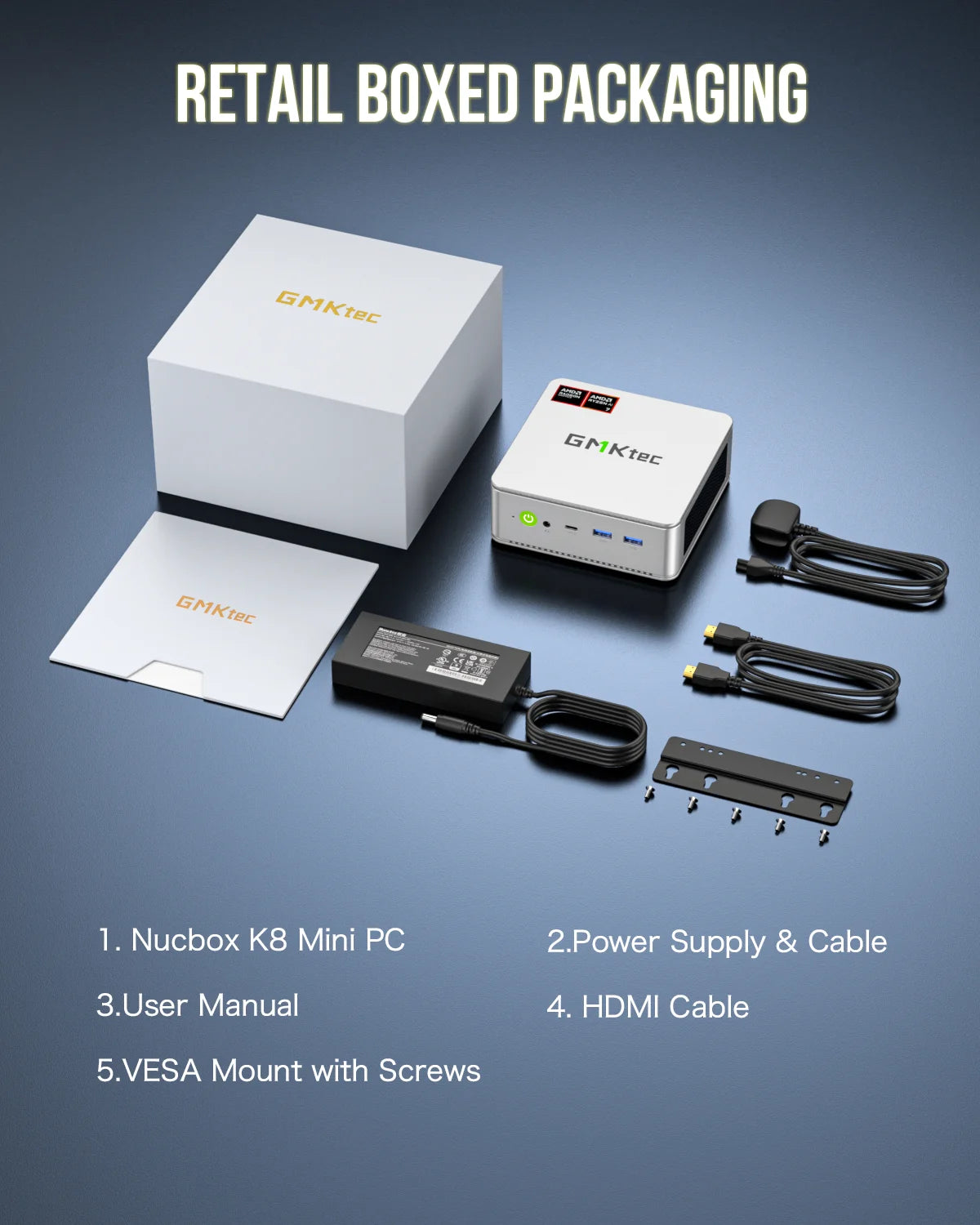

Packaging List	User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable
