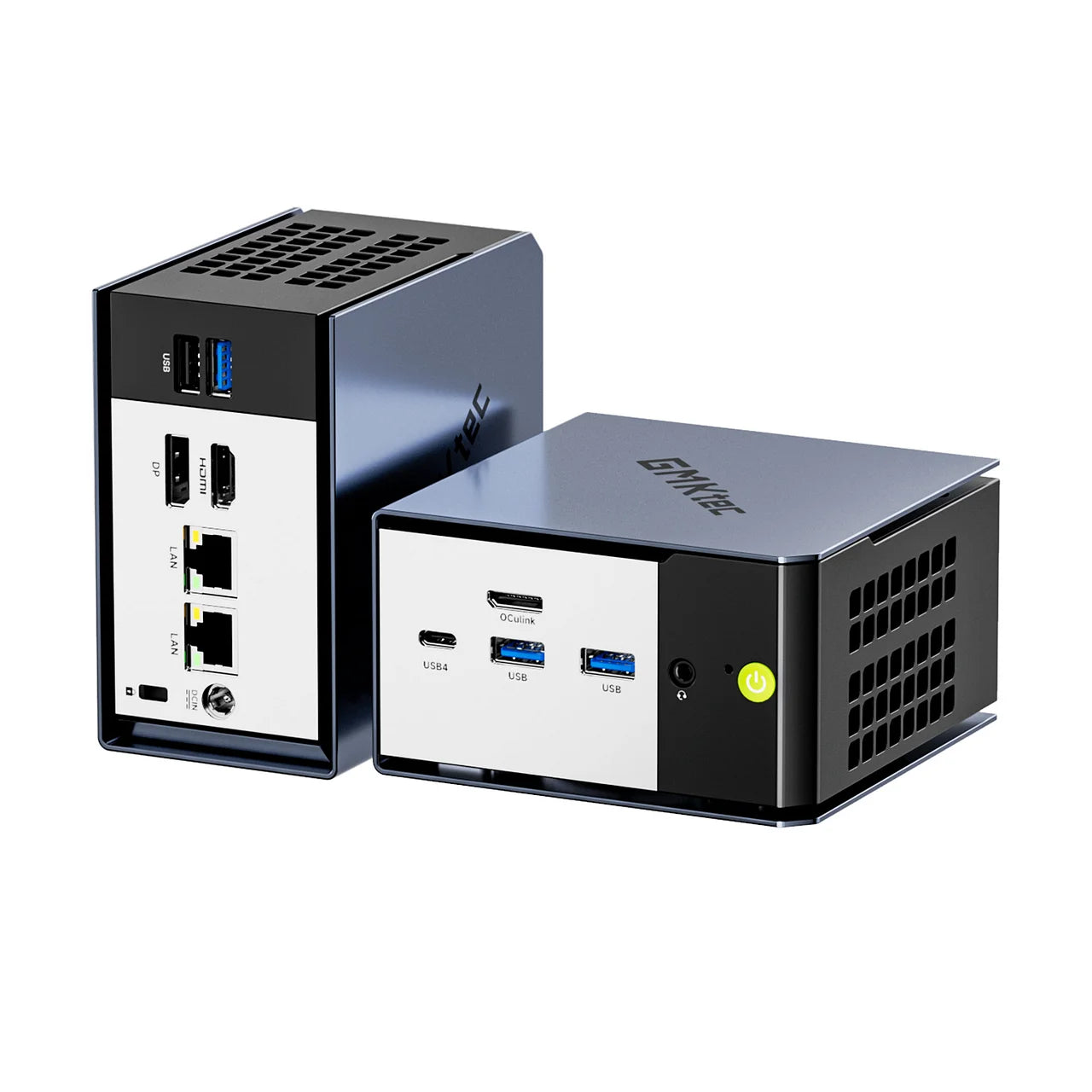

GMKtec NucBox K16 Mini PC AMD Ryzen™ 7 7735HS
GMKtec NucBox K16 Mini PC AMD Ryzen™ 7 7735HS
Regular price
$589.99
Sale price
$589.99
Regular price
$899.99
Couldn't load pickup availability
Payment & Security
Payment methods

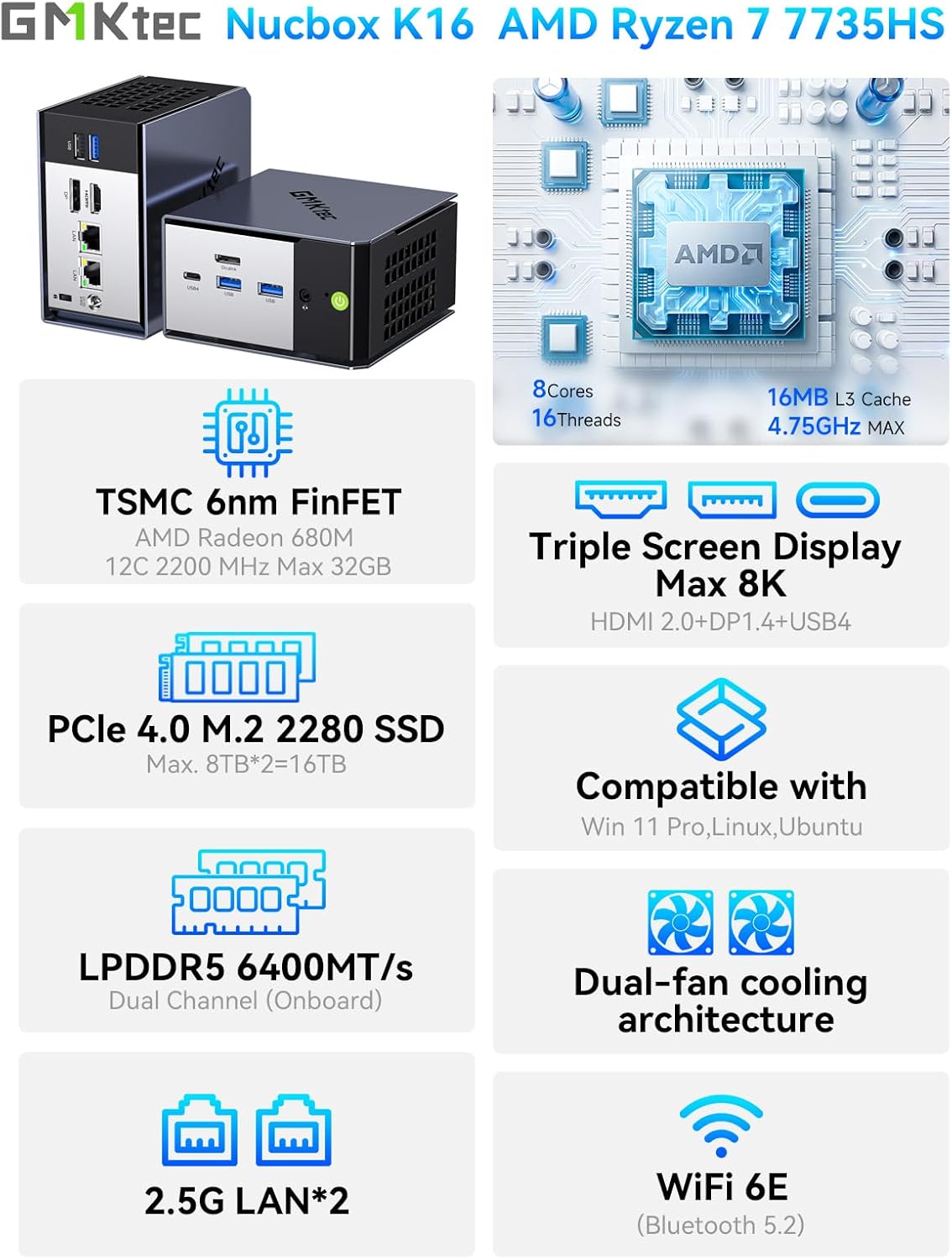

| Parameter | Details |
|---|---|
| Model | GMKtec NucBox K16 |

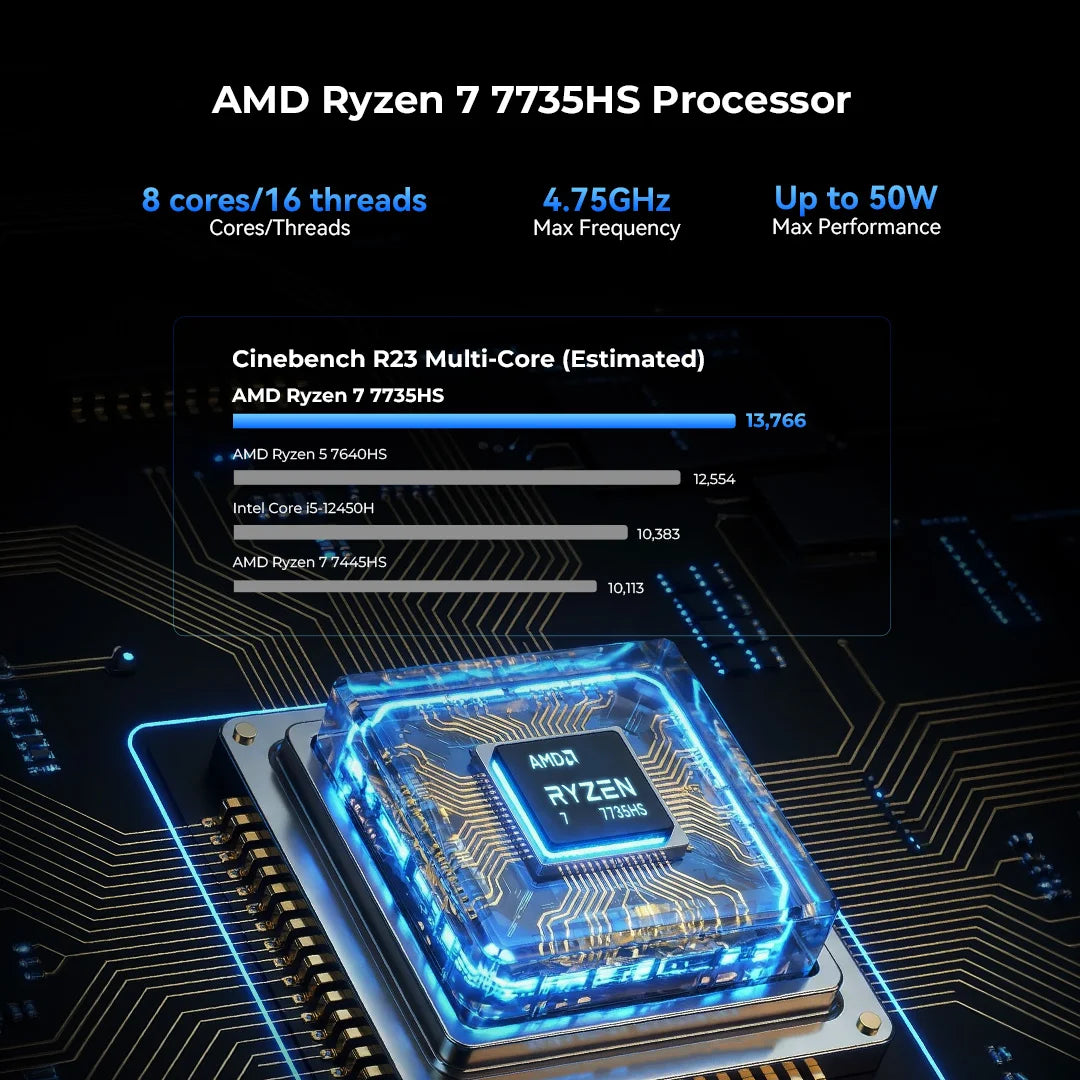

| CPU Model | AMD Ryzen™ 7 7735HS |
| CPU |
AMD Ryzen™ 7000 Series Processor, 8 Cores, 16 Threads TSMC 6nm FinFET Process Base Frequency 3.2GHz, Max Boost up to 4.75GHz 512KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache Zen 3+ Architecture |
| CPU Socket / Package | TSMC 6nm FinFET |
| GPU |
AMD Radeon™ 680M Graphics 12 Cores, up to 2200MHz |
| Memory (RAM) |
On-board LPDDR5-6400 Memory 32GB standard configuration Non-upgradable design |
| Storage (ROM) |
PCIe 3.0 M.2 2280 SSD 512GB / 1TB options |

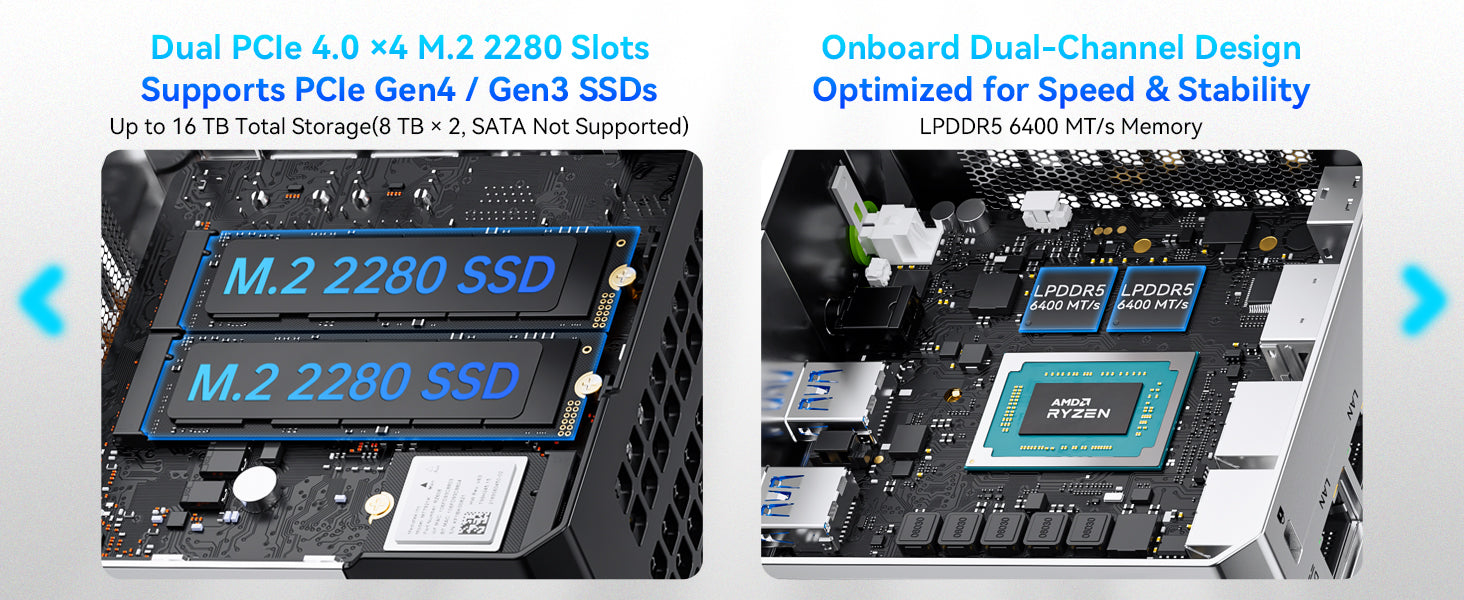

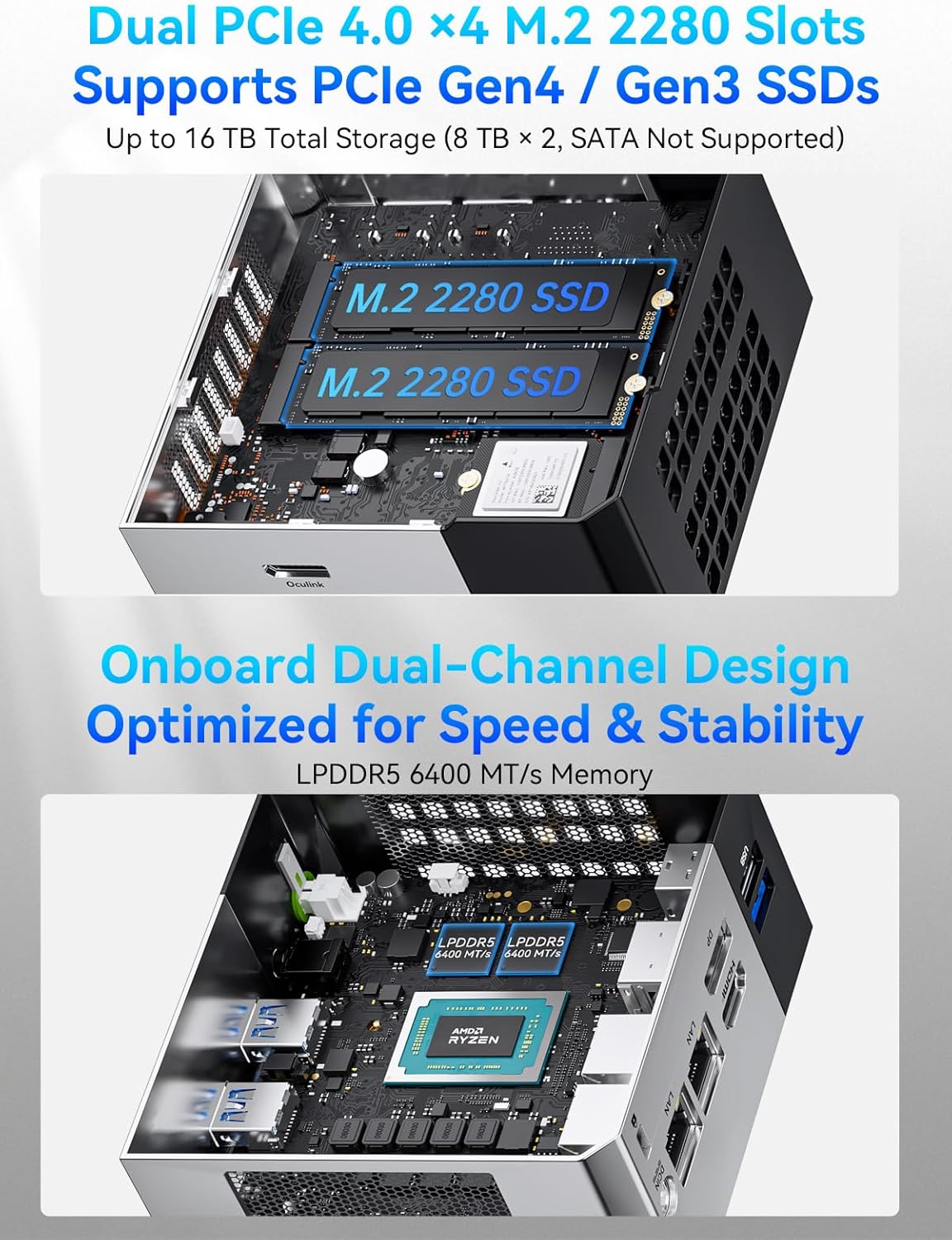

| Storage Expansion |
2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 16TB) SATA SSD not supported |

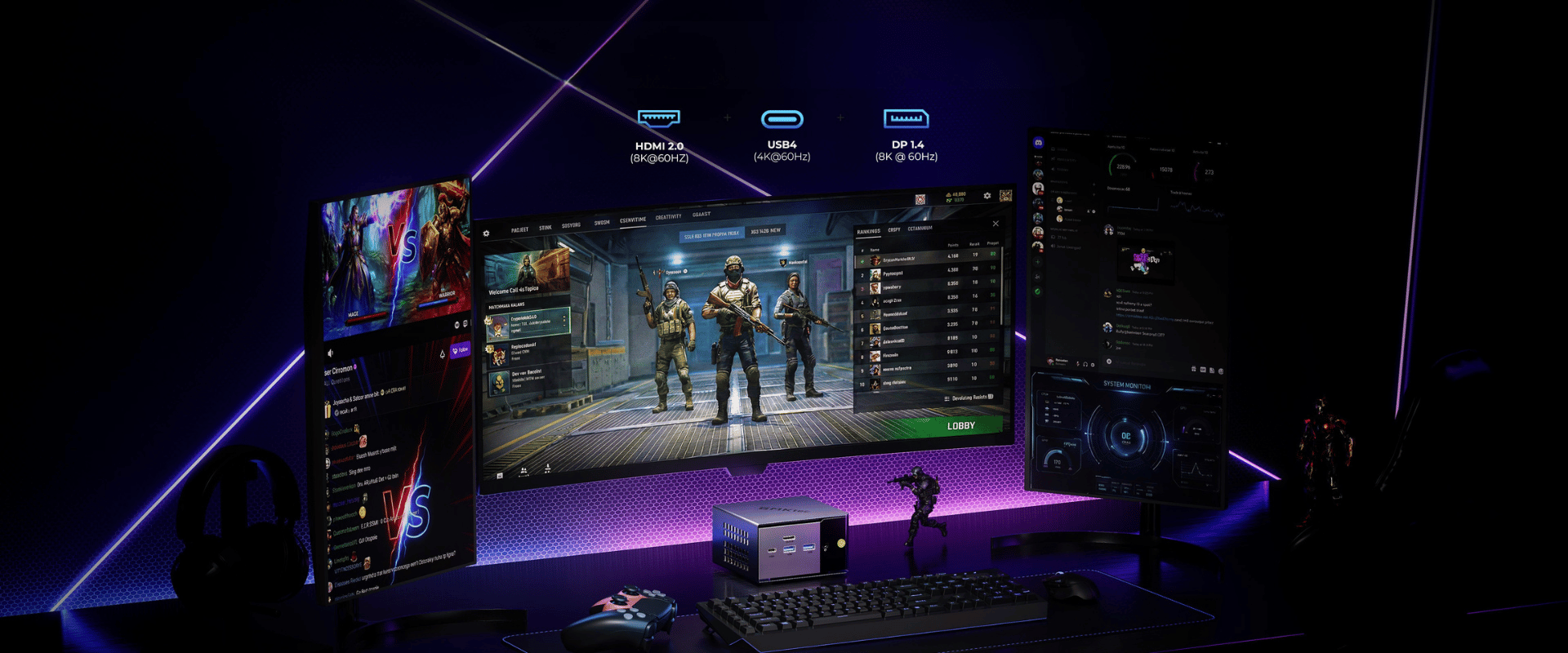

| Graphics Output |
Triple display output via HDMI + DisplayPort + USB4 Supports up to 8K resolution |

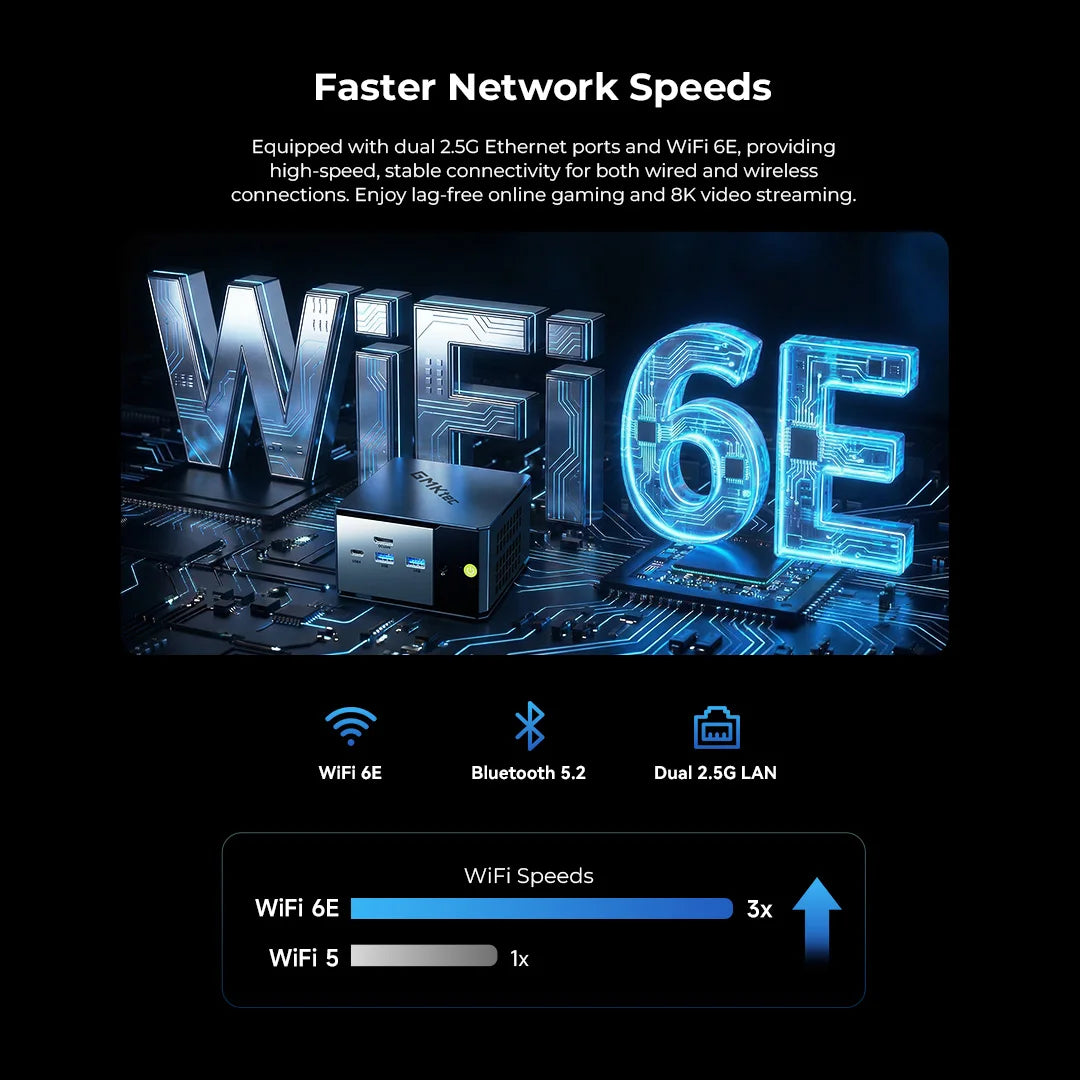

| Network |

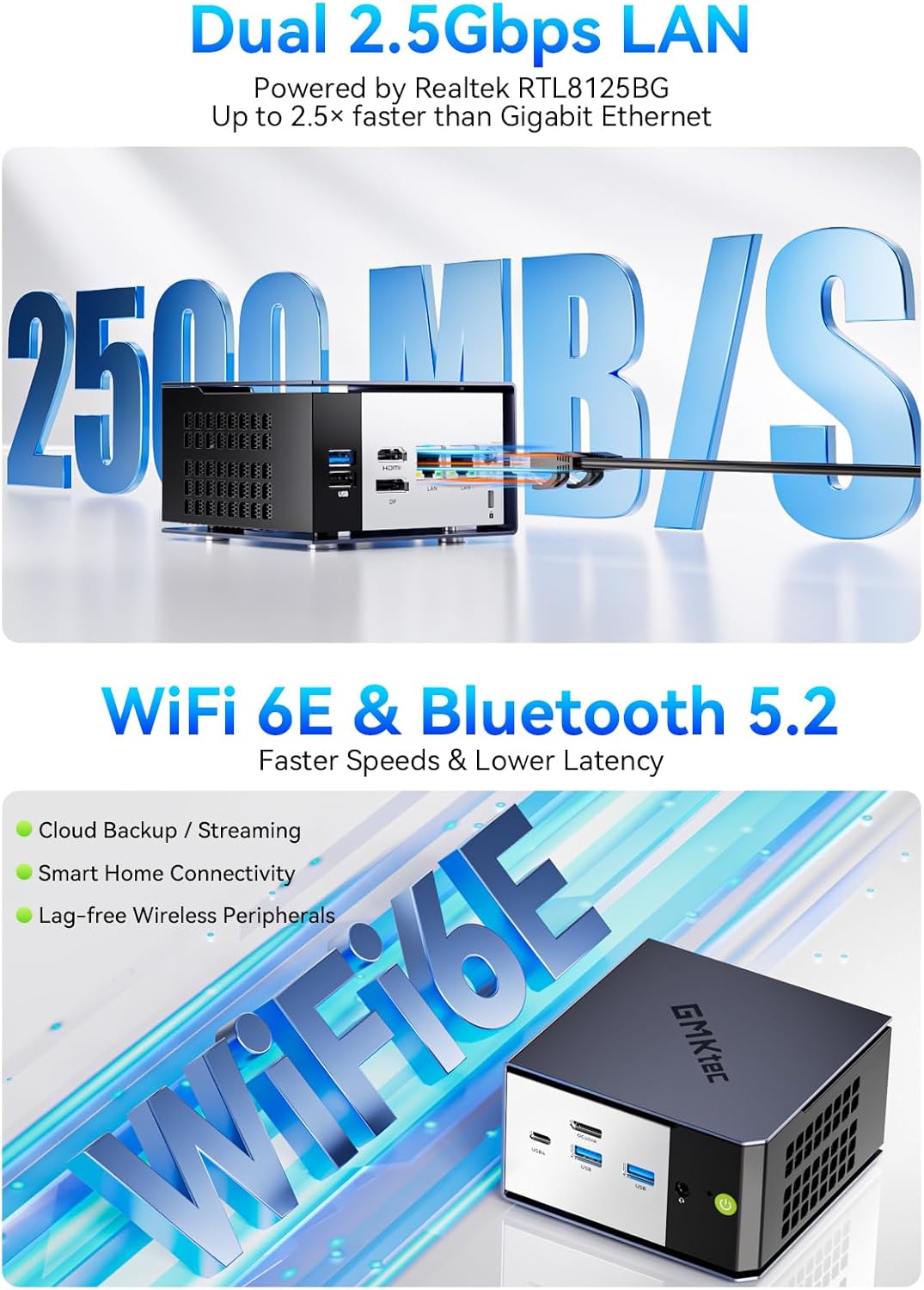

Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (RTL8125BG) |
| Power |
Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W |

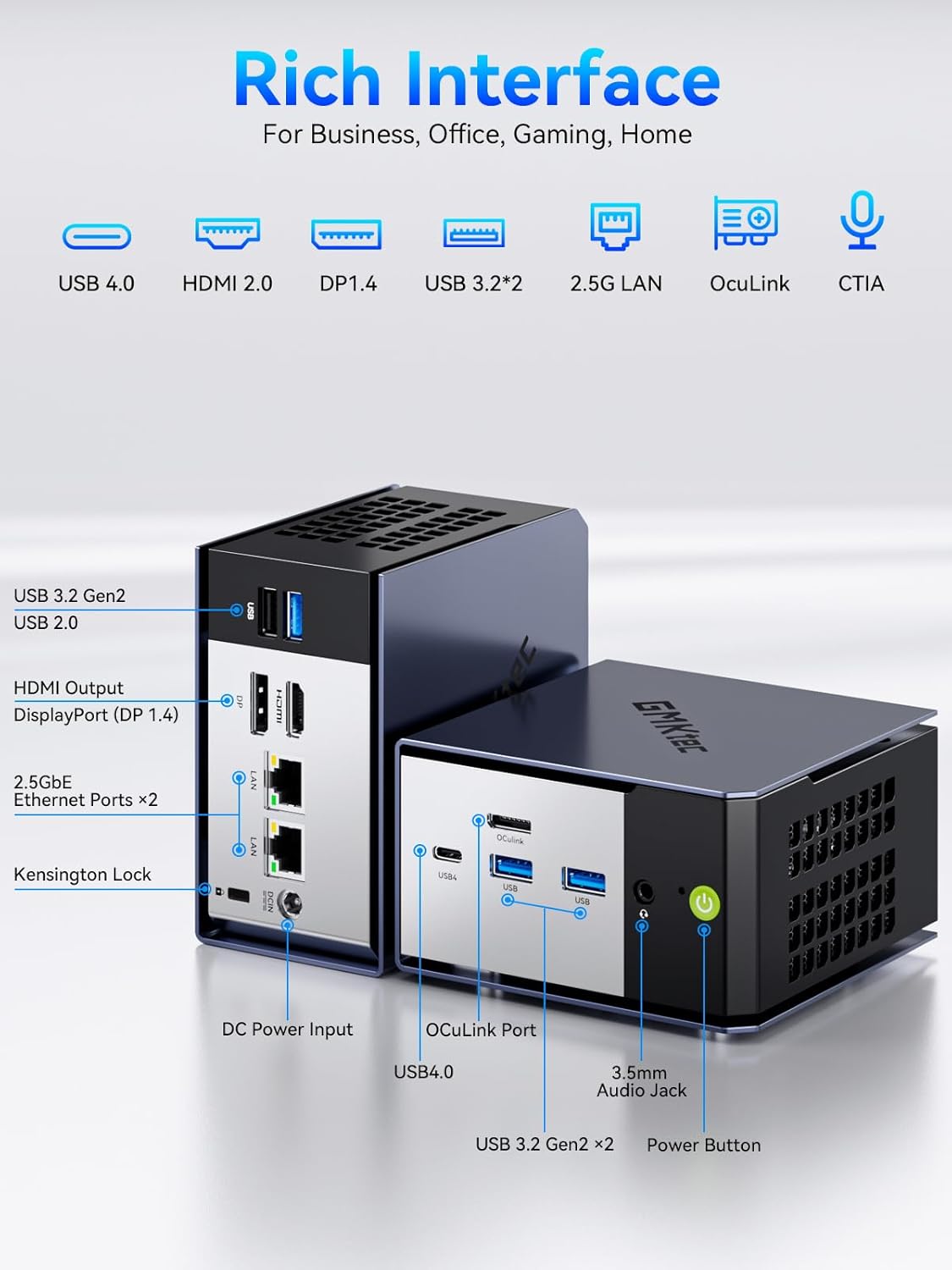

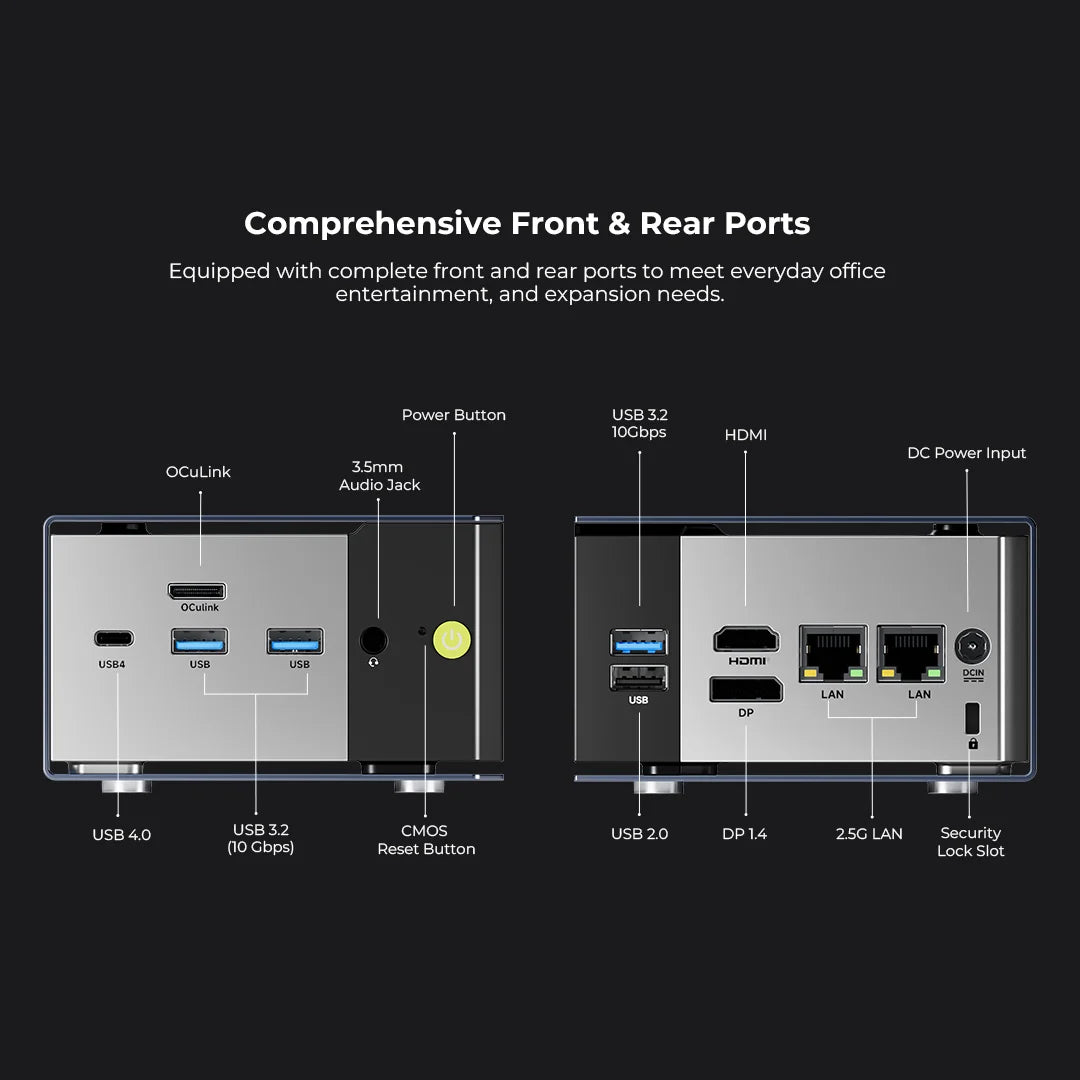

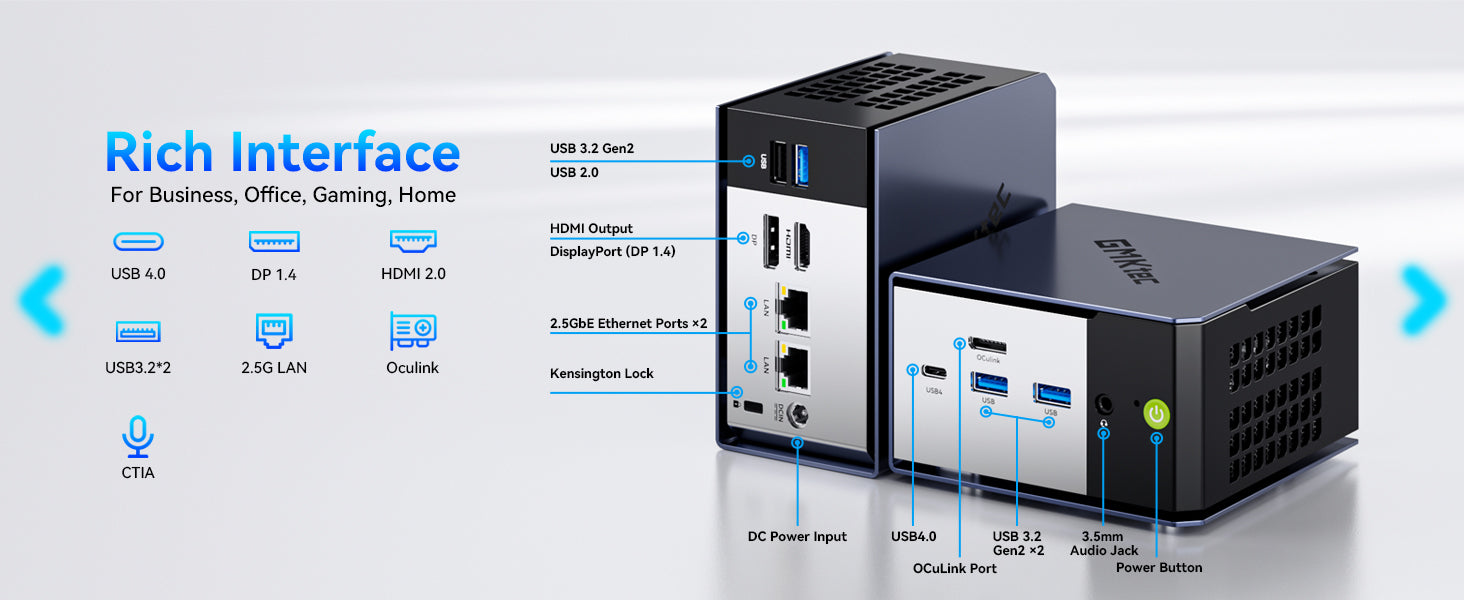

| External Ports |

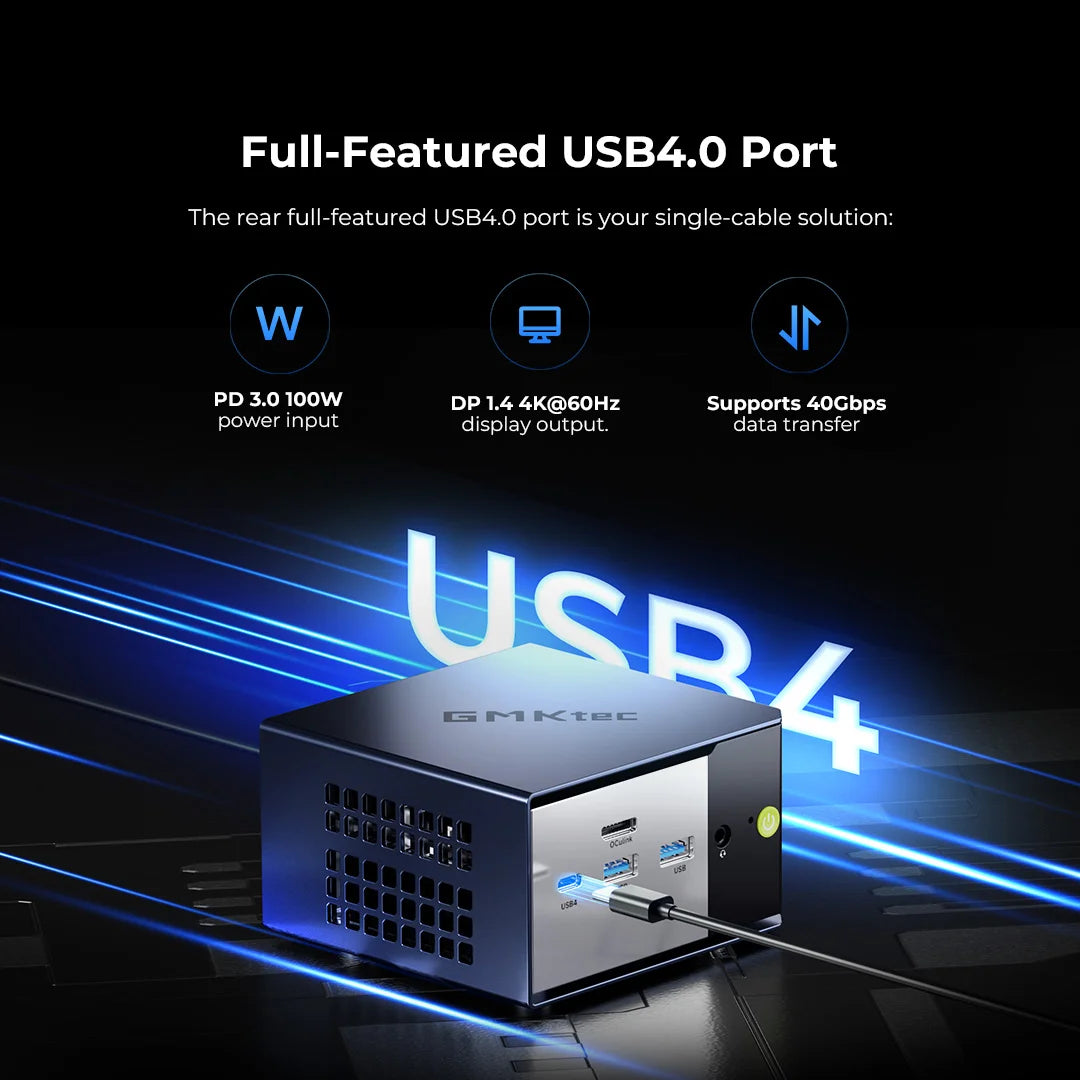

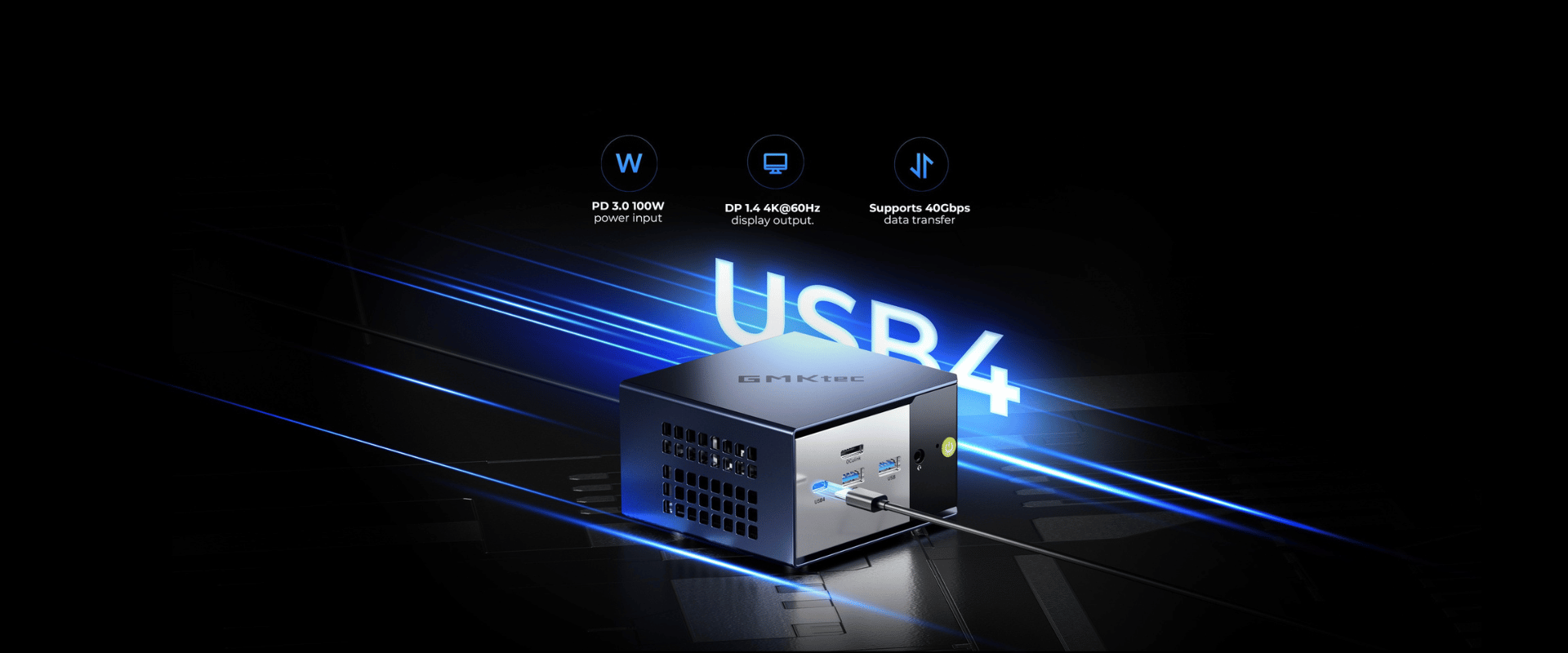

USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0 USB4: 1 × USB4 Full-Function Port (40Gbps / PD 100W / DisplayPort 1.4) HDMI: 1 × HDMI 2.0 DisplayPort: 1 × DisplayPort 1.4 OCulink: 1 × OCulink PCIe Gen4 ×4 Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Lock Slot: 1 × Security Lock Slot Power Button: 1 × Power Button Reset: 1 × Reset Button |

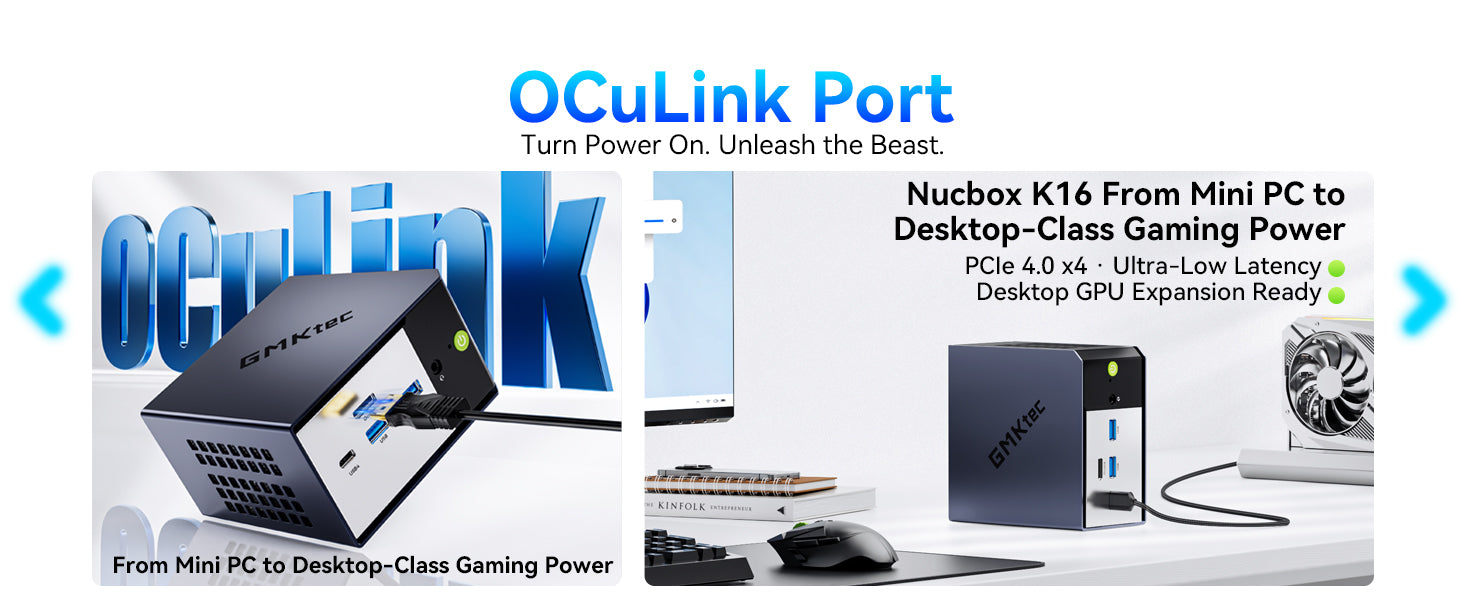

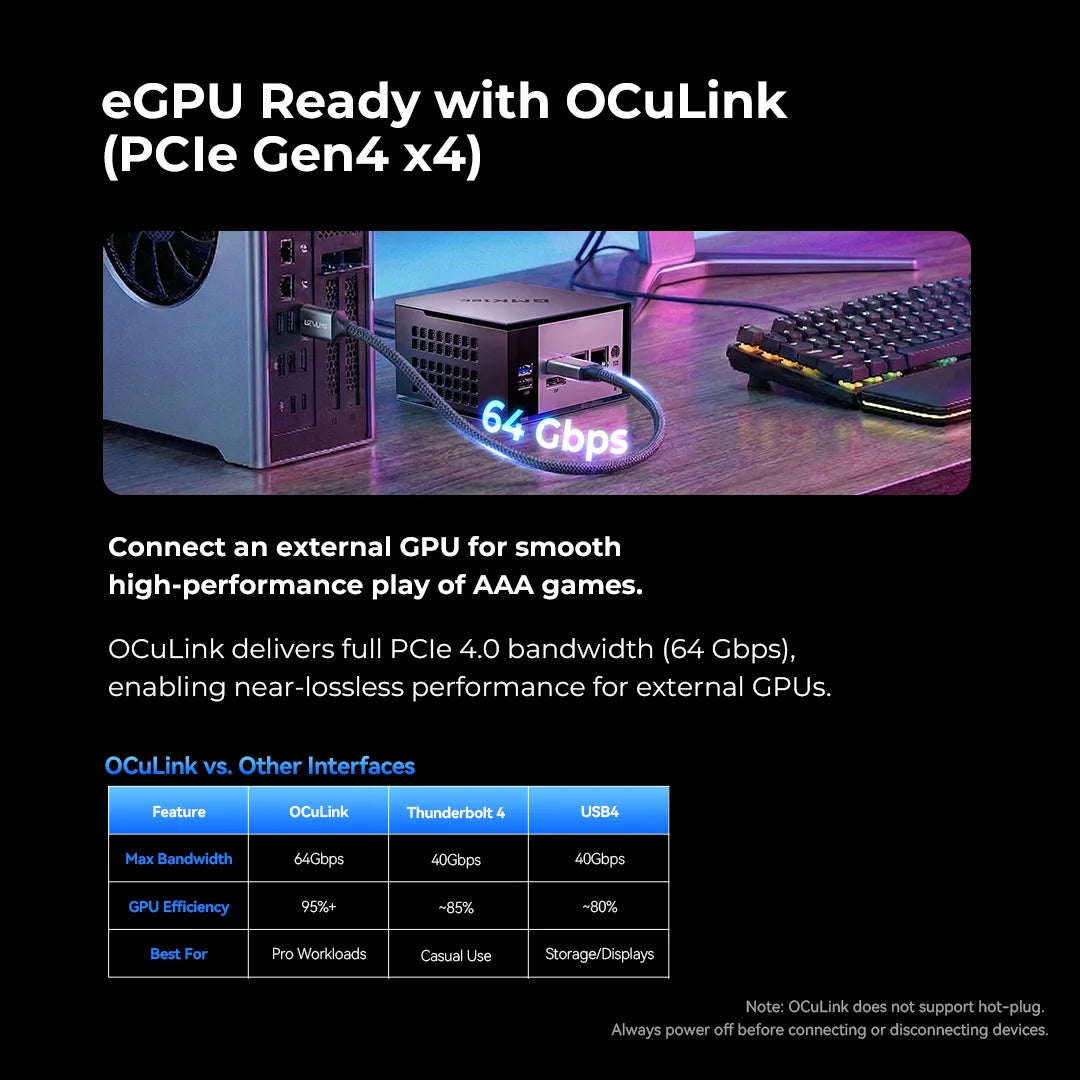

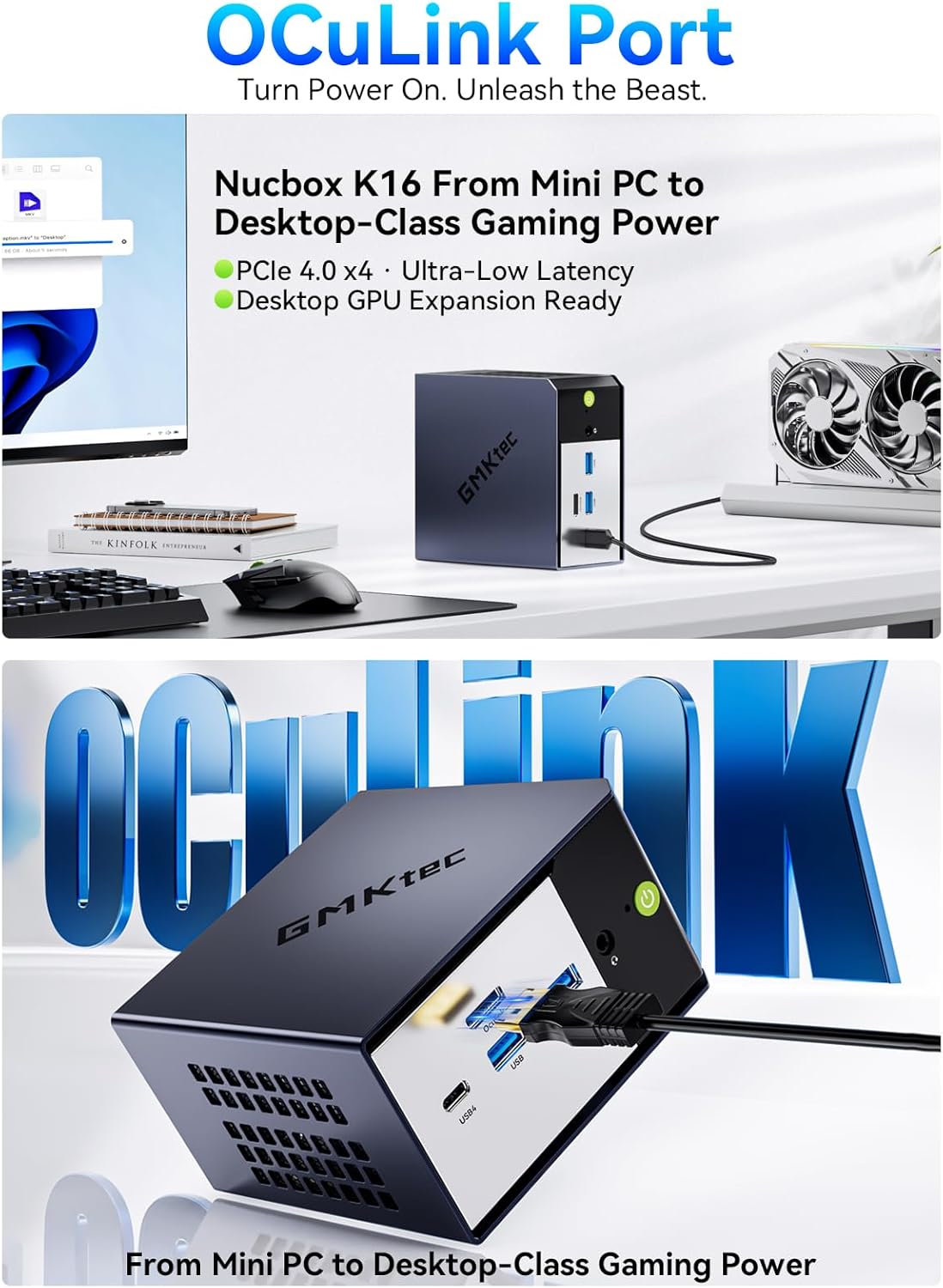

| OCulink Notice |
The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off. |
| Operating System | Windows 11 Pro |
| Language Support | 14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Chassis Dimensions | 107 × 111 × 63 mm |
| Weight | Approx. 590 g |
| Color | Metallic Gray |
| Working Temperature | 0°C – 40°C |
| Warranty | 1-Year Limited Warranty |
| Certifications | CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |

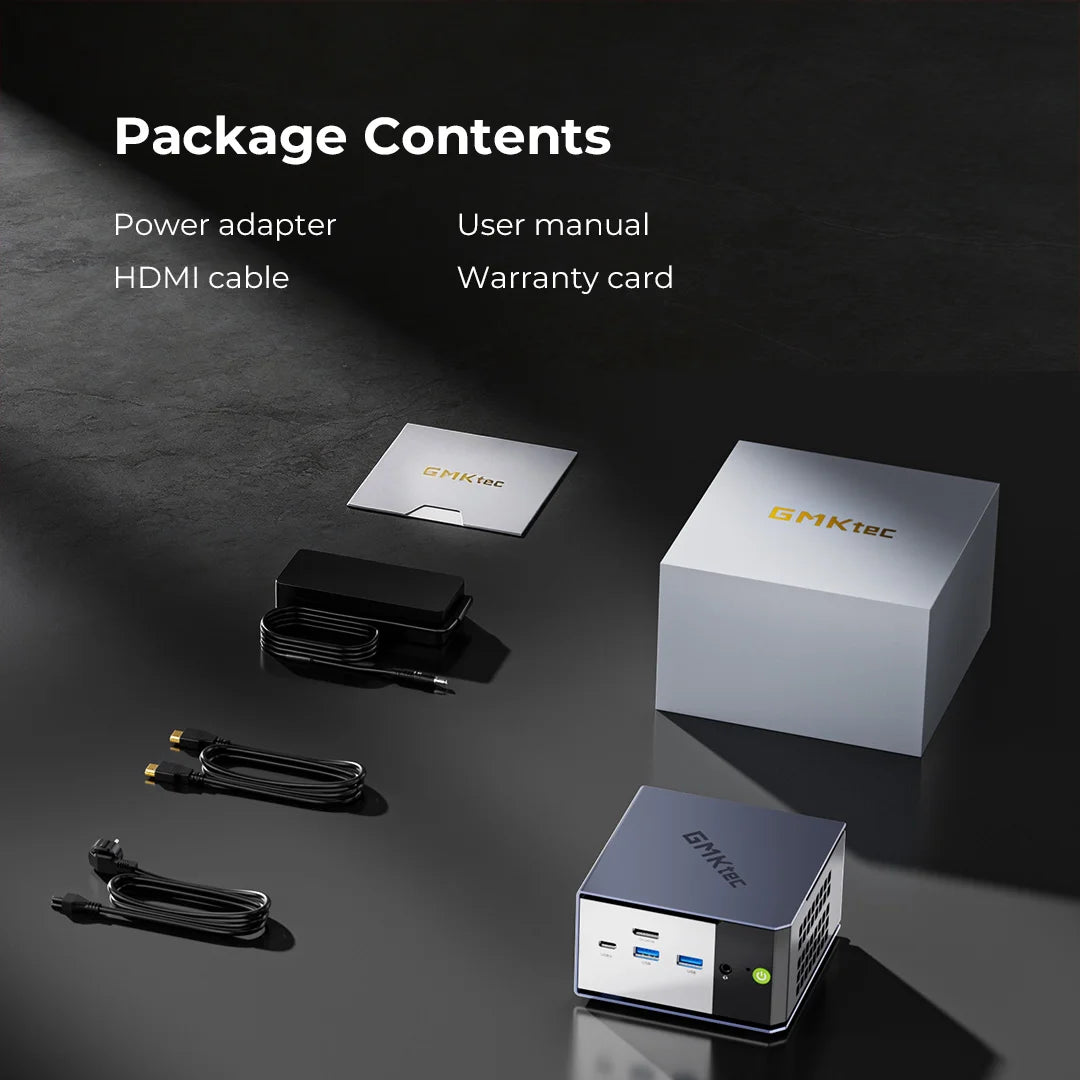

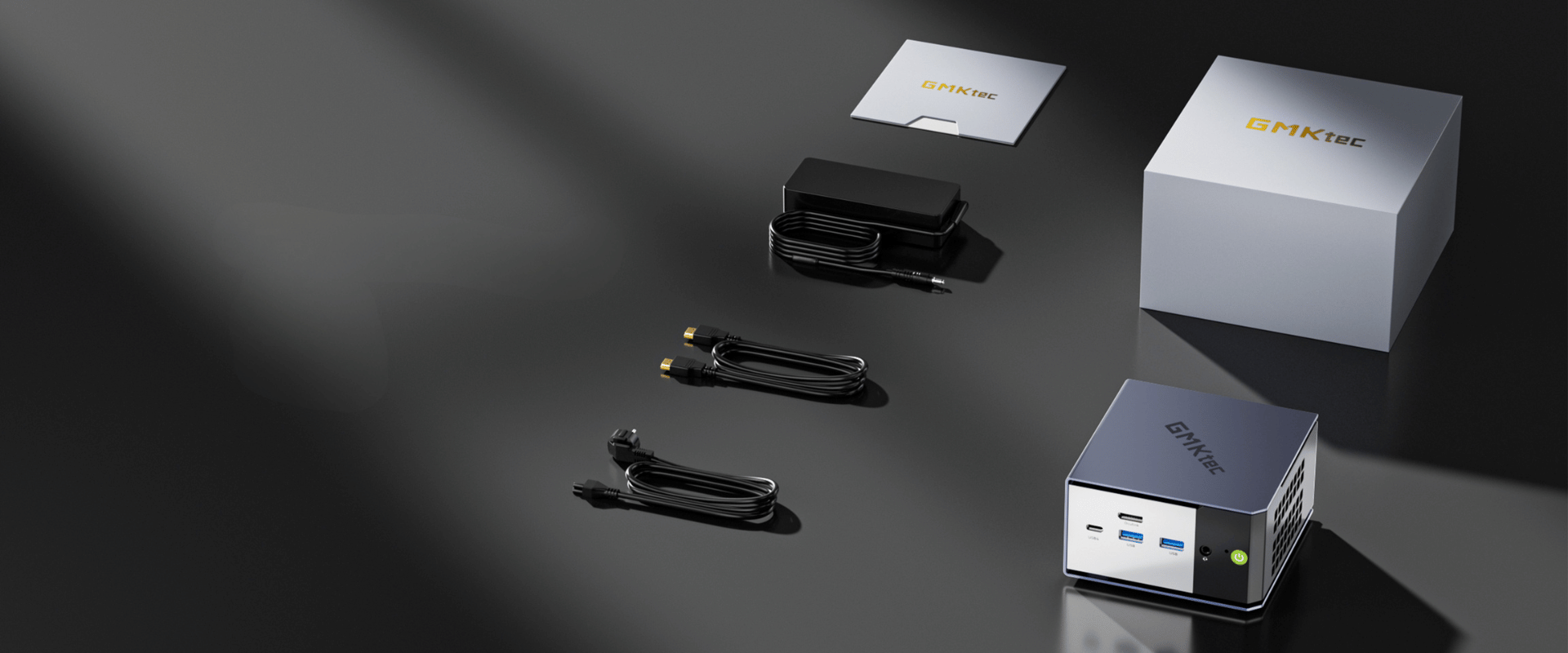

| Packaging List |
User Manual Warranty Card Power Adapter HDMI Cable |
