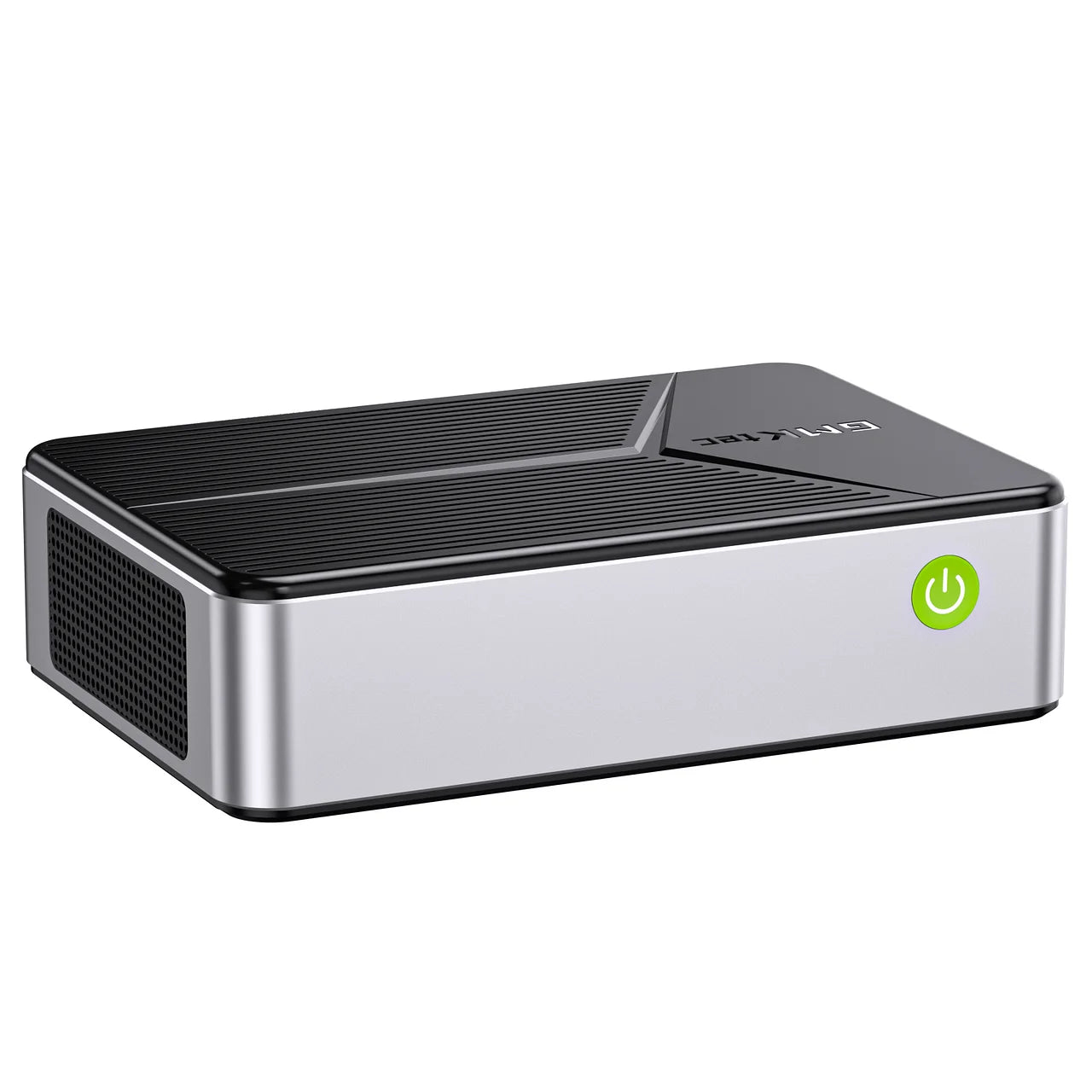

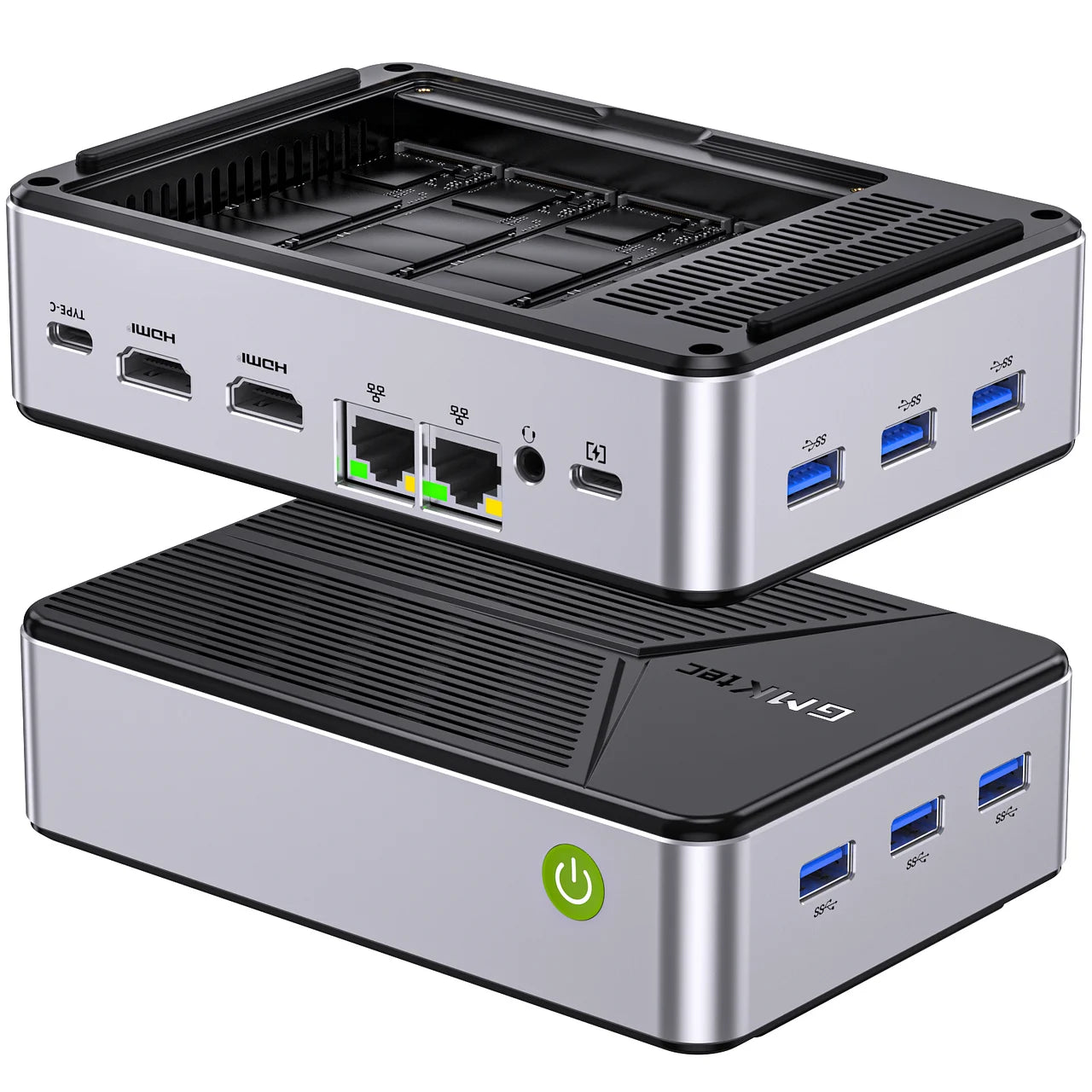

GMKtec NucBox G9 Mini PC Intel® Twin Lake N150 Dual-system 4-bay NAS
GMKtec NucBox G9 Mini PC Intel® Twin Lake N150 Dual-system 4-bay NAS
Regular price
$189.99
Sale price
$189.99
Regular price
Couldn't load pickup availability
Limited time offer
Get $20 off when you spend $1,000 or more! Learn more
Payment & Security
Payment methods
| Parameter | Details |
|---|---|
| Model | GMKtec NucBox G9 |
| CPU Model | Intel® Processor N150 |
| CPU | Intel® Twin Lake N-Series Processor, Quad-Core, Four-Thread, Intel 7 process, Max Turbo Frequency up to 3.6GHz, 6MB Cache, TDP 6W |
| CPU Socket / Package | FCBGA1264 Package, 35 × 24 mm |
| GPU | Intel® Graphics, 24 Execution Units, up to 1000MHz |
| Memory (RAM) | On-board LPDDR5 Memory, 12GB standard configuration, supports up to 16GB |
| Storage (ROM) | 64GB eMMC + 512GB M.2 2280 NVMe SSD |
| Storage Expansion | Supports up to 4 × M.2 2280 PCIe SSDs, up to 4TB per slot, for a maximum of 16TB |
| Graphics Output | Triple display output via 2 × HDMI + 1 × full-function Type-C, supports up to 4096 × 2160 resolution |
| Network |
Wi-Fi 6 (Intel AX101, up to 600 Mbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel i226) |
| Power |
Built-in coin cell battery USB-C Power Input, 19V / 3.42A |

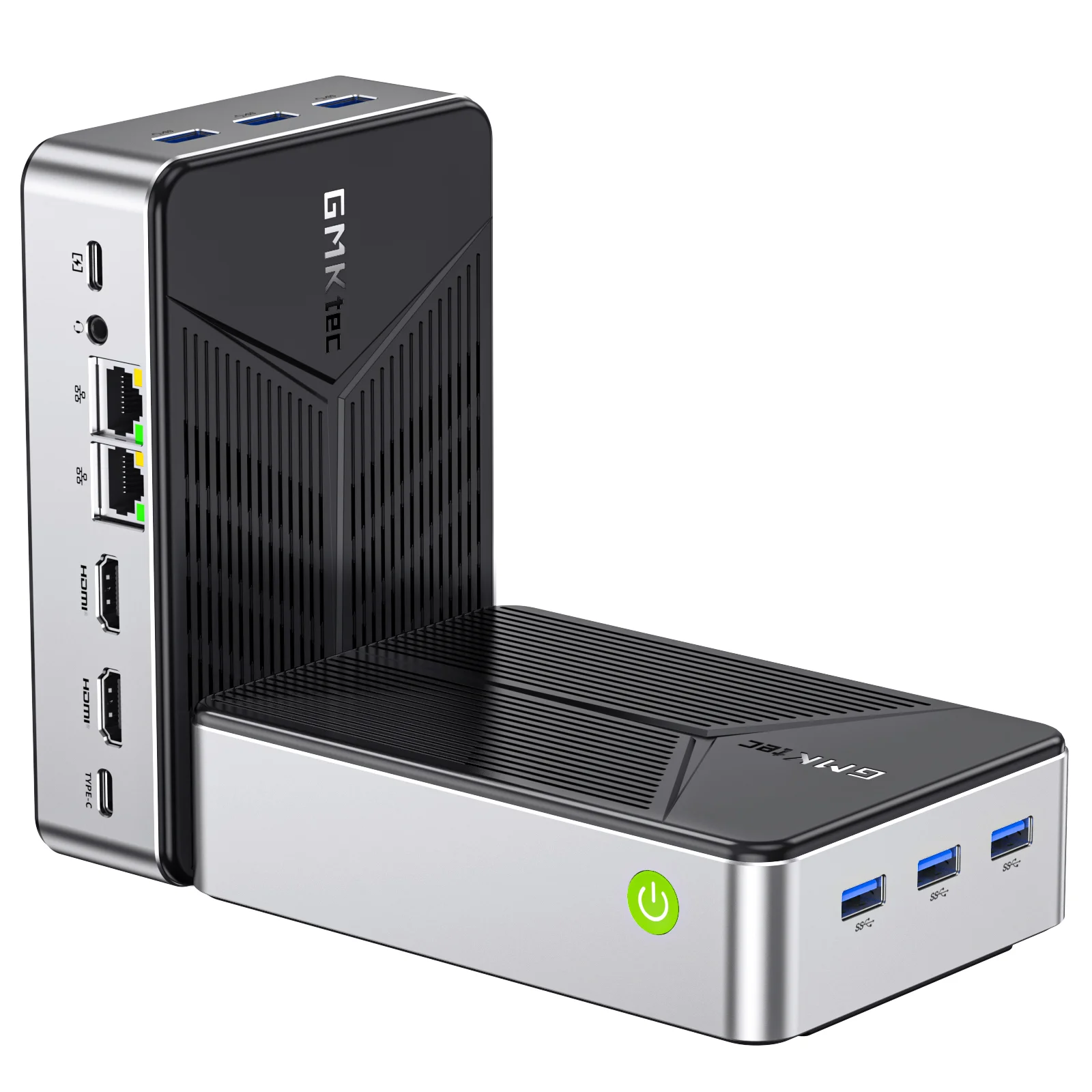

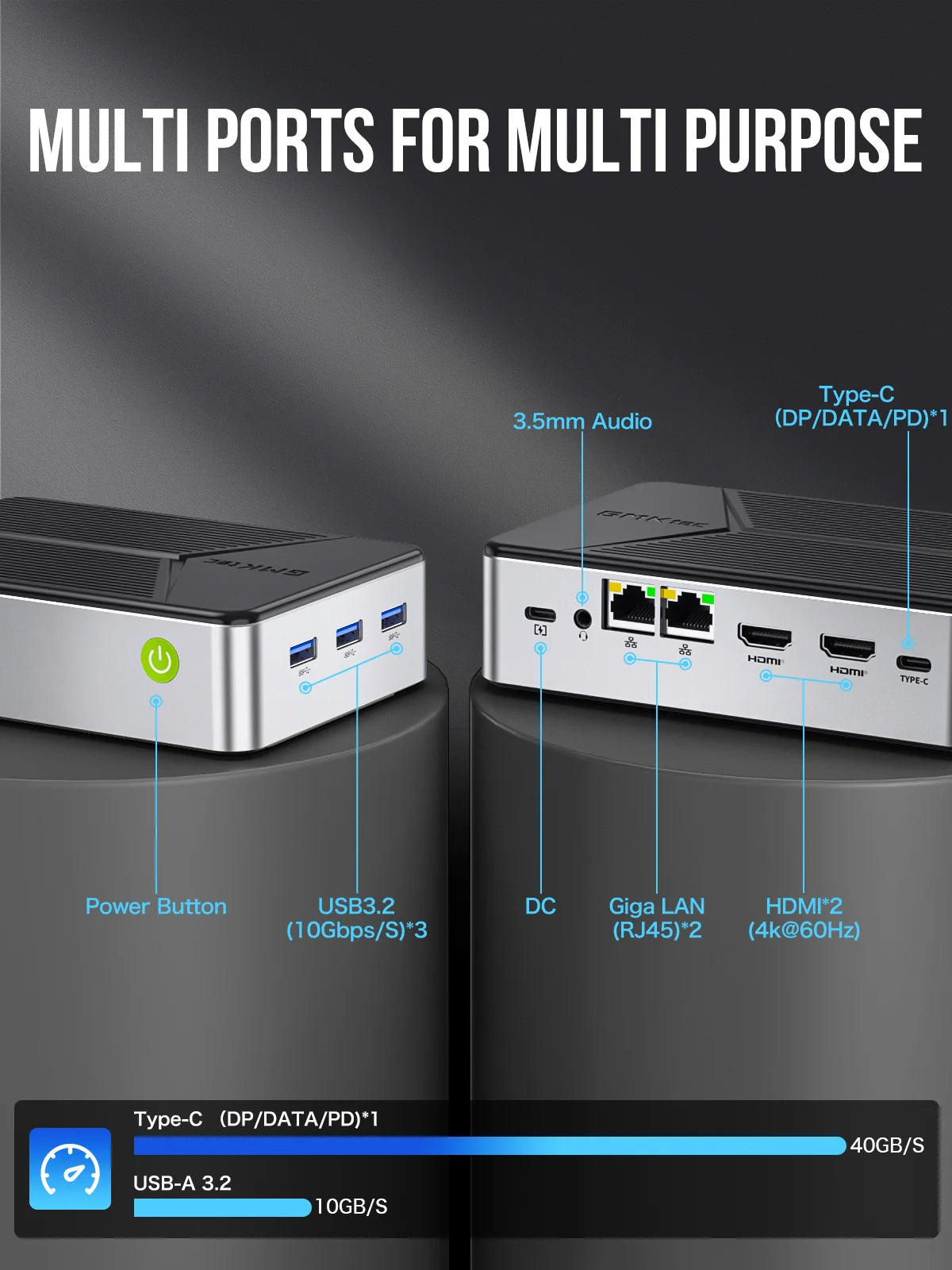

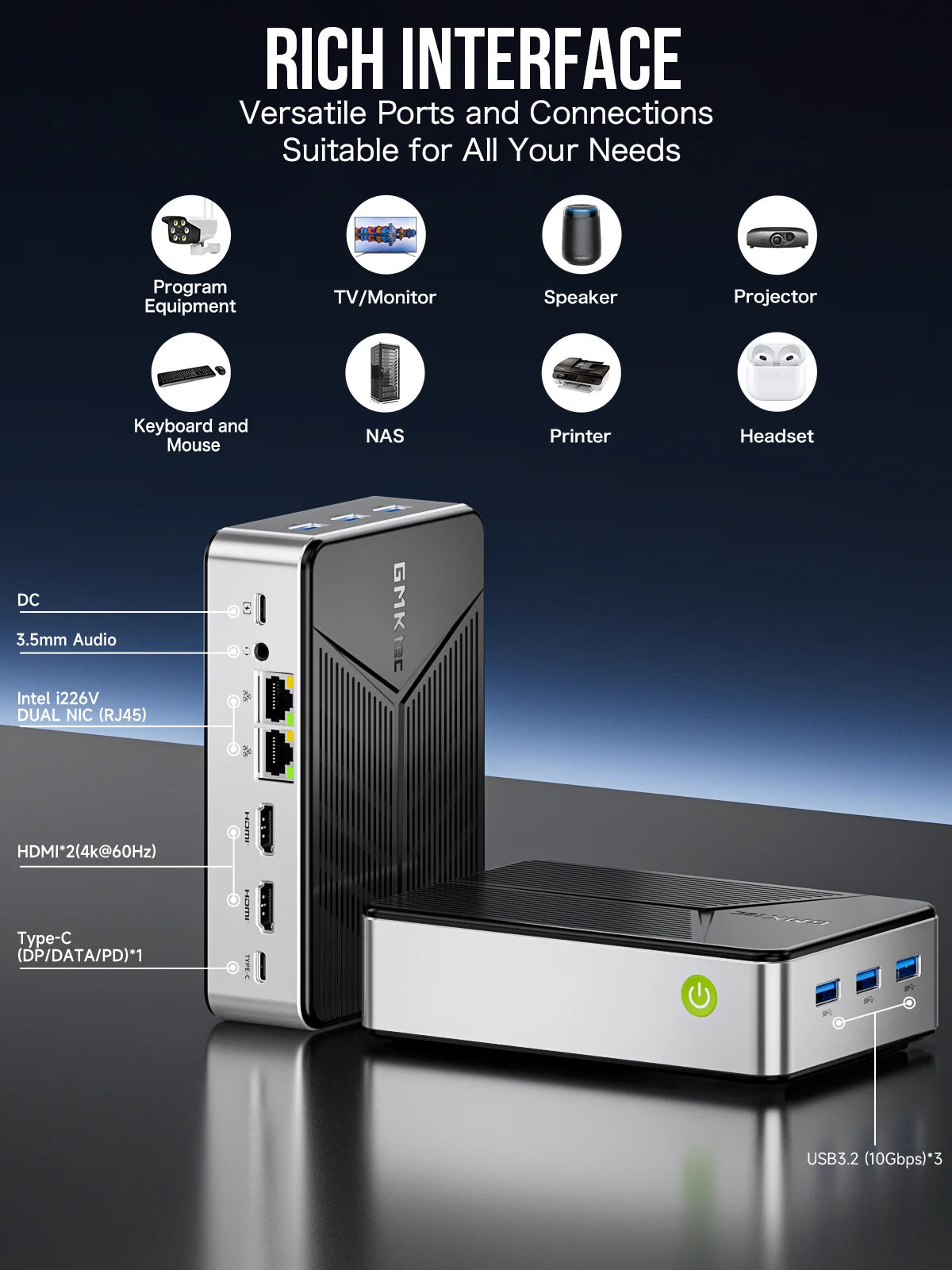

| External Ports |
USB-A: 3 × USB 3.2 Gen2 (10Gbps) Type-C: 1 × USB-C (DP / Data / PD, full-function) HDMI: 2 × HDMI (up to 4096 × 2160 @ 60Hz) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet |
| Operating System | Windows 11 Pro + Ubuntu |
| Language Support | 15 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic, Thai |
| Chassis Dimensions | 146.6 × 100.25 × 38.75 mm |
| Color | Black Top Cover / Black Bottom Cover / Silver Middle Frame |
| Working Temperature | 0°C to 40°C |
| Warranty | 1-Year Limited Warranty |
| Certifications | CE, FCC, CCC, RoHS |

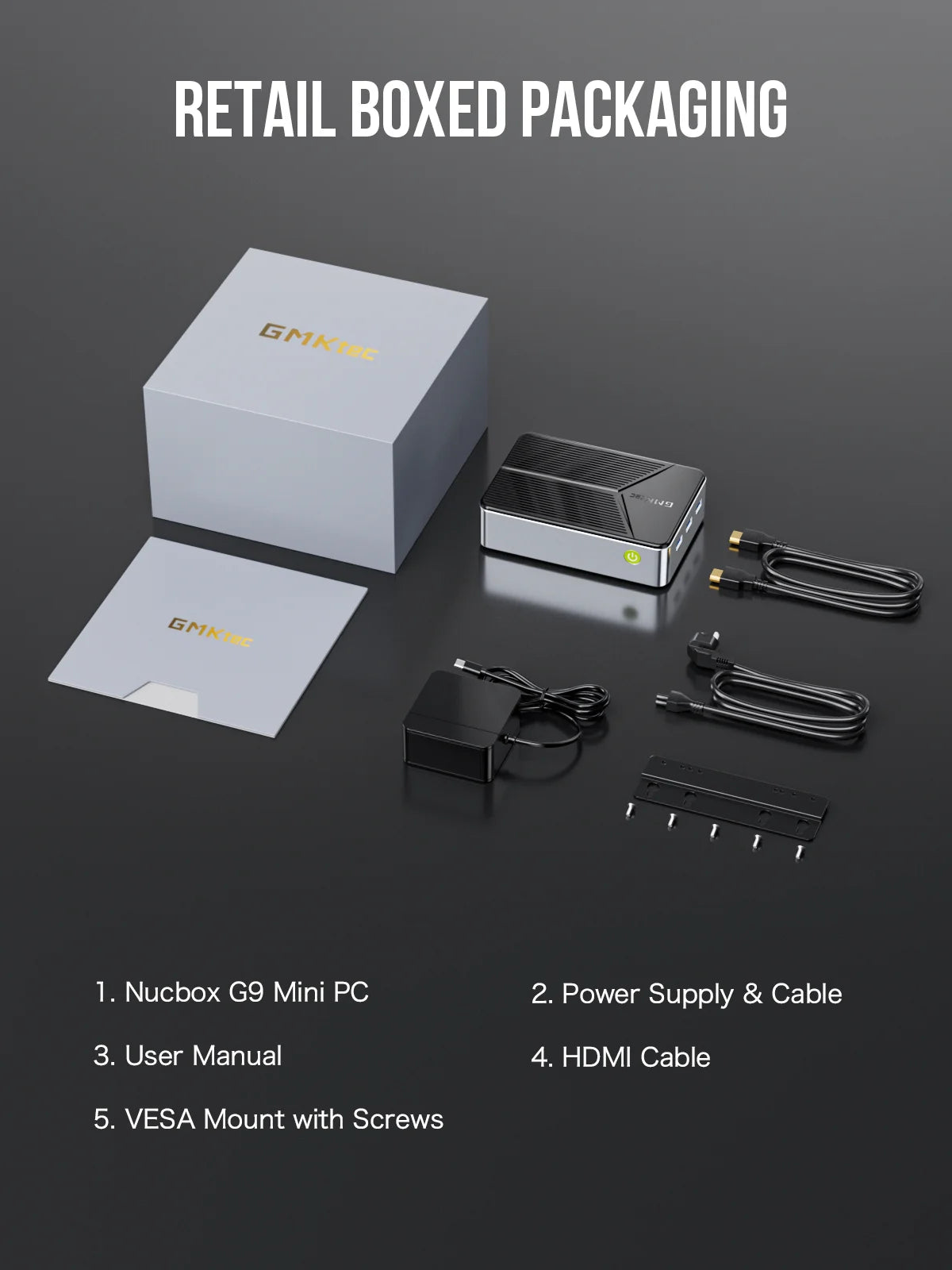

| Packaging List |

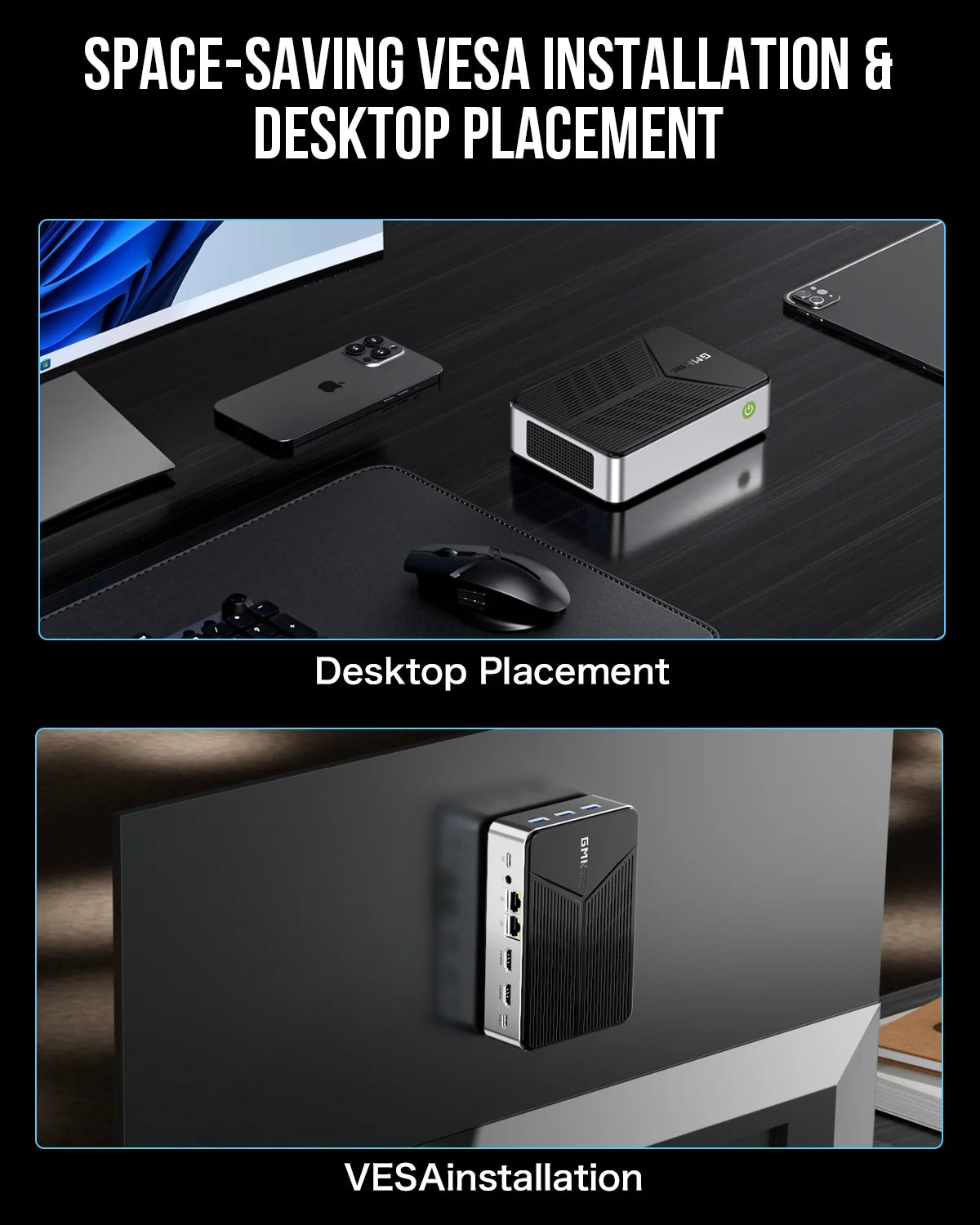

User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
9 Premium Features

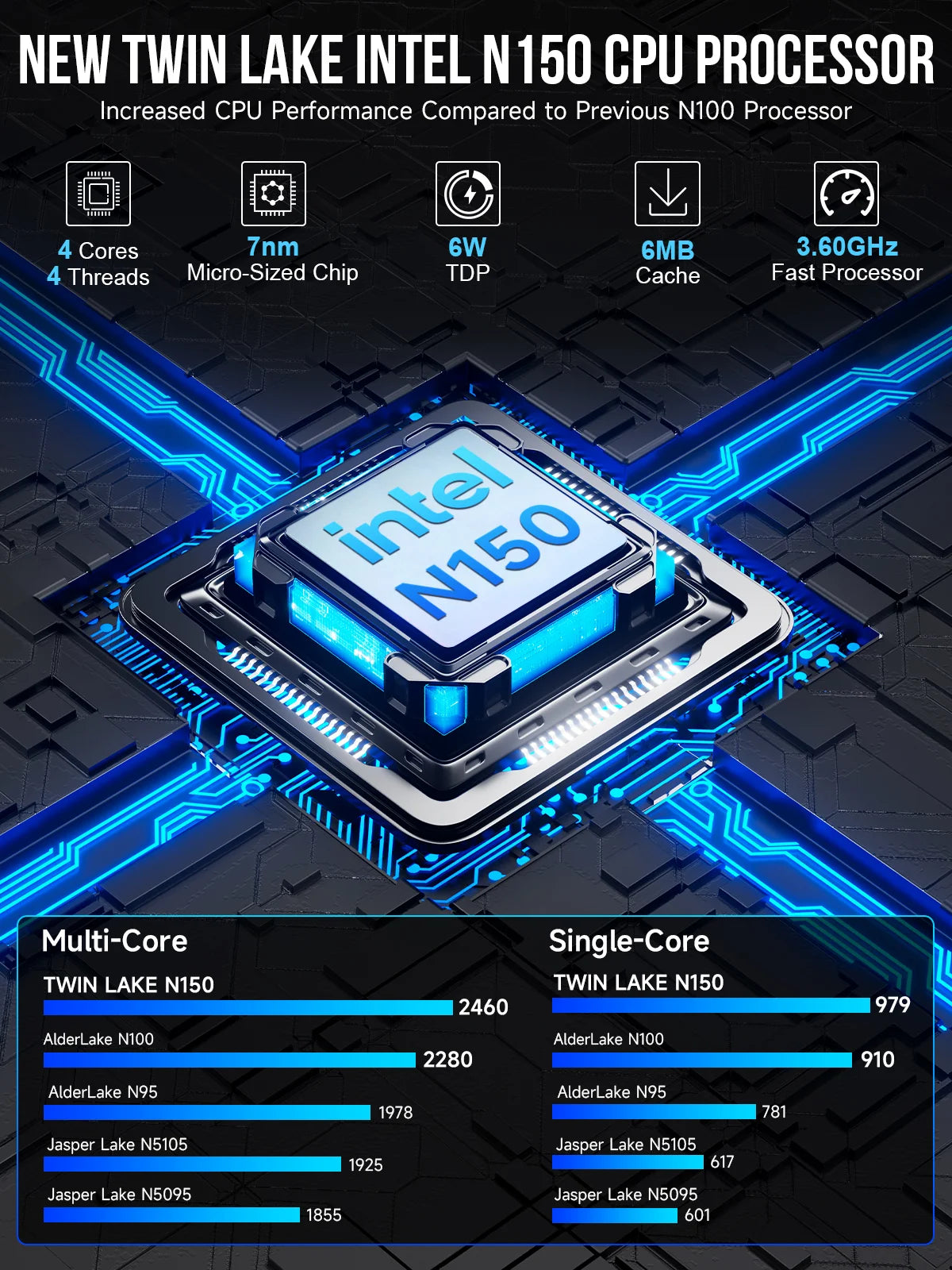

Intel Twin Lake N150
4 Cores, 4 Threads，3.6GHz
Intel UHD Graphics
1000 MHz
Type-C Power Supply
12V / 3A

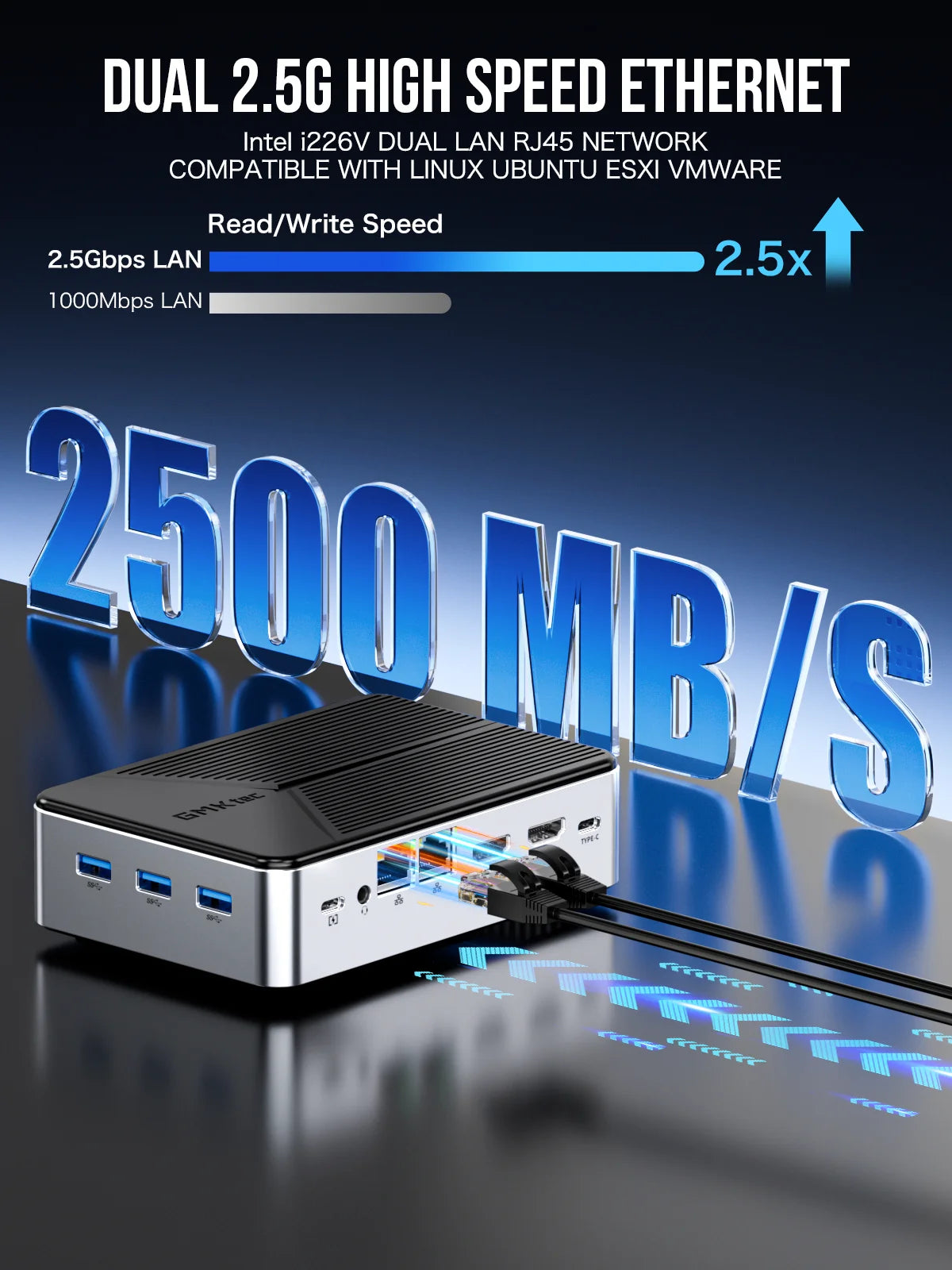

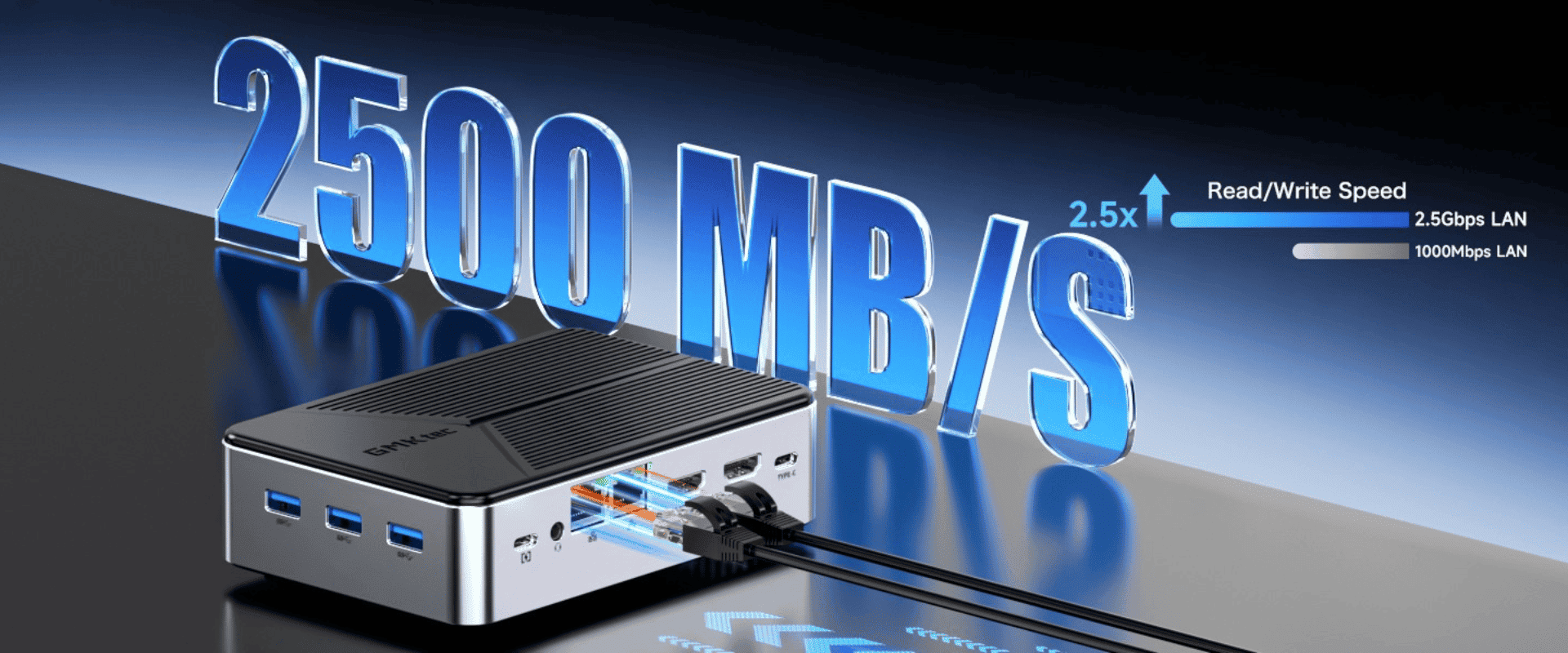

Dual LAN
2500Mbps*2

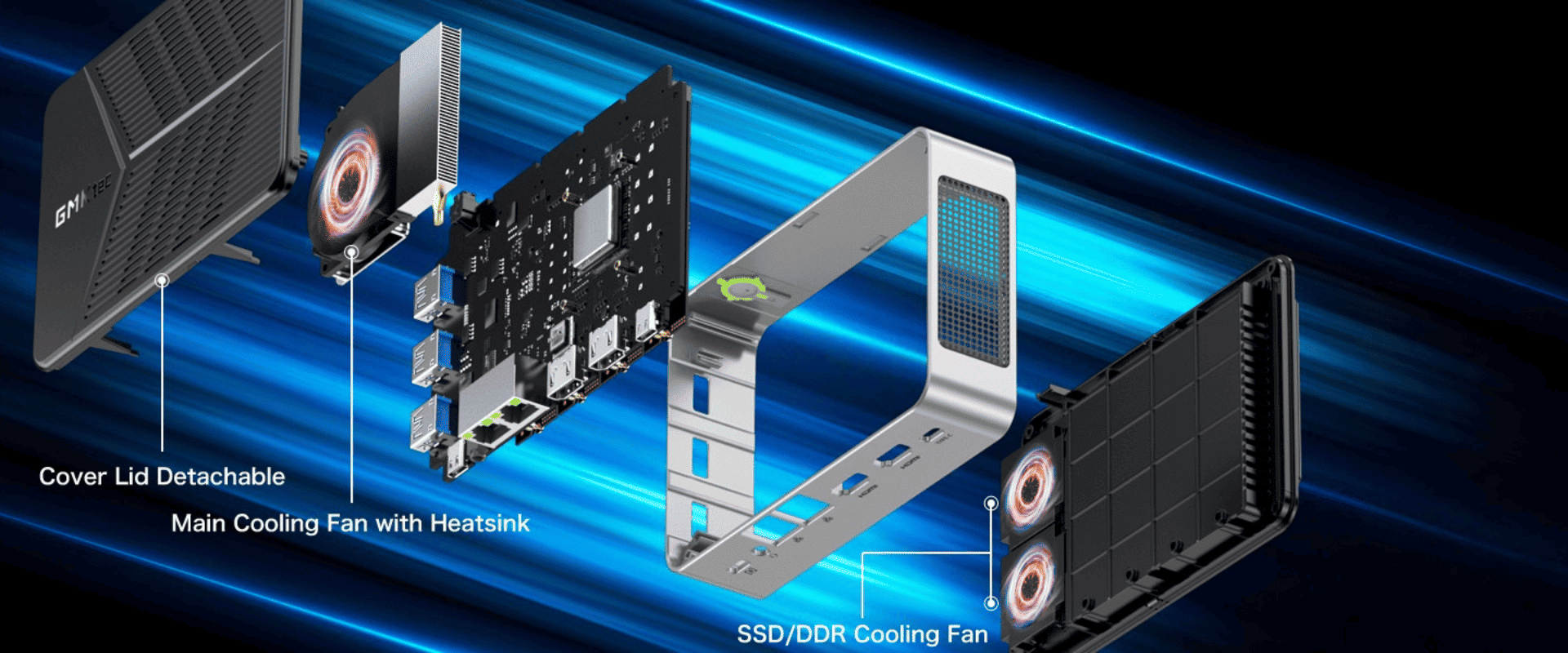

Triple Sient Cooling Fans
DDR/SSD/CPU Advanced Cooling

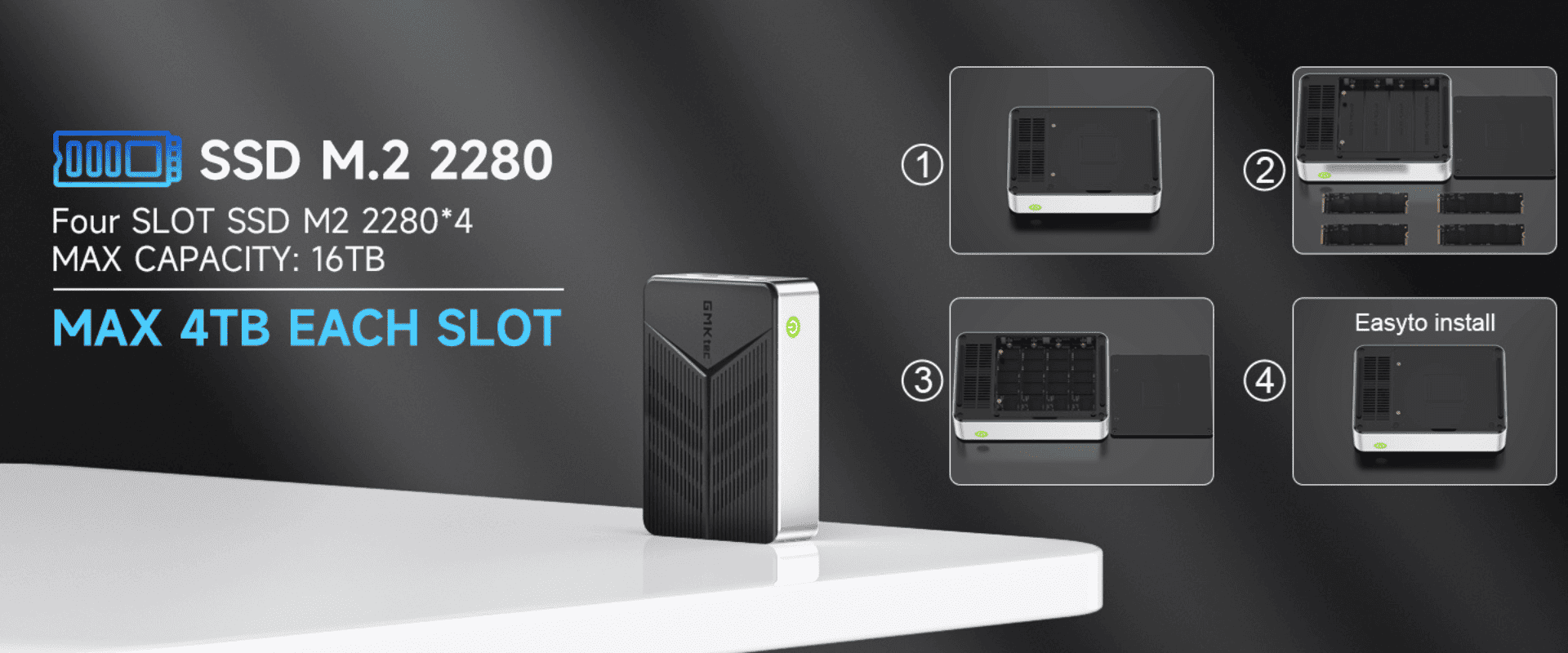

4 SSD Slots
PCle 3.0 M2 2280 SSD
4'SSD Slot, Max 16TB
Wireless Connection
Wi-Fi 6 + Bluetooth 5.2
Triple 4K Screen Display
2*HDMI 2.0+Type-c
LPDDR5
Up to 12GB

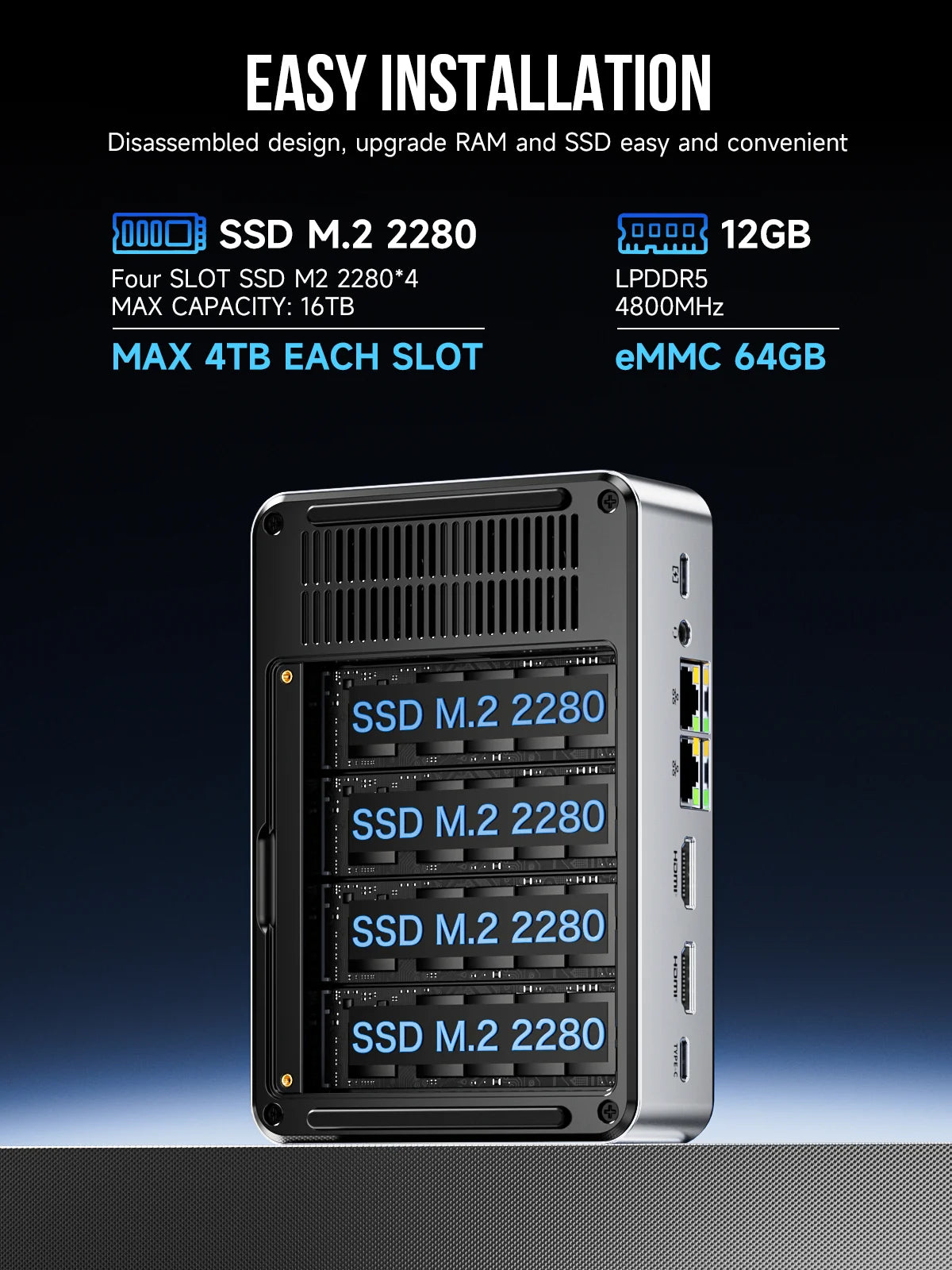

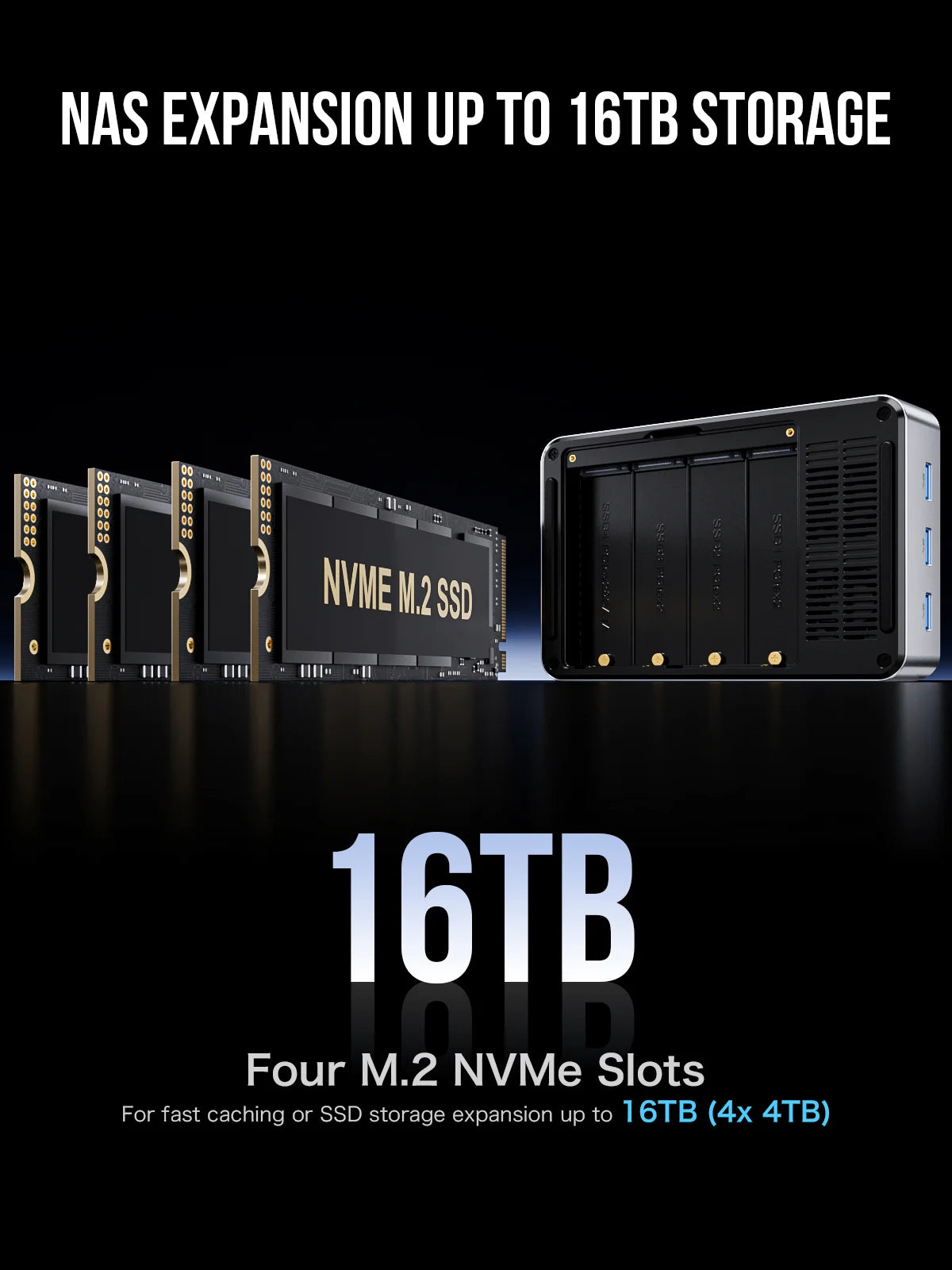

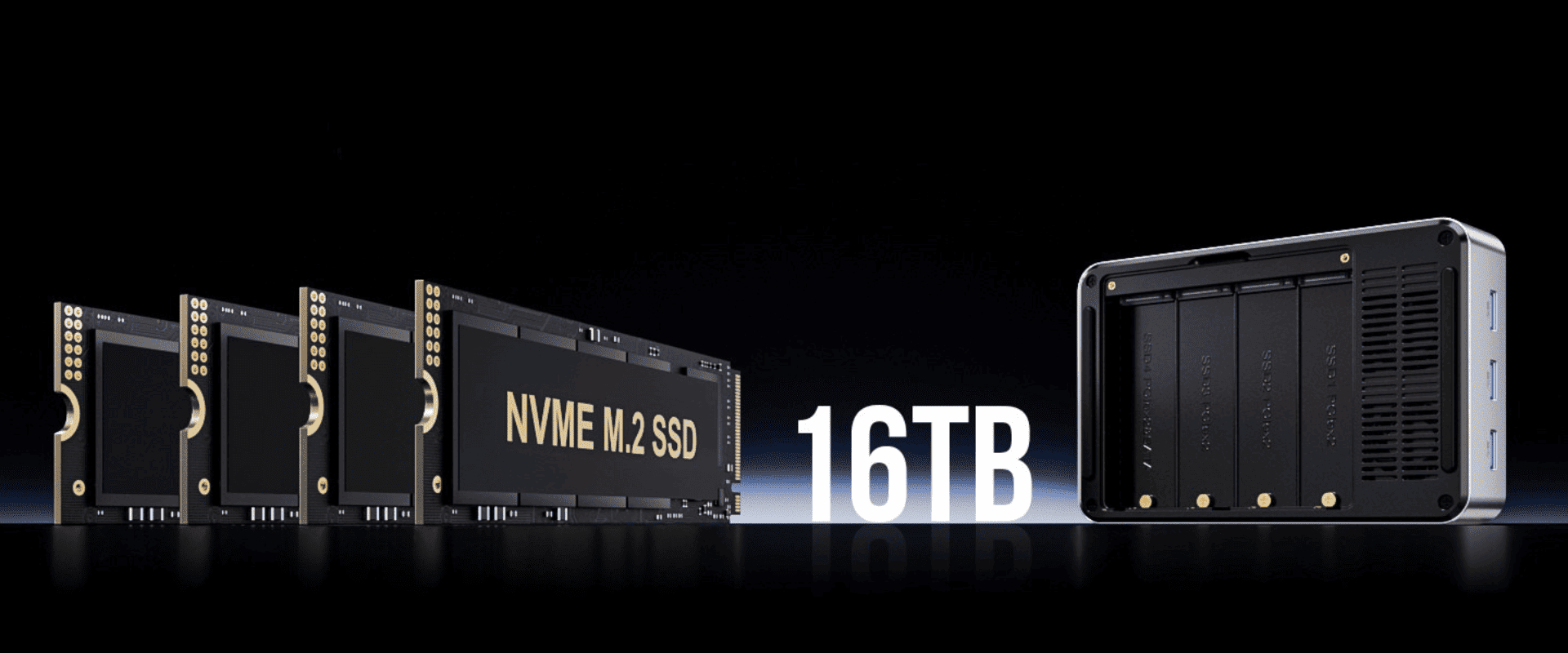

Four M.2 NVMe Slots
For fast caching or SSD storage expansion up to 16TB (4x 4TB)
One PC, Many Roles —Home, Work
