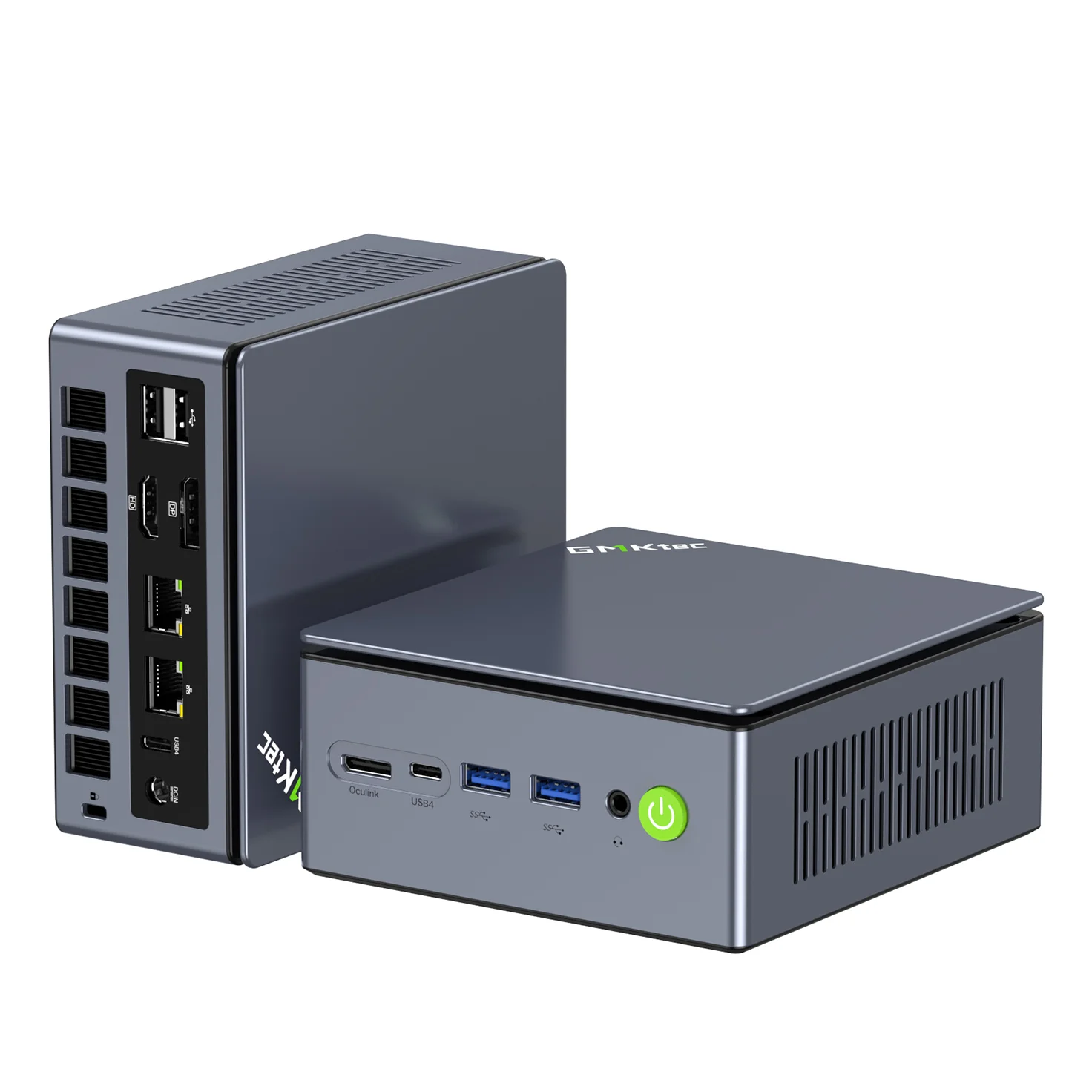

GMKtec NucBox M7 Ultra Mini PC AMD Ryzen™ 7 PRO 6850U

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

Sale

GMKtec NucBox M7 Ultra Mini PC AMD Ryzen™ 7 PRO 6850U

$309.99

$309.99 ~~$469.99~~

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

DDR + SSD: Barebone (No DDR & SSD & OS)

Barebone (No DDR & SSD & OS) 16GB RAM+512GB SSD 32GB RAM+1TB SSD

Power Plug: US

US EU UK AU

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Payment & Security

GMKtec NucBox M7 Ultra Mini PC AMD Ryzen™ 7 PRO 6850U

$309.99

$309.99 ~~$469.99~~

Parameter	Details
Model	GMKtec NucBox M7 Ultra
CPU Model	AMD Ryzen™ 7 PRO 6850U
CPU	AMD Ryzen™ PRO 6000 Series Processor, 8 Cores, 16 Threads TSMC 6nm FinFET Process Base Frequency 2.7GHz, Max Boost up to 4.7GHz 512KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache Zen 3+ Architecture
GPU	AMD Radeon™ 680M Graphics 12 Cores, up to 2200MHz

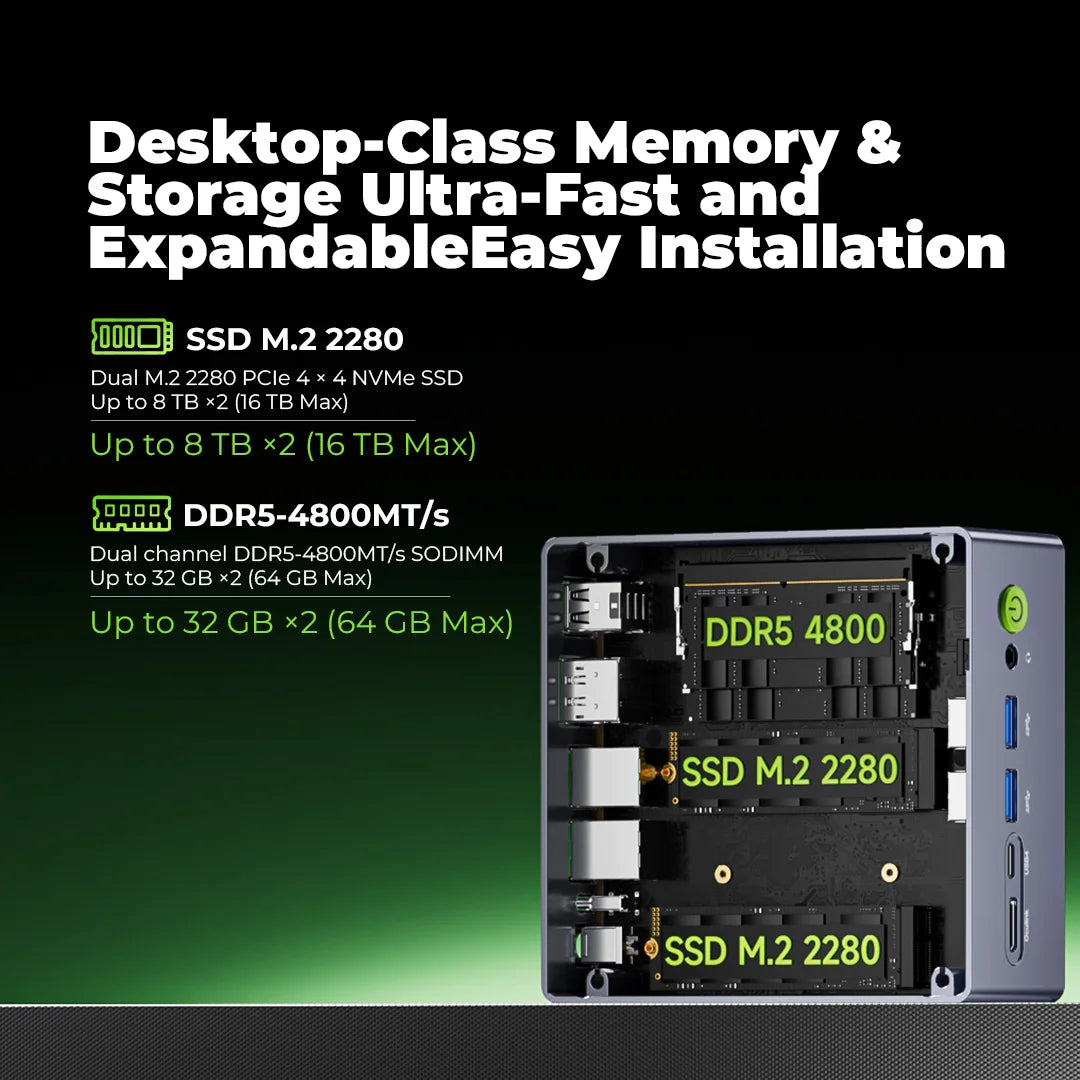

Memory (RAM)	2 × SO-DIMM Slots DDR5-4800 Memory 16GB / 32GB configurations Supports up to 64GB
Storage (ROM)	PCIe 3.0 M.2 2280 SSD 512GB / 1TB / 2TB options
Storage Expansion	2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 16TB)
Graphics Output	Quad Display Output via HDMI + DisplayPort + 2 × USB4 Supports up to 8K Resolution
Network	Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel I226-V)
Power	Built-in Coin Cell Battery DC Power Adapter 19V / 6.32A

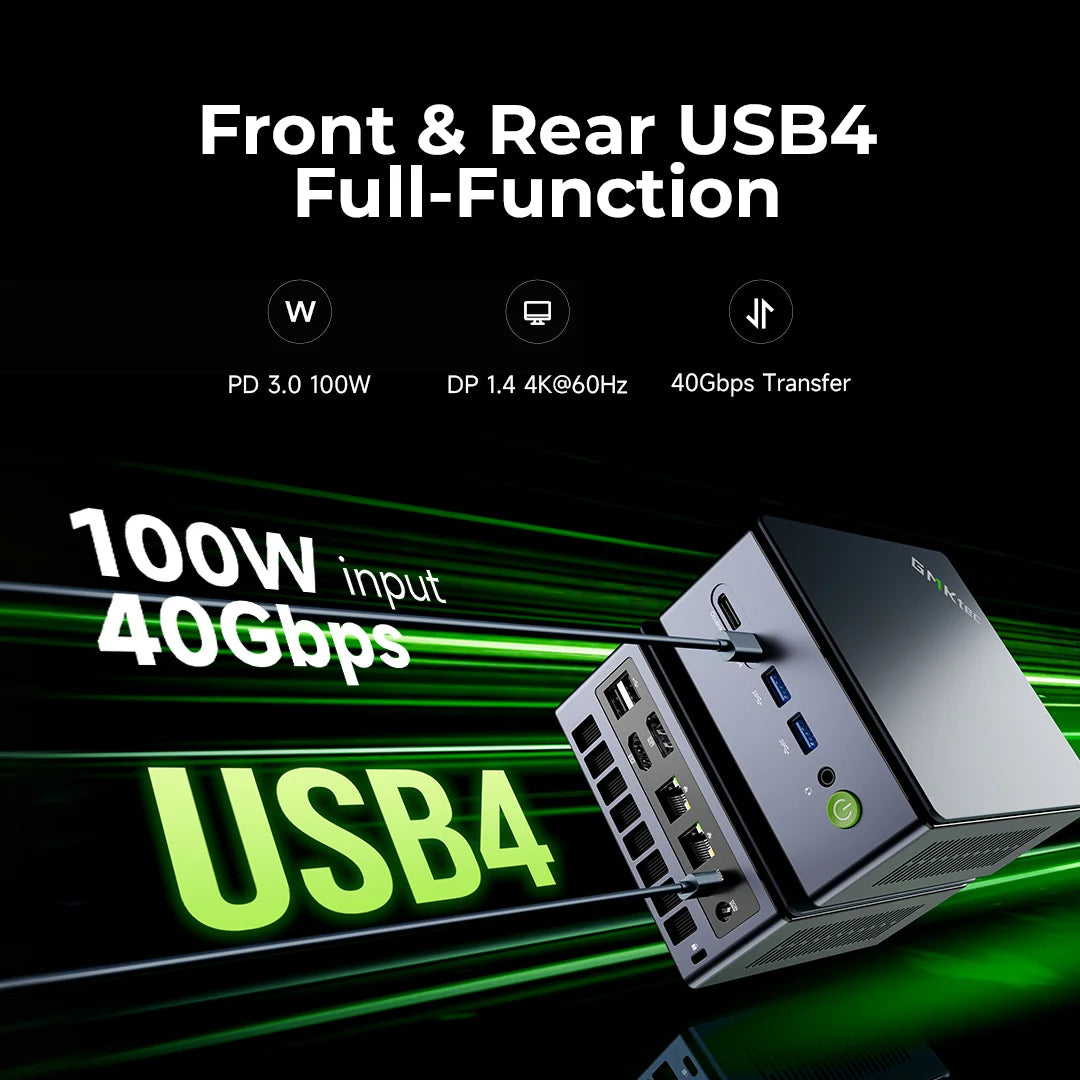

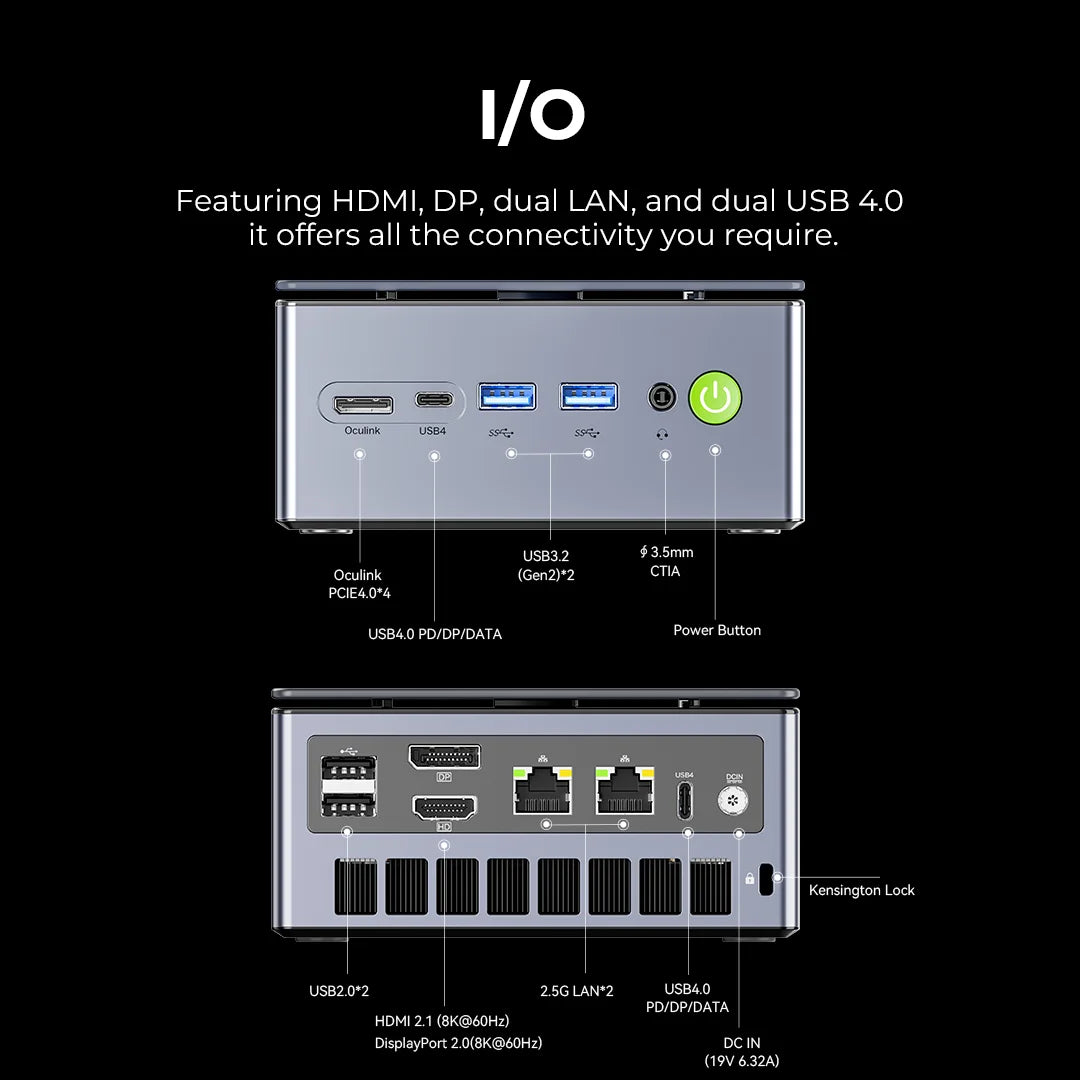

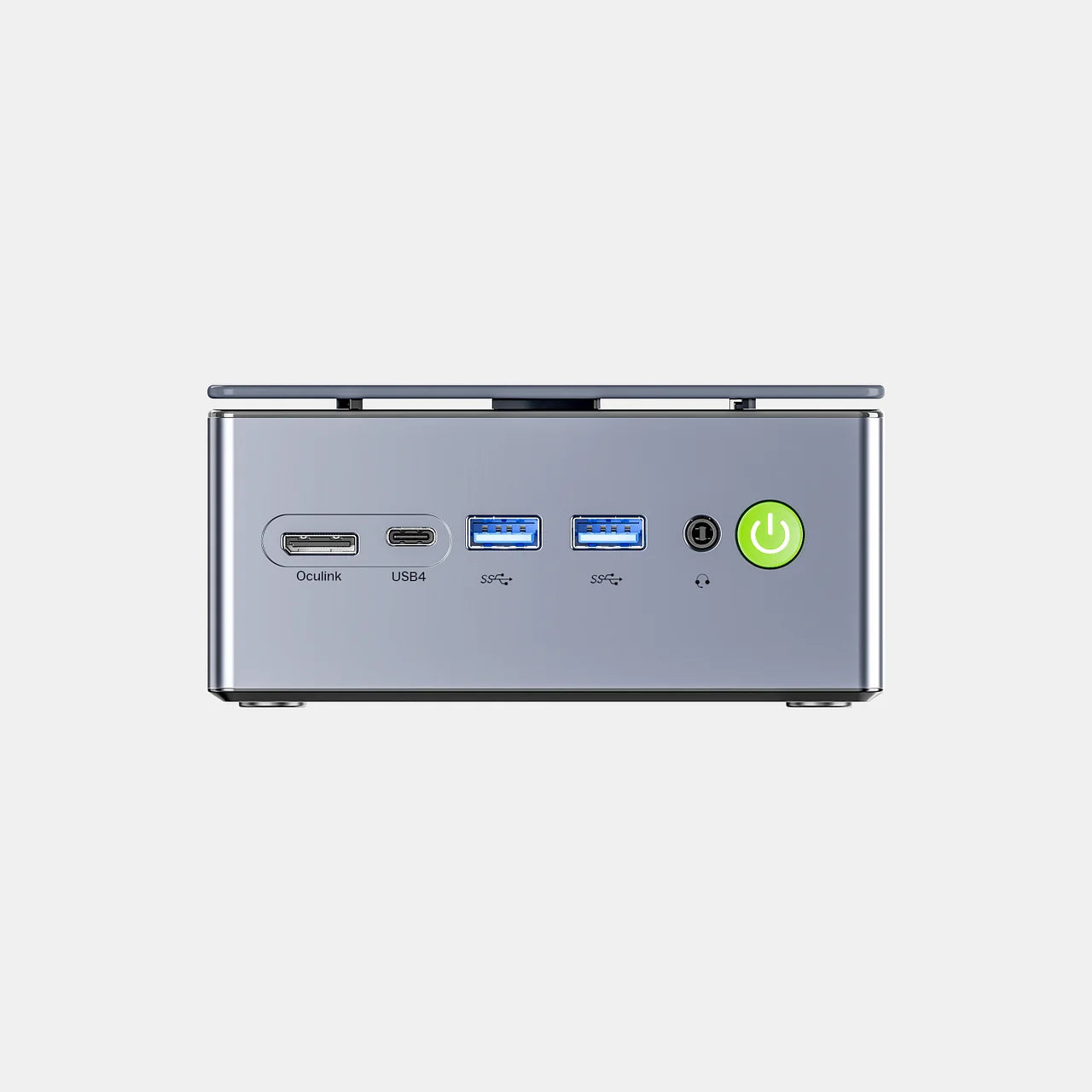

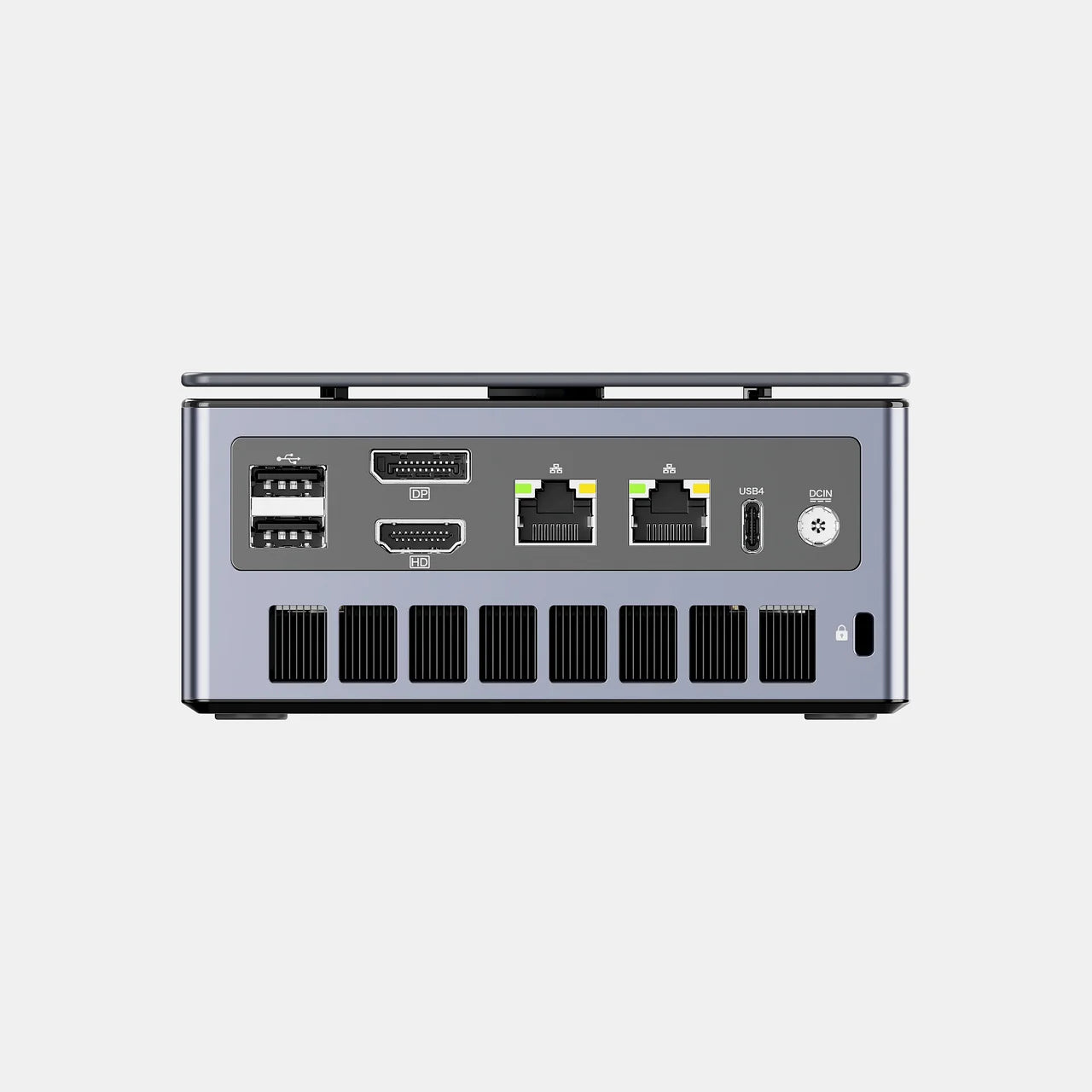

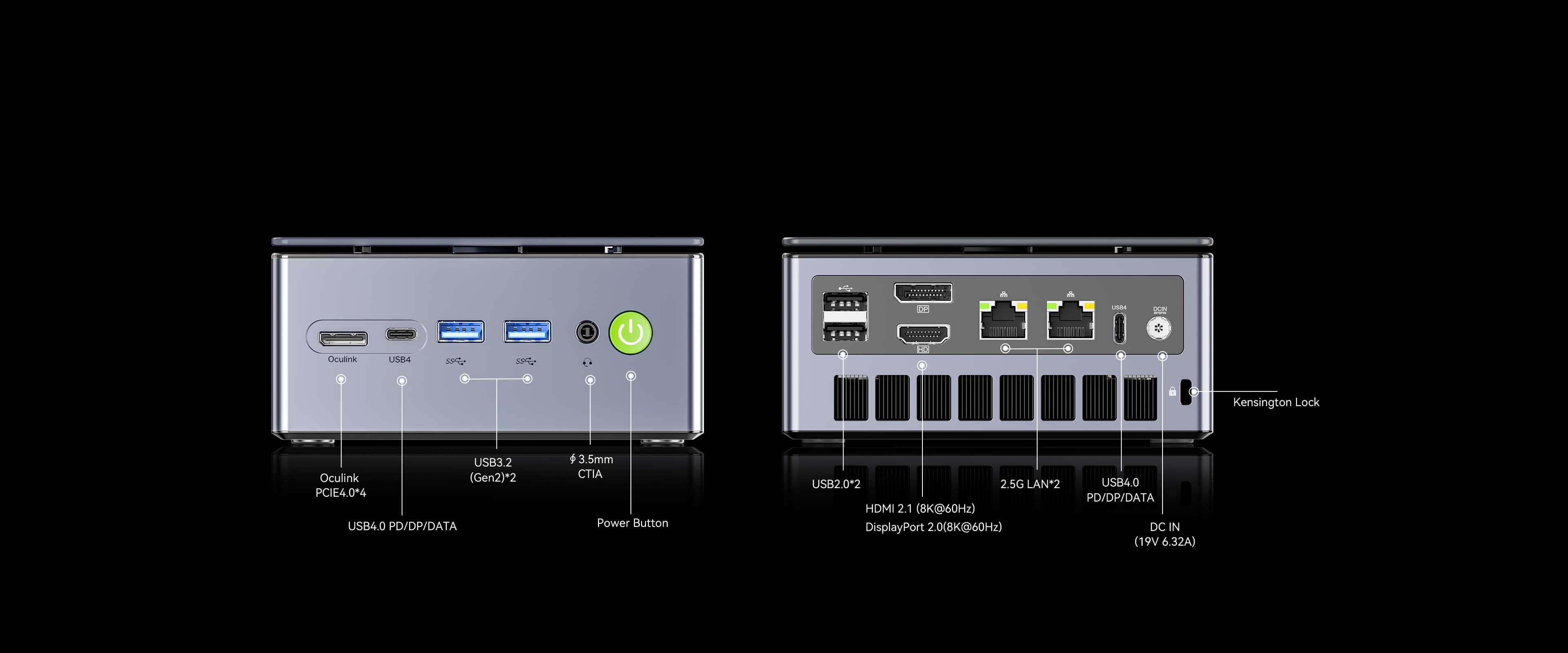

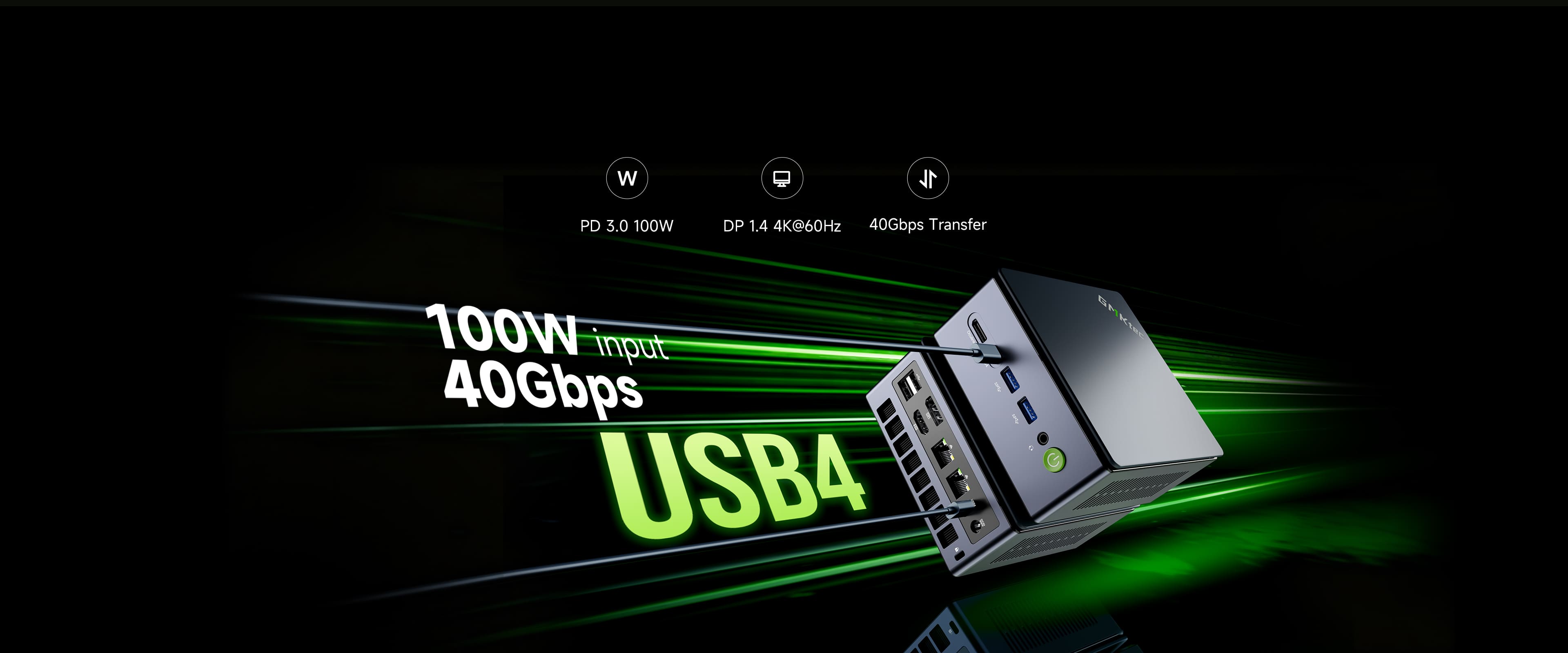

External Ports	USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0 USB4: 2 × USB4 Full-Function Ports (40Gbps / PD / DisplayPort) HDMI: 1 × HDMI 2.1 (up to 8K@60Hz) DisplayPort: 1 × DisplayPort 2.0 (up to 8K@60Hz) OCulink: 1 × OCulink PCIe Gen4 ×4 Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm)

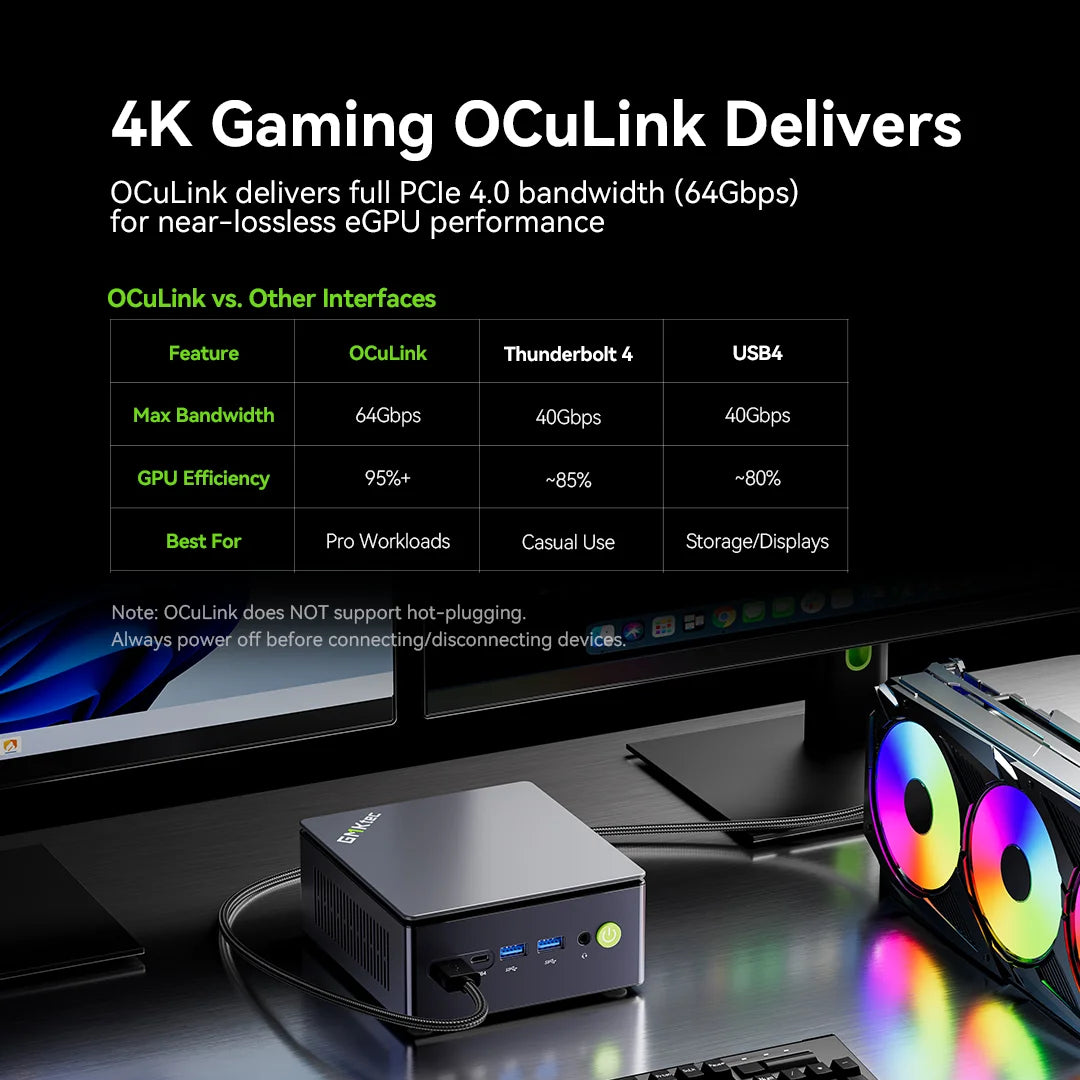

OCulink Notice	The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off.
Operating System	Windows 11 Pro
Language Support	14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
Chassis Dimensions	132 × 125 × 58 mm
Weight	604 g
Color	Metallic Gray
Working Temperature	0°C – 40°C
Warranty	1-Year Limited Warranty
Certifications	CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report

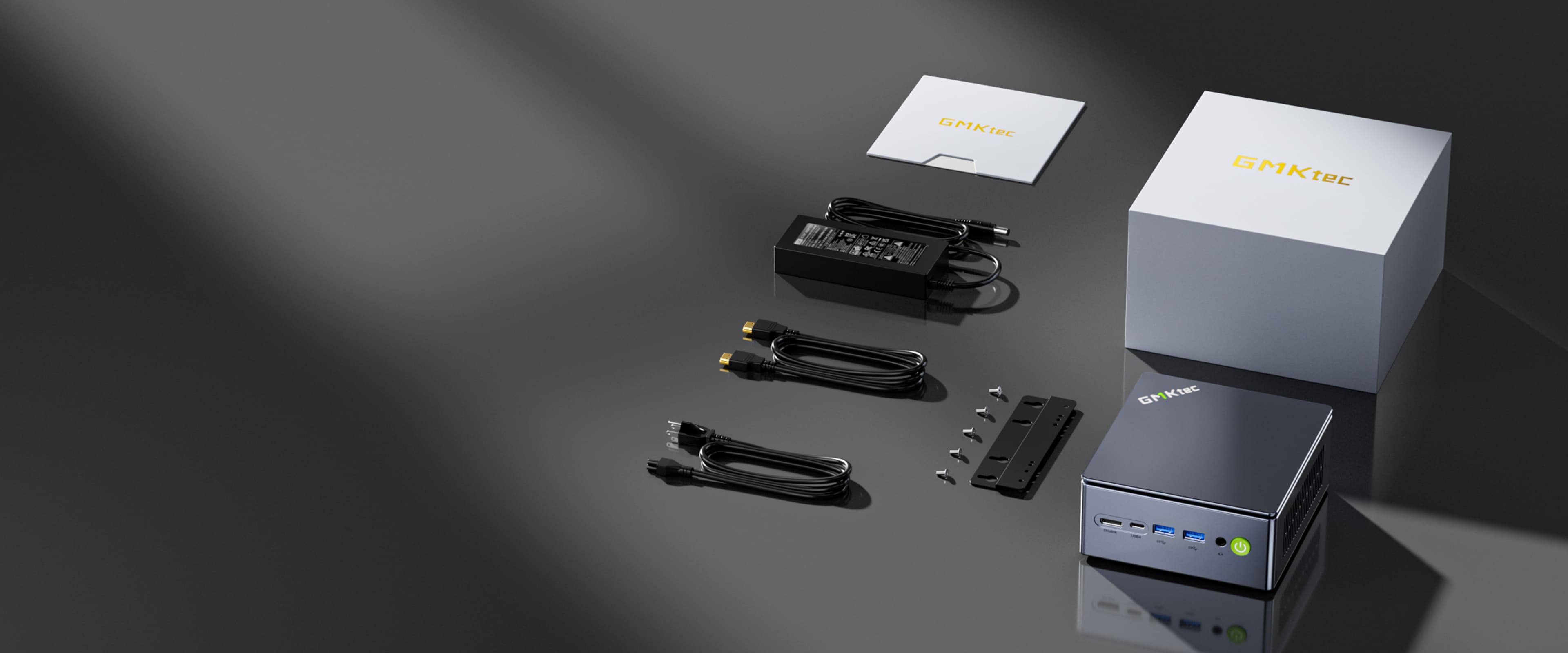

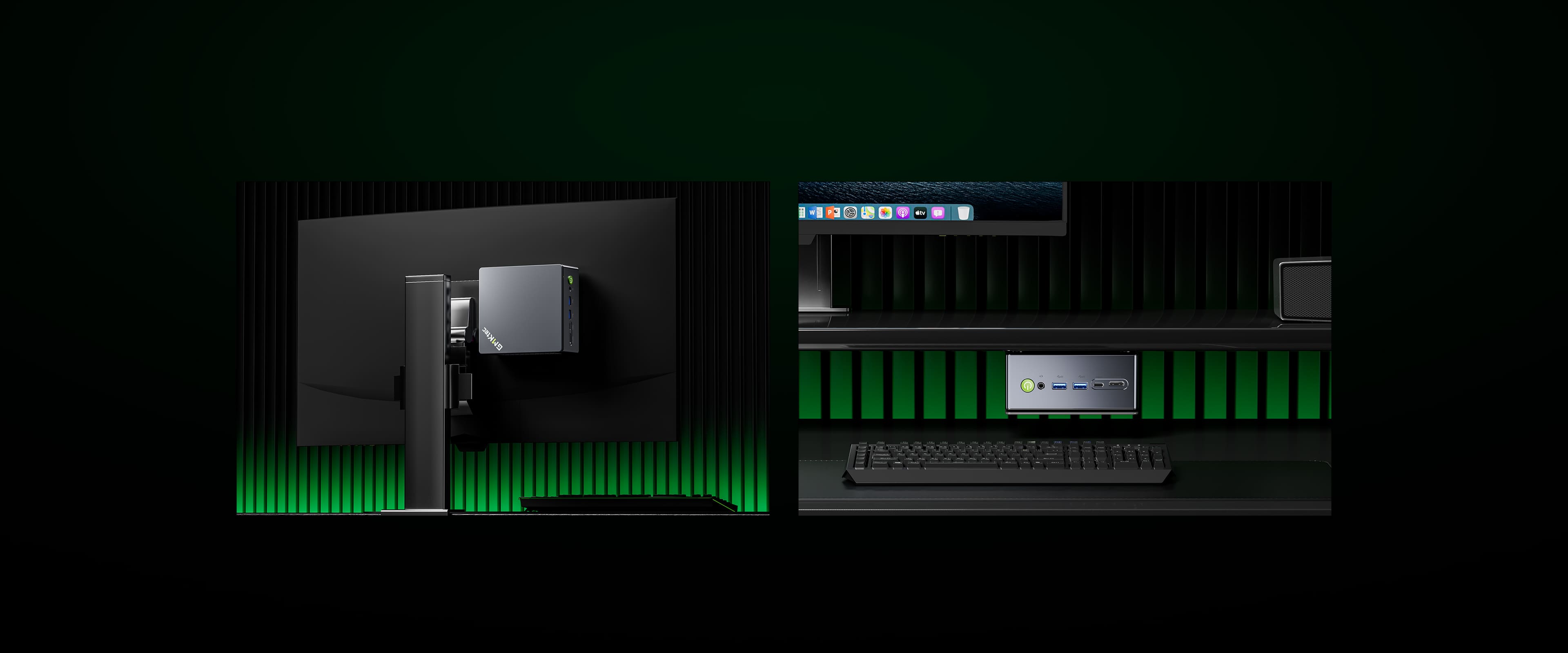

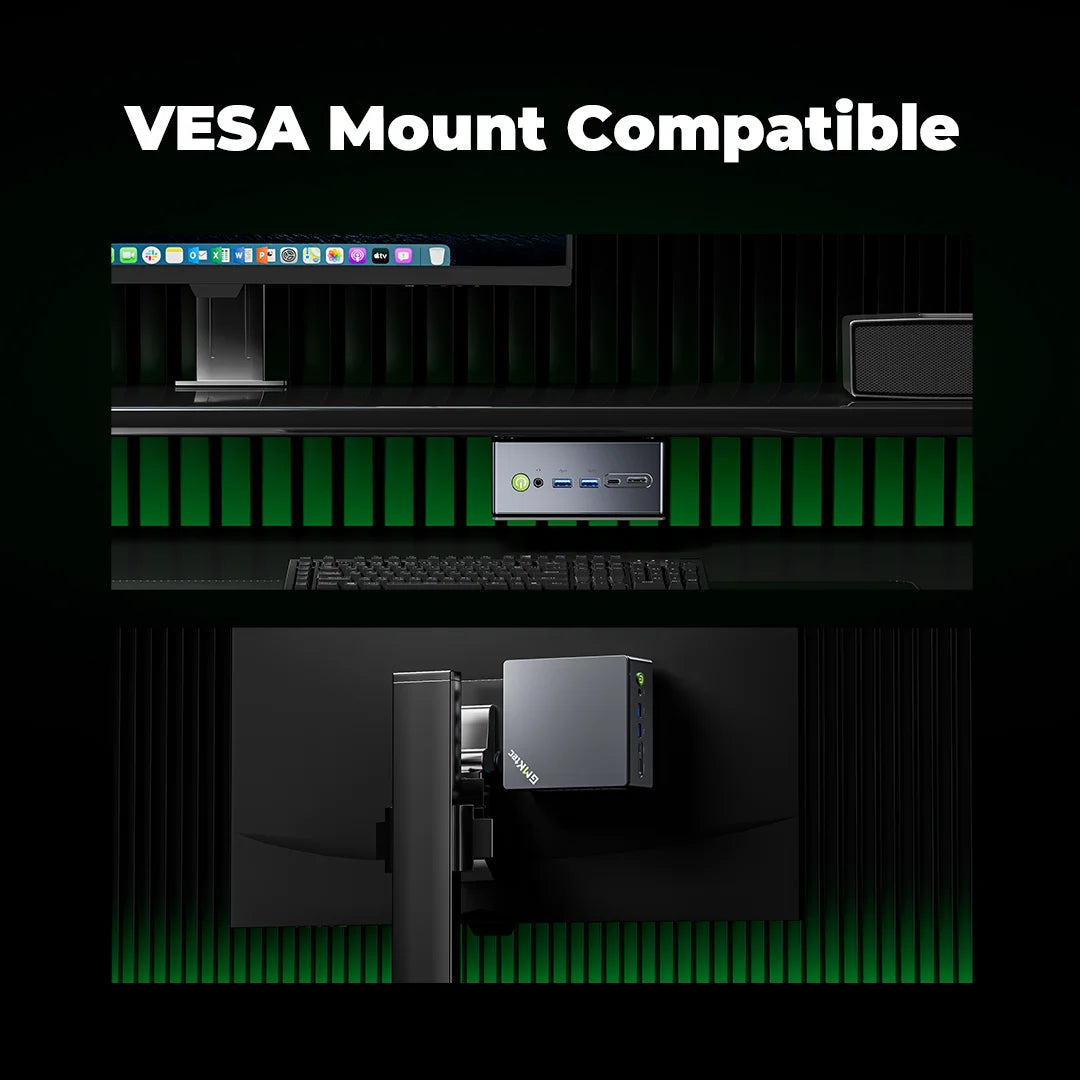

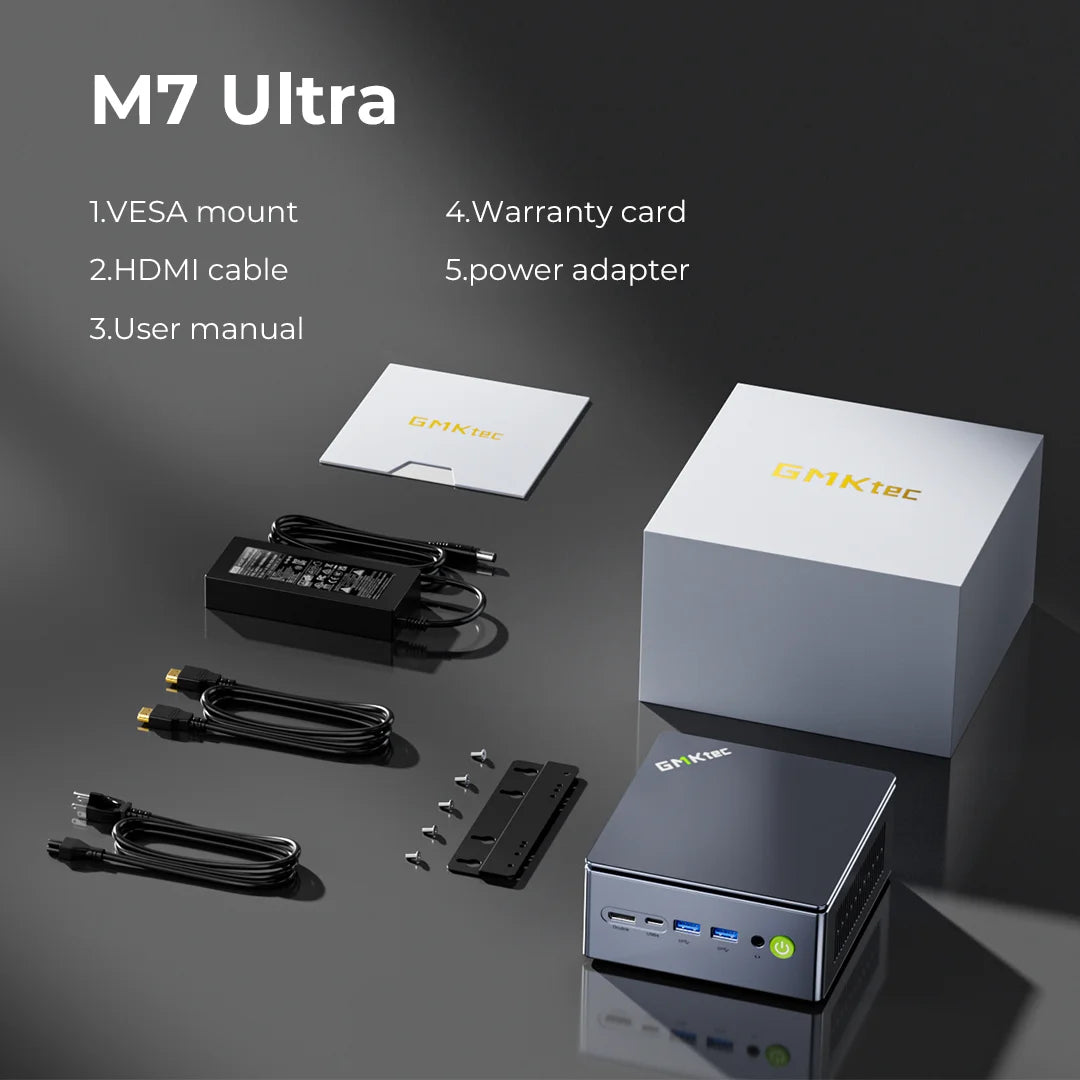

Packaging List	User Manual Warranty Card Power Adapter HDMI Cable VESA Mount Bracket Transparent Top Cover

GMKtec M7 Ultra

AMD Ryzen™ 7 PR0 6850U
Mini, Mighty, Upgraded

9 Premium Features

AMD Ryzen™ 7 PR0 6850U

8 Cores, 16 Threads，4.7GHz

AMD Radeon™ 680M

2200 MHz

Multi-OS Support

Windows 11 Pro / Ubuntu (Linux)

OCuLink interface

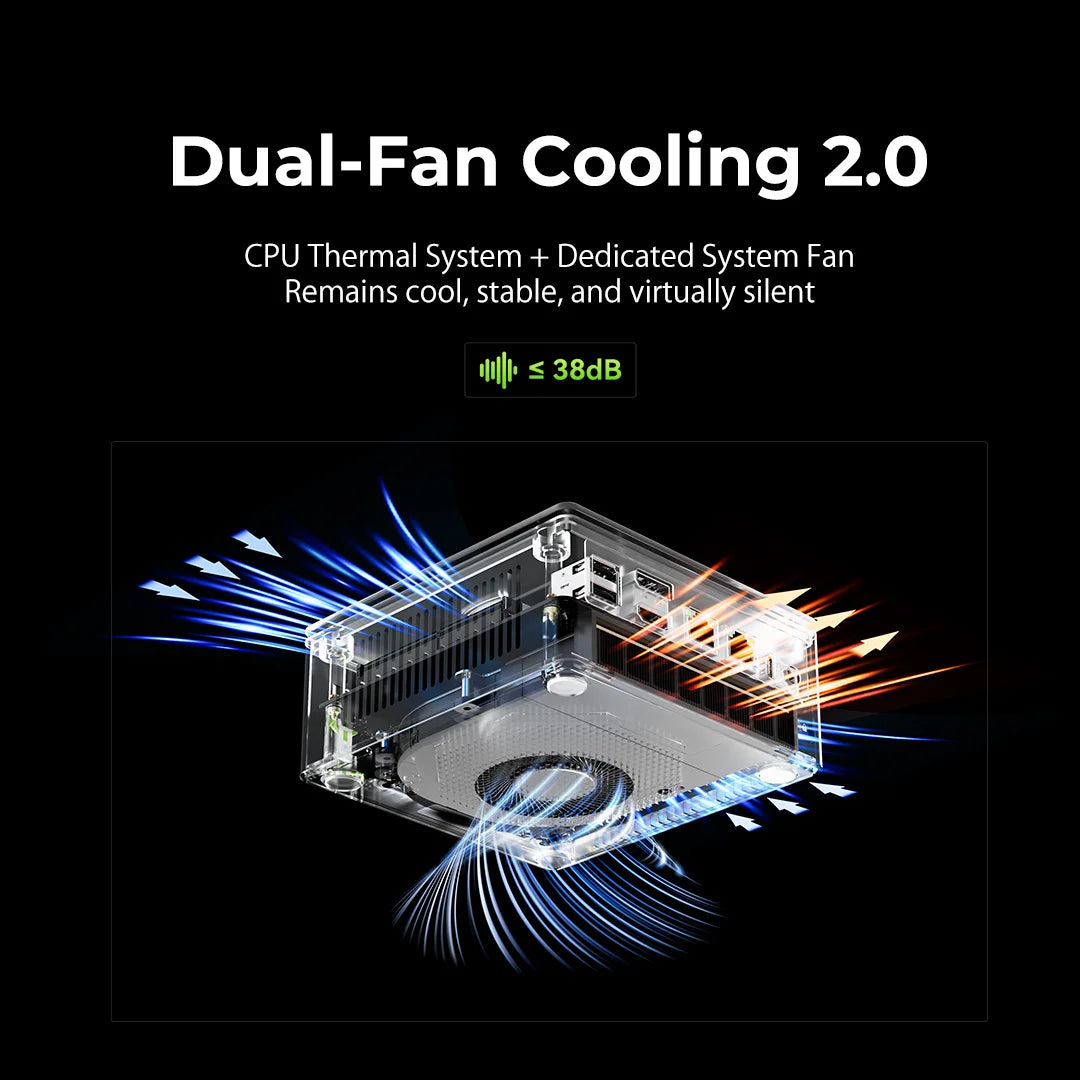

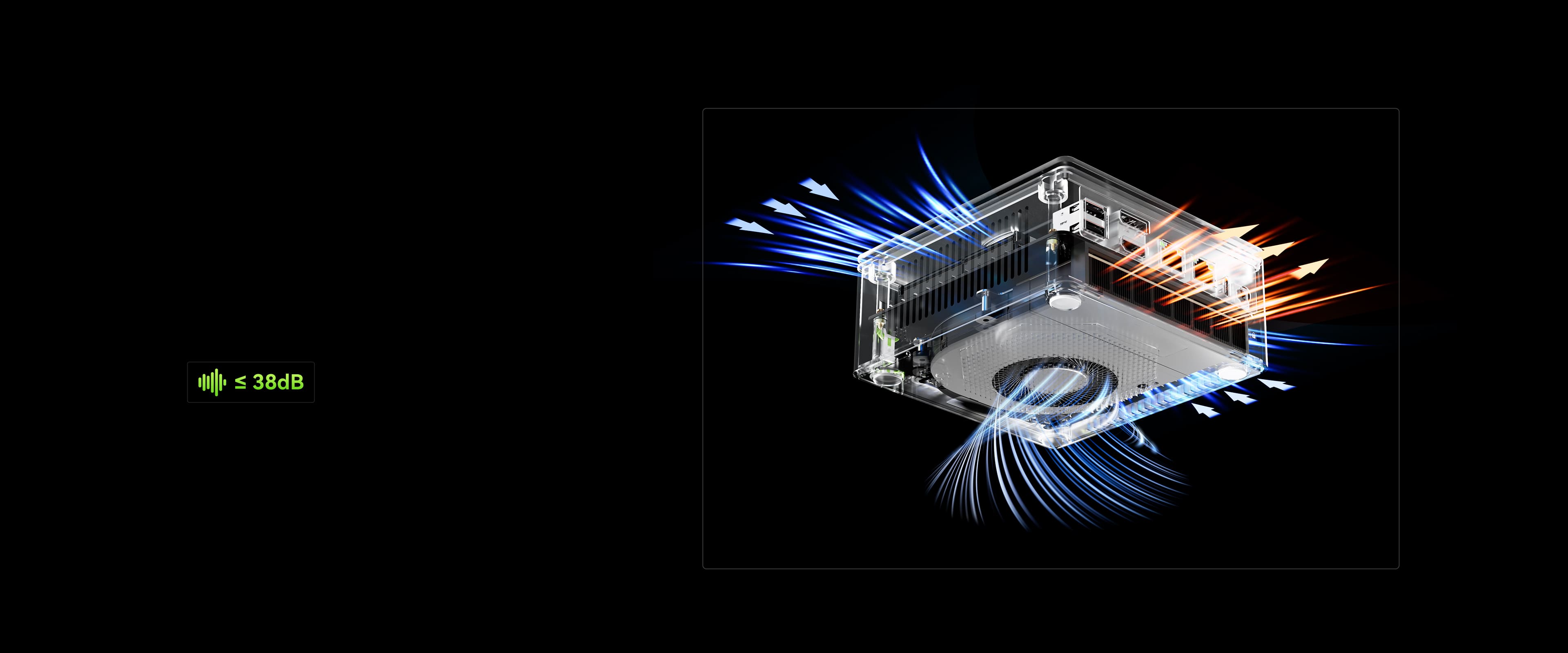

Dual-fan Cooling System

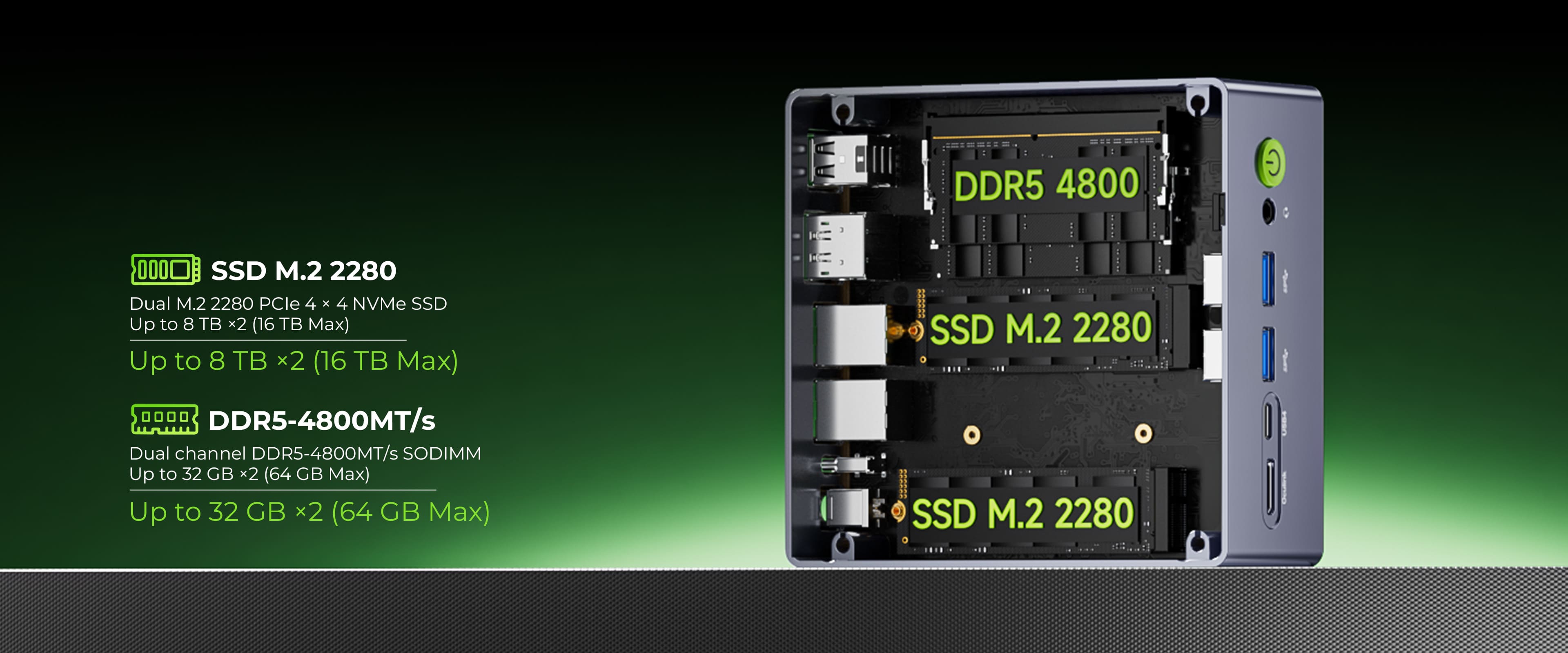

Dual SSD Slots

Dual M.2 2280 PCle 4.0 x4 (Max 16TB)

WiFi 6E (2.4Gbps)

BT5.2+Dual 2.5G LAN

Quad Screens 8K Display

HDMI 2.0 + DP 1.4 + USB4.0

Dual DDR5

4800MT/*2 (Max. 64GB)

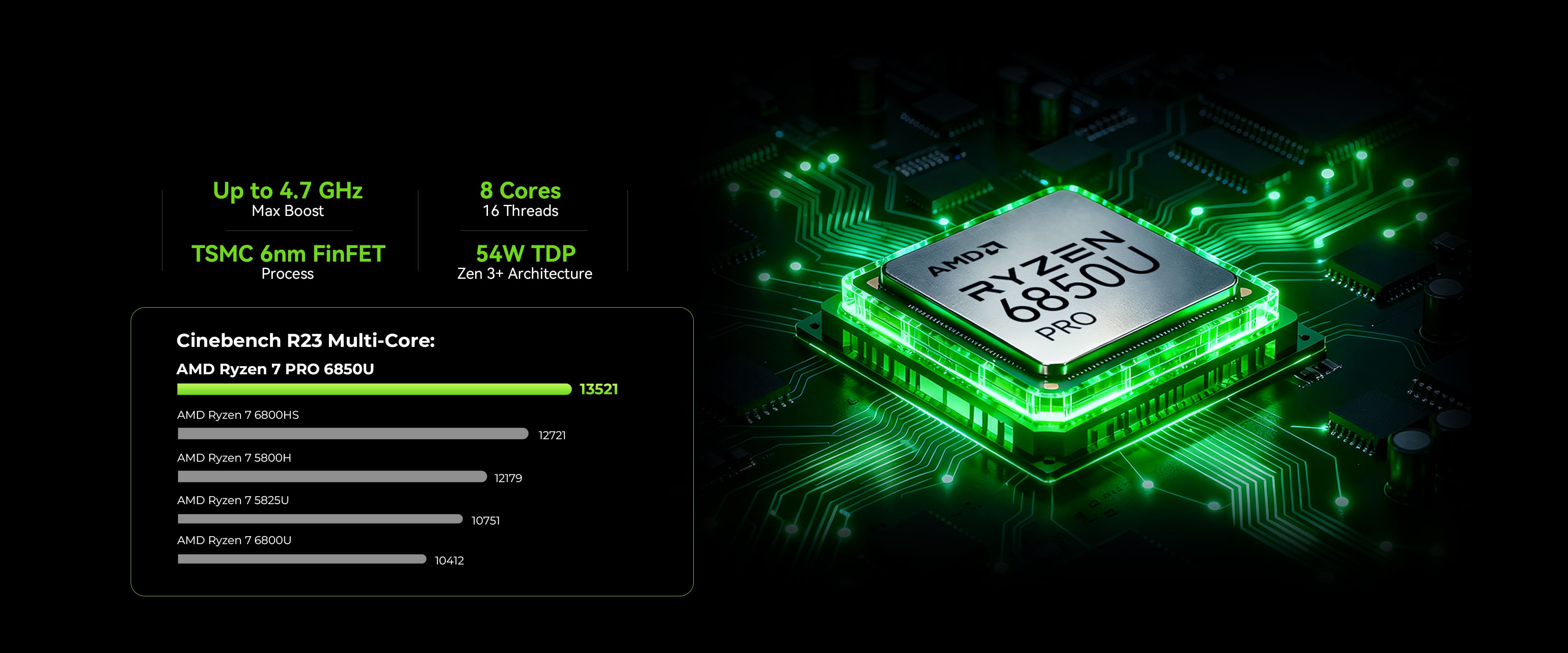

AMD Ryzen 7 PRO 6850U

M7 Ultra built-in AMD PRO CPU with security safeguards

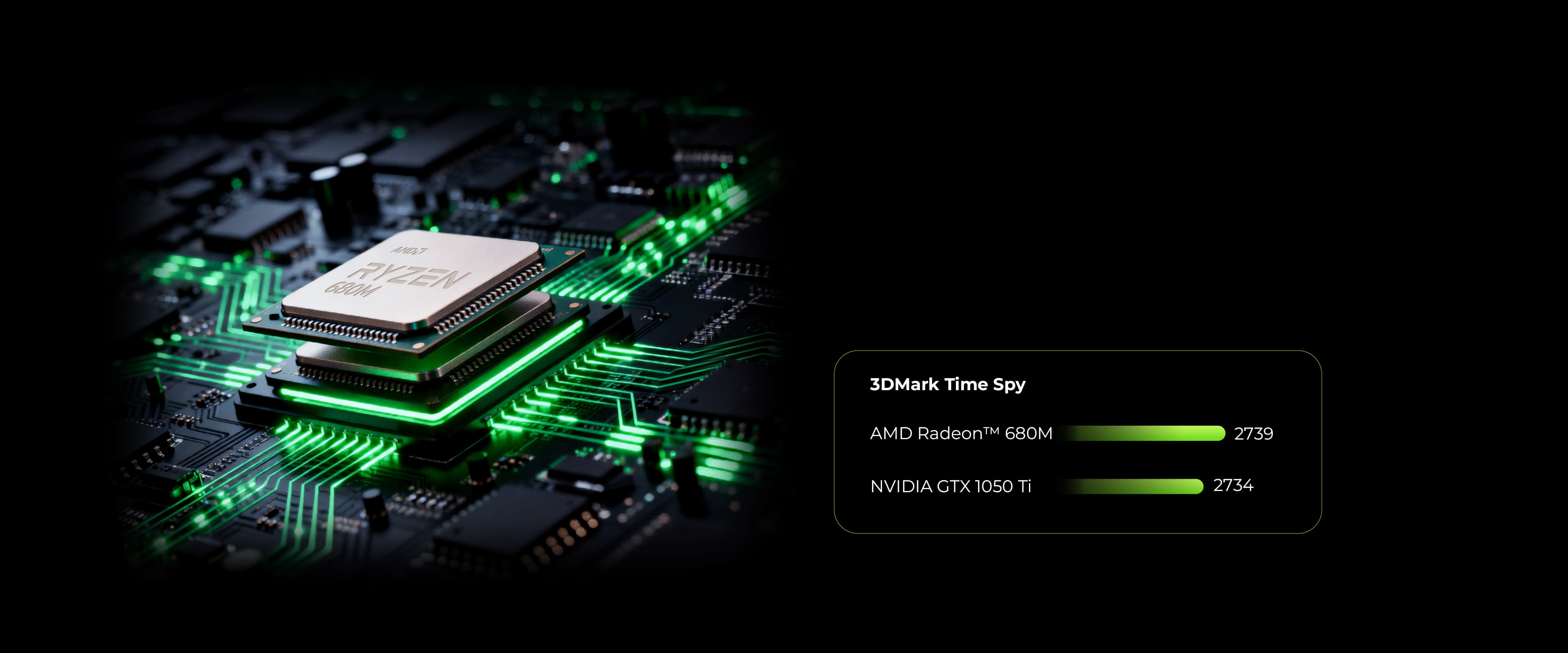

AMD Ryzen™ 680M

The integrated Radeon™ 680M GPU features 12 cores running at
2200MHz with up to 2GB VRAM, offering graphics performance
nearly equivalent to an NVIDIA CTX 1050 Ti. Enjoy smooth visuals,
efficient rendering, and excellent graphics for work, streaming, or
casual gaming.
