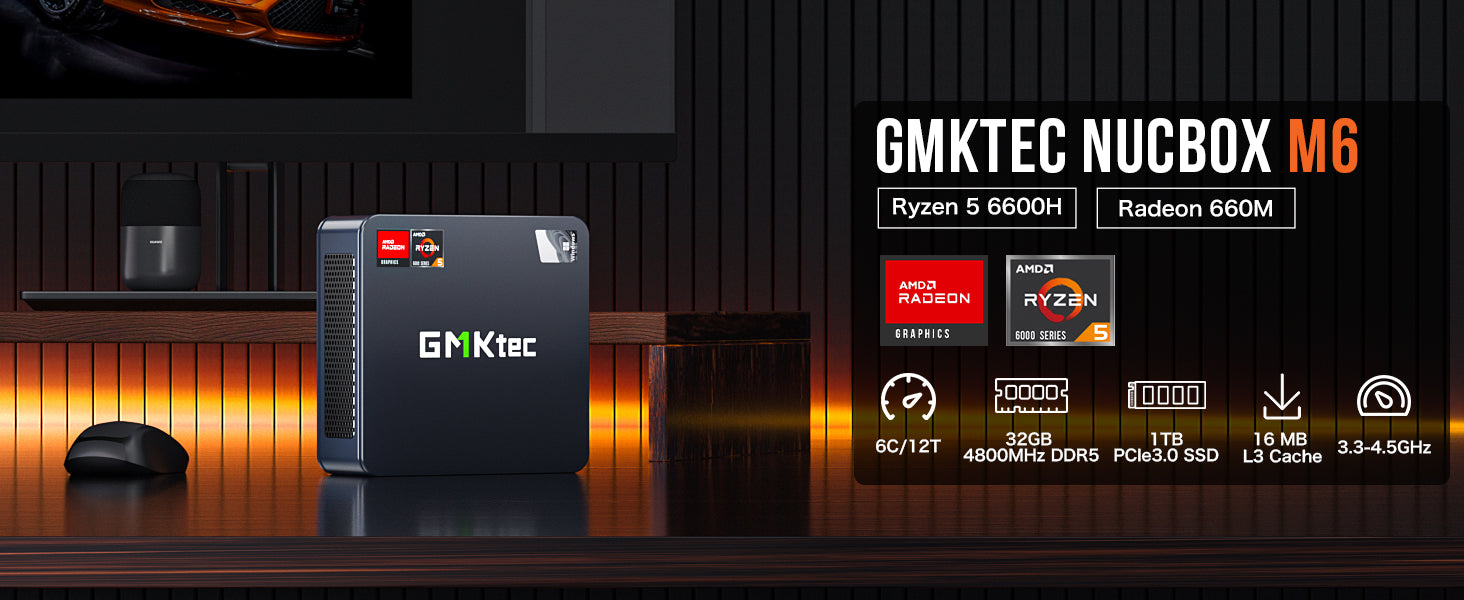

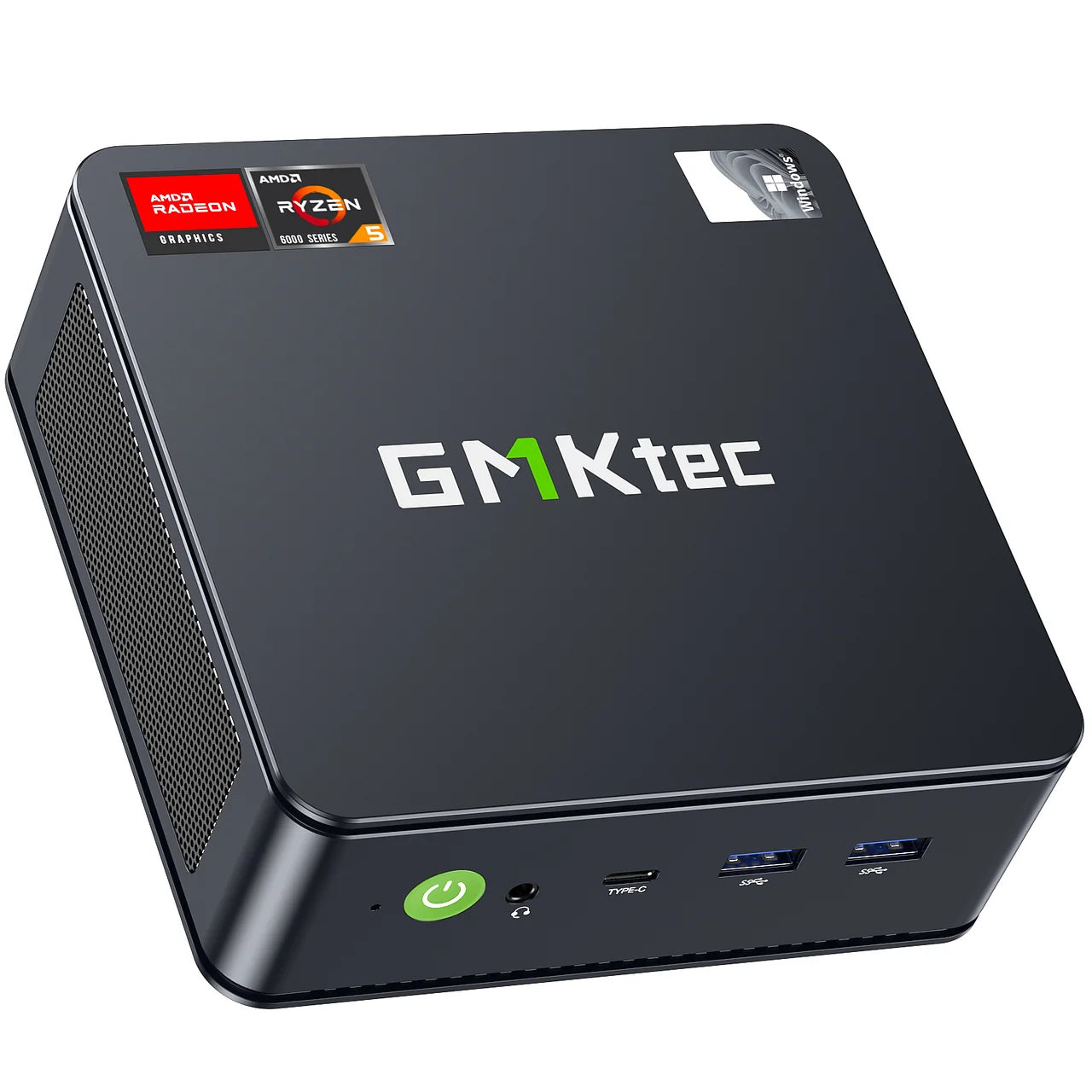

GMKtec NucBox M6 Mini PC AMD® Ryzen™ 5 6600H

Parameter	Details
Model	GMKtec NucBox M6
CPU Model	AMD Ryzen™ 5 6600H

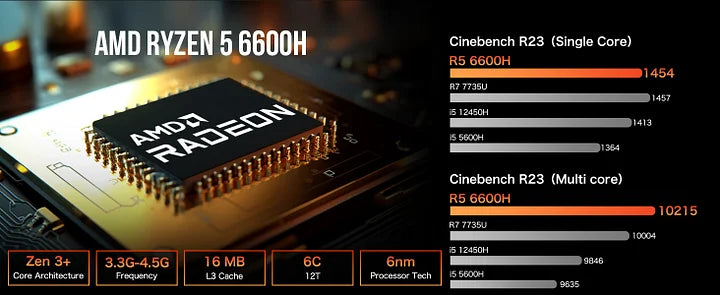

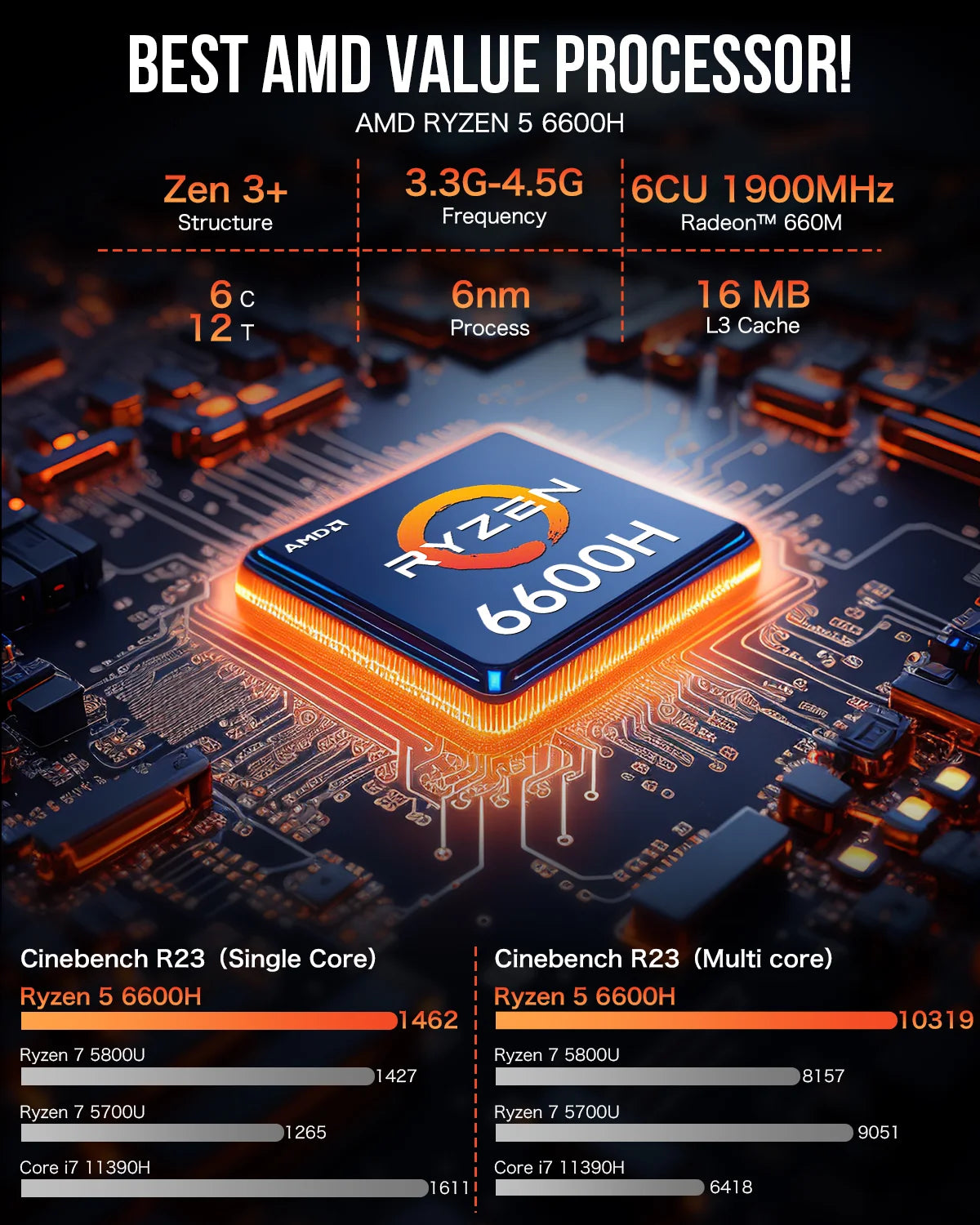

CPU	AMD Ryzen™ 5 Mobile Processor with Radeon™ Graphics, 6 Cores, 12 Threads 6nm Process, FP7 Package Base Frequency 3.3GHz, Max Boost up to 4.5GHz 3MB L2 Cache / 16MB L3 Cache TDP 45W Zen 3+ Architecture
CPU Socket / Package	FP7 BGA Package, 25 × 35 mm

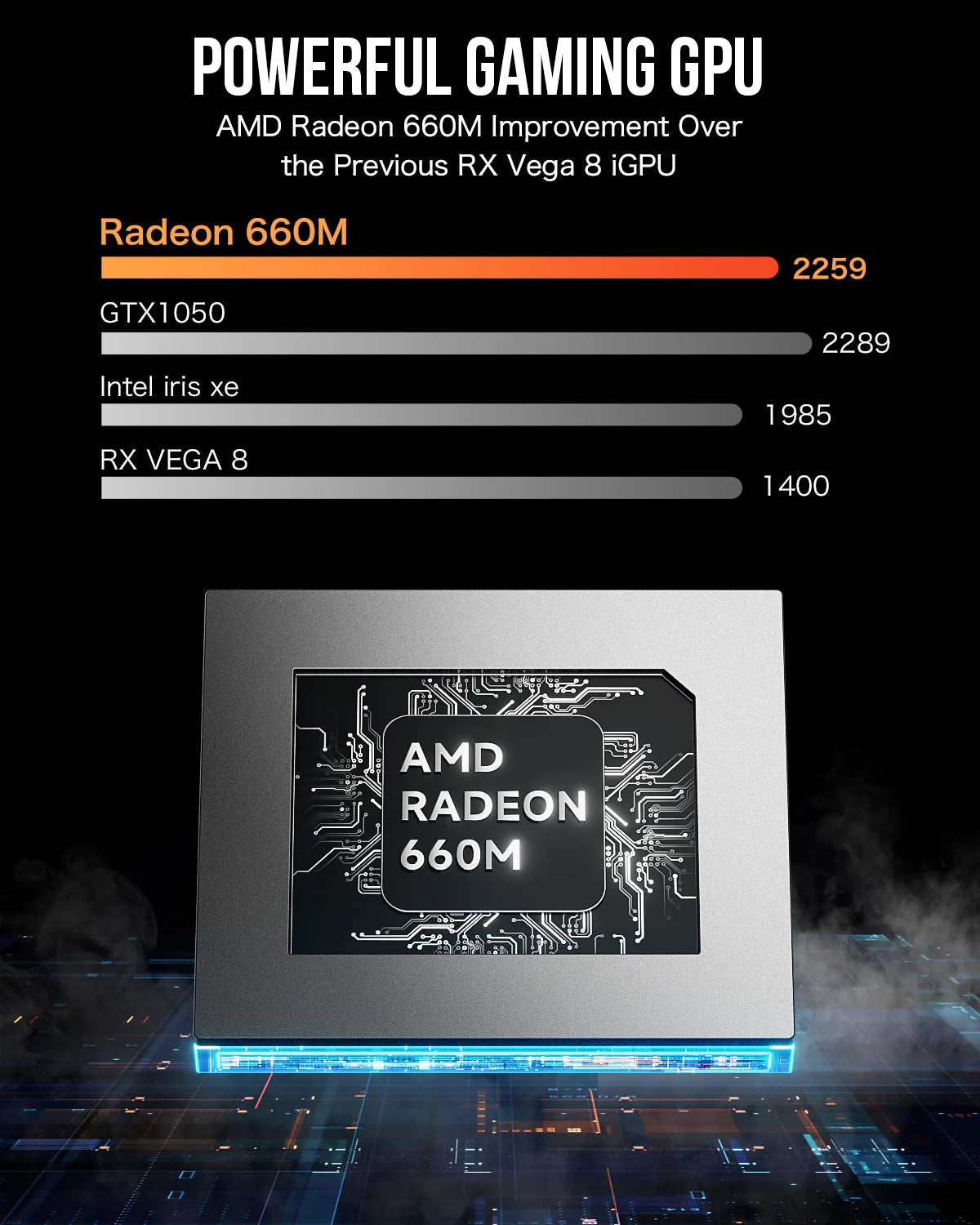

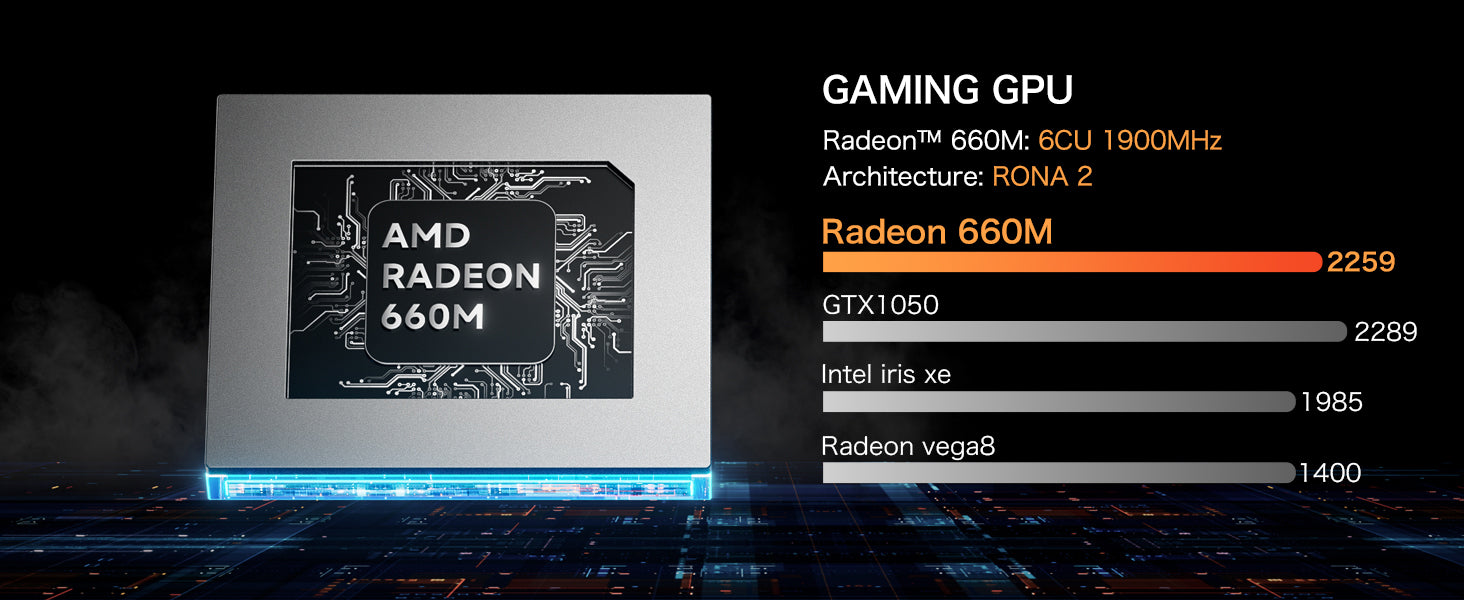

GPU	AMD Radeon™ 660M Graphics 6 Cores, up to 1900MHz RDNA 2 Architecture

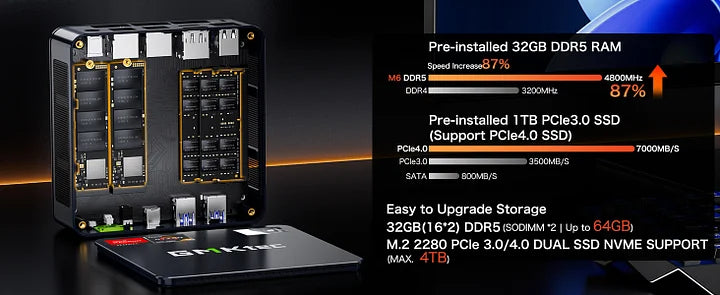

Memory (RAM)	2 × SO-DIMM Slots Dual-Channel DDR5-4800 Memory 32GB standard configuration Supports up to 64GB
Storage (ROM)	PCIe 3.0 M.2 2280 SSD 1TB standard configuration 512GB / 1TB / 2TB / 4TB options available

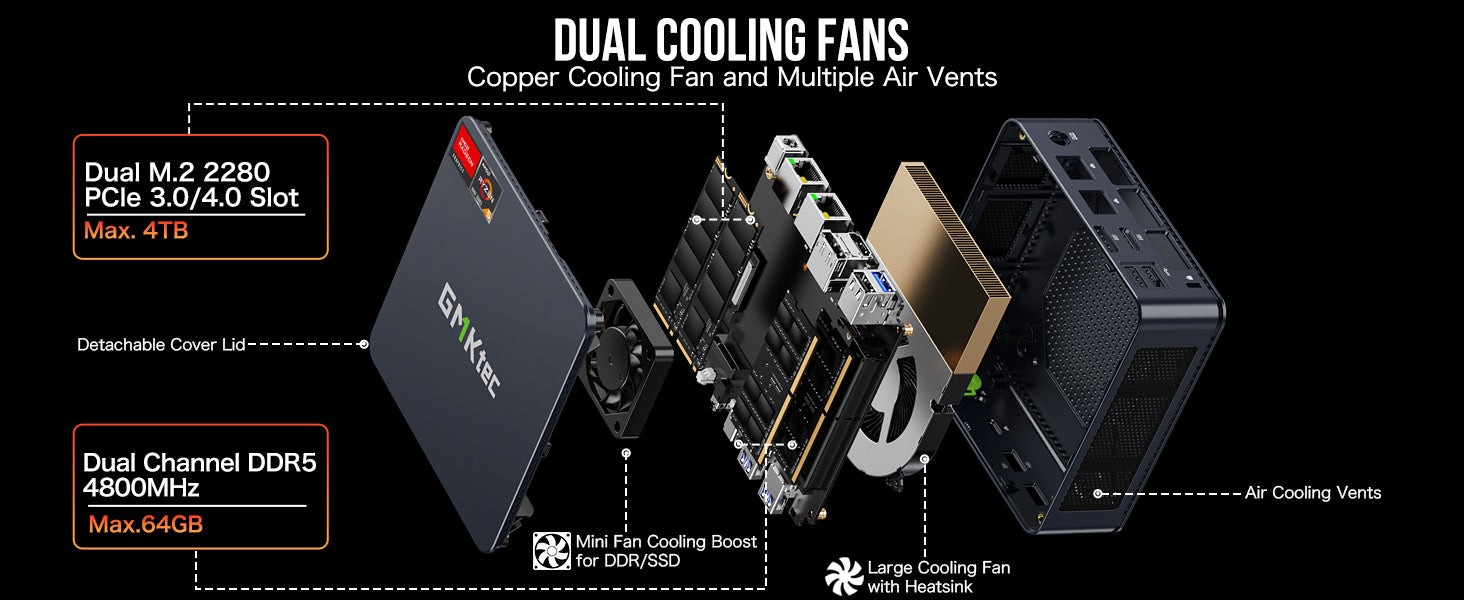

Storage Expansion	2 × M.2 2280 PCIe SSD slots Supports up to 4TB total expansion SATA SSD not supported

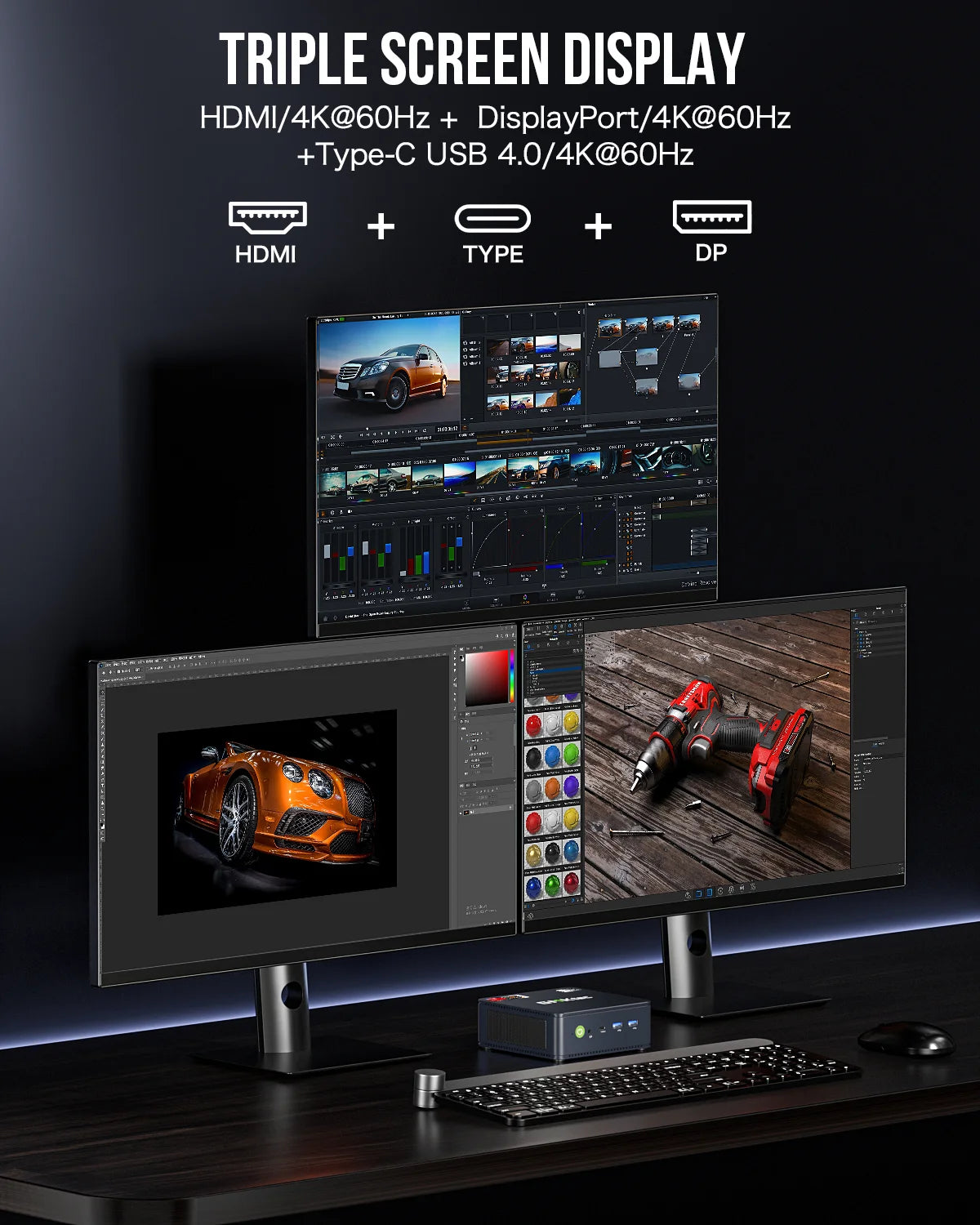

Graphics Output	Triple display output via HDMI + DisplayPort + USB4 Supports up to 4096 × 2160 resolution

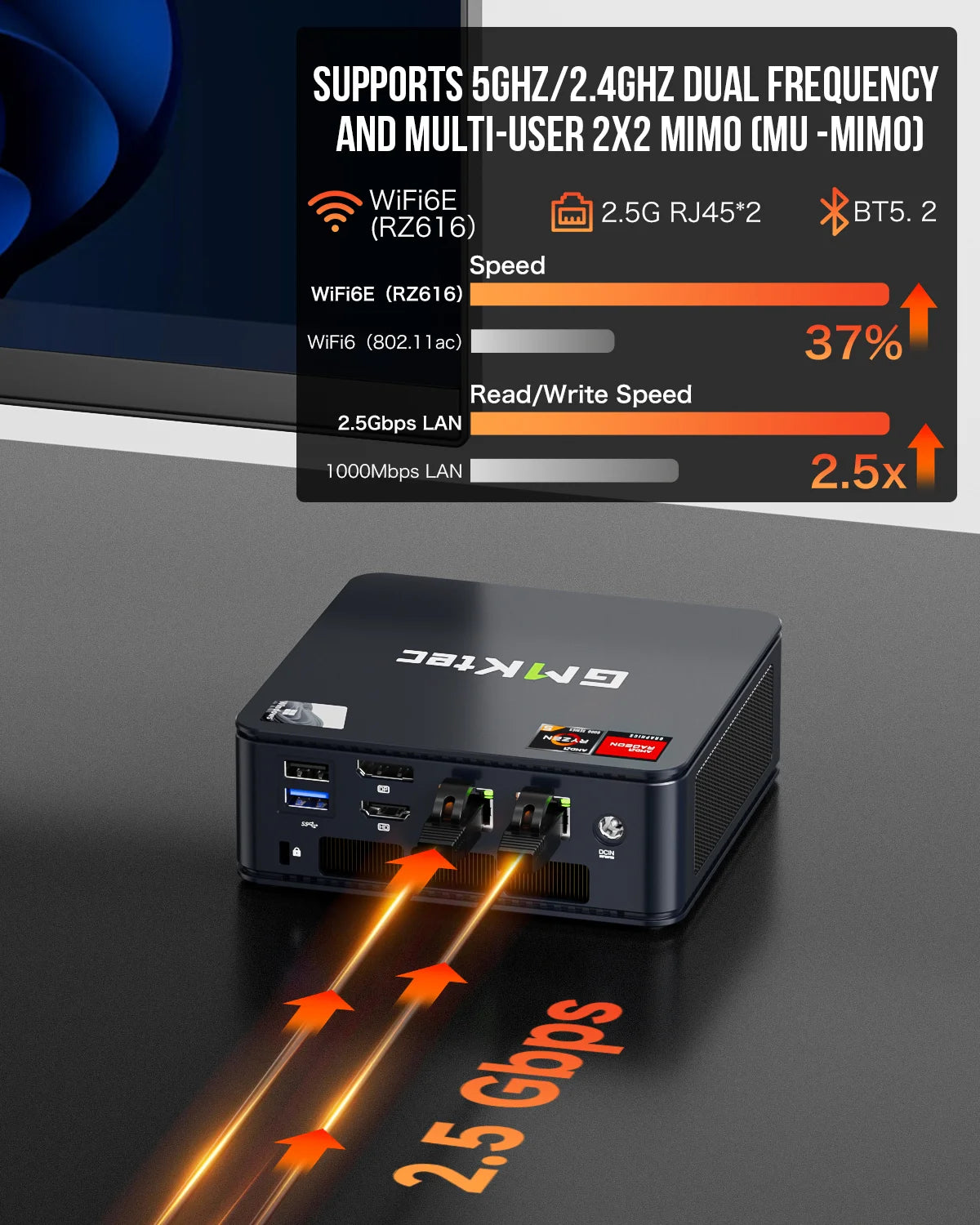

Network	Wi-Fi 6 (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek 8125)
Power	Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W

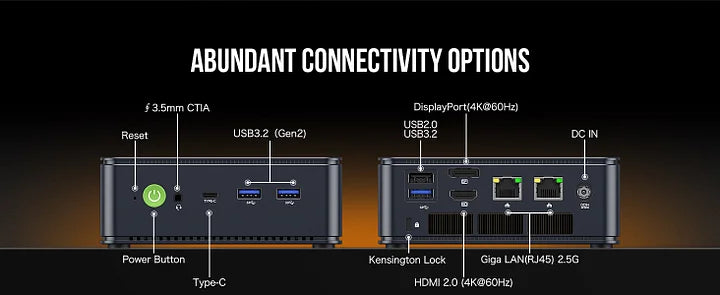

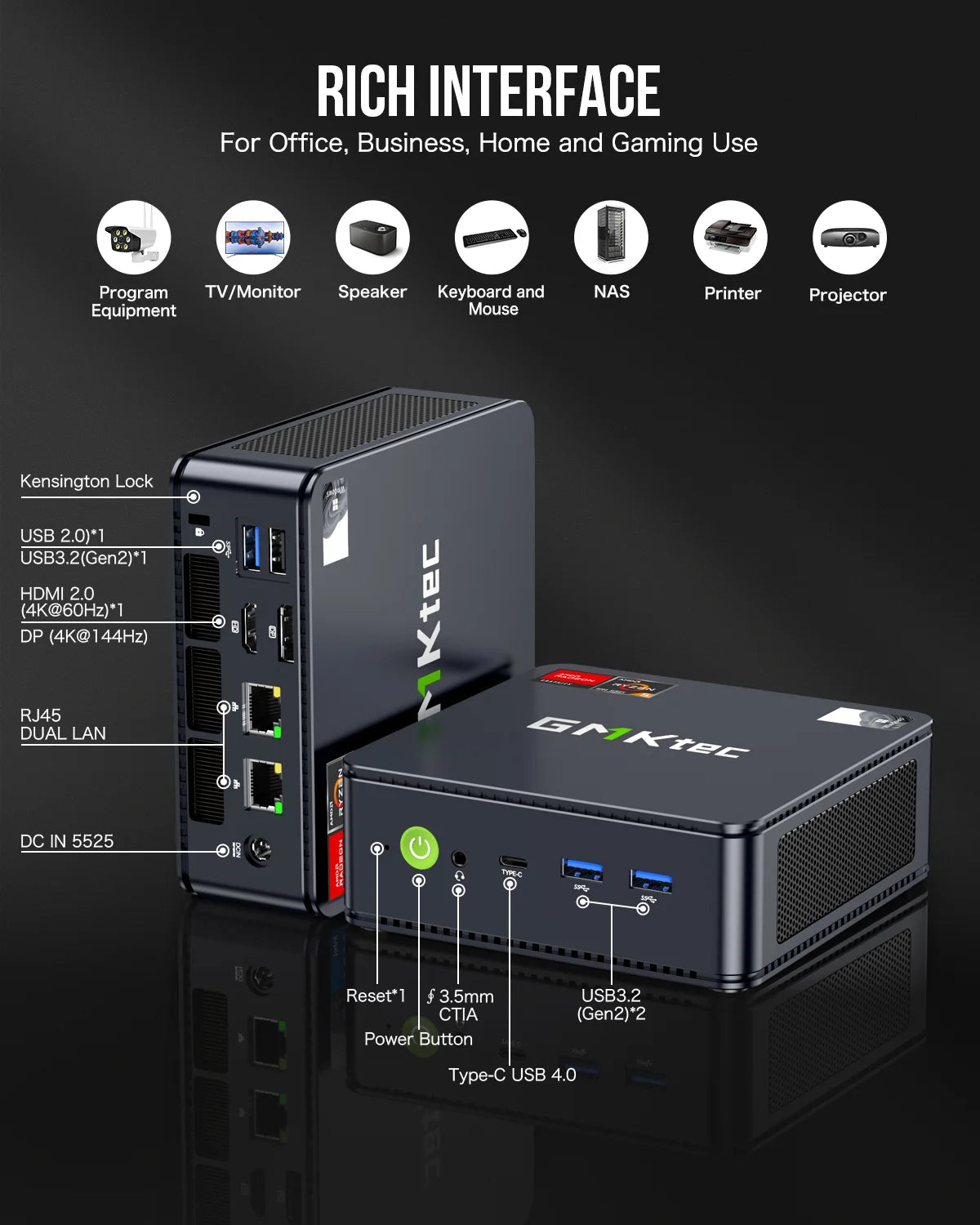

External Ports	USB-A: 3 × USB 3.2 + 1 × USB 2.0 HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DisplayPort (up to 4K@120Hz) USB4: 1 × USB4 Full-Function Port (USB 3.1 Gen2 / PD / DP / Data) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button

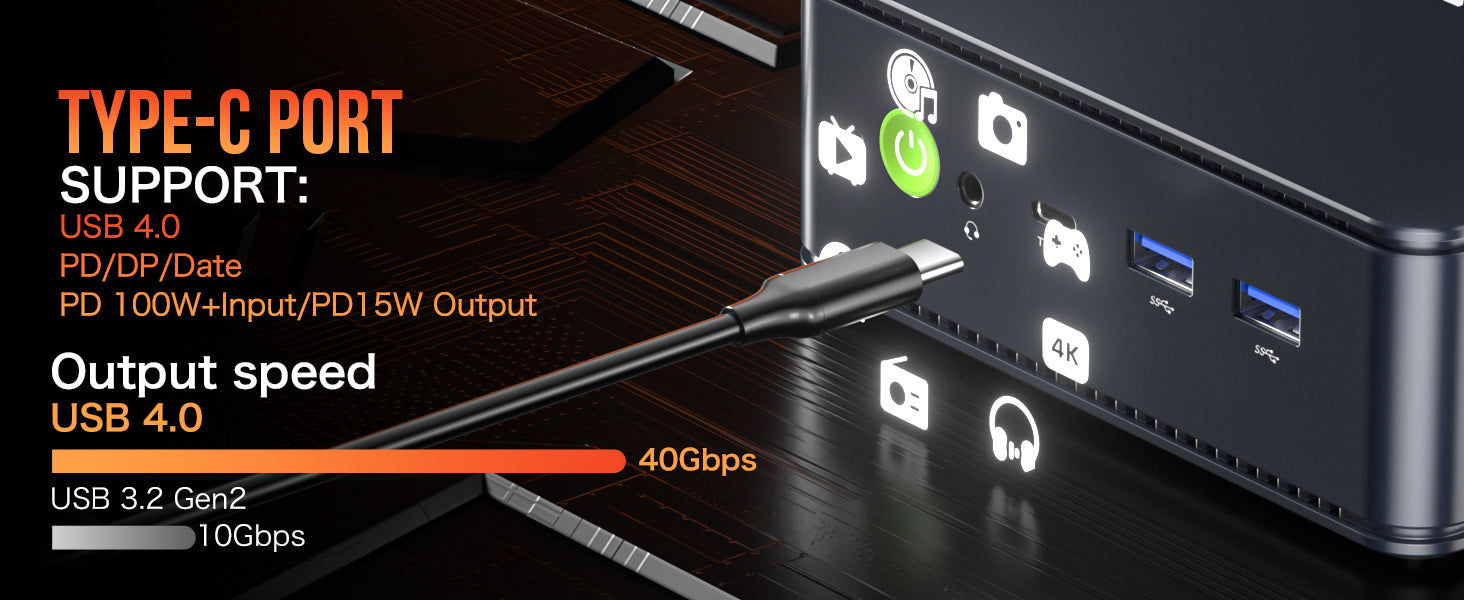

USB4 Notice	The USB4 port supports data transfer, video output, and PD input/output. PD input requires 100W or above, and PD output supports up to 15W.
Operating System	Windows 11 Pro / Linux Supported
Language Support	13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
Chassis Dimensions	128.8 × 127 × 51.8 mm
Weight	528 g
Color	Black
Working Temperature	0°C – 40°C
Warranty	1-Year Limited Warranty
Certifications	CE, FCC, CCC, RoHS

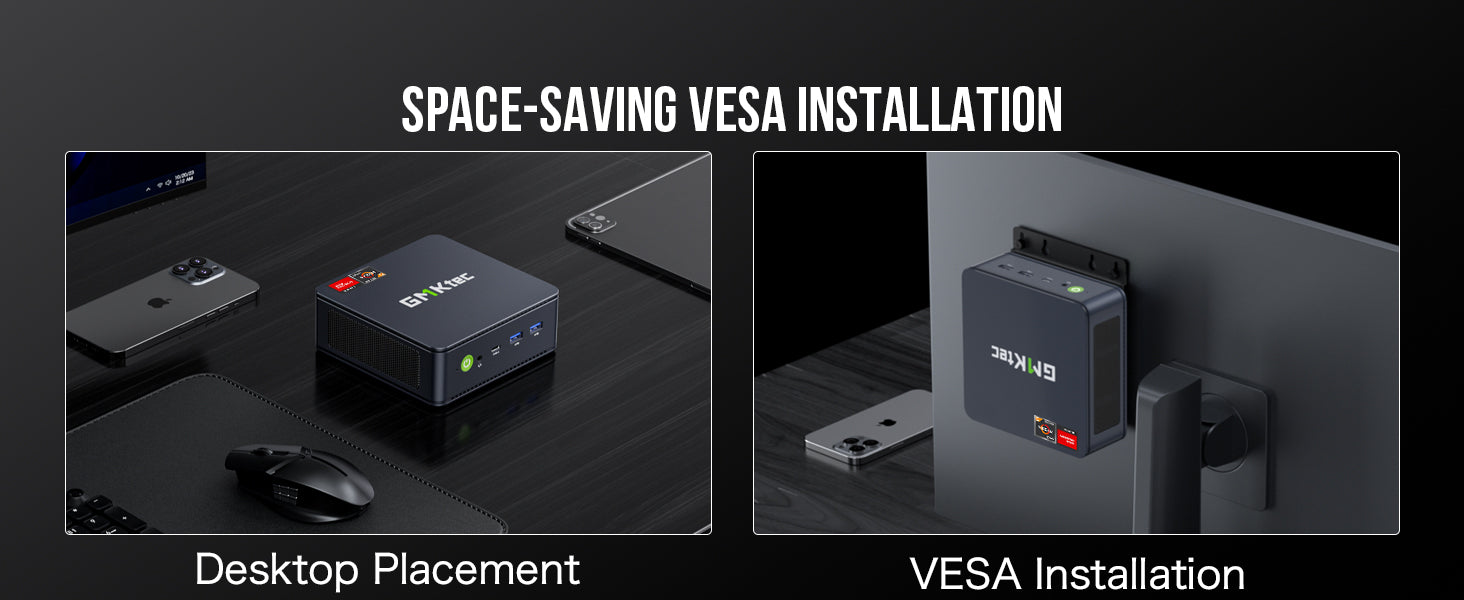

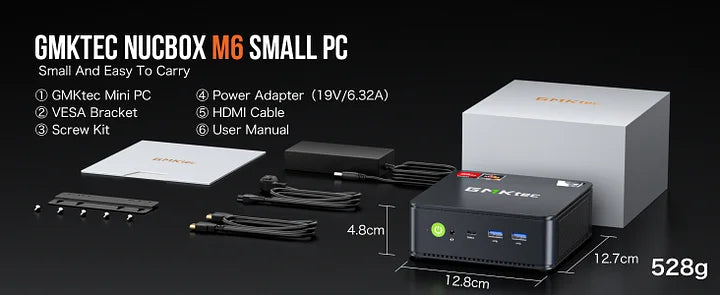

Packaging List	User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable
