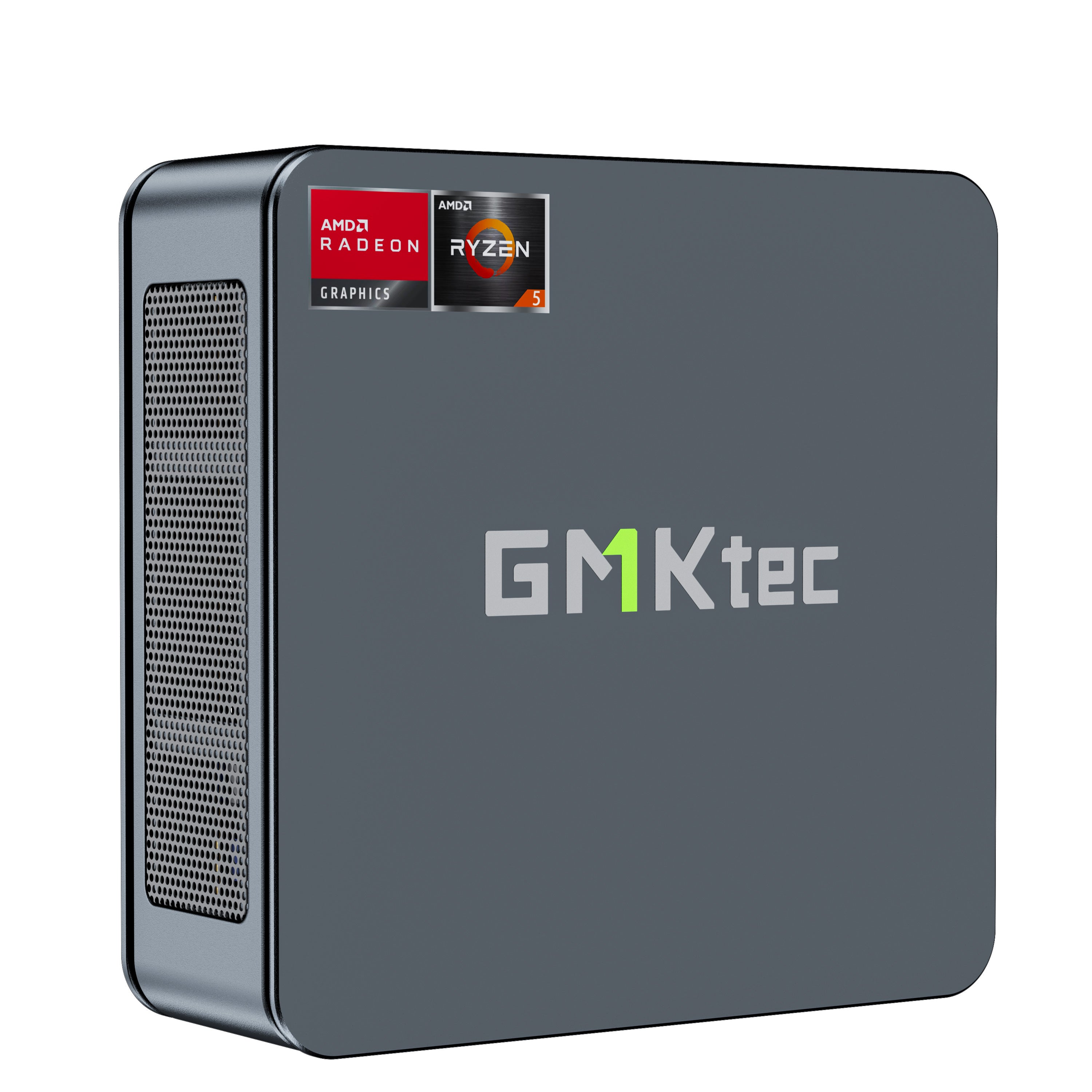

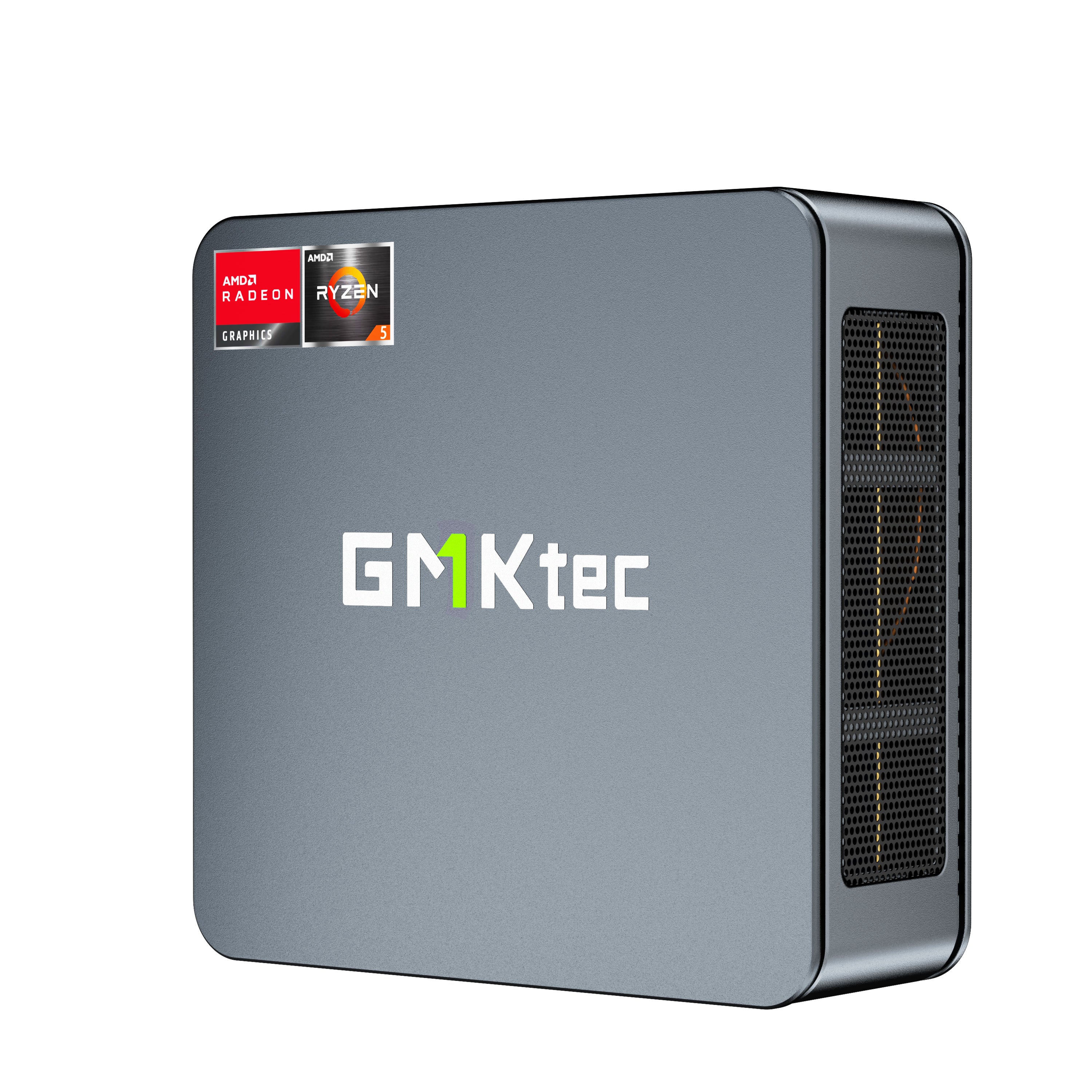

GMKtec NucBox M6 Ultra Mini PC AMD Ryzen™ 5 7640HS

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

Sale

GMKtec NucBox M6 Ultra Mini PC AMD Ryzen™ 5 7640HS

$269.99

$269.99 ~~$399.99~~

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

DDR + SSD: Barebone (No DDR & SSD & OS）

Barebone (No DDR & SSD & OS） 16GB RAM+512GB SSD 32GB RAM+1TB SSD

Power Plug: US

US EU UK AU

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Payment & Security

GMKtec NucBox M6 Ultra Mini PC AMD Ryzen™ 5 7640HS

$269.99

$269.99 ~~$399.99~~

Parameter	Details
Model	GMKtec NucBox M6 Ultra
CPU Model	AMD Ryzen™ 5 7640HS
CPU	AMD Ryzen™ 7000 Series Processor, 6 Cores, 12 Threads, TSMC 4nm FinFET process, Base Frequency 4.3GHz, Max Boost Frequency up to 5.0GHz, 6MB L2 Cache, 16MB L3 Cache, Zen 4 Architecture
CPU Socket / Package	TSMC 4nm FinFET
GPU	AMD Radeon™ 760M Graphics, 8 Cores, up to 2600MHz, AMD RDNA 3 Architecture
Memory (RAM)	2 × SO-DIMM Slots, DDR5 Memory, 16GB / 32GB configurations, Supports up to 128GB
Storage (ROM)	PCIe 3.0 M.2 2280 SSD, 512GB / 1TB options
Storage Expansion	2 × M.2 2280 PCIe 4.0 ×4 SSD slots, supports up to 8TB per slot
Graphics Output	Triple display output via HDMI + DisplayPort + USB4, supports up to 8K resolution
Network	Wi-Fi 6E (up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN
Power	Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W

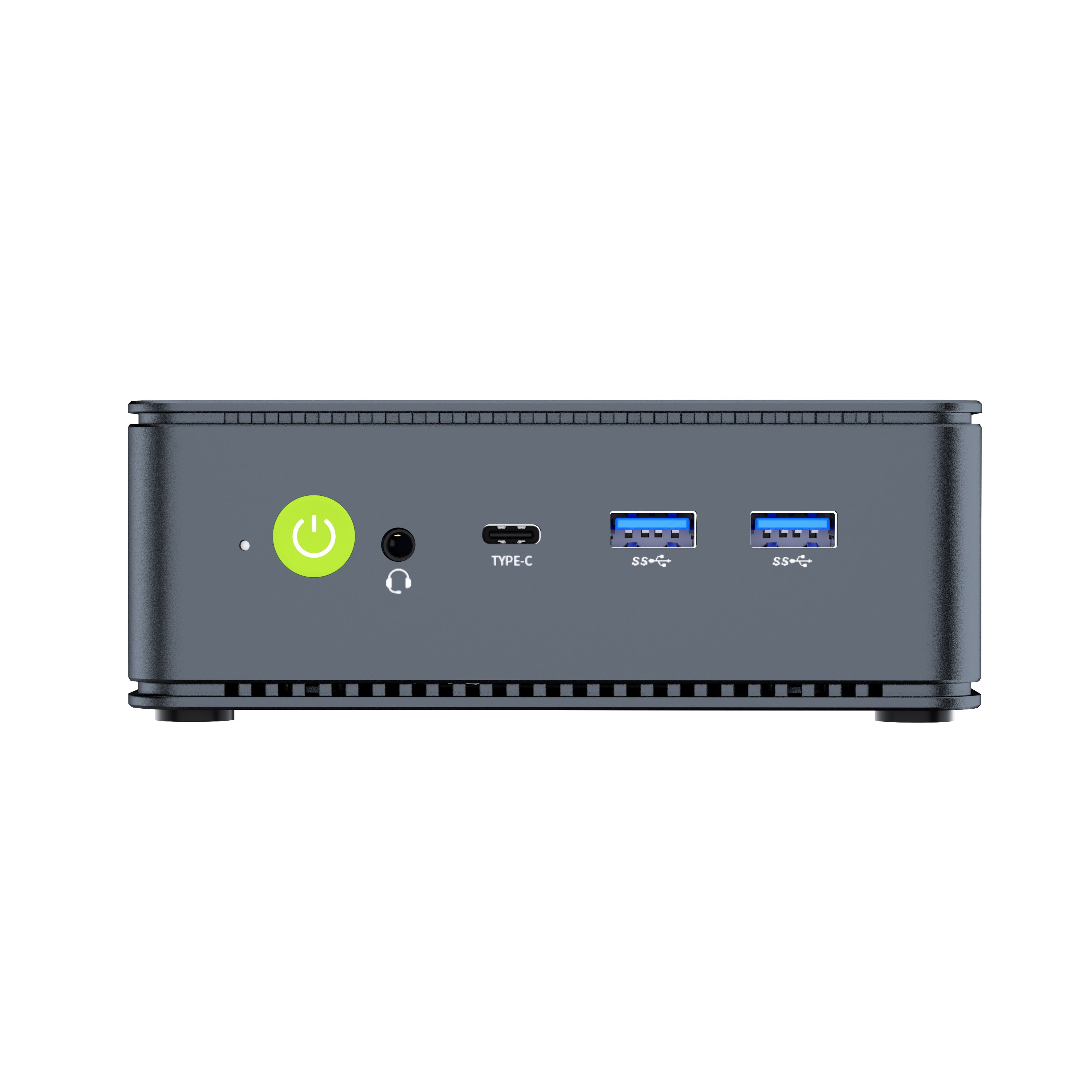

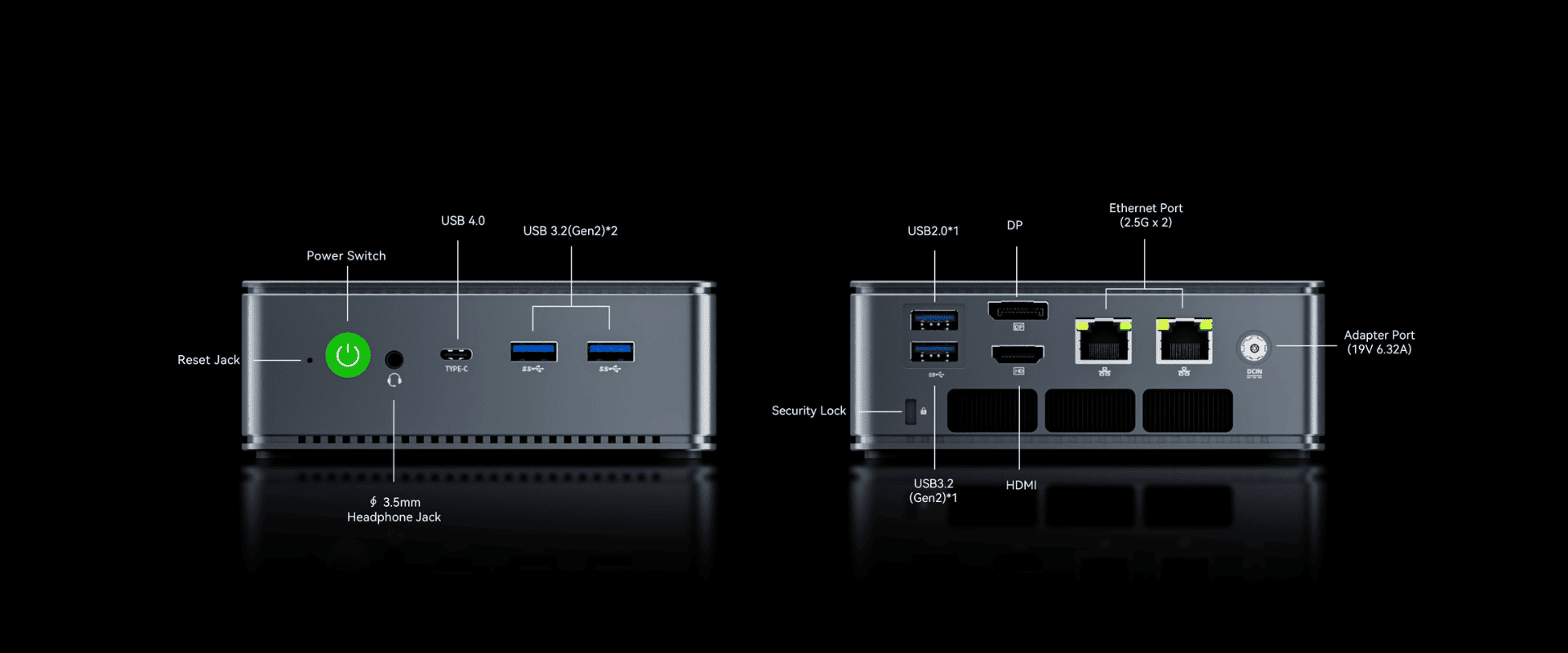

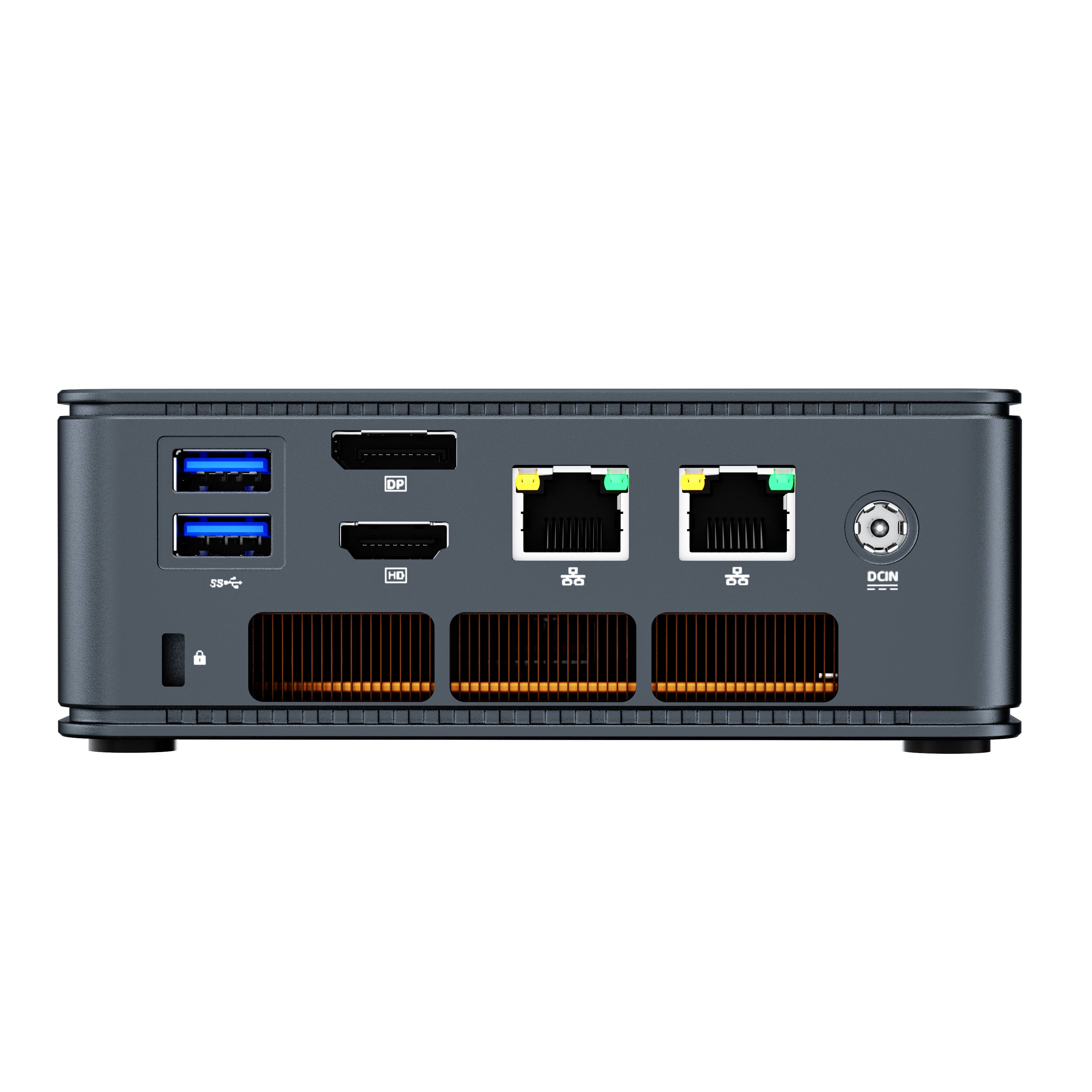

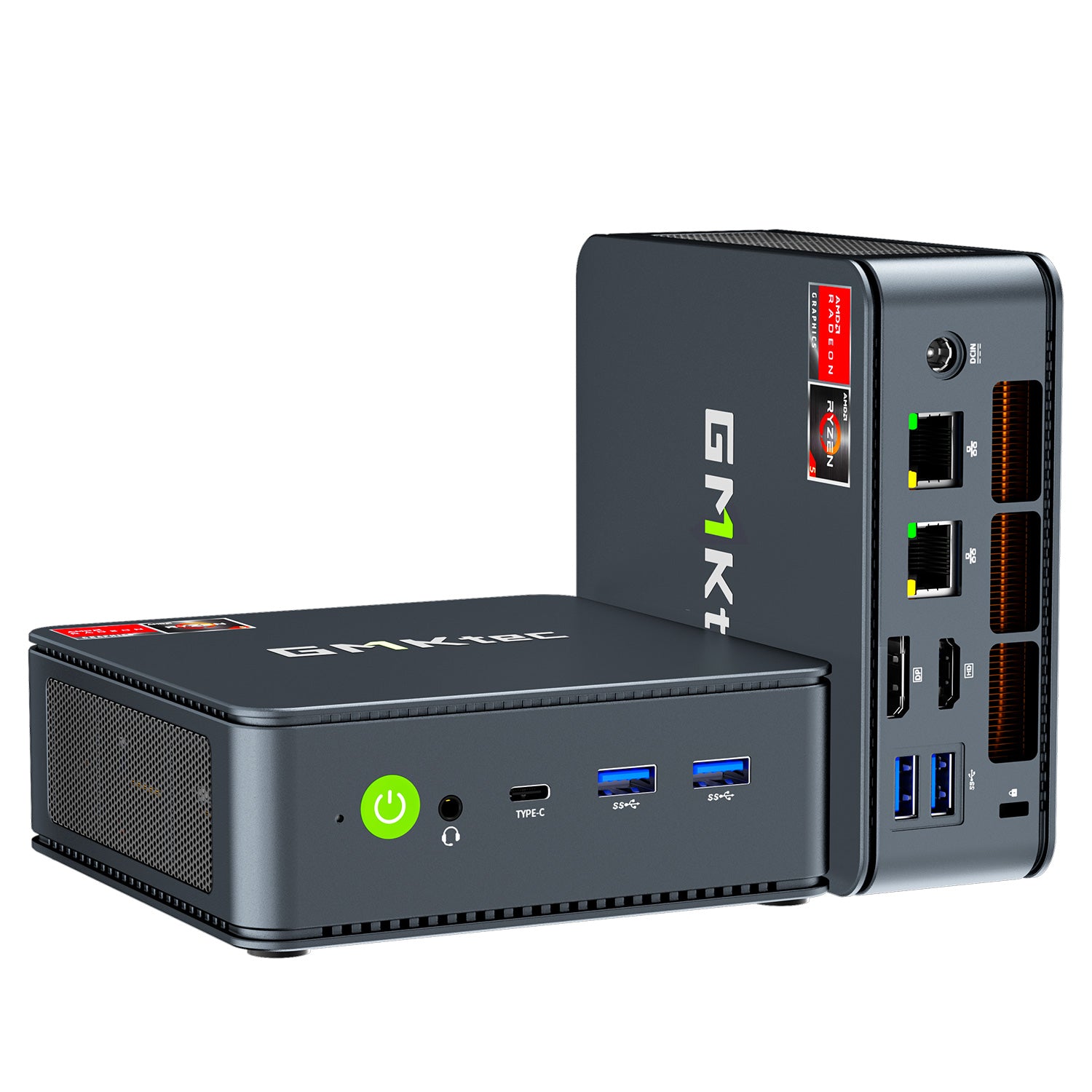

External Ports	USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0 USB4: 1 × USB4 full-function port HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DisplayPort (up to 8K@60Hz) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5/2.5mm) Reset: 1 × Reset Button
Operating System	Windows 11 Pro
Language Support	14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
Chassis Dimensions	128.8 × 127 × 47.8 mm
Weight	528 g
Color	Bronze
Working Temperature	0°C to 40°C
Warranty	1-Year Limited Warranty
Certifications	CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report
Packaging List	User Manual Warranty Card Power Adapter HDMI Cable VESA Mount Bracket

GMKtec M6 Ultra

AMD Ryzen™ 5 7640HS
Dual-Drive Speed, 1.6M+ Benchmark Power

9 Premium Features

AMD Ryzen™ 5 7640HS

6 Cores, 12 Threads，4.3GHz

AMD Radeon™ 760M

2600 MHz

Type-C Power Supply

19V / 6.32A

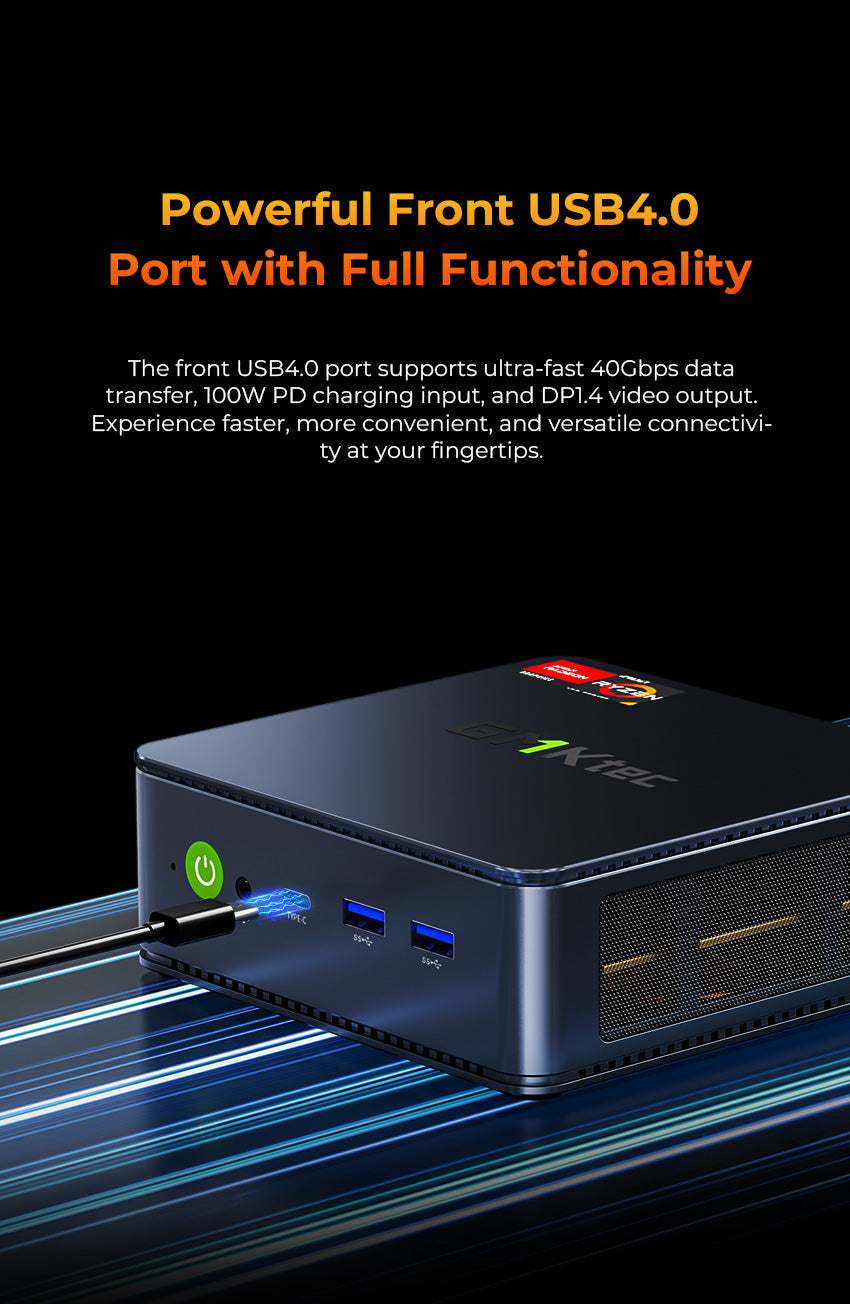

Full-featuredUSB 4.0 port

3 Power Modes

35W + 45W + 50W

Dual SSD Slots

2*PCle 3.0 M.2 2280 PCIe slots (Max.8TB)

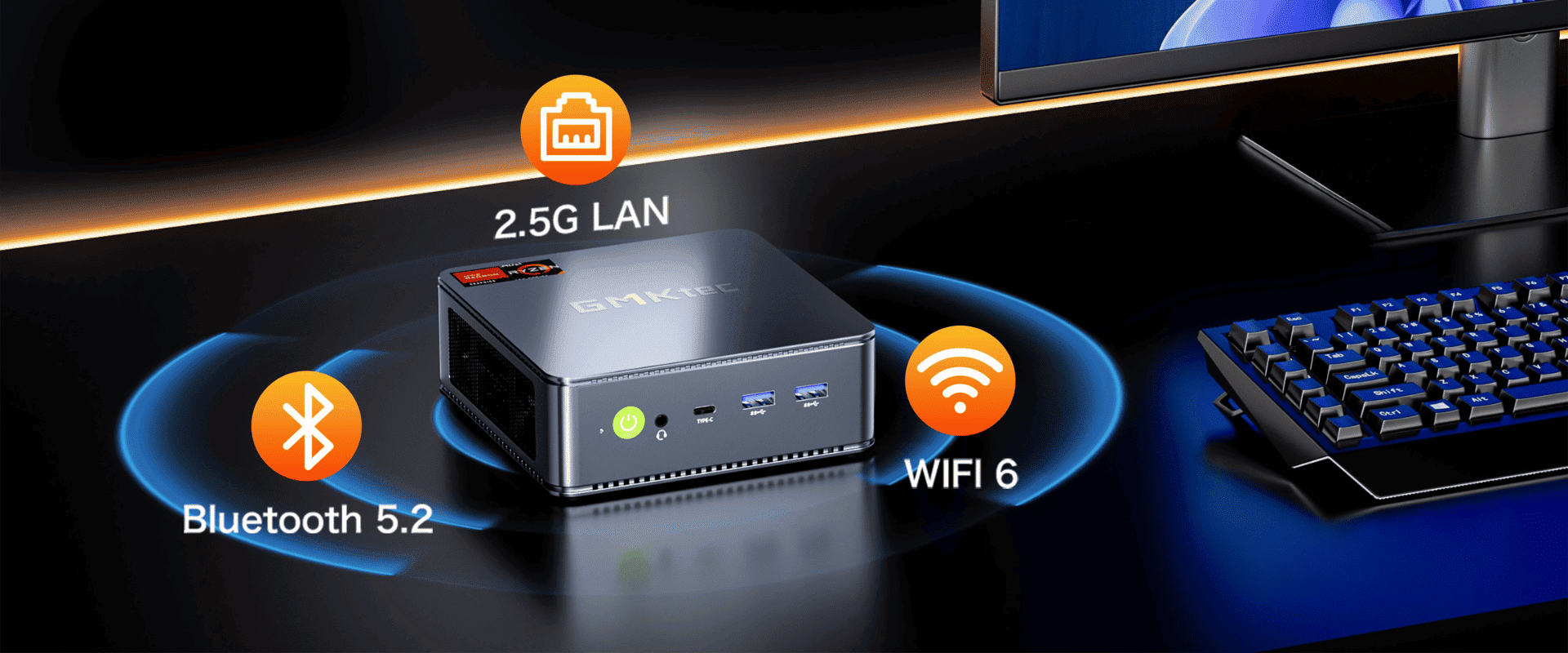

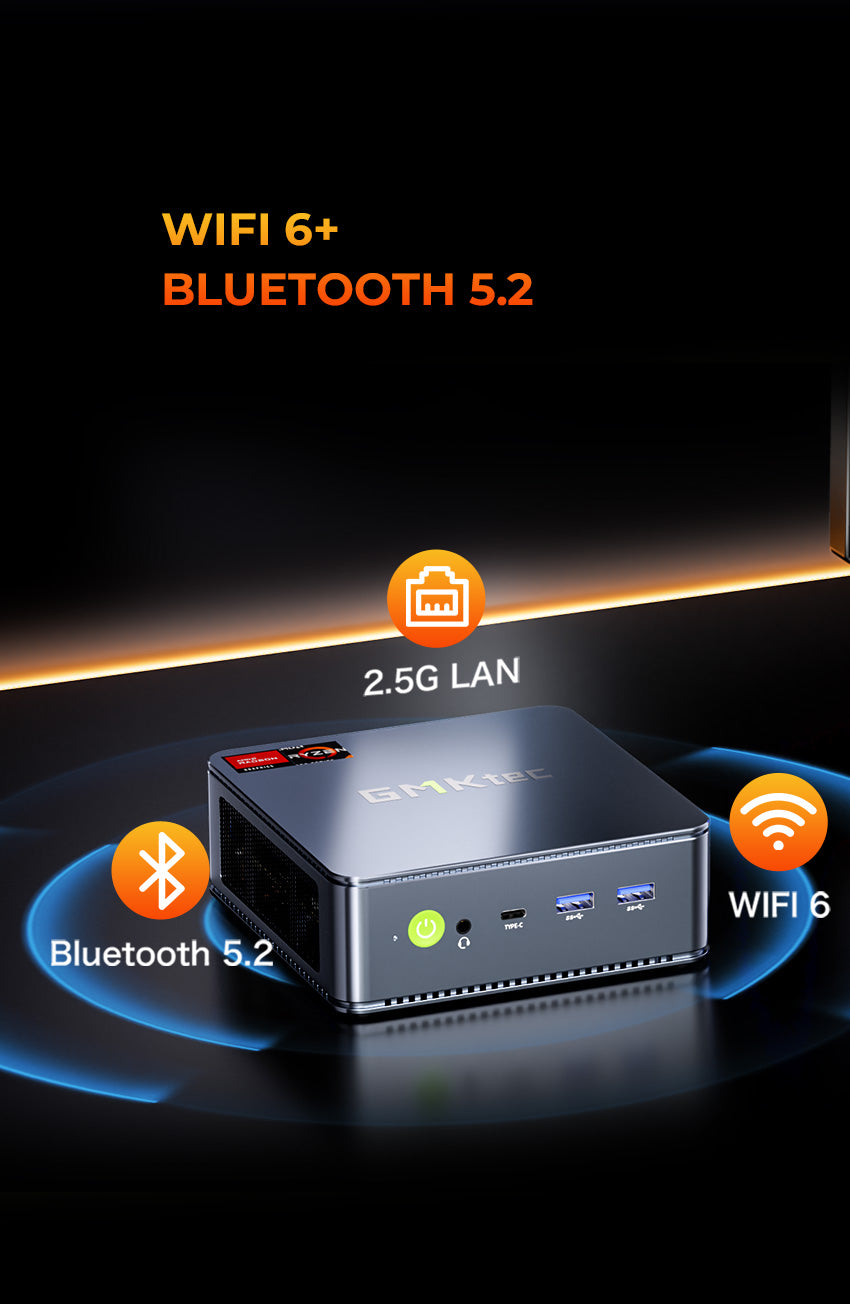

WiFi 6E (2.4Gbps)

BT5.2+Dual 2.5G LAN

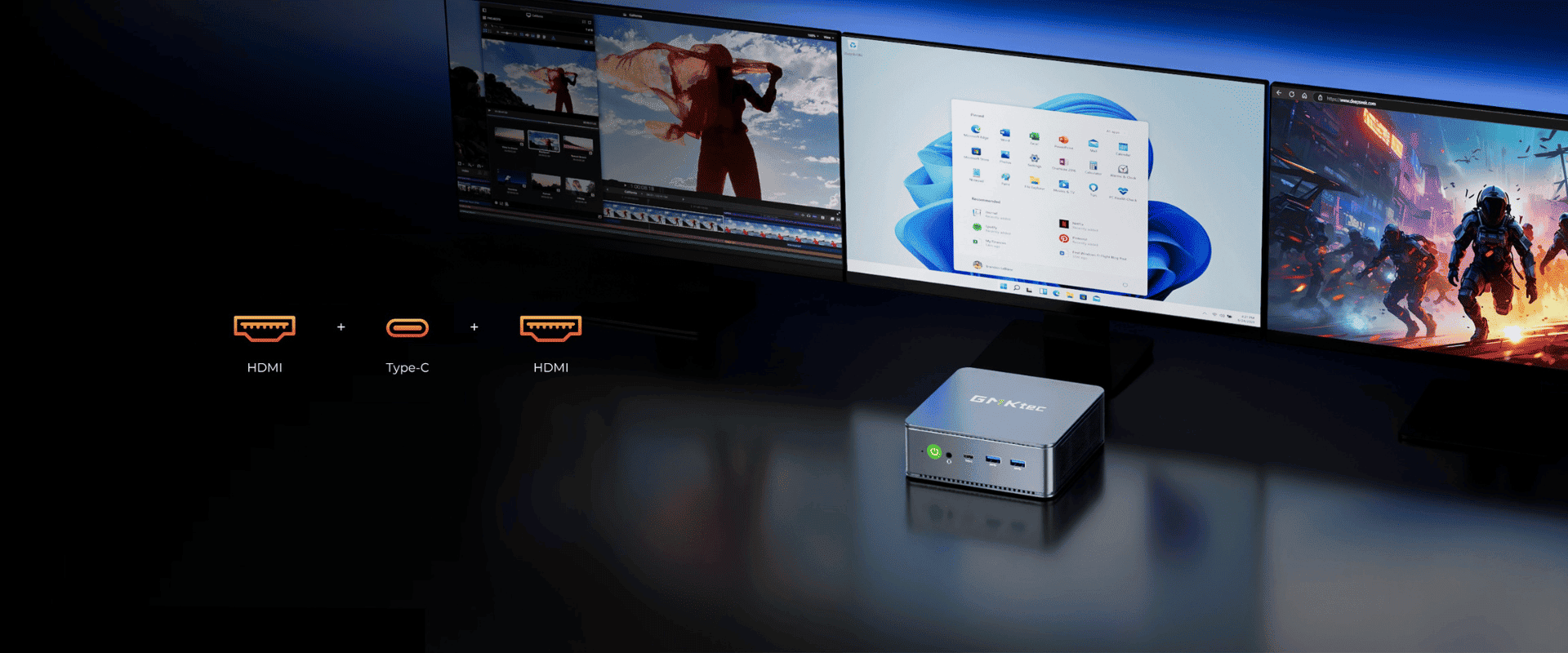

Triple Screens 8K Display

HDMI 2.0 + DP 1.4 + USB4.0

Dual DDR5

4800MT/*2 (Max. 128GB)

AMD Ryzen™ 5 7640HS

AMD Ryzen™ 760M

Powerful Graphics Rivaling Dedicated GPU

Built on the advanced AMD RDNA 3 architecture

the Radeon'M 760M features 8 cores running at 2600MHz, delivering

performance close to the NVIDIAGTX 1650 Ti. With FSR 2.0+ technology

support it boosts both visuals and frame rates

making it a strong contender to replace entry-level discrete graphics cards

for everyday gaming and multimedia needs.

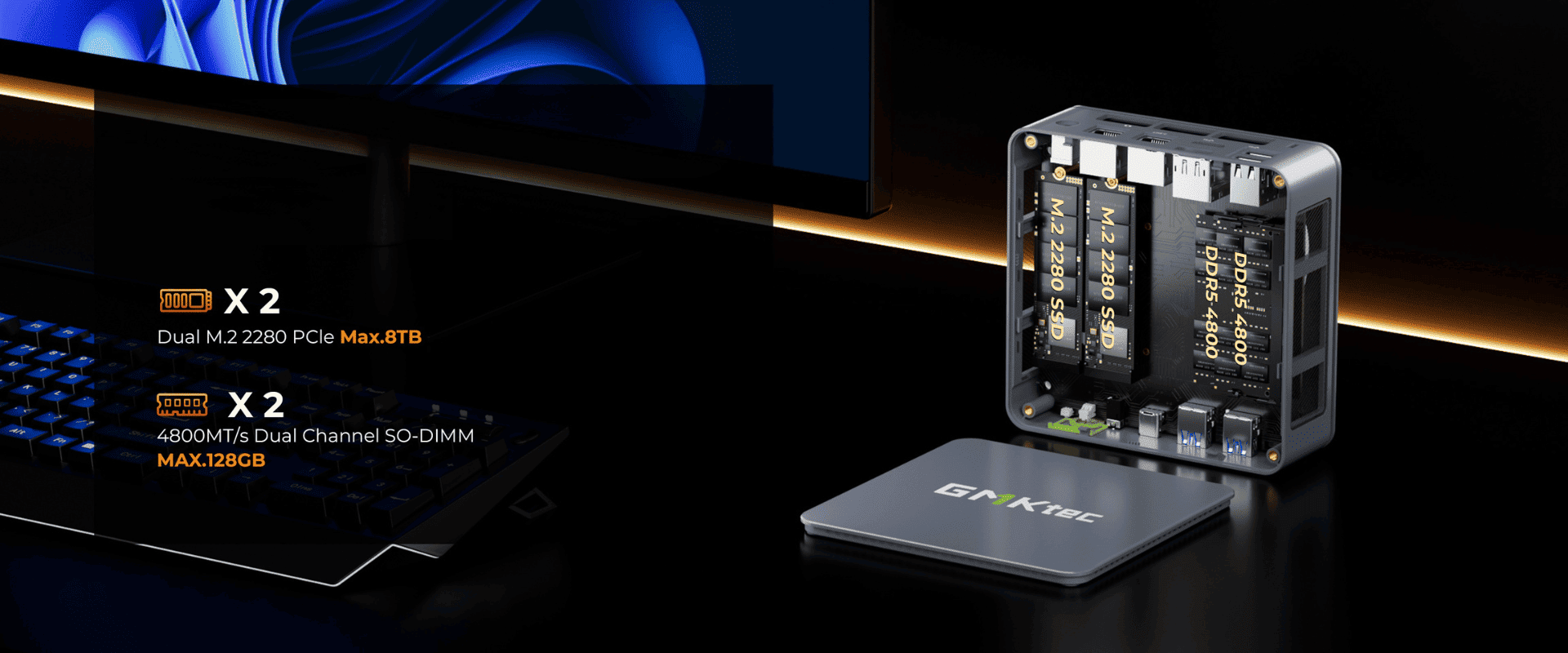

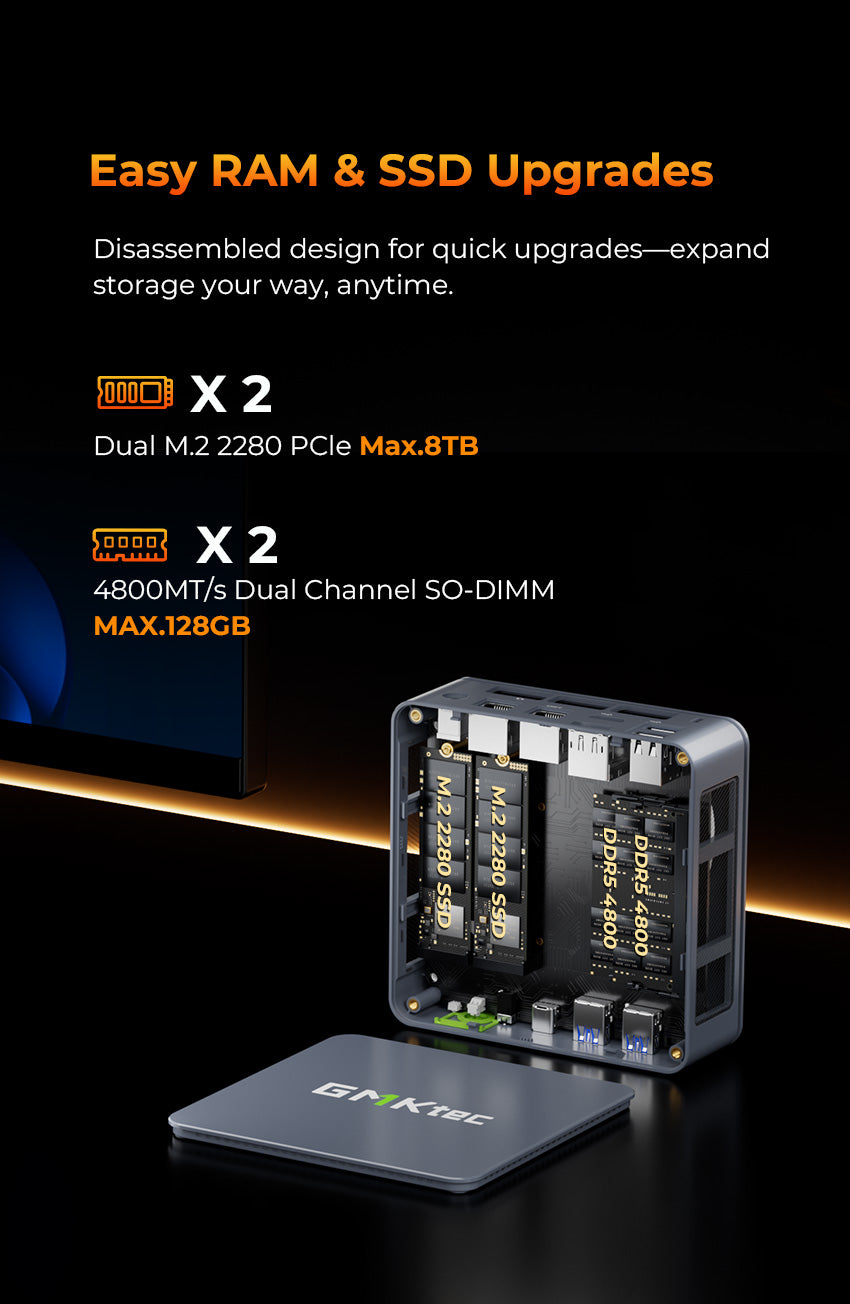

Easy RAM & SSD Upgrades

Disassembled design for quick upgrades-expand

storage your way, anytime.

3 modes switch

Switch Seamlessly Between Work and Play

Smooth Office Performance

With 128GB memory and dual M.2 2280 PCIe 4.0 slots

the M6 Ultra runs Excel, Photoshop

and other office apps effortlessly while

letting you easily expand storage

workandplaywithoutlimits.

160W+ Master Lu Score

Effortlessly Power Through Major Games

With a Master Lu score over 1.6 million, this device easily handles AAAtitles and esportsgames. Enjoy stable high frame rates and smooth gameplay foproan immersive gaming experience.
