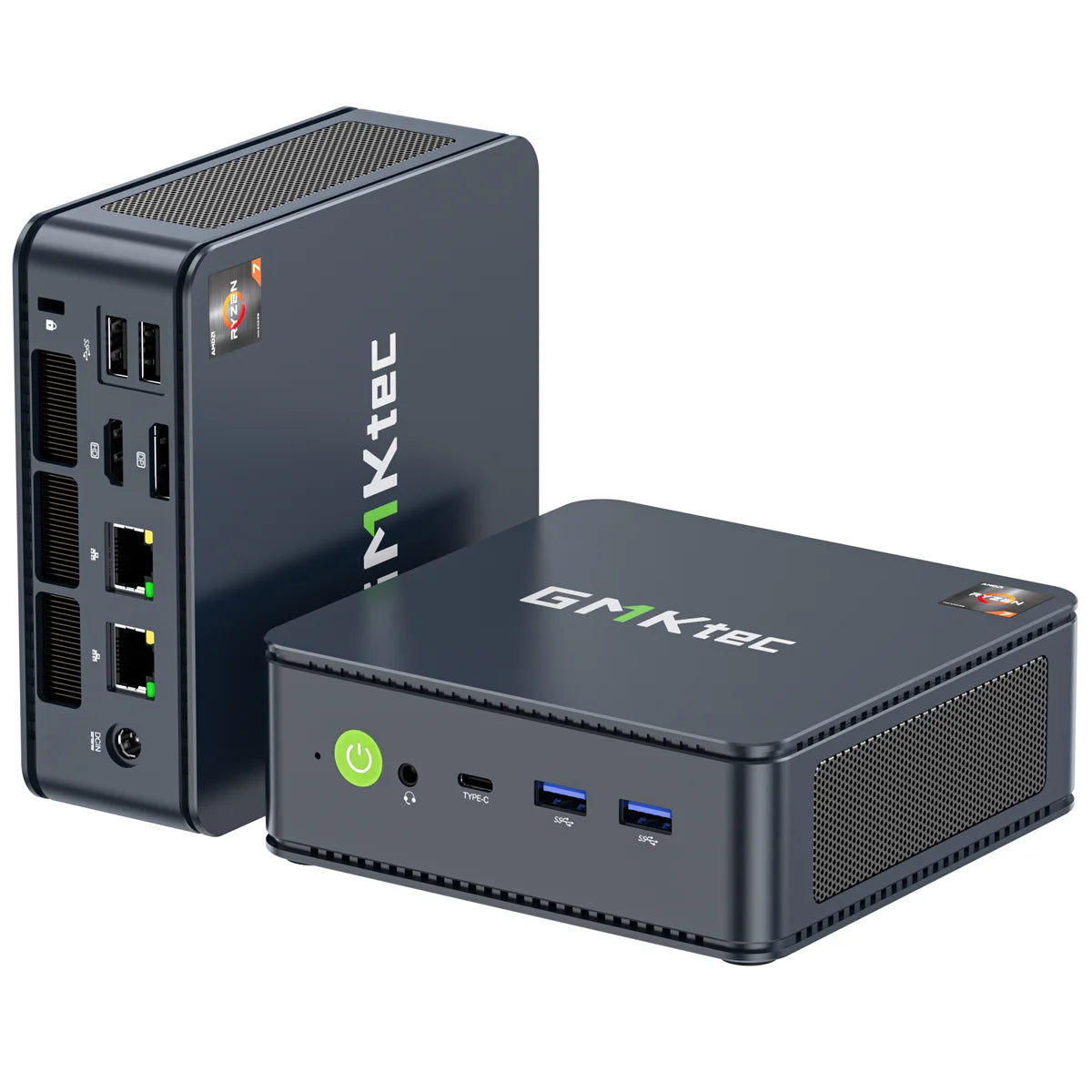

GMKtec NucBox M5 Plus Mini PC AMD Ryzen™ 7 5825U
GMKtec NucBox M5 Plus Mini PC AMD Ryzen™ 7 5825U
Regular price
$239.99
Sale price
$239.99
Regular price
$299.99
Couldn't load pickup availability
Limited time offer
Get $20 off when you spend $1,000 or more! Learn more
Payment & Security
Payment methods
| Parameter | Details |
|---|---|
| Model | GMKtec NucBox M5 Plus |

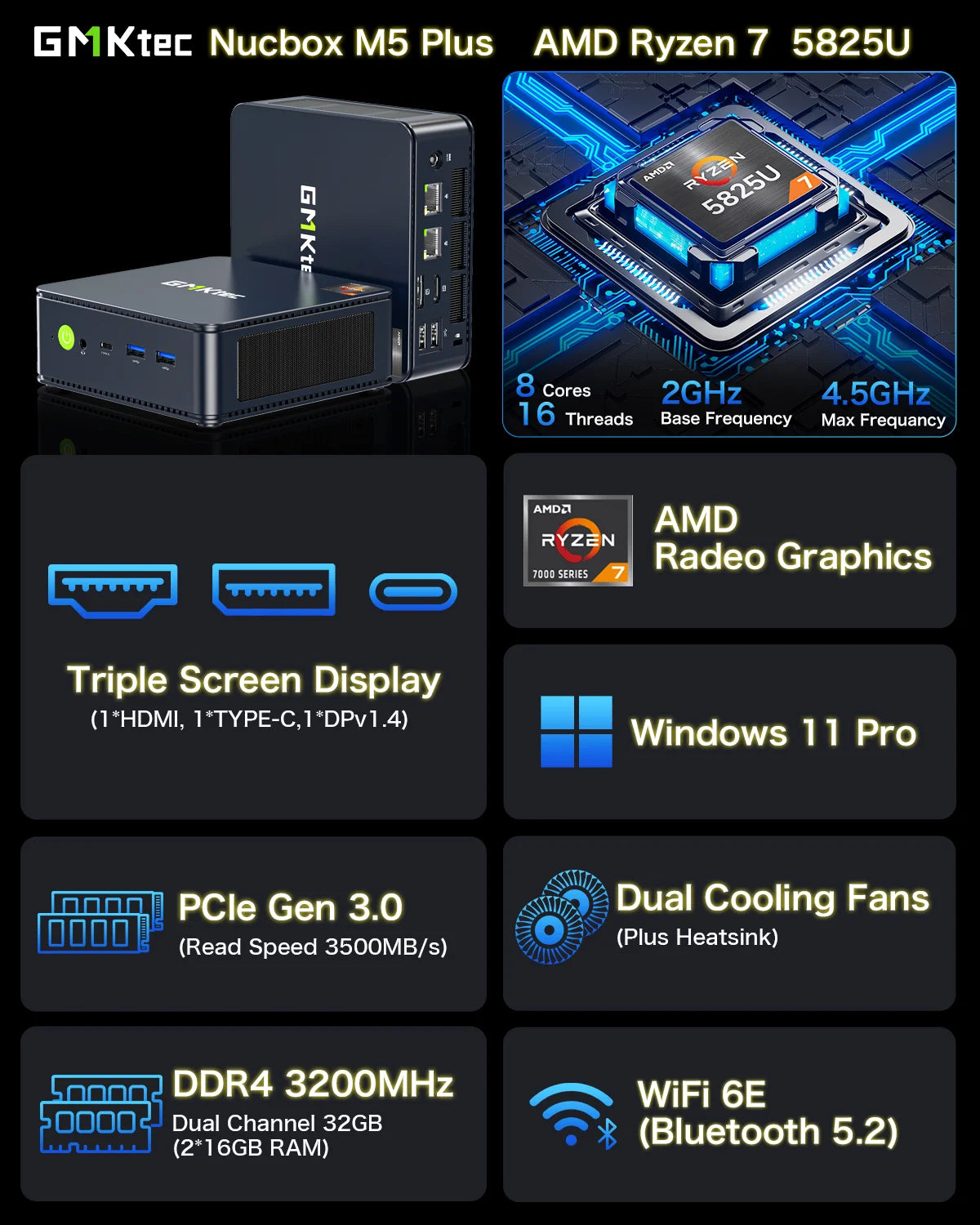

| CPU Model | AMD Ryzen™ 7 5825U |
| CPU |
AMD Ryzen™ Processor, 8 Cores, 16 Threads 7nm Process, FP6 Package Base Frequency 2.0GHz, Max Boost up to 4.5GHz 4MB L2 Cache / 16MB L3 Cache TDP 10W–35W Zen 3+ Architecture |
| CPU Socket / Package | FP6 Package |
| GPU |
AMD Radeon™ Graphics 8 Cores, up to 2000MHz |
| Memory (RAM) |

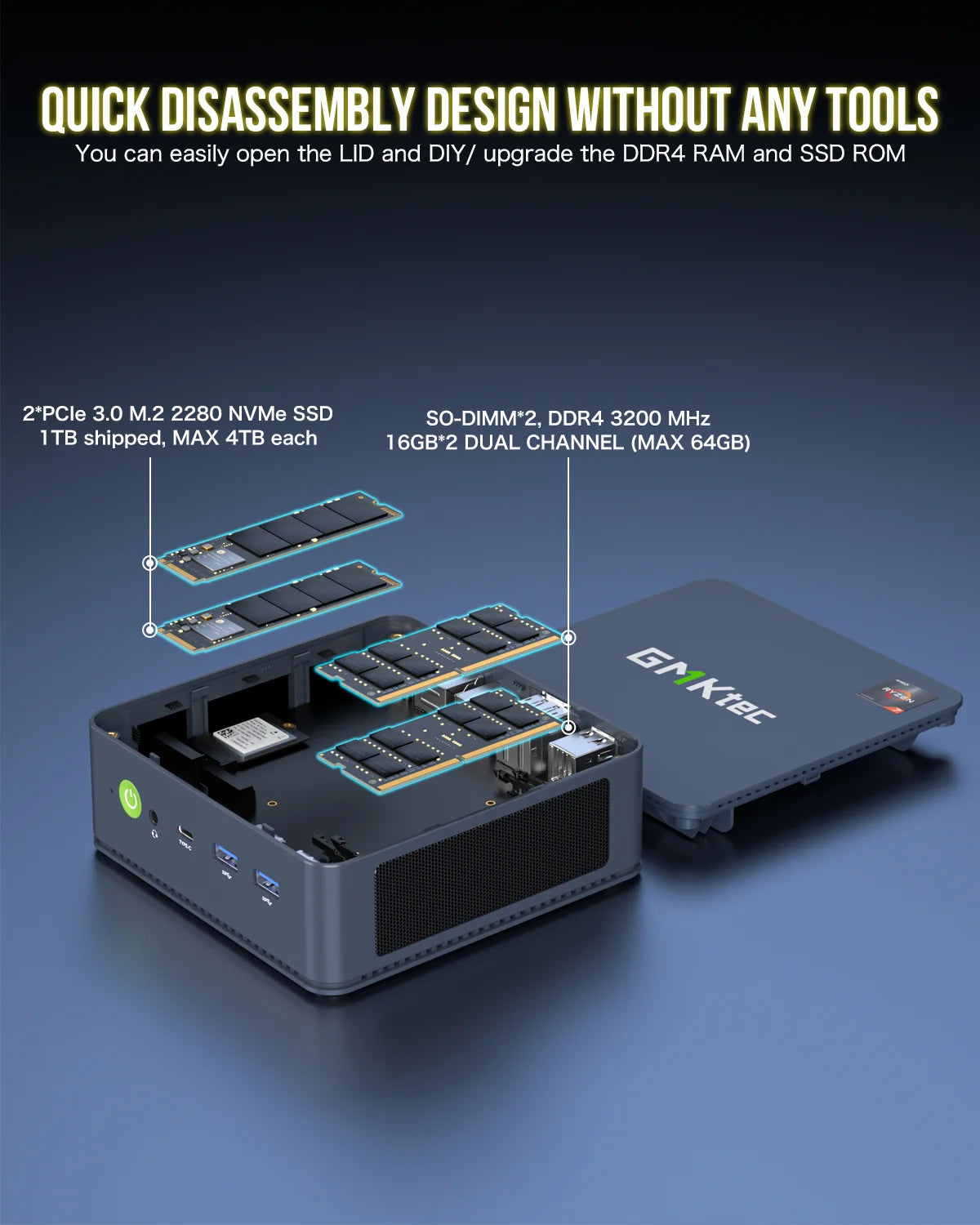

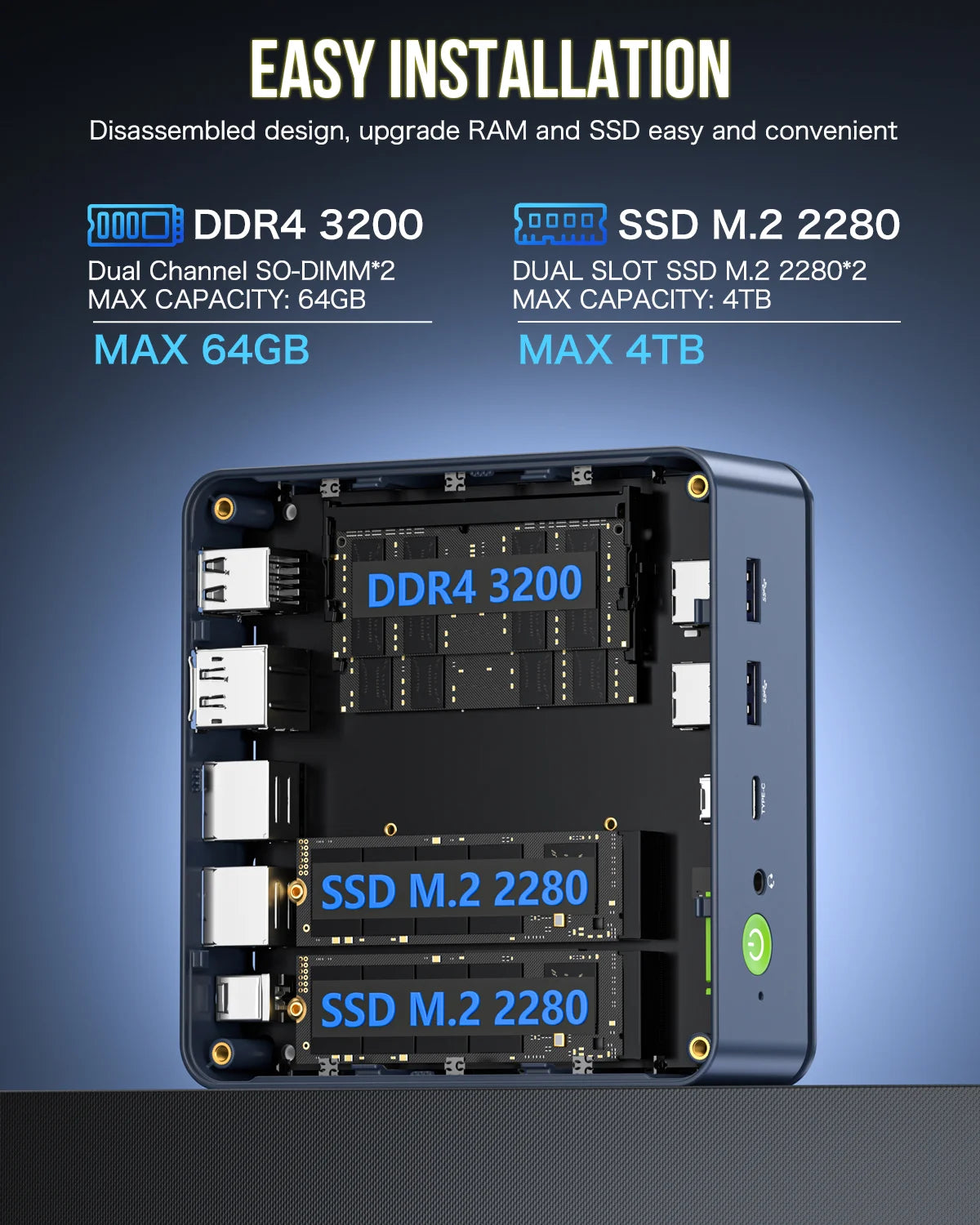

2 × SO-DIMM Slots Dual-Channel DDR4-3200 Memory 16GB / 32GB configurations Supports up to 64GB |
| Storage (ROM) |
PCIe 3.0 M.2 2280 SSD 512GB standard configuration |
| Storage Expansion | Supports up to 2TB total storage expansion |
| Graphics Output |
Triple display output via HDMI + DisplayPort + USB Type-C Supports up to 4096 × 2160 resolution |
| Network |

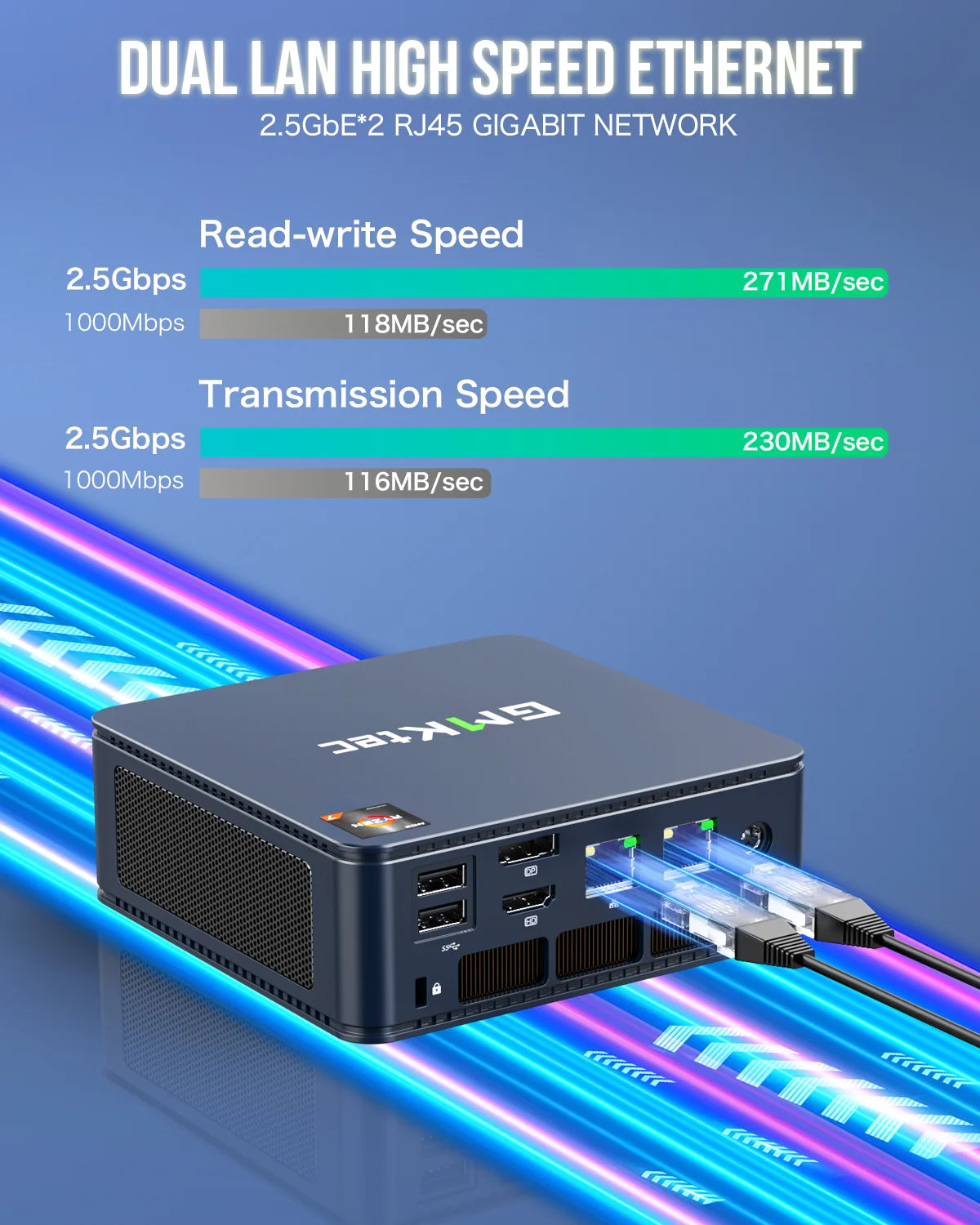

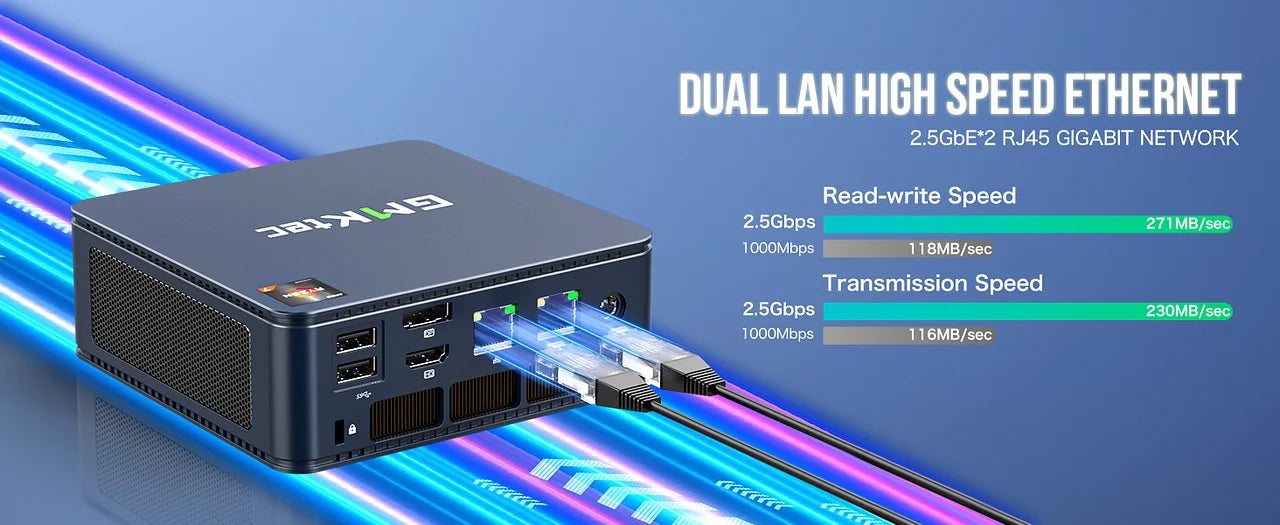

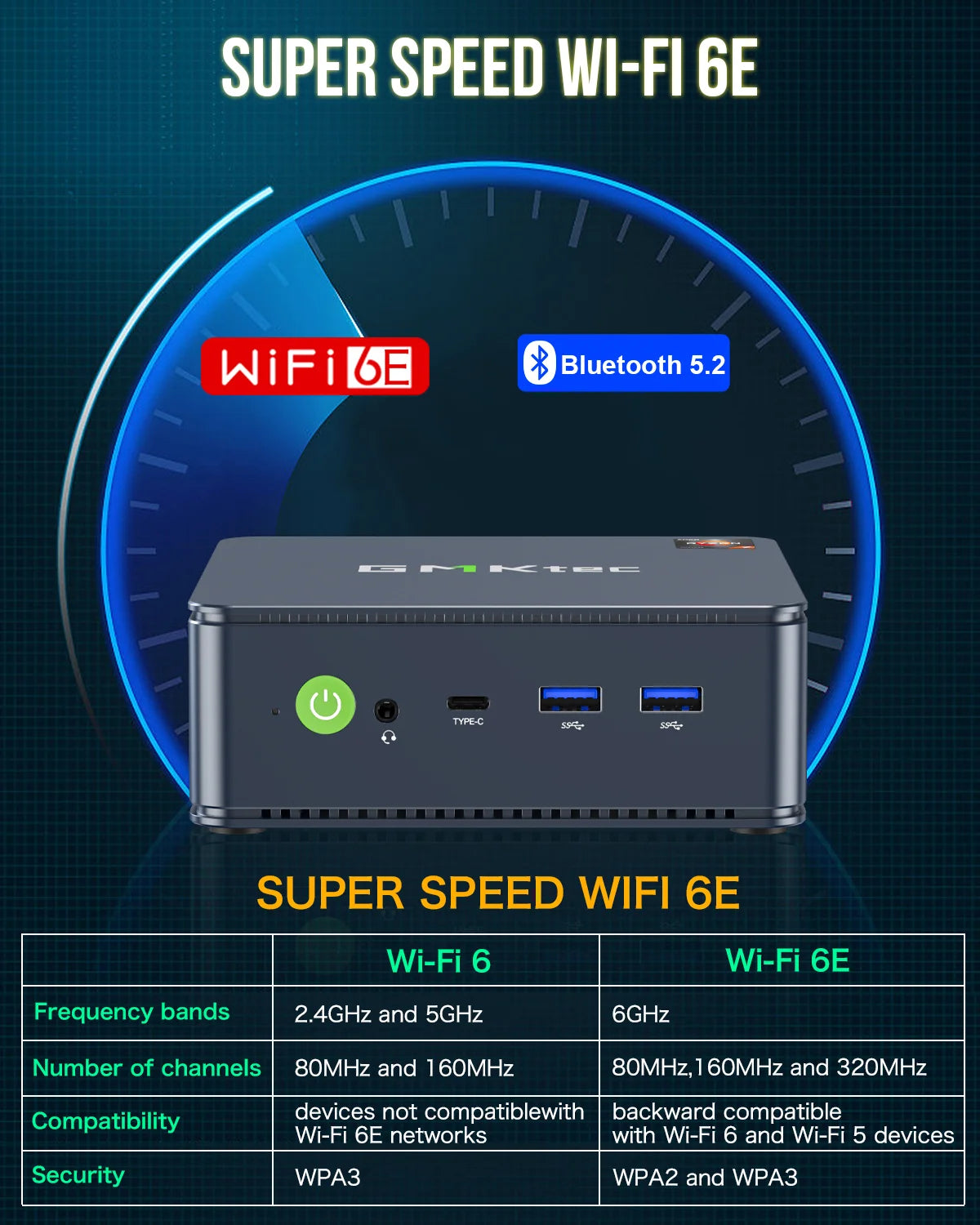

Wi-Fi 6 (RZ616, up to 1.2Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek RTL8125) |
| Power |
Built-in coin cell battery DC Power Adapter 19V / 3.42A |

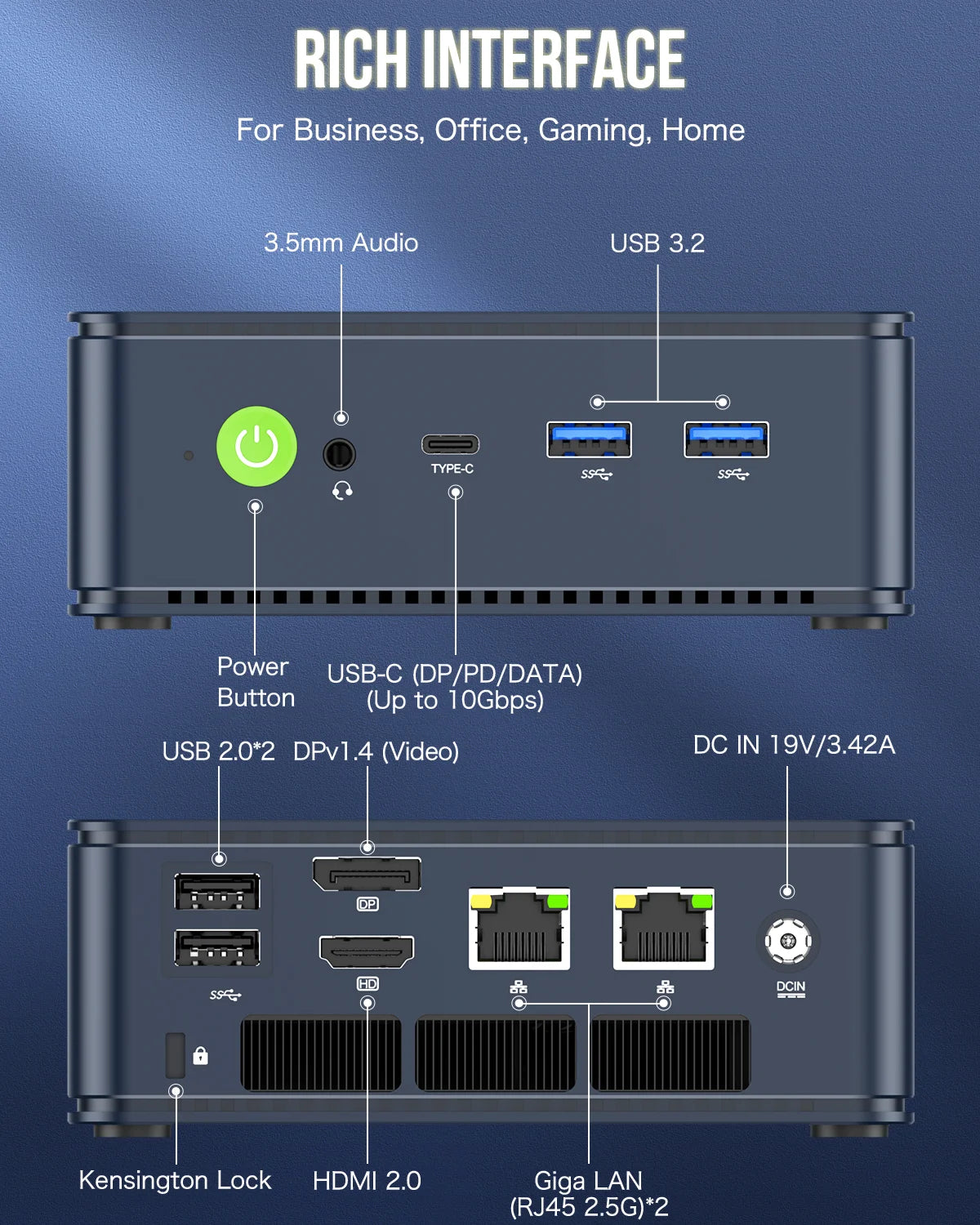

| External Ports |
USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0 HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DisplayPort (up to 4K@60Hz) USB-C: 1 × Type-C (USB 3.1 Gen2 / PD / DP / Data, 10Gbps) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button |
| USB-C Notice |
The USB Type-C port supports data transfer, video output, and PD input (65W–100W). External GPU connection is not supported. |
| Operating System | Windows 11 Pro / Linux Supported |
| Language Support | 13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Chassis Dimensions | 128.8 × 127 × 47.8 mm |
| Weight | 528 g |
| Color | Bronze |
| Working Temperature | 0°C – 40°C |
| Warranty | 1-Year Limited Warranty |
| Certifications | CE, FCC, CCC, RoHS |
| Packaging List |

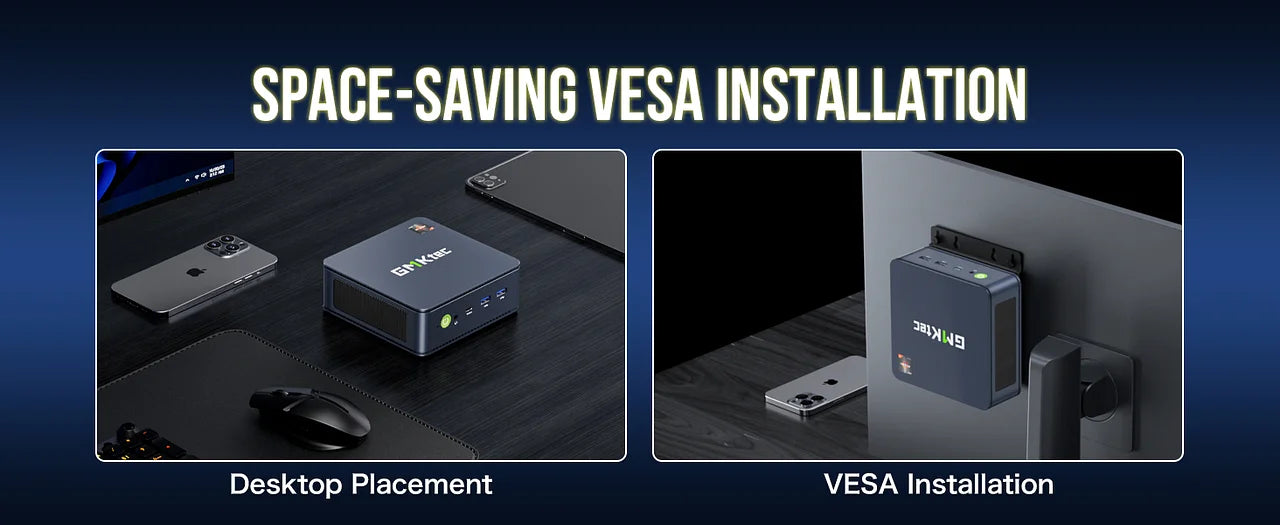

User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
