GMKtec M5S AMD Ryzen™ 3 5400U Mini PC
GMKtec M5S AMD Ryzen™ 3 5400U Mini PC
Regular price
$269.99
Sale price
$269.99
Regular price
$389.99
Couldn't load pickup availability
Payment & Security
Payment methods
| Specifications | M5S | M5 Ultra |
|---|---|---|
| Model | GMKtec NucBox M5S | GMKtec NucBox M5 Ultra |
| CPU Model | AMD Ryzen™ 3 5400U | AMD Ryzen™ 7 7730U |
| CPU |
4 Cores / 8 Threads Base Clock: 2.6GHz Max Boost Clock: Up to 4.0GHz 2MB L2 Cache / 8MB L3 Cache |
8 Cores / 16 Threads Base Clock: 2.0GHz Max Boost Clock: Up to 4.5GHz 4MB L2 Cache / 16MB L3 Cache |
| Architecture / Process |
AMD Ryzen™ 5000 Series TSMC 7nm FinFET |
AMD Ryzen™ 7000 Series Zen 3 Architecture TSMC 7nm FinFET |
| Performance Modes |
Silent Mode: 10W Balanced Mode: 15W Performance Mode: 25W Peak Power: 35W |
Silent Mode: 10W Balanced Mode: 15W Performance Mode: 35W Peak Power: 35W |
| GPU |
AMD Radeon™ Graphics 6 GPU Cores, up to 1600MHz |
AMD Radeon™ Graphics 8 GPU Cores, up to 2000MHz |
| Memory (RAM) |

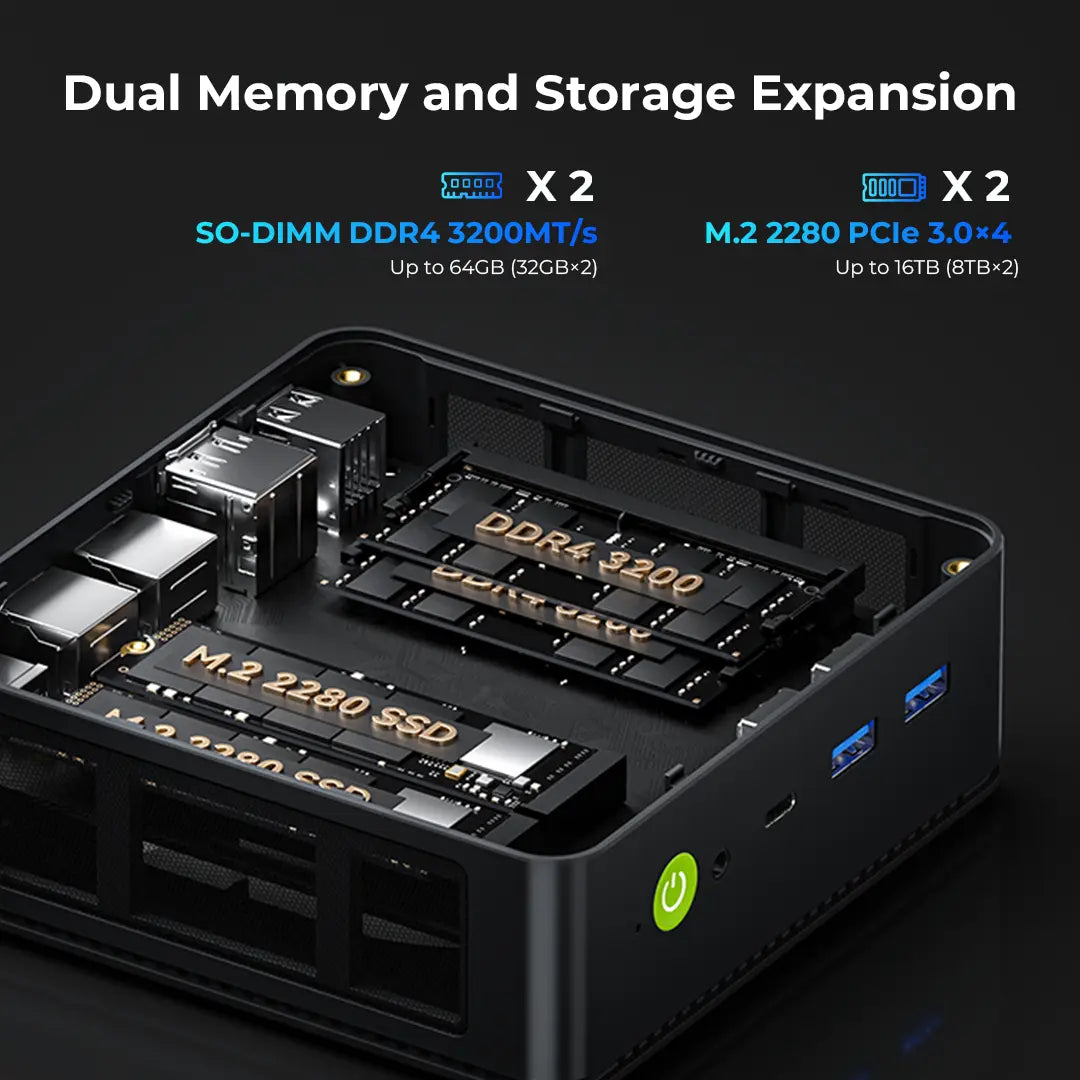

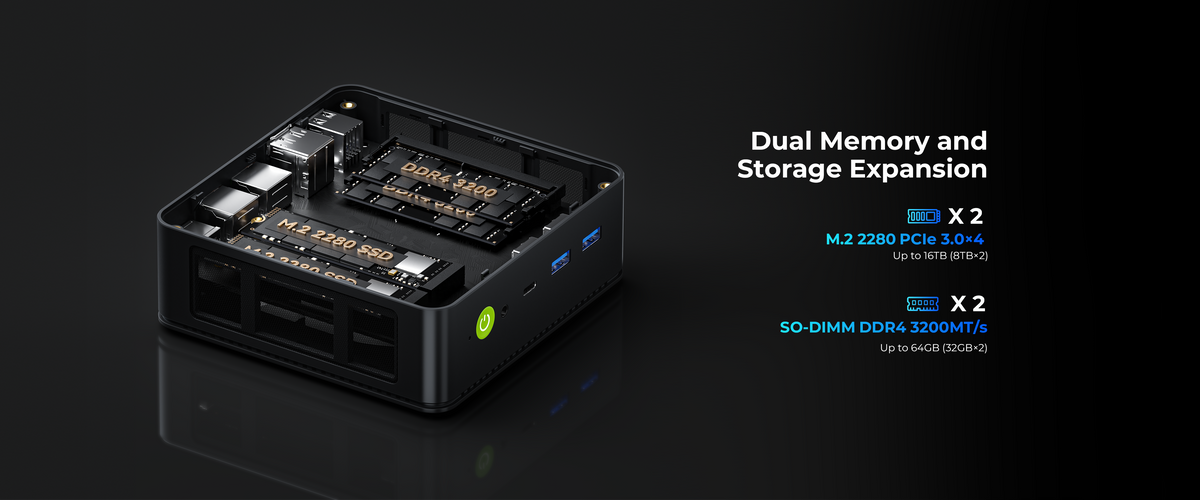

2× SO-DIMM Slots DDR4-3200 16GB / 32GB Configurations Dual-Channel Support |
2× SO-DIMM Slots DDR4-3200 16GB / 32GB Configurations Dual-Channel Support |
| Maximum Memory | Up to 64GB (32GB×2) | Up to 64GB (32GB×2) |
| Storage |
2× M.2 2280 SSD Slots 512GB PCIe 3.0 ×4 SSD Pre-installed |
2× M.2 2280 SSD Slots 512GB PCIe 3.0 ×4 SSD Pre-installed |
| Storage Interface |
Slot 1: SATA or PCIe 3.0 ×4 Slot 2: PCIe 3.0 ×4 |
Slot 1: SATA or PCIe 3.0 ×4 Slot 2: PCIe 3.0 ×4 |
| Storage Expansion |
Up to 8TB per SSD Up to 16TB total storage |
Up to 8TB per SSD Up to 16TB total storage |

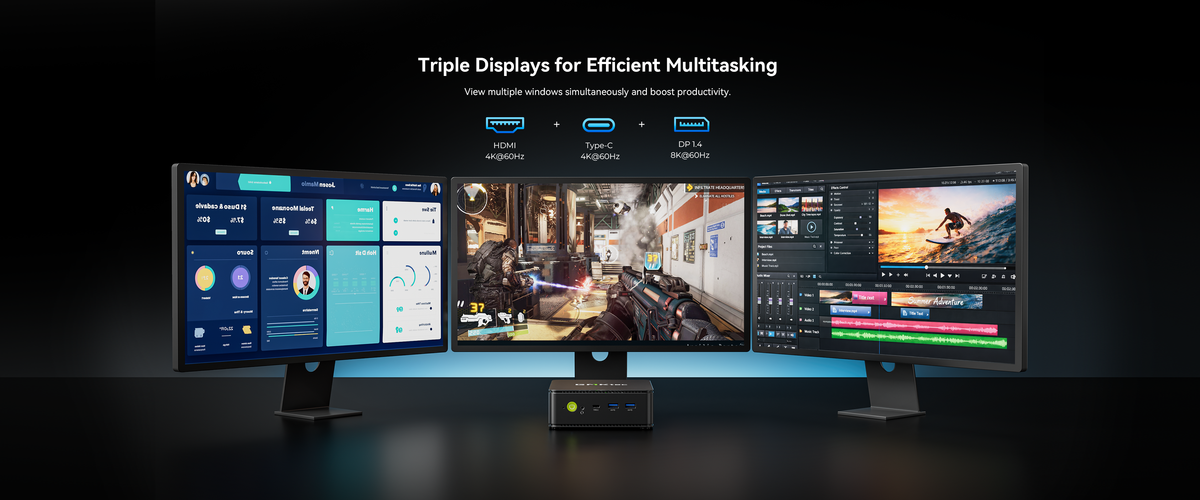

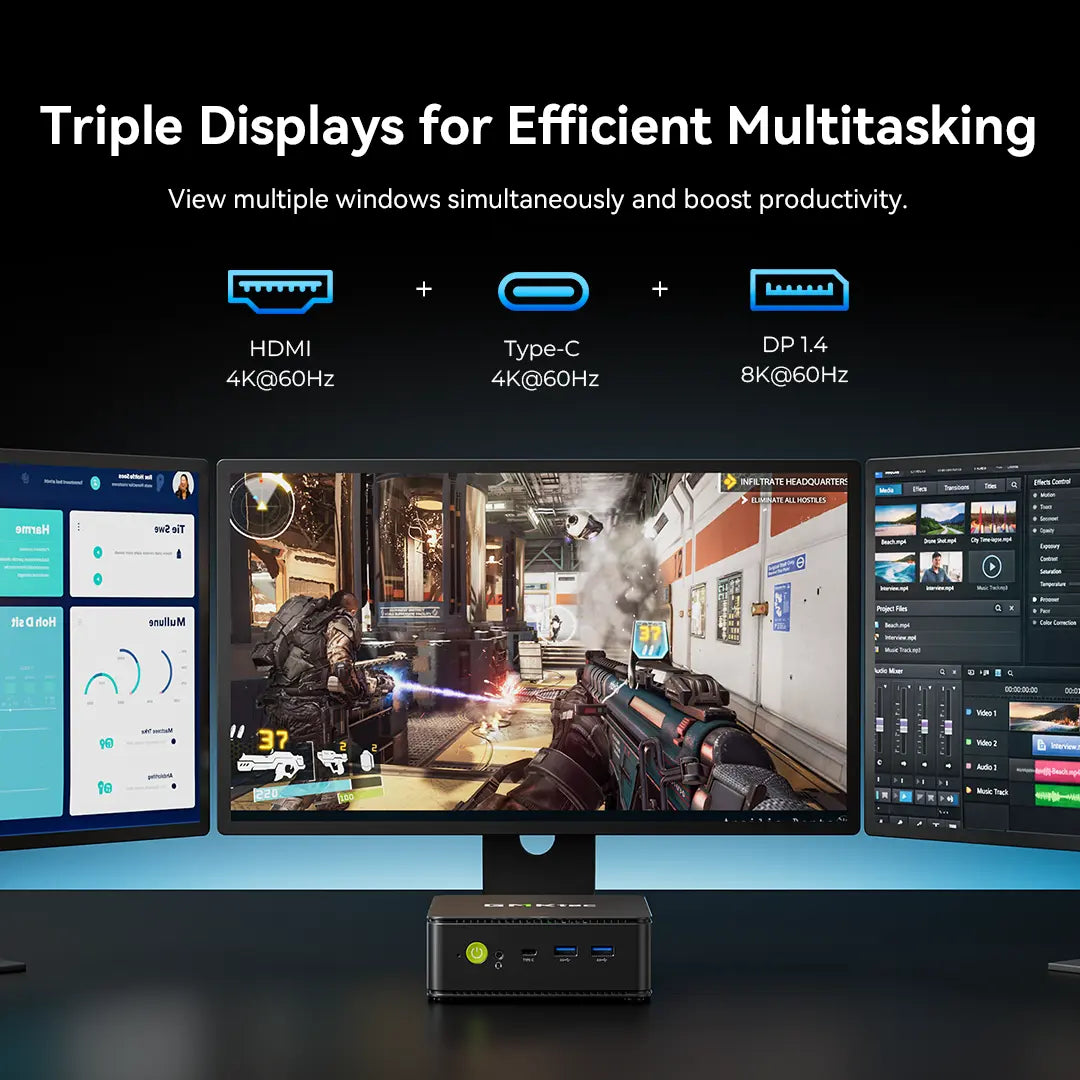

| Graphics Output |
Triple Display Output HDMI + DisplayPort + USB-C Up to 8K@60Hz via DisplayPort |
Triple Display Output HDMI + DisplayPort + USB-C Up to 8K@60Hz via DisplayPort |
| Wi-Fi |
Wi-Fi 6E AMD RZ616 Up to 2.4Gbps |
Wi-Fi 6E AMD RZ616 Up to 2.4Gbps |
| Bluetooth | Bluetooth 5.2 | Bluetooth 5.2 |

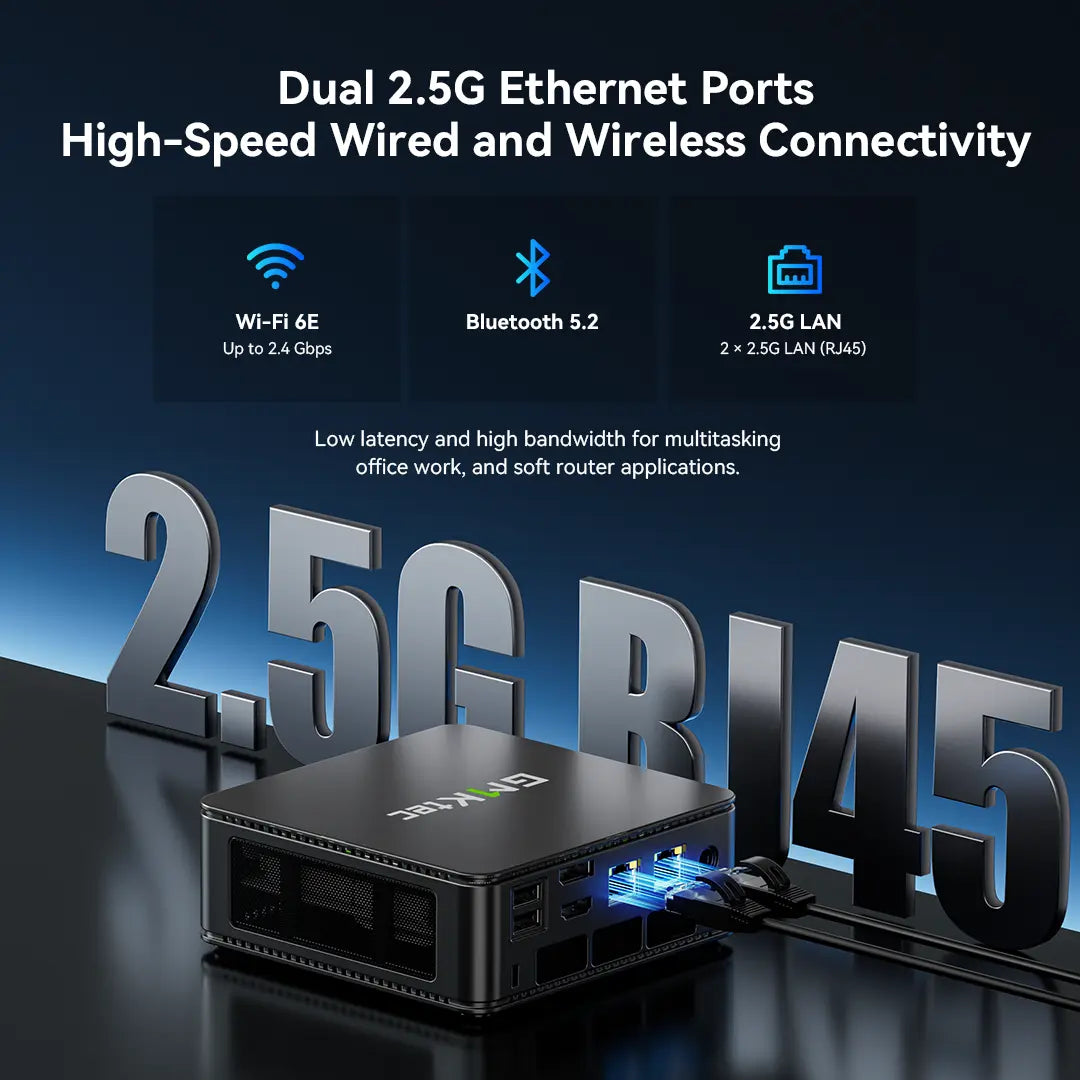

| Ethernet |

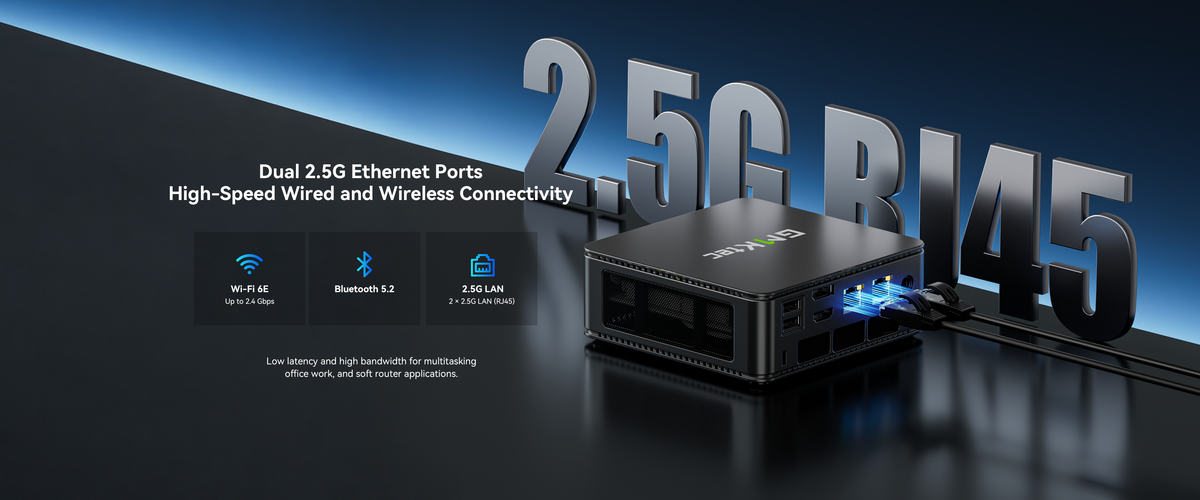

Dual 2.5G RJ45 LAN Realtek RTL8125 |
Dual 2.5G RJ45 LAN Realtek RTL8125 |

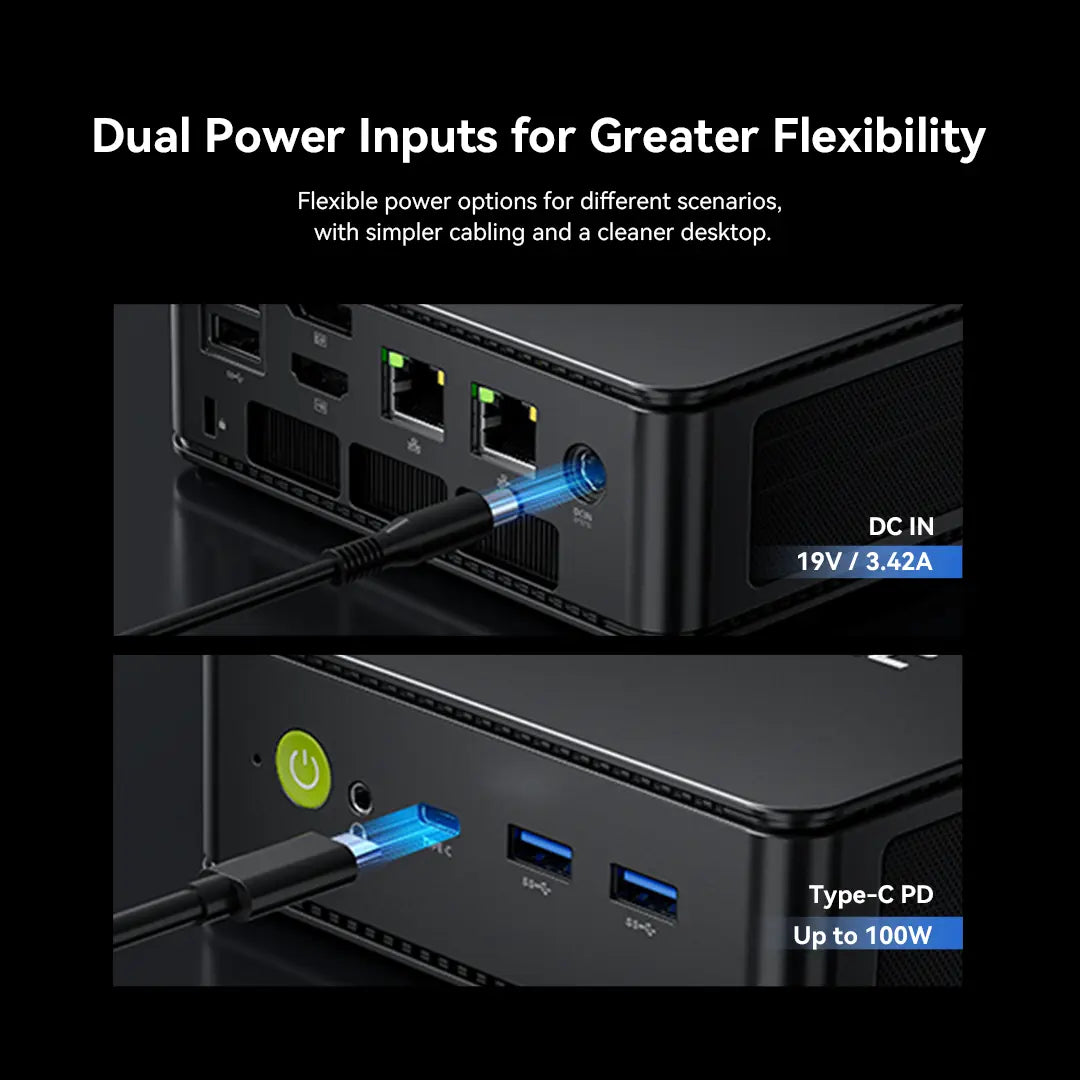

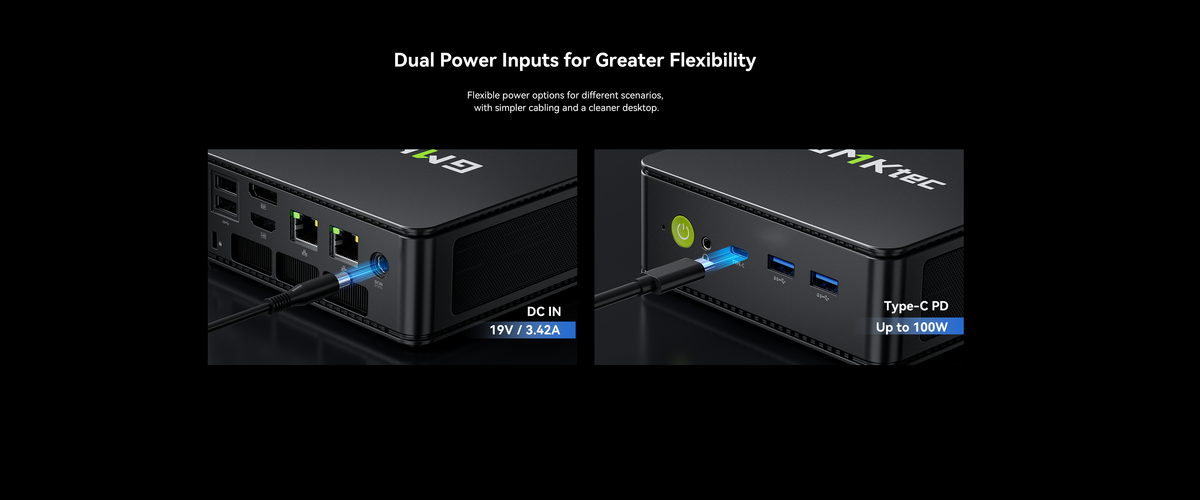

| Power |
DC 19V / 3.42A Built-in Coin Cell Battery |
DC 19V / 3.42A Built-in Coin Cell Battery |

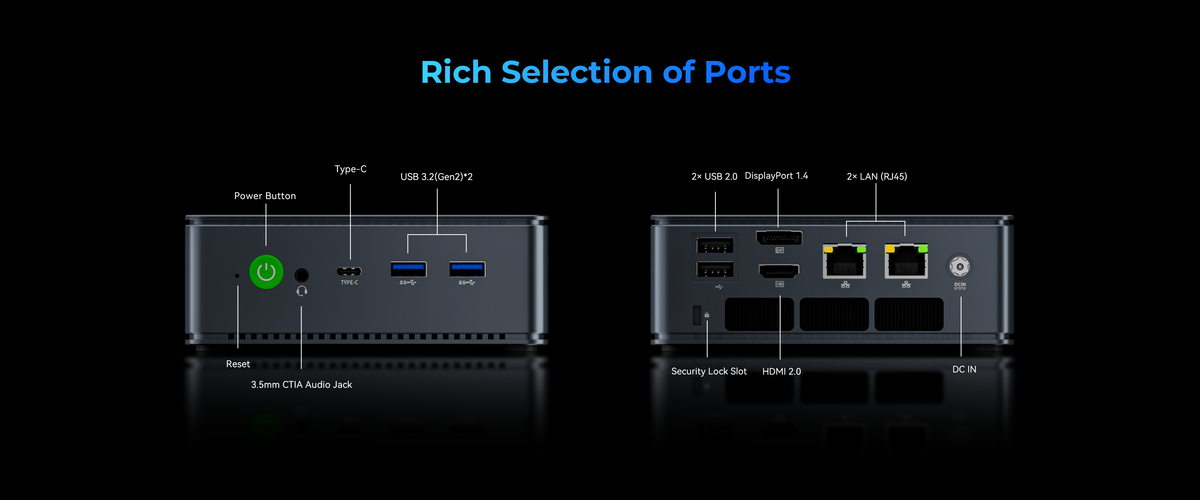

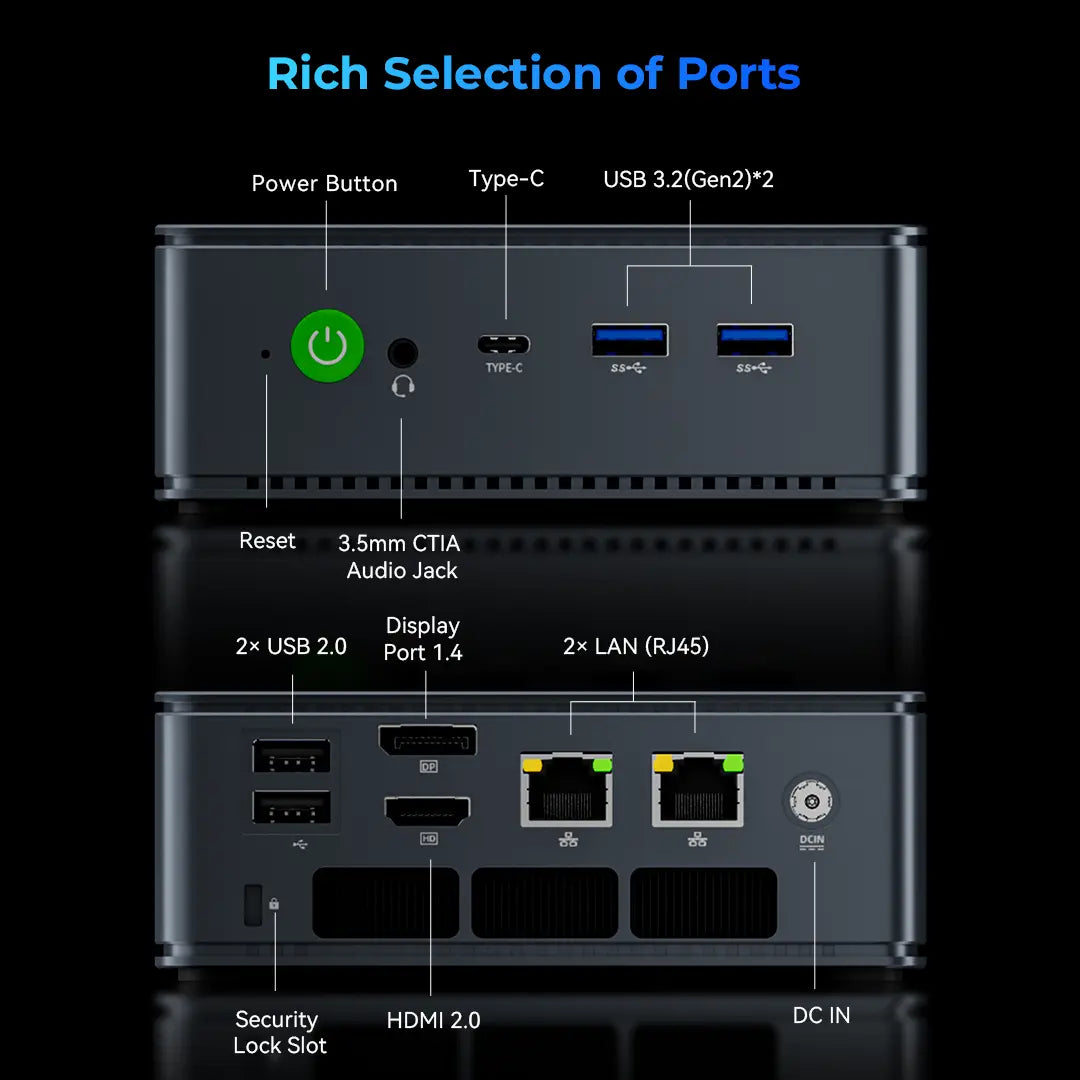

| USB-A Ports |
2× USB 3.2 Gen 2 (10Gbps) 2× USB 2.0 (480Mbps) |
2× USB 3.2 Gen 2 (10Gbps) 2× USB 2.0 (480Mbps) |
| USB-C Port |
1× USB-C USB 3.2 Gen 2, 10Gbps 100W PD Input DisplayPort Video Output Up to 4K@60Hz |
1× USB-C USB 3.2 Gen 2, 10Gbps 100W PD Input DisplayPort 1.4 Up to 4K@60Hz |
| HDMI | 1× HDMI 2.0, up to 4K@60Hz | 1× HDMI 2.0, up to 4K@60Hz |
| DisplayPort |
1× DisplayPort 1.4 Up to 8K@60Hz |
1× DisplayPort 1.4 Up to 8K@60Hz |
| Audio | 1× 3.5mm CTIA Audio Jack | 1× 3.5mm CTIA Audio Jack |
| Other Ports |
1× DC IN (5.5/2.5mm) 1× Reset / Clear CMOS Button 1× Power Button |
1× DC IN (5.5/2.5mm) 1× Reset / Clear CMOS Button 1× Power Button |
| Cooling System | Copper Heat Pipe + Dual-Fan Cooling | Dual-Fan Cooling Design |
| Operating System | Windows 11 Pro | Windows 11 Pro |

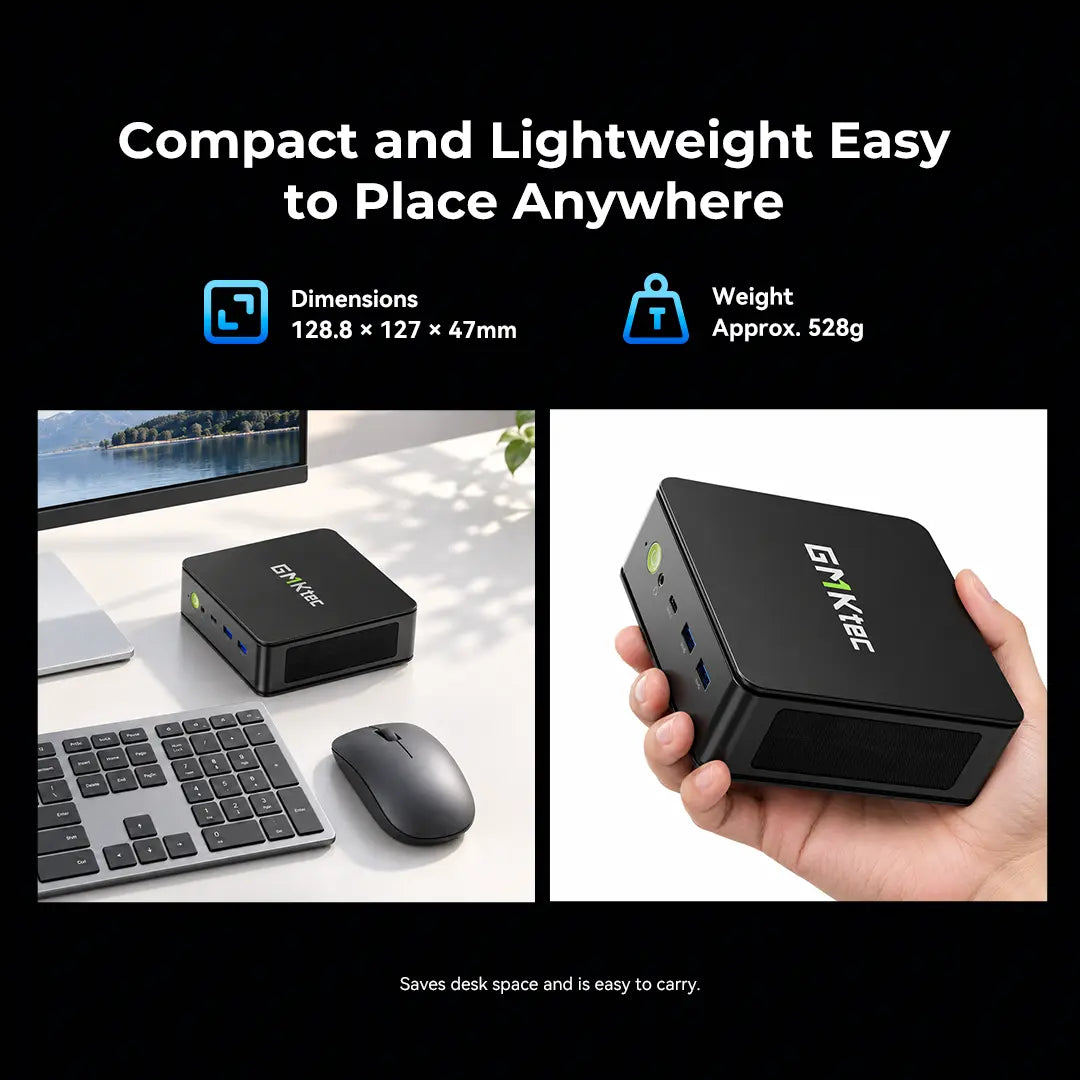

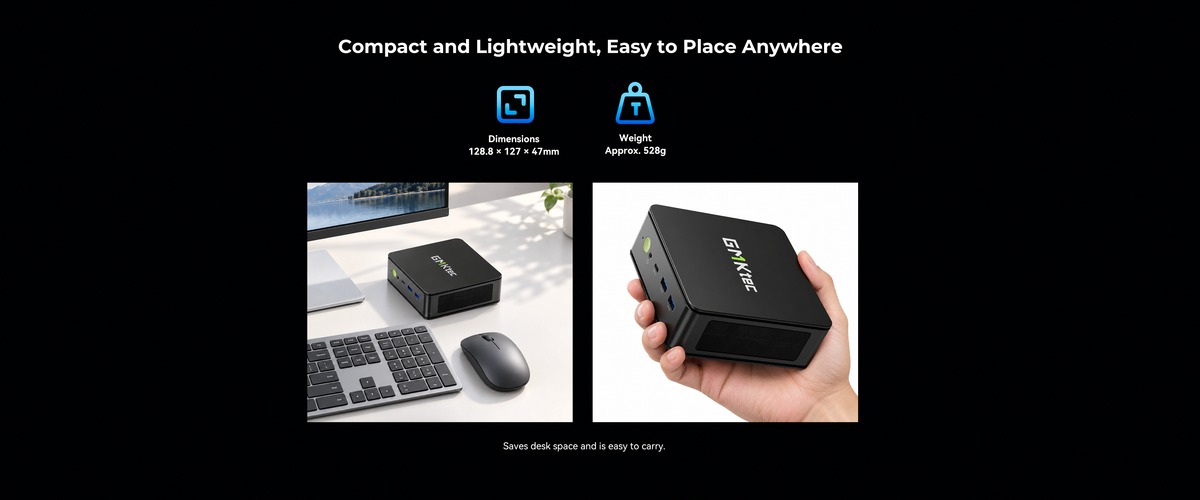

| Chassis Dimensions | 128.8 × 127 × 47.8 mm | 128.8 × 127 × 47.8 mm |
| Weight | Approximately 528g | 528g |
| Packaging List |

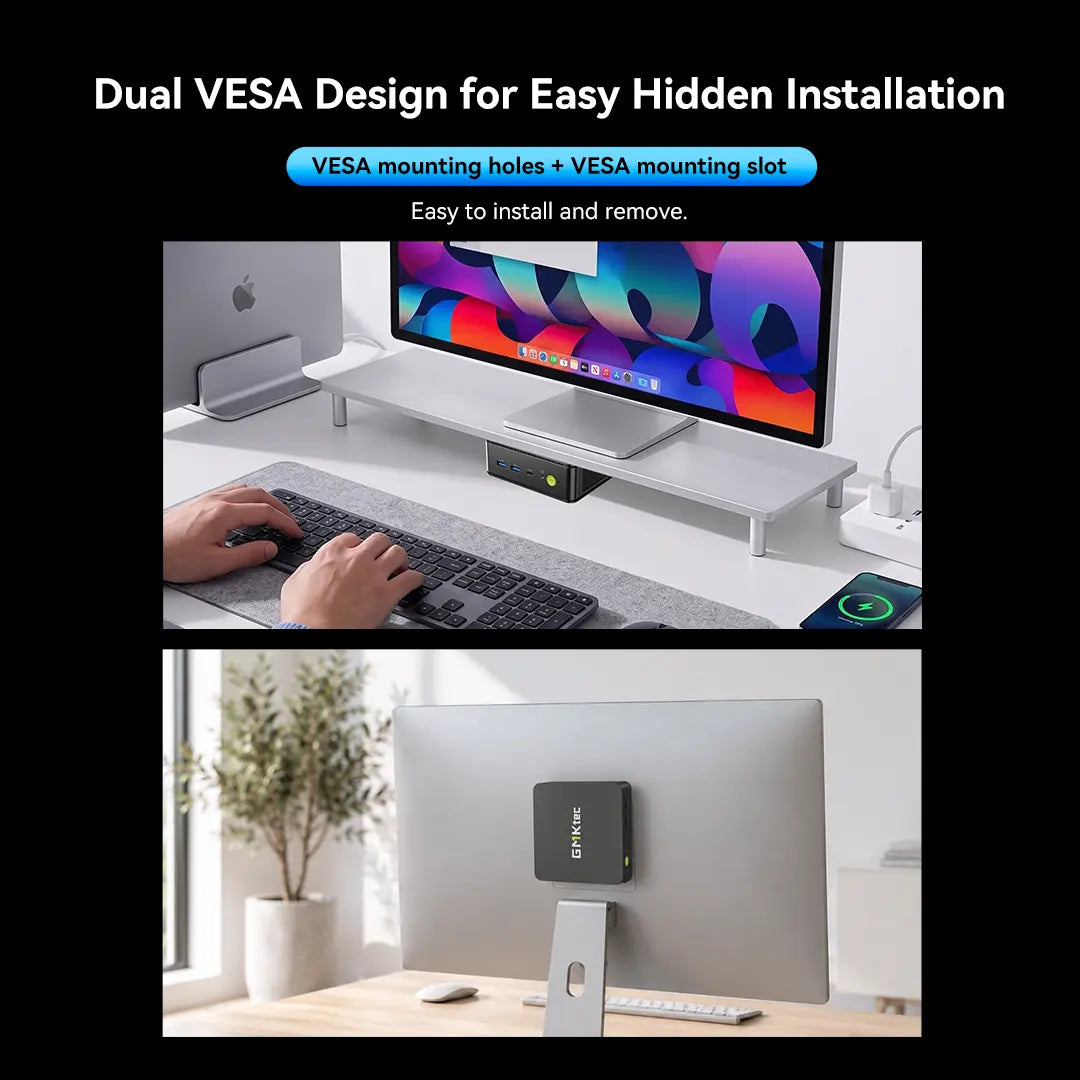

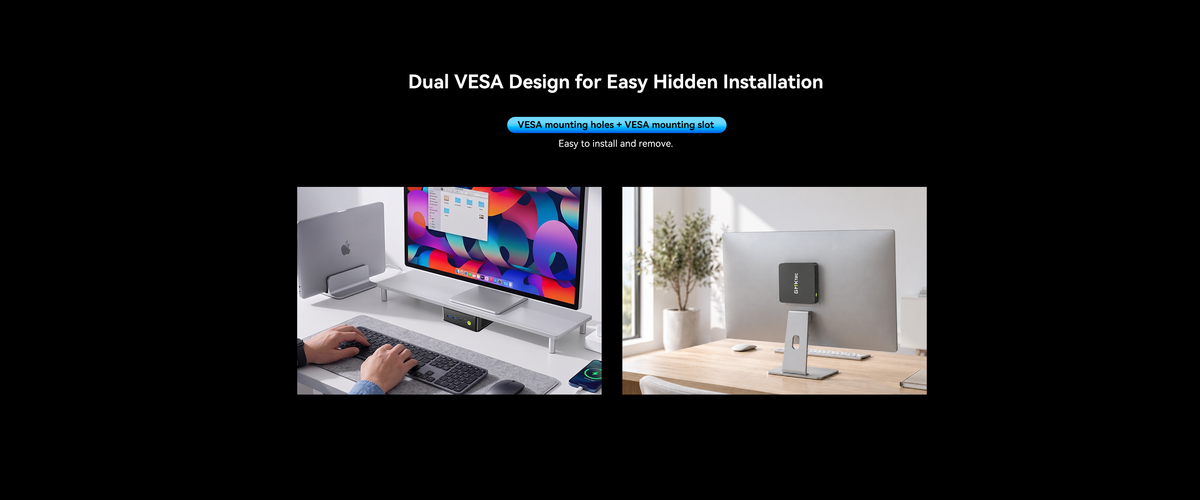

User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable |
Swipe left to view the full M5 Ultra specifications →
