GMKtec G10 AMD Ryzen™ 5 3500U Mini PC
GMKtec G10 AMD Ryzen™ 5 3500U Mini PC
Couldn't load pickup availability
Note: The Barebone model comes without DDR memory, SSD, and OS. You need to install your own compatible DDR memory and SSD before powering on the device.
| Parameter | Details |
|---|---|
| CPU Model | AMD Ryzen™ 5 3500U |
| CPU | AMD Ryzen™ 3000 Series, Quad-Core, Eight-Thread, 12nm process, Max Turbo 3.7GHz, 4MB L3 Cache, TDP 25W (MAX 35W) |
| CPU Socket/Package | FP5 |
| GPU | Radeon™ Vega 8 Graphics, 8 cores, up to 1200 MHz |
| Memory (RAM) | 2×DDR4 SO-DIMM, 16GB/32GB, 2400 MT/s, up to 64GB supported |
| Storage (ROM) | 2×M.2 2280 PCIe 3.0×4 SSD, 512GB/1TB, built-in expansion up to 16TB (2×8TB) |
| Graphics Output | Triple output via HDMI / DP / Type-C, supports up to 8K resolution (via DP) |
| Network | Wi-Fi 5 (Realtek RTL8822CE, up to 866.7 Mbps), Bluetooth 5.0, Gigabit LAN (supports 2.5G/1G/100M/10M, Realtek 8125BG) |
| Power | Built-in coin cell battery; Type-C Charger 19V/3.42A (supports PD and non-PD chargers) |
| External Ports |
USB-A: 2×USB 3.2 Gen1 (5Gbps) + 1×USB 2.0 Type-C: 1×(DP1.4 4K@30Hz + USB3.2 Gen1 + PD), 1×PD only HDMI: 1×HDMI 2.1 (4K60Hz) DisplayPort: 1×DP1.4 (4K60Hz) Audio: 3.5mm CTIA RJ45: 1×Gigabit LAN |
| Operating System | Windows 11 Pro |
| Language Support | 14 languages (Default English; supports Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic) |
| Chassis Dimensions | 103 × 98 × 42 mm |

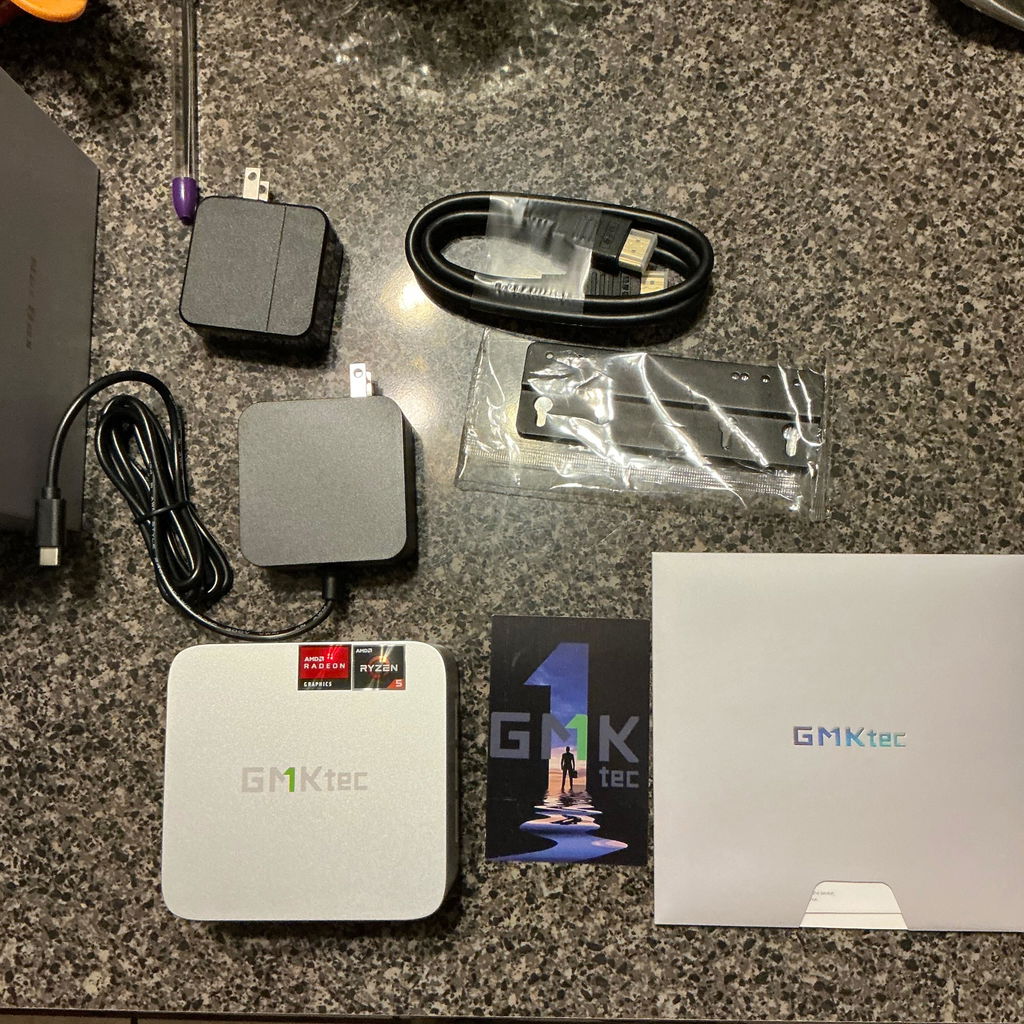

| Packaging List | User Manual, Warranty Card, Power Adapter, VESA Stand, HDMI Cable |
9 Premium Features
AMD Ryzen 5 3500U
4 Cores, 8 Threads，3.70GHz
Radeon Vega 8 Graphics
1200 MHz
Type-C Power Supply
19V / 3.42A
Ethernet LAN
2500Mbps
Mini Turbo Fan Speed
Quiet Cooling Fan
Dua PCIe 3.0 M.2 2280 SSD
Expand up to 16TB
Wireless Connection
Wi-Fi 5 + Bluetooth 5.0
Triple Screen Display
HDMI + DP + Type-C
Dual DDR4
2400 MT/s, Expand up to 64GB
AMD Ryzen 5
4 Cores：Ryzen 5
8 Threads：4MB Cache
3.70GHz：Turbo Boost
The AMD Ryzen 5 3500U is a power-efficient quad-coreprocessor with simultaneous multithreading (SMT),delivering strong multitasking and everyday performance for mini desktops
Triple Screen HD Display
HDMI + DP + Type-C (DP). Enjoy 4K@60Hz Ultra HD Entertainment
Product internal Structure
Ultra Efficient Cooling System
Whisper-Cool-Silent Breeze, Max Performance.
Wi-Fi 5 + Bluetooth 5.0 + 2.5G LAN
Experience fast stable internet with this Mini PC's triple networking options: WiFi 5 for wireless freedom, Bluetooth 5.0 for smooth peripherals, and 2.5 Gigabit Ethernet for wired speed. Perfect for work, entertain-ment, and 4K streaming-without compromise.
Portable PC
One PC, Many Roles —Home, Work
Rich Interface
This thing came fast! I ordered it only two weeks ago and came quickly. Also came with a free usb c charger and got a 10$ discount with a code.
I had an issue with the Realtek 2.5GBps NIC, but it was because older Linux Builds don’t have the driver bundled. Once I installed the driver all was well, I think newer Linux builds have it bundled.
Only three minor easy fixes, the m.2 should come with thermal pads and since you can easily open the lid, maybe attaching some thick pads to the back of the lid where the m.2s should be? I think you should ship the pads with the mini PC.
Second minor issue is the heat of the Realtek NIC. It hits about 79 degree which is fine, but something to help dissipation maybe some thermal pads or tiny heatsinks could help?
Third issue is I think that the mini PC bios should ship with Performance mode on by default.

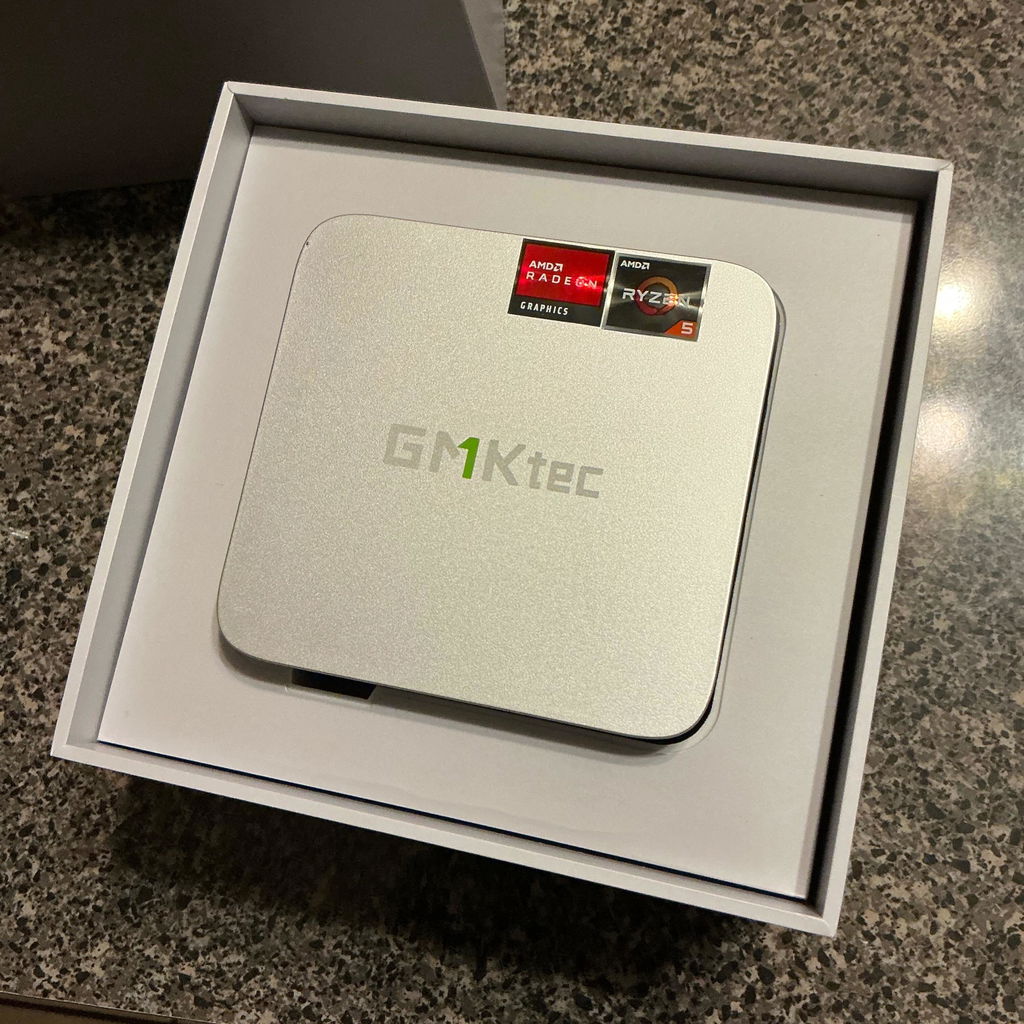

Overall, I am very happy with this miniPC and would highly recommend it. 3500U processor is showing its age, but for what it is performs swimmingly, and including a 2.5GBps NIC and dual m.2 slots is quite impressive! Unboxing experience was very nice, and premium. Everything was packaged nicely and clean.

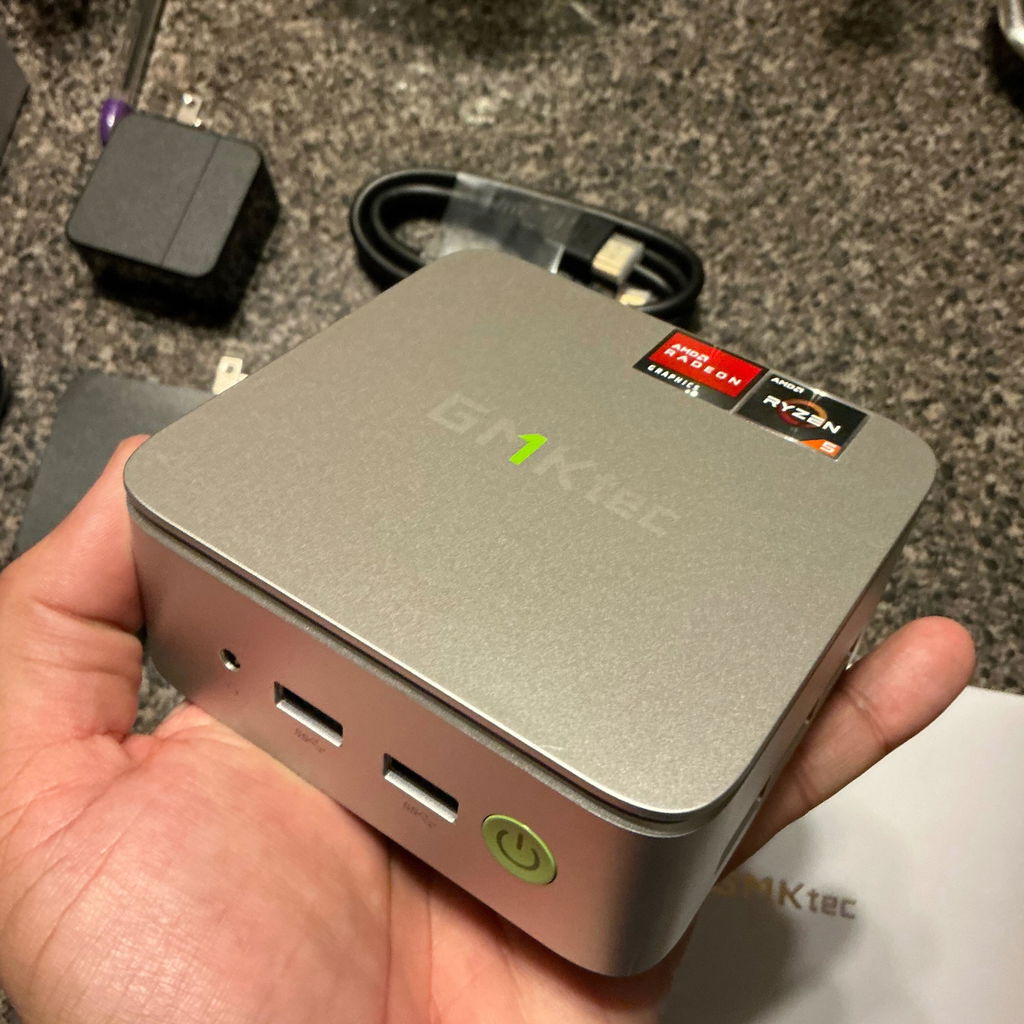

The aesthetics of the miniPC is beautiful, the pictures on this listing don’t do it justice, it’s absolutely gorgeous and sleek looking. I’ve bought BeeLink, BMax, and minis forum, and Asus mini PCs in the past, and this by far is the best value, and easiest to open. No screws!
It's OK which is what I wanted for a second PC. I had a stick of Ram and a SSD so I figured I would buy a cheap mini PC to try out different operating systems. System is responsive enough for Linux Mint. Actually my only issue was with shipping as it shipped from China and seemed to have become misdirected once in the US. Not sure I would order directly from China next time. Otherwise have no issues with the port selection, or getting a OS installed. It's an older mobile AMD APU so I kept my expectations lower. I would recommend to anyone with basic needs that is maybe willing to install a less resource heavy OS like Linux Mint.
I am very happy with this product! It works great so far and I have no complaints other than wishing the stainless steel paint job was a bit shinier, just for aesthetic appeal. But it runs just fine for what I need.
Awesome 👏
so far so good :)
Taking it on holiday
As usual fast delivery. Item in good shape and working as expected. Of course this PC is really low end with 16gb ram and 500gb SSD (for current standards, running ram and SSD hungry win11). But you get what you ask for and that is ok.
Very good product for any office work. Affordable price.
A great powerful mini PC with room for expansion.

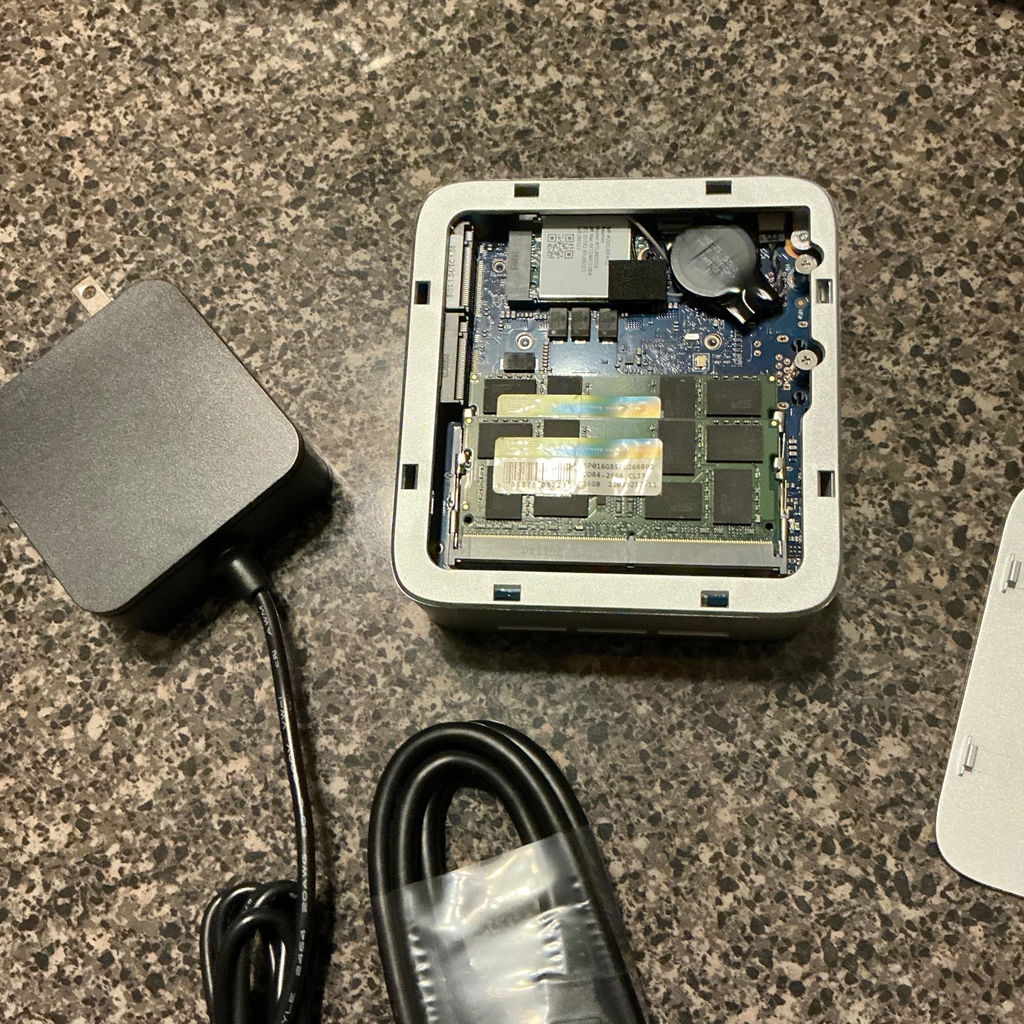

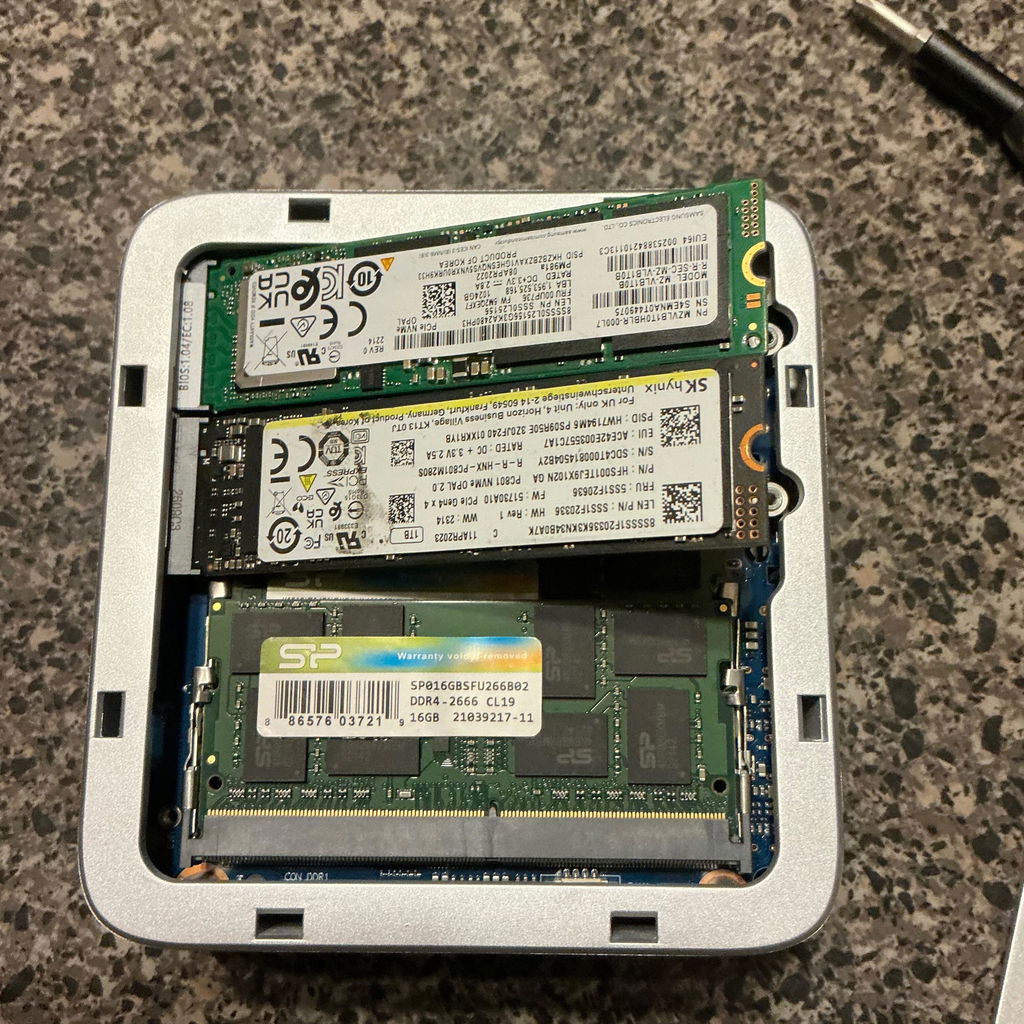

Amazing value. Ordered a barebones unit, put 32GB DDR4, and 2x 1TB m.2 SSDs I had laying around. Running as a proxmox node with about a dozen lxcs.
Order barebones if you can and have spare parts laying around, as RAM and Storage costs are over inflated!
