GMKtec NucBox M5 Ultra Mini PC AMD Ryzen™ 7 7730U / Ryzen™ 3 5400U

GMKtec NucBox M5 Ultra Mini PC AMD Ryzen™ 7 7730U GMKtec US

GMKtec M5 Ultra AMD R7 7730U | R3 5400U Mini PC

$269.99

$269.99 ~~$389.99~~

Specifications	M5S	M5 Ultra
Model	GMKtec NucBox M5S	GMKtec NucBox M5 Ultra
CPU Model	AMD Ryzen™ 3 5400U	AMD Ryzen™ 7 7730U
CPU	4 Cores / 8 Threads Base Clock: 2.6GHz Max Boost Clock: Up to 4.0GHz 2MB L2 Cache / 8MB L3 Cache	8 Cores / 16 Threads Base Clock: 2.0GHz Max Boost Clock: Up to 4.5GHz 4MB L2 Cache / 16MB L3 Cache
Architecture / Process	AMD Ryzen™ 5000 Series TSMC 7nm FinFET	AMD Ryzen™ 7000 Series Zen 3 Architecture TSMC 7nm FinFET
Performance Modes	Silent Mode: 10W Balanced Mode: 15W Performance Mode: 25W Peak Power: 35W	Silent Mode: 10W Balanced Mode: 15W Performance Mode: 35W Peak Power: 35W
GPU	AMD Radeon™ Graphics 6 GPU Cores, up to 1600MHz	AMD Radeon™ Graphics 8 GPU Cores, up to 2000MHz
Memory (RAM)	2× SO-DIMM Slots DDR4-3200 16GB / 32GB Configurations Dual-Channel Support	2× SO-DIMM Slots DDR4-3200 16GB / 32GB Configurations Dual-Channel Support
Maximum Memory	Up to 64GB (32GB×2)	Up to 64GB (32GB×2)
Storage	2× M.2 2280 SSD Slots 512GB PCIe 3.0 ×4 SSD Pre-installed	2× M.2 2280 SSD Slots 512GB PCIe 3.0 ×4 SSD Pre-installed
Storage Interface	Slot 1: SATA or PCIe 3.0 ×4 Slot 2: PCIe 3.0 ×4	Slot 1: SATA or PCIe 3.0 ×4 Slot 2: PCIe 3.0 ×4
Storage Expansion	Up to 8TB per SSD Up to 16TB total storage	Up to 8TB per SSD Up to 16TB total storage
Graphics Output	Triple Display Output HDMI + DisplayPort + USB-C Up to 8K@60Hz via DisplayPort	Triple Display Output HDMI + DisplayPort + USB-C Up to 8K@60Hz via DisplayPort
Wi-Fi	Wi-Fi 6E AMD RZ616 Up to 2.4Gbps	Wi-Fi 6E AMD RZ616 Up to 2.4Gbps
Bluetooth	Bluetooth 5.2	Bluetooth 5.2
Ethernet	Dual 2.5G RJ45 LAN Realtek RTL8125	Dual 2.5G RJ45 LAN Realtek RTL8125
Power	DC 19V / 3.42A Built-in Coin Cell Battery	DC 19V / 3.42A Built-in Coin Cell Battery

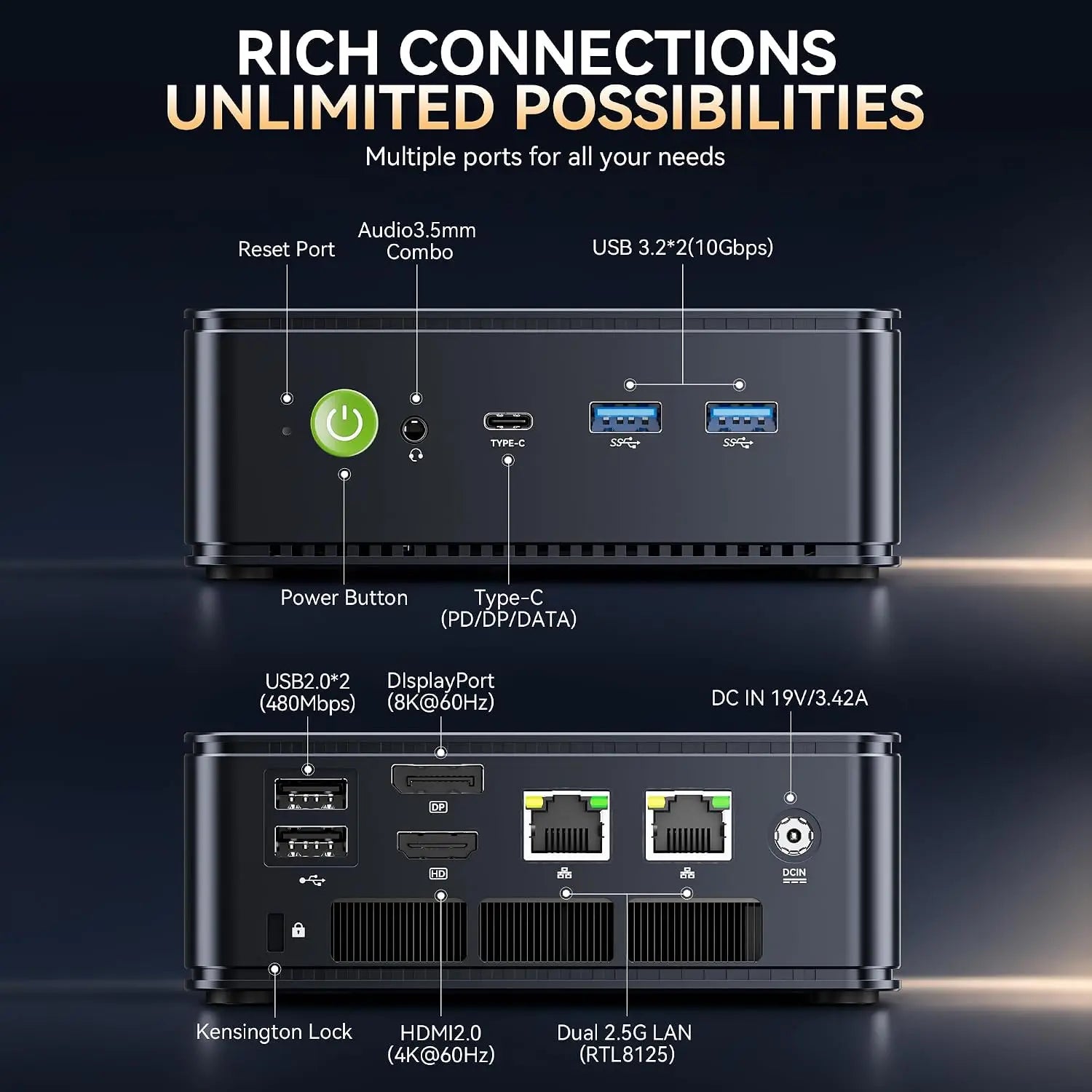

USB-A Ports	2× USB 3.2 Gen 2 (10Gbps) 2× USB 2.0 (480Mbps)	2× USB 3.2 Gen 2 (10Gbps) 2× USB 2.0 (480Mbps)
USB-C Port	1× USB-C USB 3.2 Gen 2, 10Gbps 100W PD Input DisplayPort Video Output Up to 4K@60Hz	1× USB-C USB 3.2 Gen 2, 10Gbps 100W PD Input DisplayPort 1.4 Up to 4K@60Hz
HDMI	1× HDMI 2.0, up to 4K@60Hz	1× HDMI 2.0, up to 4K@60Hz
DisplayPort	1× DisplayPort 1.4 Up to 8K@60Hz	1× DisplayPort 1.4 Up to 8K@60Hz
Audio	1× 3.5mm CTIA Audio Jack	1× 3.5mm CTIA Audio Jack
Other Ports	1× DC IN (5.5/2.5mm) 1× Reset / Clear CMOS Button 1× Power Button	1× DC IN (5.5/2.5mm) 1× Reset / Clear CMOS Button 1× Power Button
Cooling System	Copper Heat Pipe + Dual-Fan Cooling	Dual-Fan Cooling Design
Operating System	Windows 11 Pro	Windows 11 Pro
Chassis Dimensions	128.8 × 127 × 47.8 mm	128.8 × 127 × 47.8 mm
Weight	Approximately 528g	528g

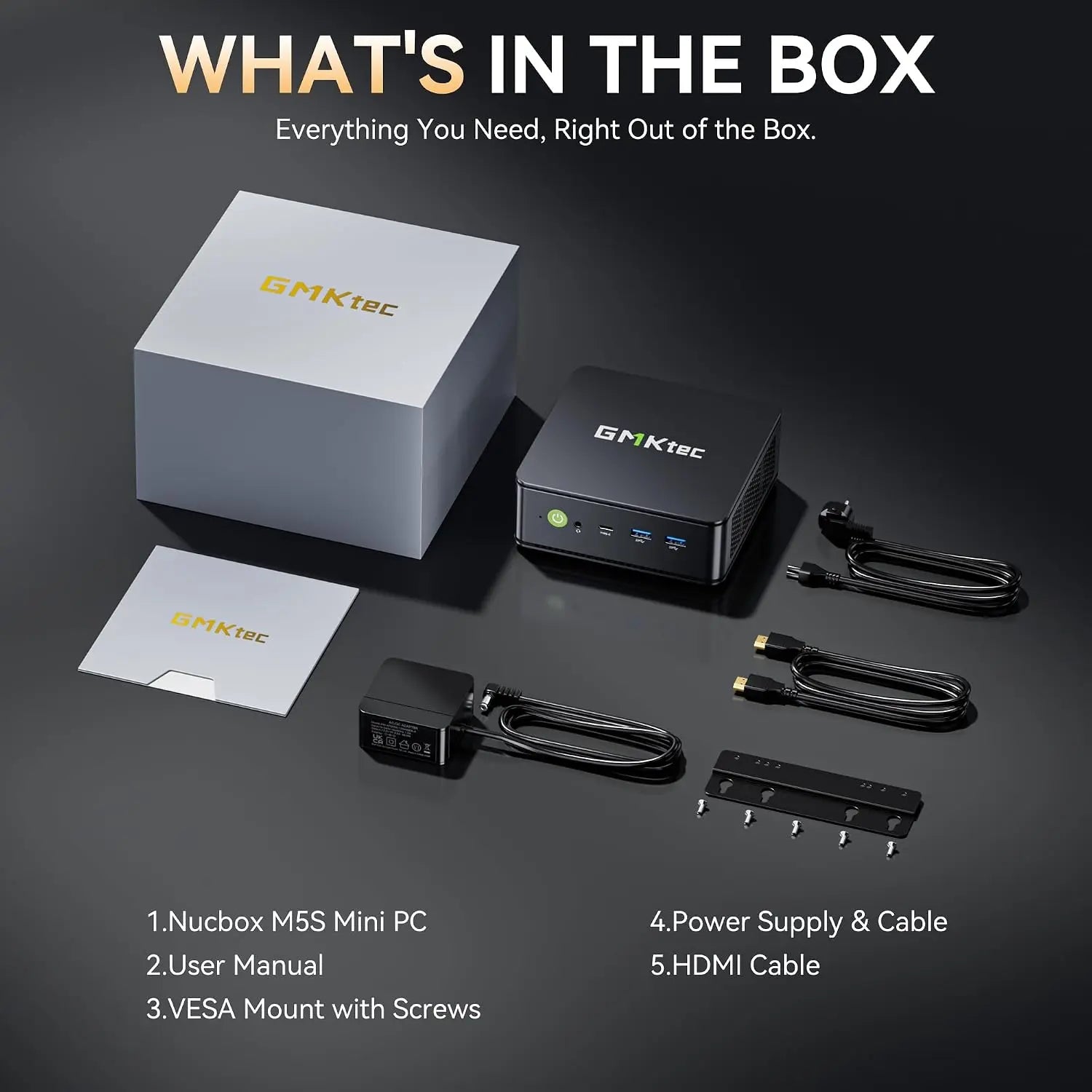

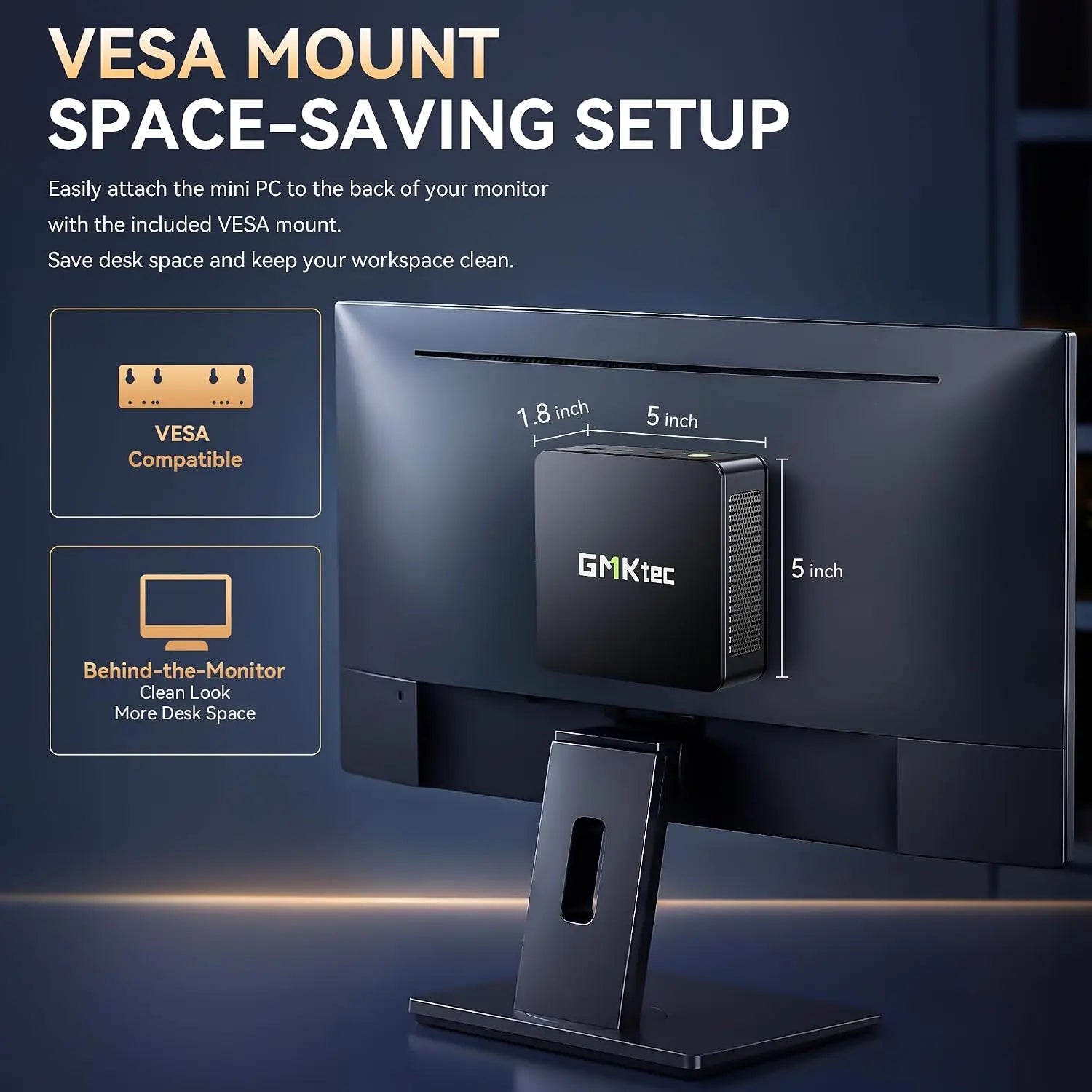

Packaging List	User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable	User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable

Swipe left to view the full M5 Ultra specifications →

GMKtec M5 Ultra

AMD Ryzen™ 7 7730U
Work & Play Unleashed

9 Premium Features

AMD Ryzen™ 7 7730U

8 Cores, 16 Threads，4.5GHz

AMD Radeon™ Graphics

2000 MHz, Max VRAM 2GB

Type-C Power Supply

19V / 3.42A

Dual LAN(2.5Gbps)

Dual-fansystem design

Dual SSD Slots

Dual M.2 2280 SSD
Max. 8TB/slot

Wireless Connection

WIFi 6E(2.4Gbps)+BT5.2

Triple Screens 8K Display

HDMI + DP + Type-C

Dual DDR4

3200MT/*2 (Max. 64GB)

AMD Ryzen™ 7 7730U

Experience Ultra Clear 8K with Radeon™ GPU

Powered by AMD Radeon™ Graphics with 8 cores running at
2000MHz, this GPU delivers exceptional speed and efficiency.
With up to 2GB memory,it supports ultra-clear 8K output
ensuring smooth visuals for work, entertainment.

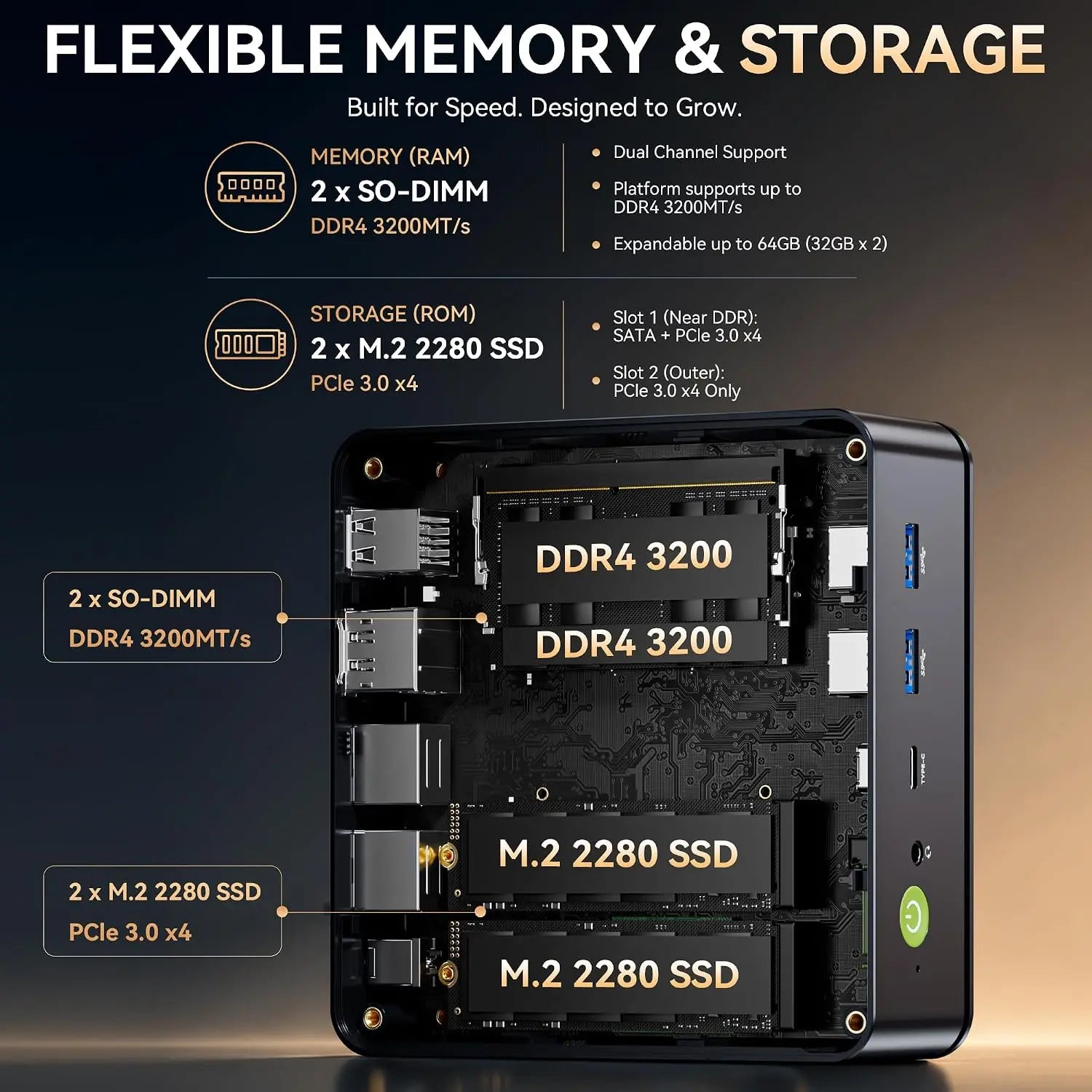

Easy RAM & SSD Upgrades

Disassembled design for quick upgrades-expand
storage your way, anytime.

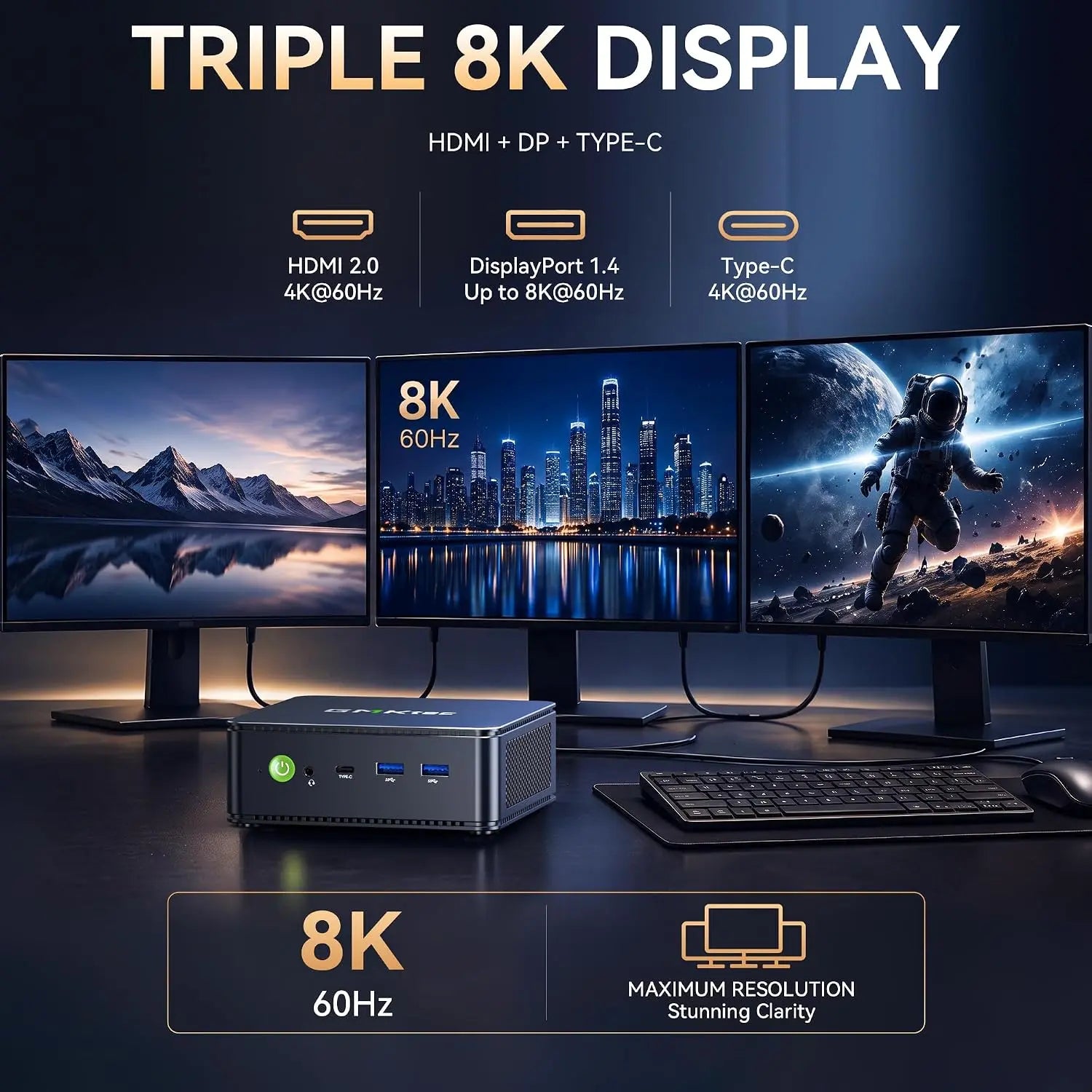

Triple-Display Output with Stunning 8K Support

Equipped with HDMI, DisplayPort, and Tpe-C outputs, this device
supports up to breathtaking 8K resolution. Enjoy ultra-high
definition visuals across multiple screens for work, gaming, and
entertainment like never before.

Smooth Office Performance

With up to 64GB memory and 8TB storage,the M5 Ultra handles Excel,
Photoshop, and other apps with ease
while giving you ample room to expand, soyou can work and play without limitis.

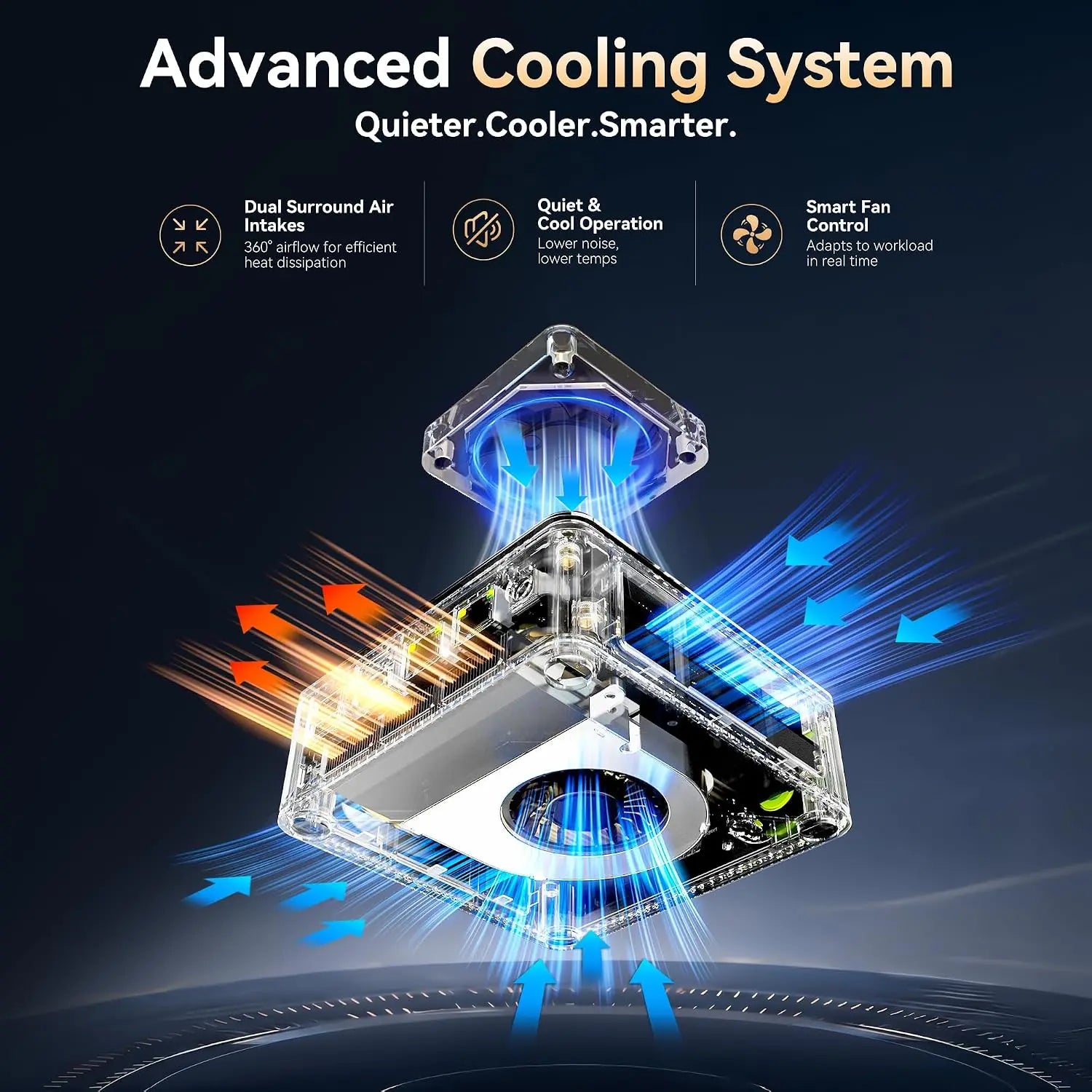

Advanced Cooling Design for Quiet and Efficient Performance

Featuring a brand-new board-style heatsink with
dual surround air intakes, the system delivers quieter
and cooler operation.
Intelligent fan control and dust-resistant design
extend device lifespan while ensuring
stable SSD and memory performance.

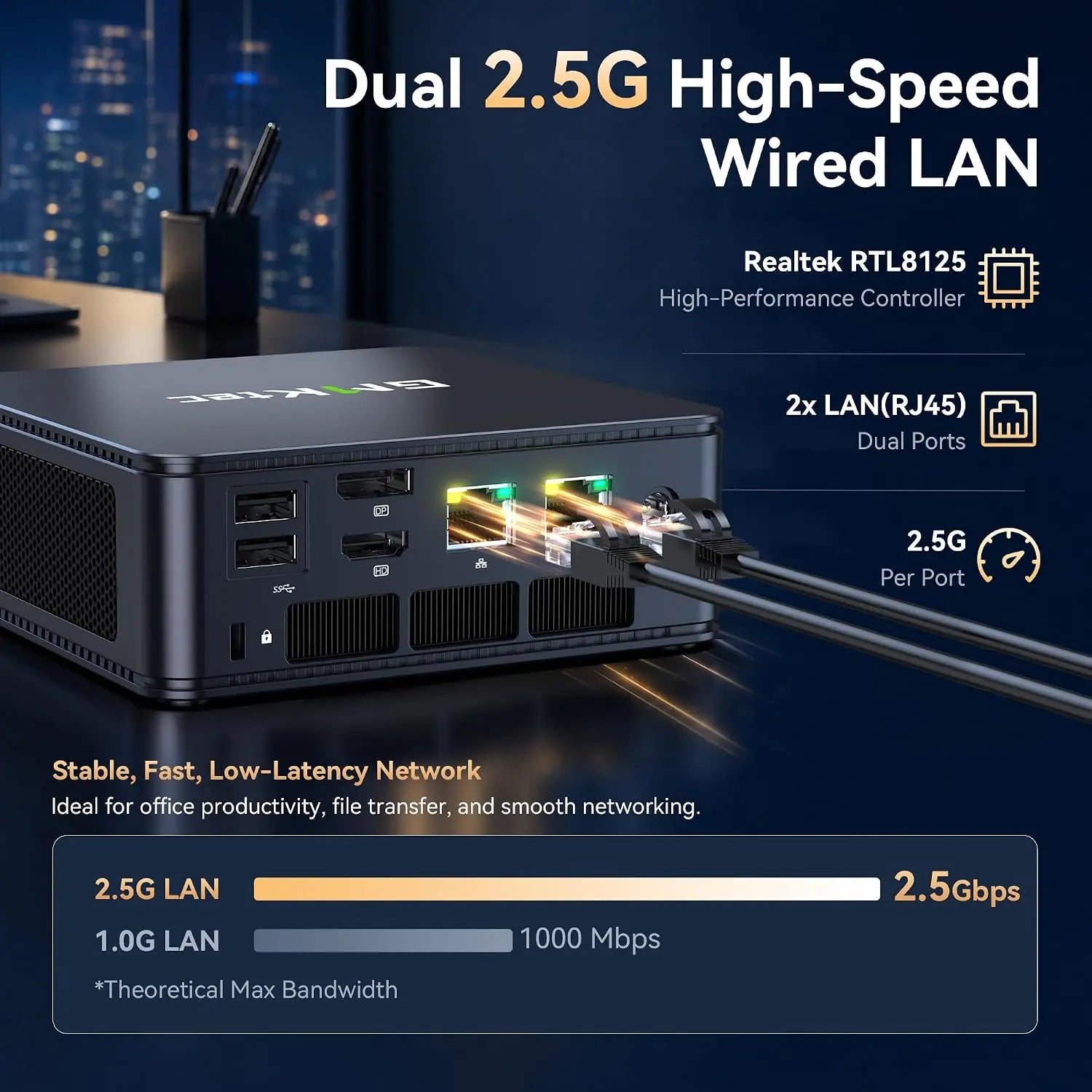

Pro-Level Gaming Network for Ultra-Fast Stable Connections

WiFi 6E(2.4Gbps) combined with dual
2.5G wired ports delivers speeds up to 2.5x faster than traditional
Gigabit and 3x faster wireless rates-ensuring lag-free,
reliable gaming.
