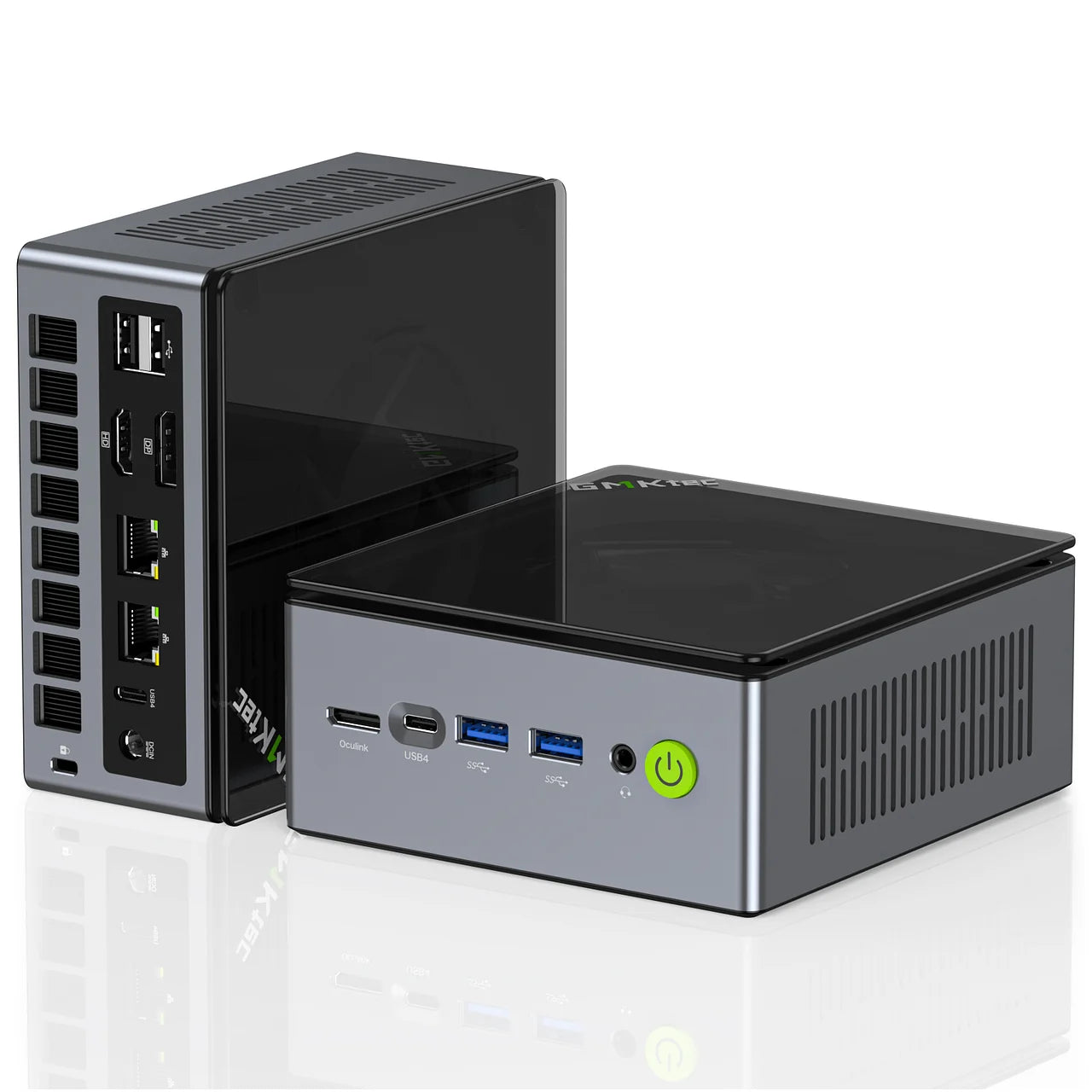

GMKtec NucBox M7 Pro Mini PC AMD Ryzen™ 9 PRO 6950H

Parameter	Details
Model	GMKtec NucBox M7 Pro
CPU Model	AMD Ryzen™ 9 PRO 6950H

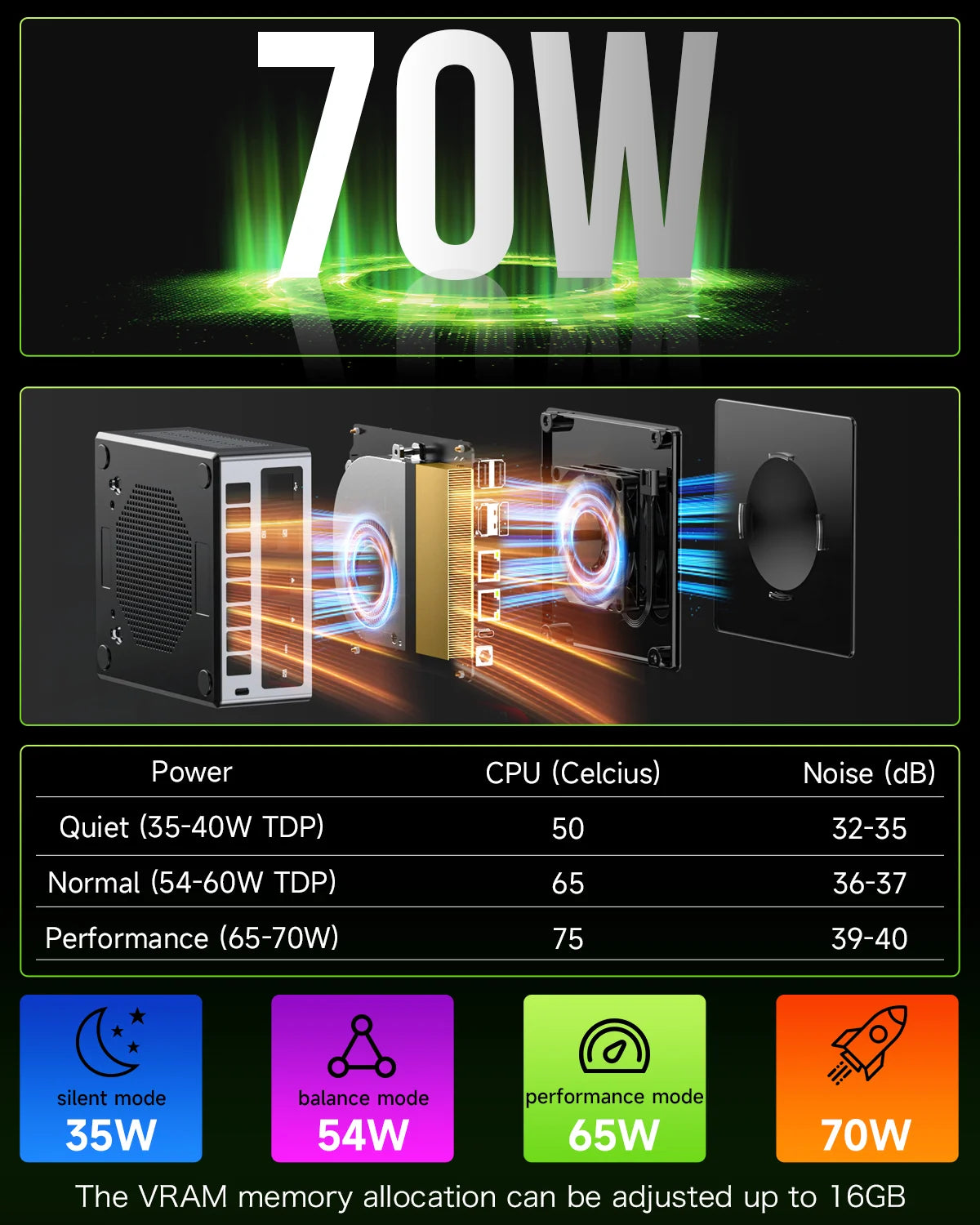

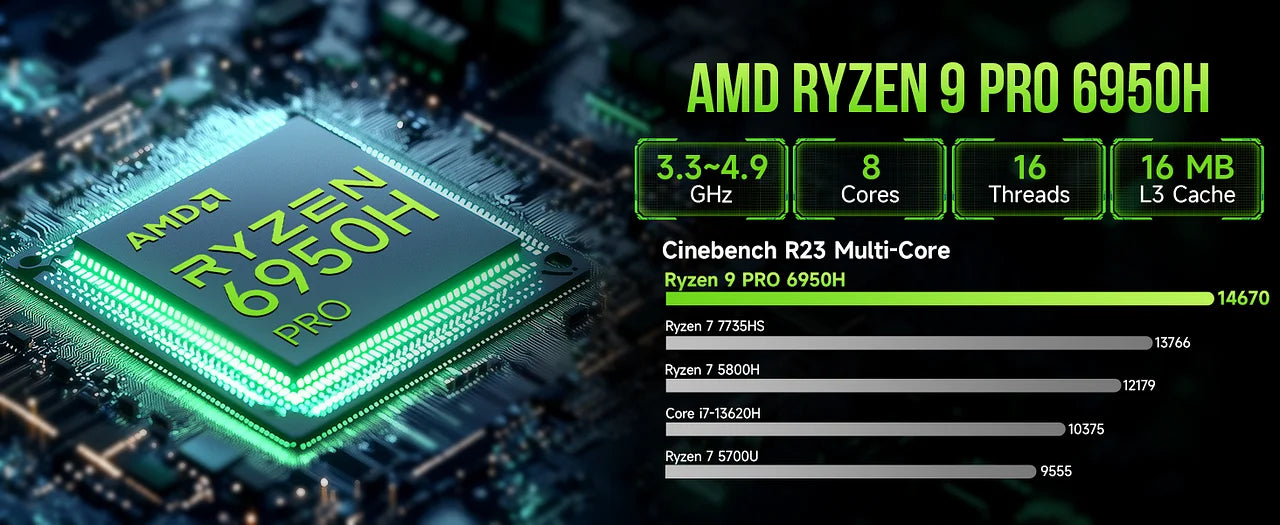

CPU	AMD Ryzen™ 9 PRO 6000 Series Mobile Processor 8 Cores / 16 Threads TSMC 6nm FinFET Process Base Frequency 3.3GHz, Max Boost up to 4.9GHz TDP 35W–70W 384KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache
GPU	AMD Radeon™ 680M Graphics 12 Cores, up to 2400MHz

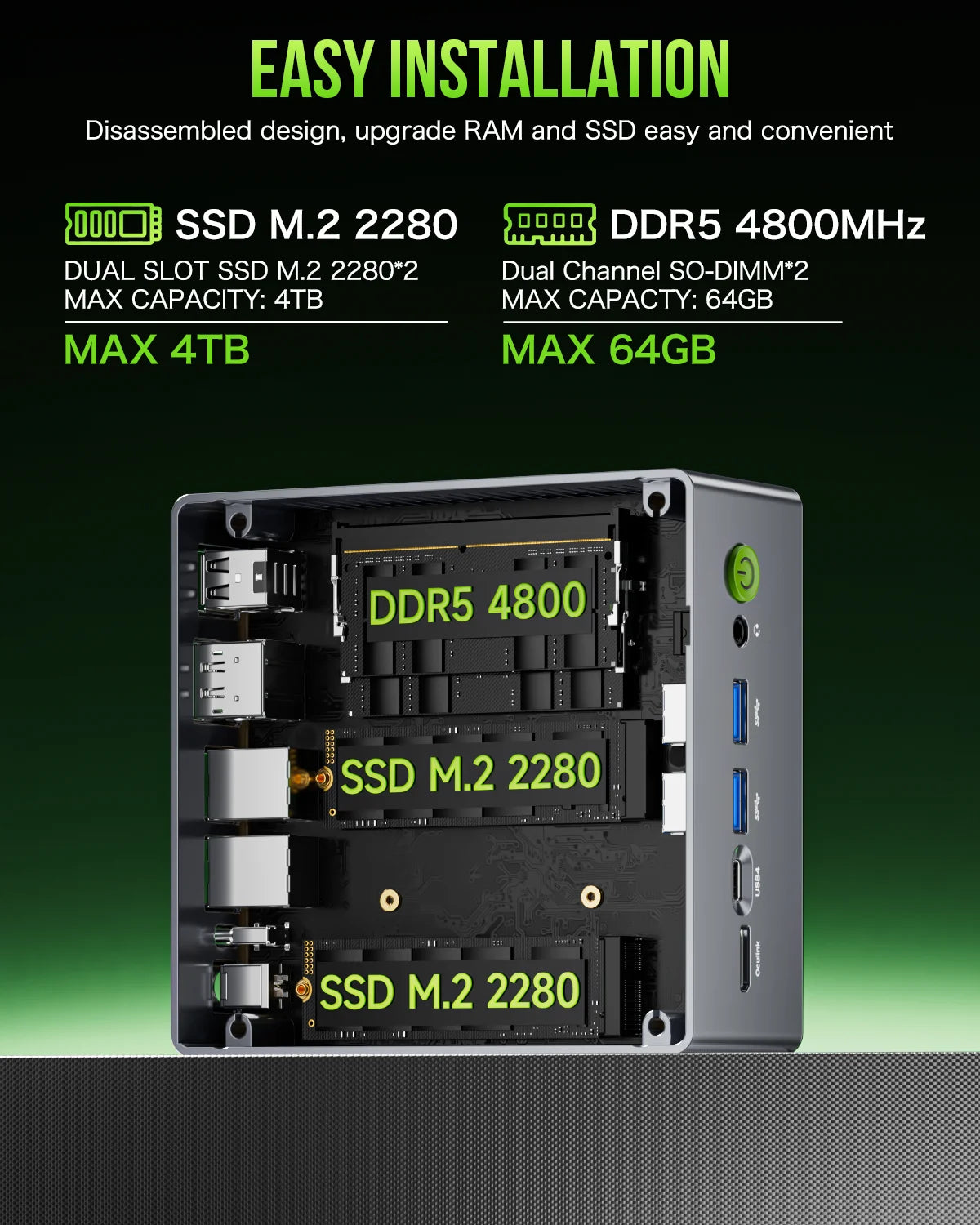

Memory	2 × SO-DIMM Slots DDR5-4800 Memory 32GB Standard Configuration Supports up to 64GB ECC Supported
Storage	PCIe 3.0 M.2 2280 NVMe SSD 1TB Standard Configuration
Storage Expansion	2 × M.2 2280 NVMe SSD Slots Supports PCIe Gen4 x4 Maximum Expansion up to 2TB

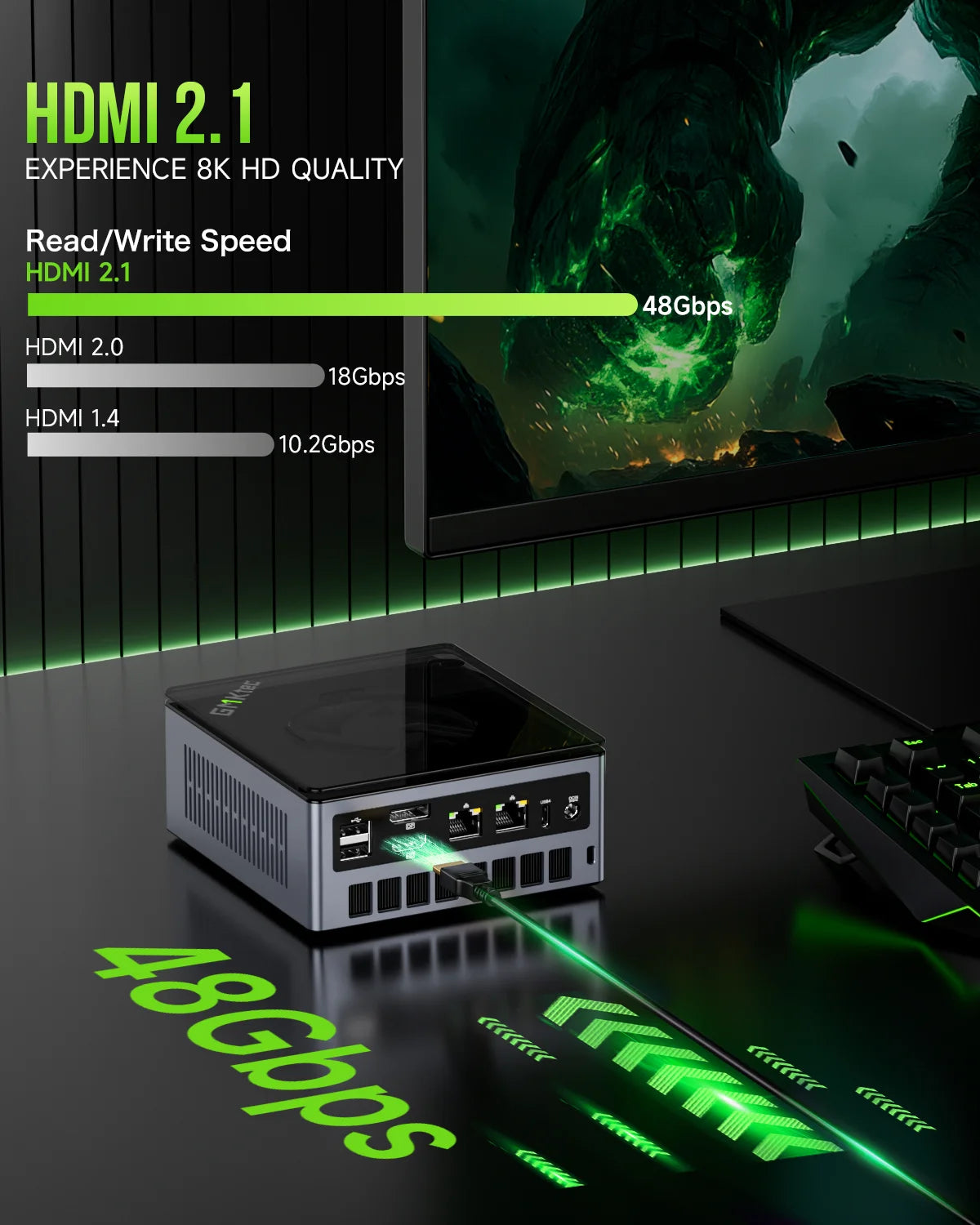

Graphics Output	Supports up to 4 Displays HDMI 2.1 ×1 DisplayPort 2.0 ×1 USB4 ×2

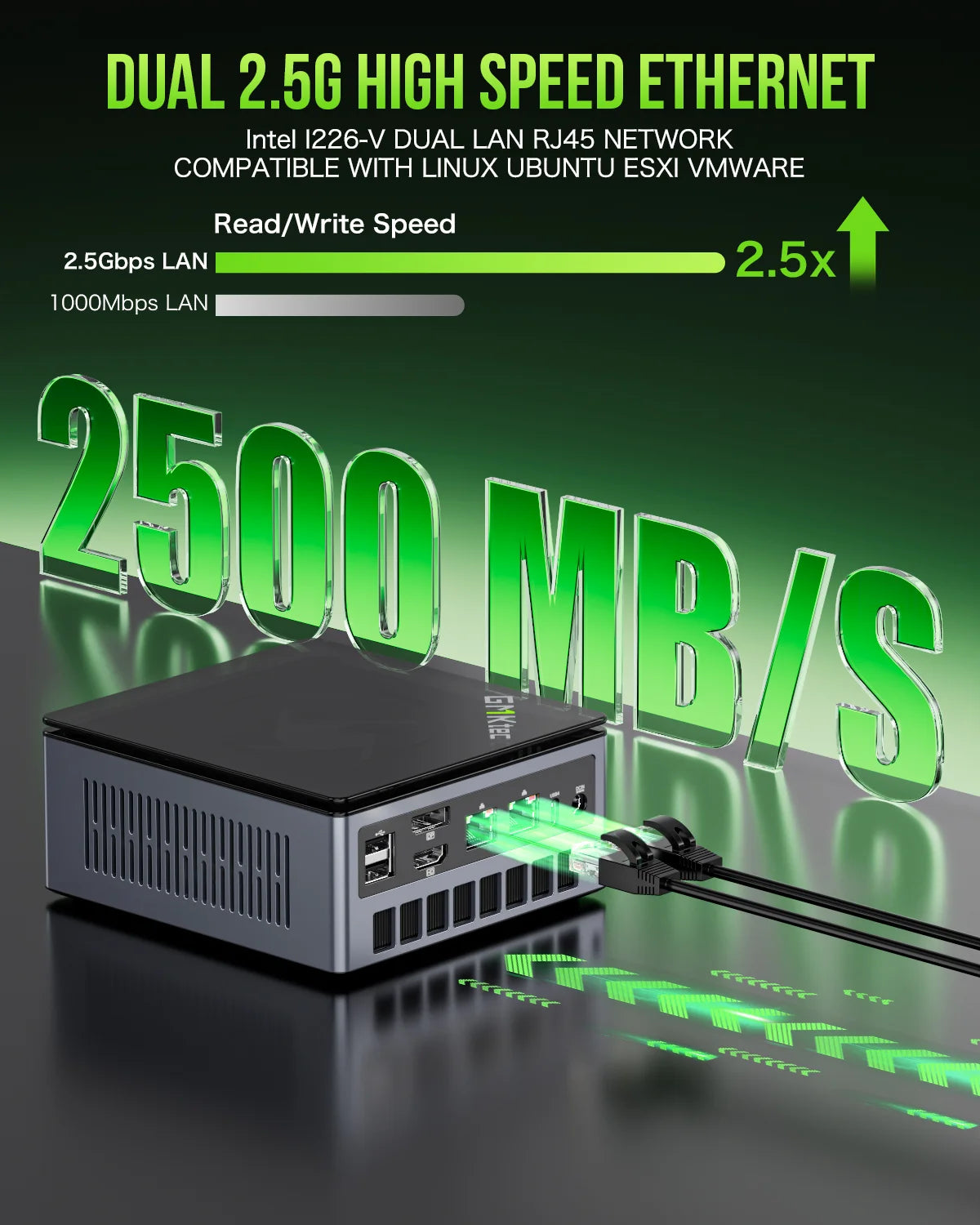

Network	Wi-Fi 6 (Intel AX200, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Intel I226V ×2)
External Ports	2 × USB 3.2 Gen2 2 × USB 2.0 2 × USB4 (40Gbps / PD3.0 / DP1.4) 1 × HDMI 2.1 1 × DisplayPort 2.0 2 × RJ45 2.5G LAN 1 × OCulink PCIe Gen4 ×4 1 × 3.5mm Audio Jack 1 × DC Power Input On-board Digital Microphone

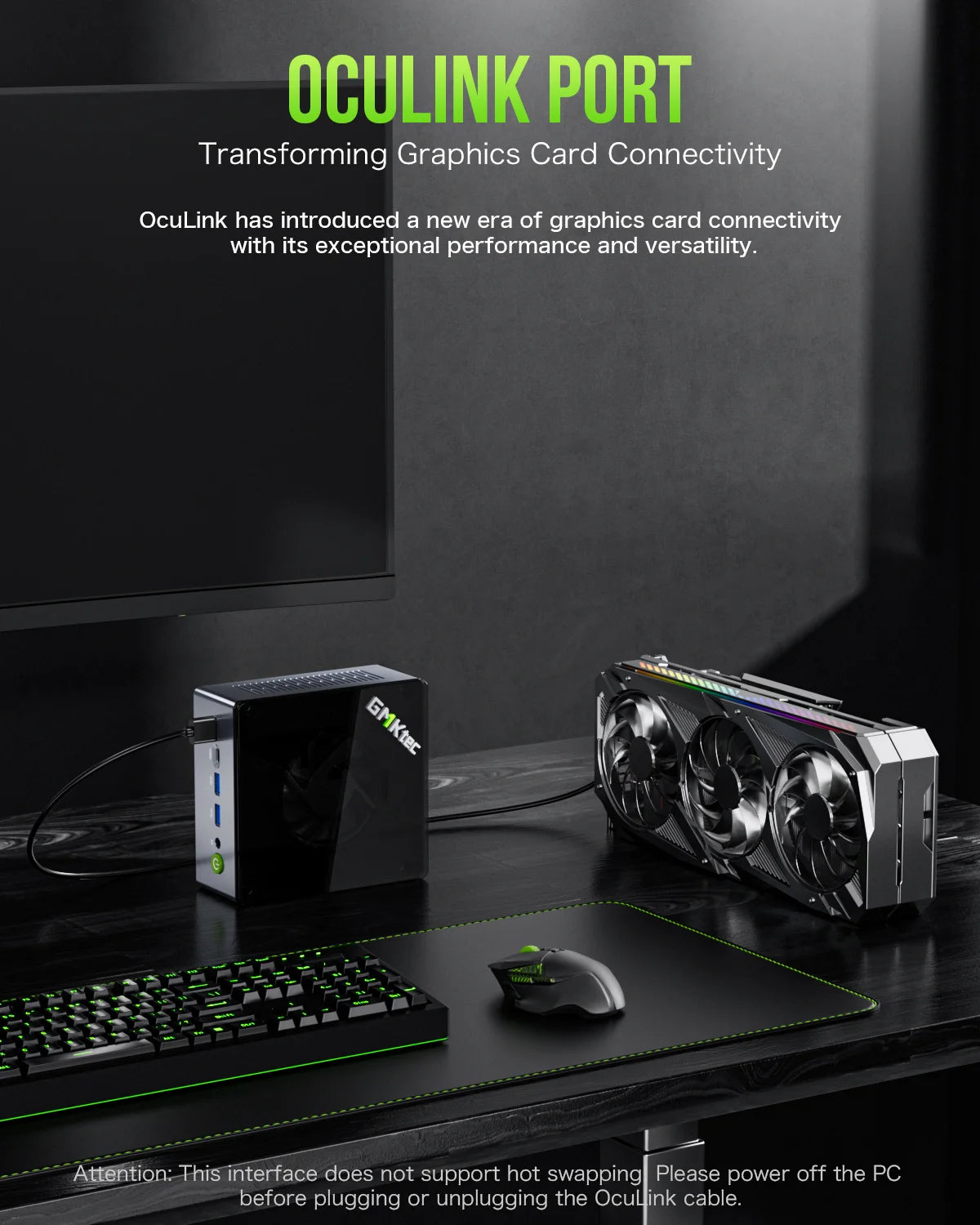

OCulink Notice	The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off.
Power Adapter	DC 19V / 6.32A 120W Adapter
Operating System	Windows 11 Pro / Linux Supported
Language Support	13 Languages Supported (Default English) Chinese / English / French / Thai / Spanish / Korean / Japanese / German / Hebrew / Russian / Portuguese / Arabic
Dimensions	132 × 125 × 58 mm
Color	Multiple Color Options
Working Temperature	0°C – 40°C
Certification	CE / FCC / CCC / RoHS
Warranty	1 Year Limited Warranty

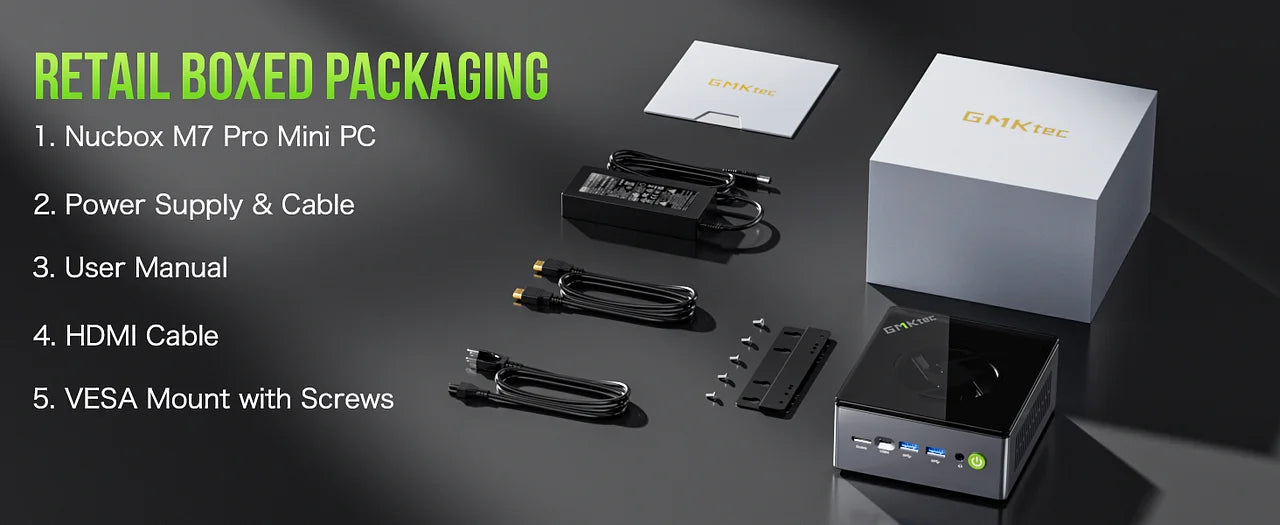

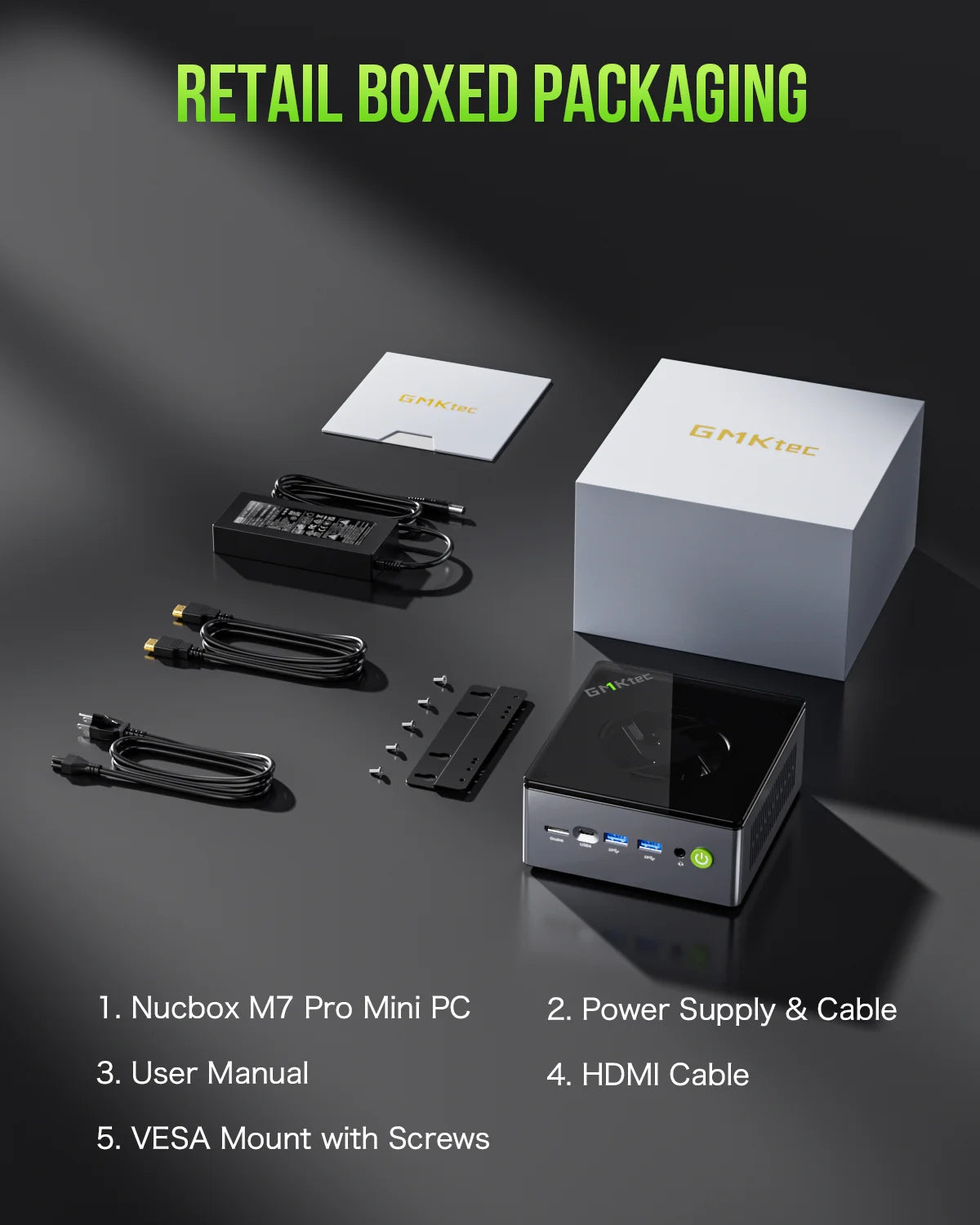

Package Includes	Mini PC Power Adapter HDMI Cable VESA Mount User Manual
