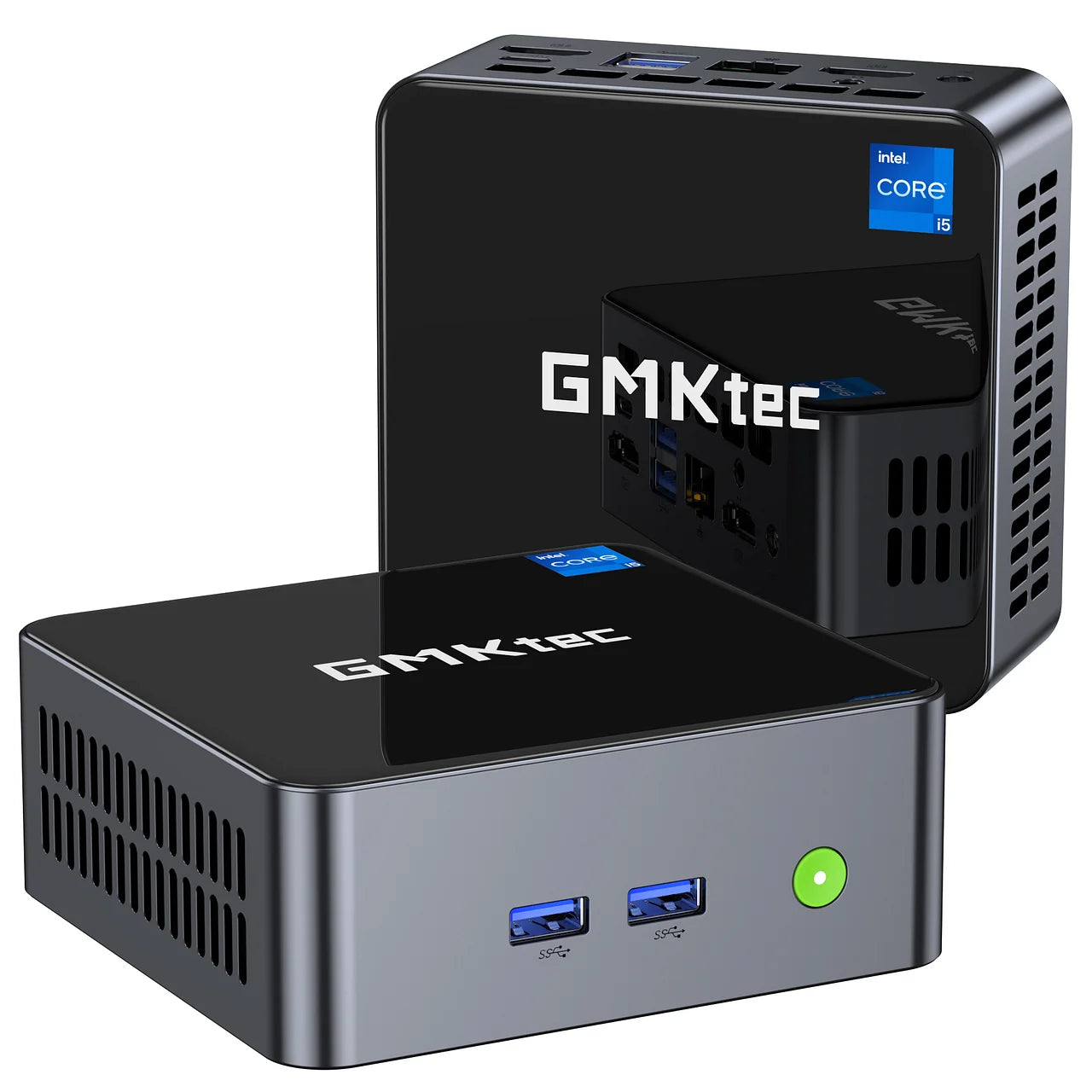

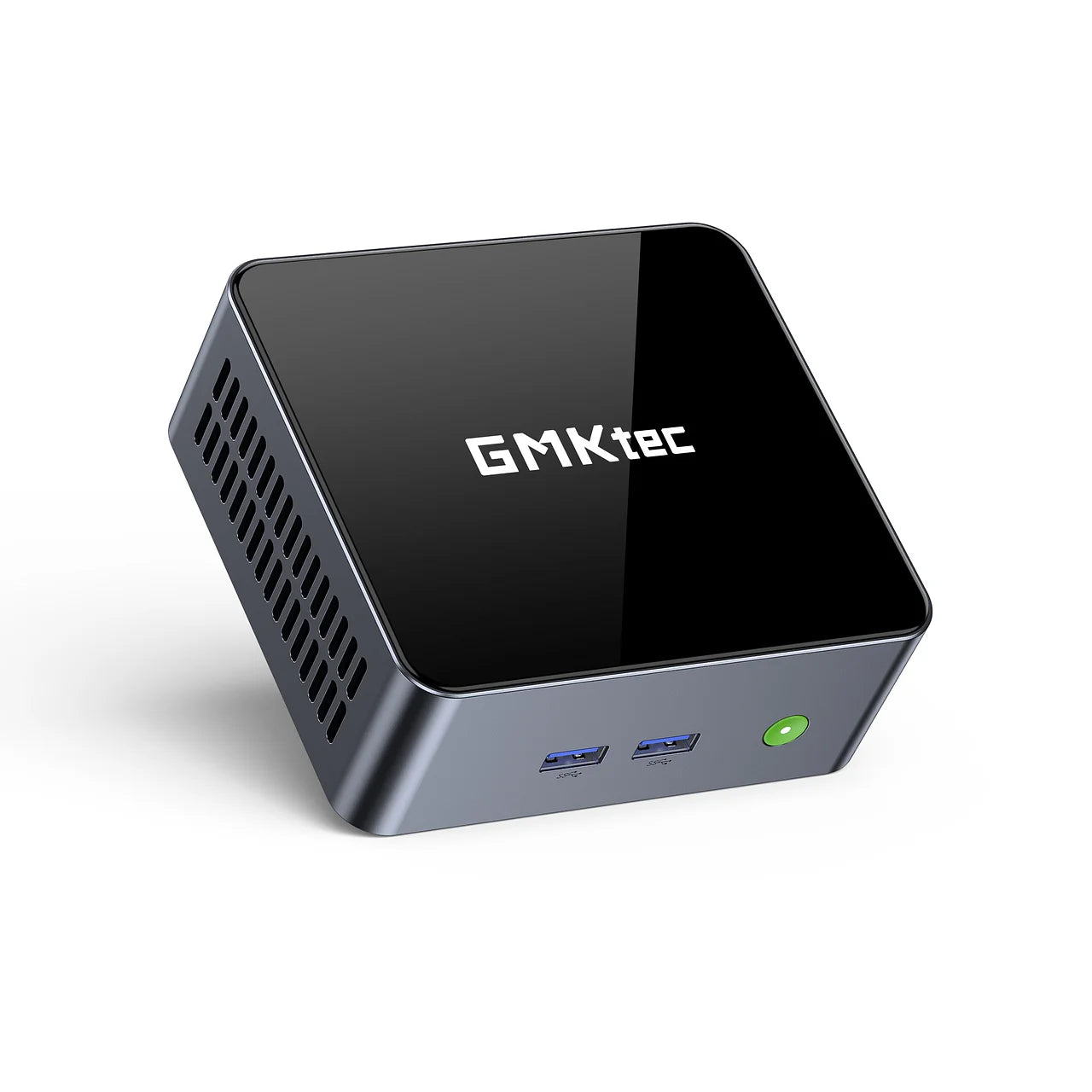

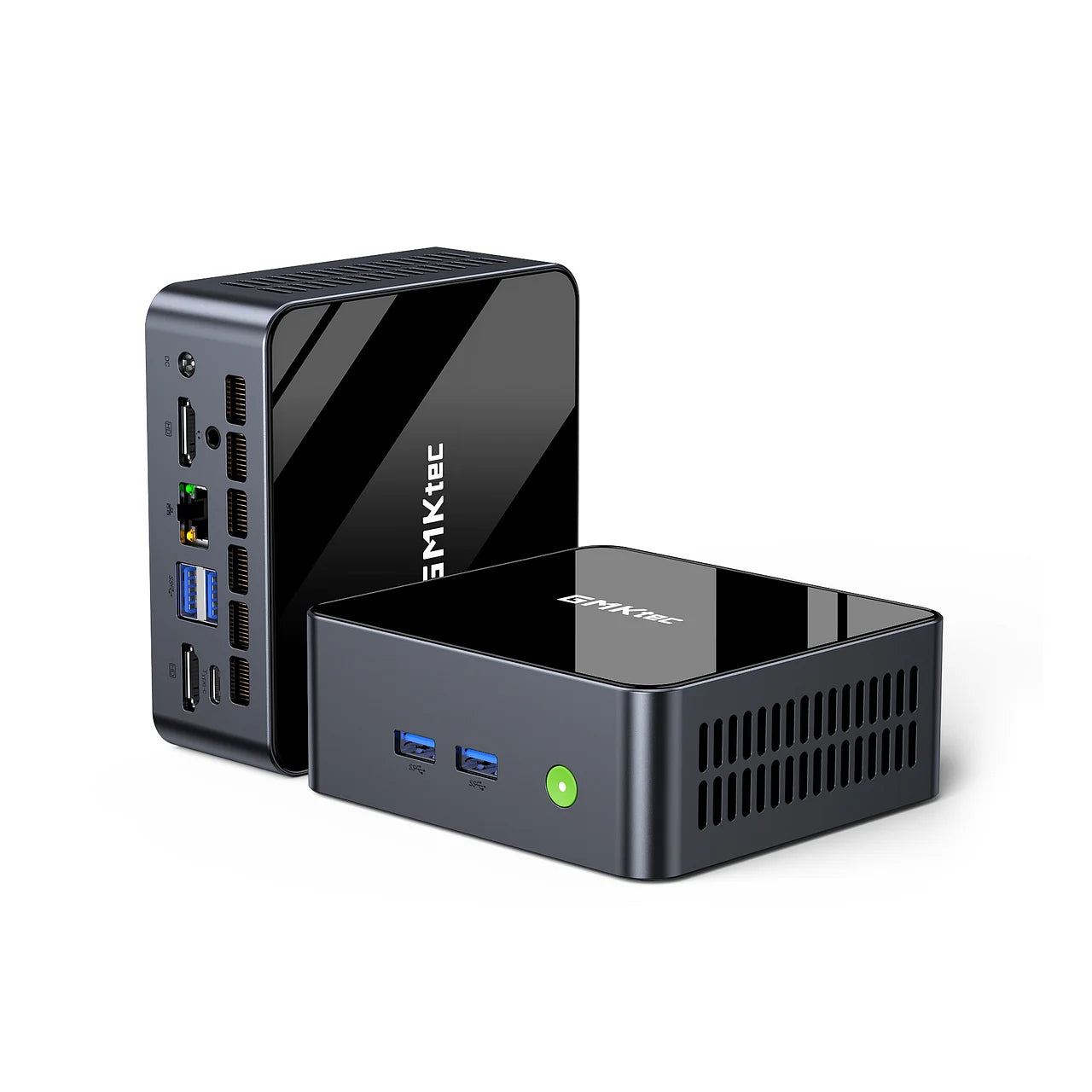

GMKtec NucBox M3 Ultra Mini PC Intel® 12th Core i7 12700H
GMKtec NucBox M3 Ultra Mini PC Intel® 12th Core i7 12700H
Regular price
$299.99
Sale price
$299.99
Regular price
$499.99
Couldn't load pickup availability
Limited time offer
Get $20 off when you spend $1,000 or more! Learn more
Payment & Security
Payment methods
| Parameter | Details |
|---|---|
| Model | GMKtec NucBox M3 Ultra |
| CPU Model | Intel® Core™ i7-12700H Processor |
| CPU | 12th Gen Intel® Core™ i7 Processor, 14 Cores, 20 Threads, Intel 7 process, Max Turbo Frequency up to 4.7GHz, 24MB Cache, TDP 45W |
| CPU Socket / Package | FCBGA1744 Package, 50 × 25 mm |
| GPU | Intel® Iris® Xe Graphics eligible, 96 Execution Units, up to 1.4GHz |
| Memory (RAM) | 2 × SO-DIMM Slots, 16GB / 32GB configurations, Supports up to 64GB |
| Storage (ROM) | M.2 2280 NVMe SSD, 512GB / 1TB options |
| Storage Expansion |
1 × M.2 2280 SSD slot, supports up to 8TB 1 × M.2 2242 SSD slot, supports SATA / PCIe x4, up to 8TB |
| Graphics Output | Triple display output via 2 × HDMI + 1 × USB-C, supports up to 8K resolution |
| Network |
Wi-Fi 6 (Realtek 8852BE, up to 1201 Mbps) Bluetooth 5.2 2.5G Ethernet LAN (Intel i226) |
| Power |
Built-in coin cell battery DC Power Adapter 20V / 5A, 100W |

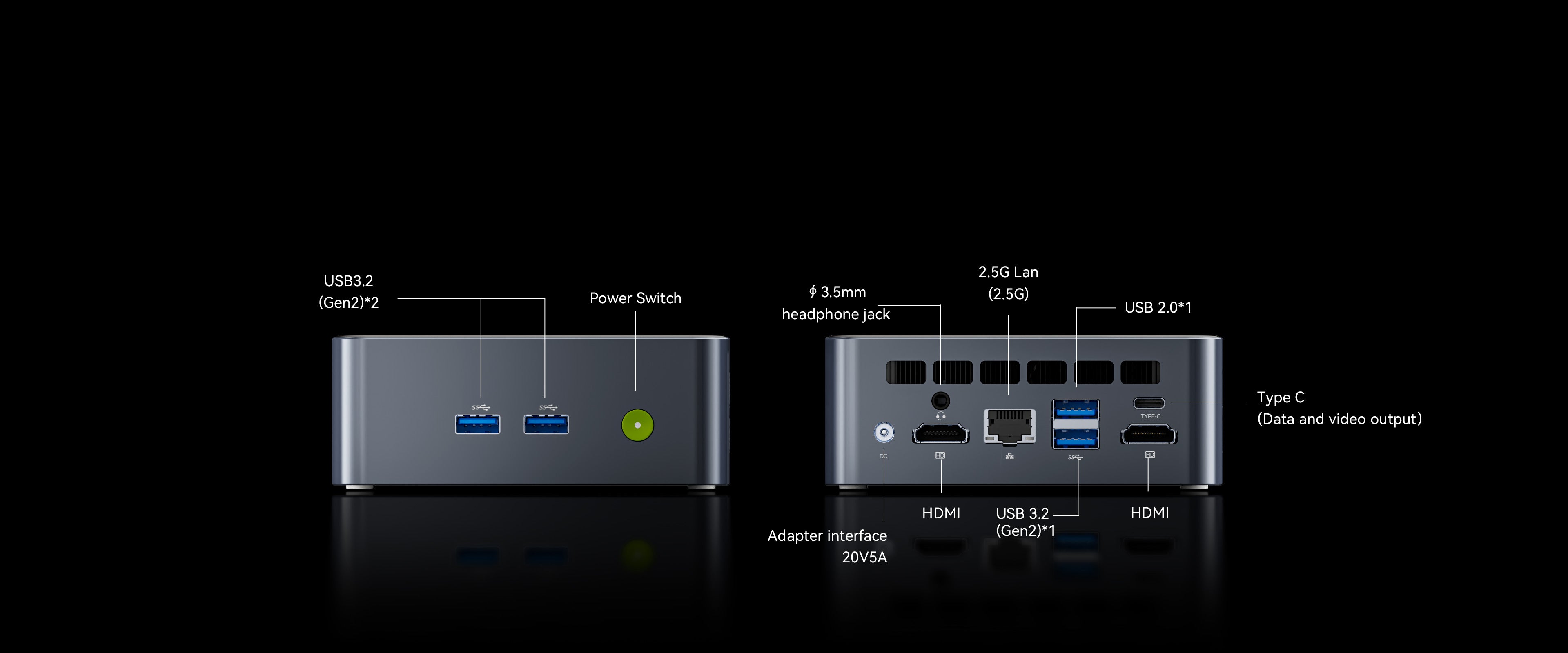

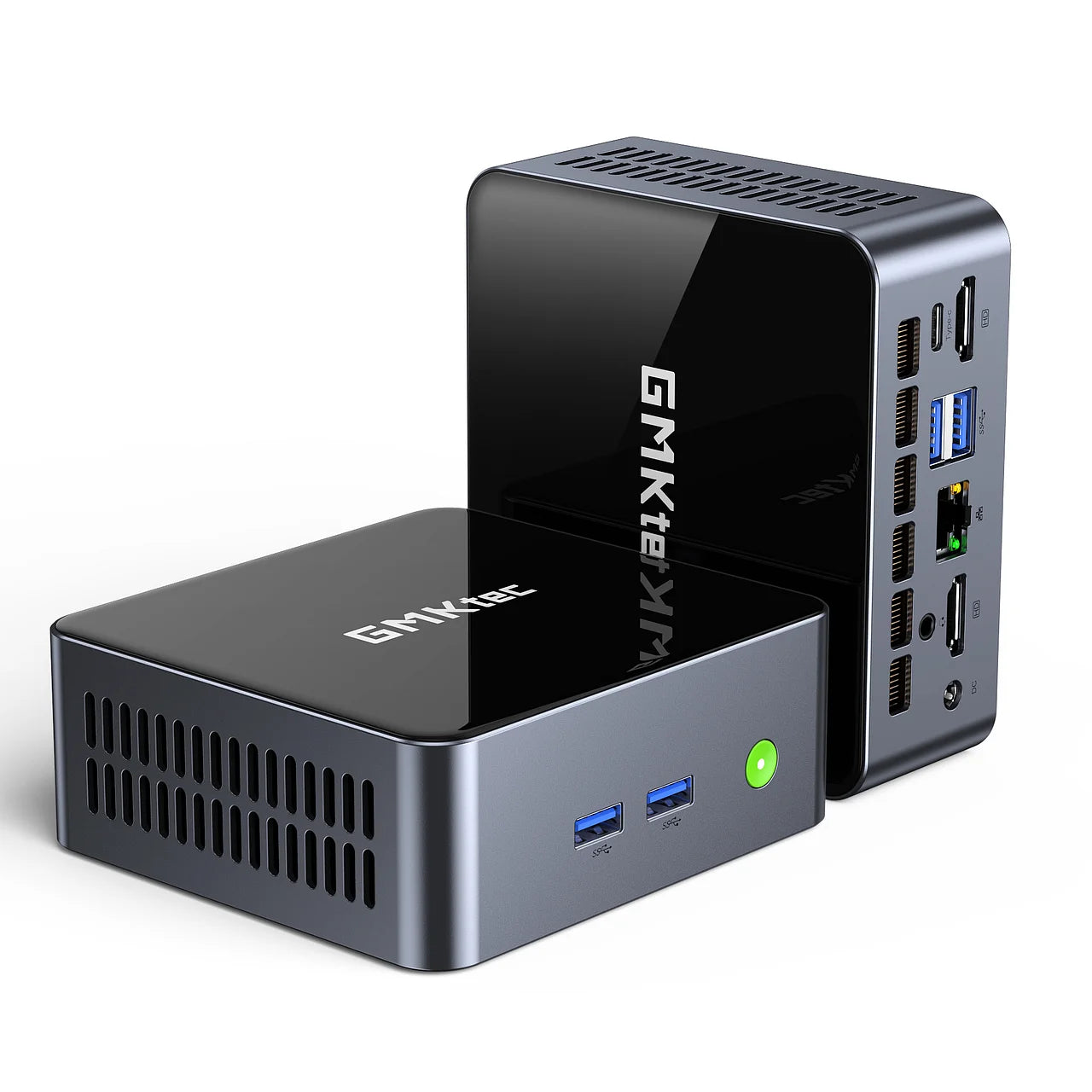

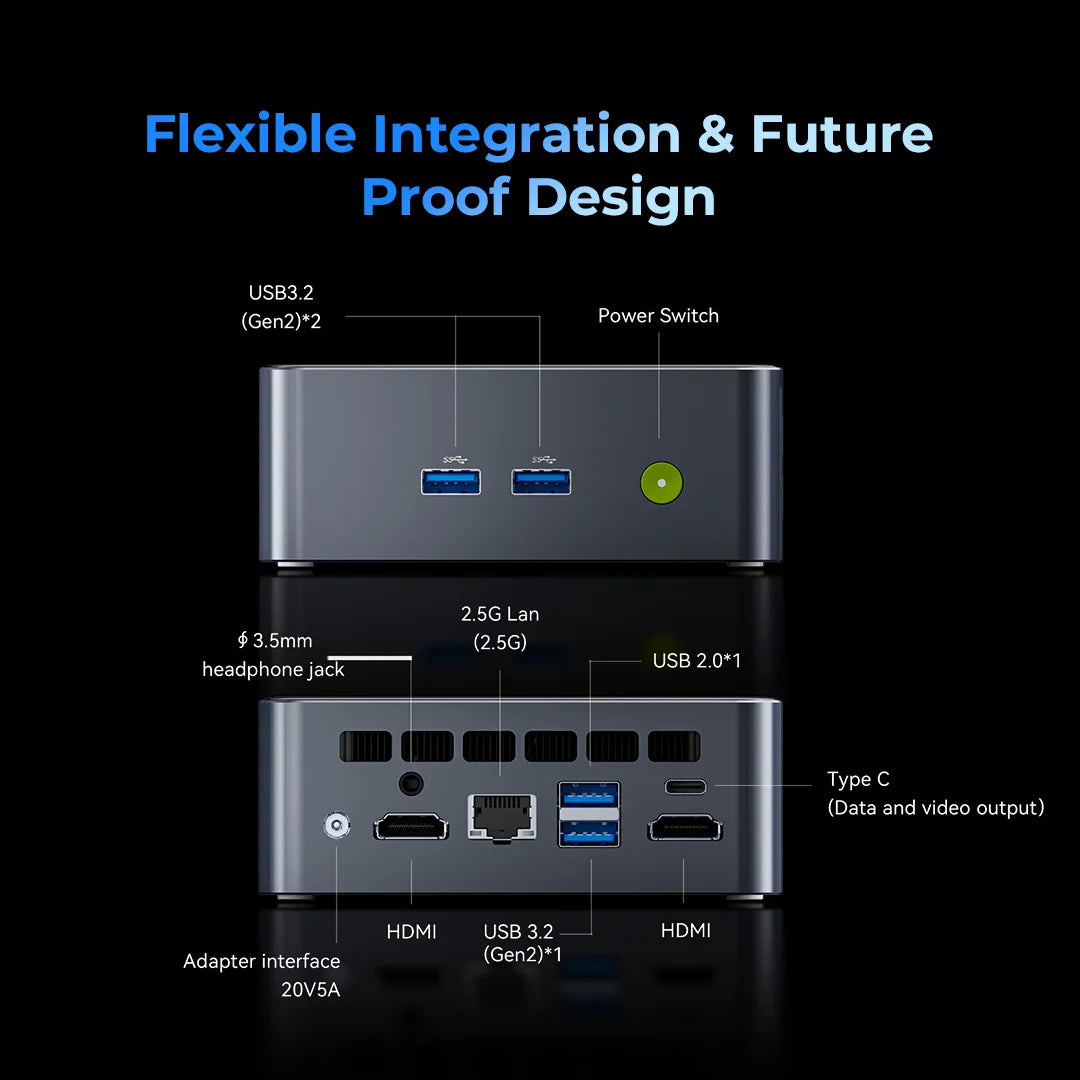

| External Ports |
USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0 USB-C: 1 × Type-C (DisplayPort / Data) HDMI: 2 × HDMI (up to 4K@60Hz) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 1 × RJ45 2.5G Ethernet |
| Operating System | Windows 11 Pro |
| Language Support | 14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |

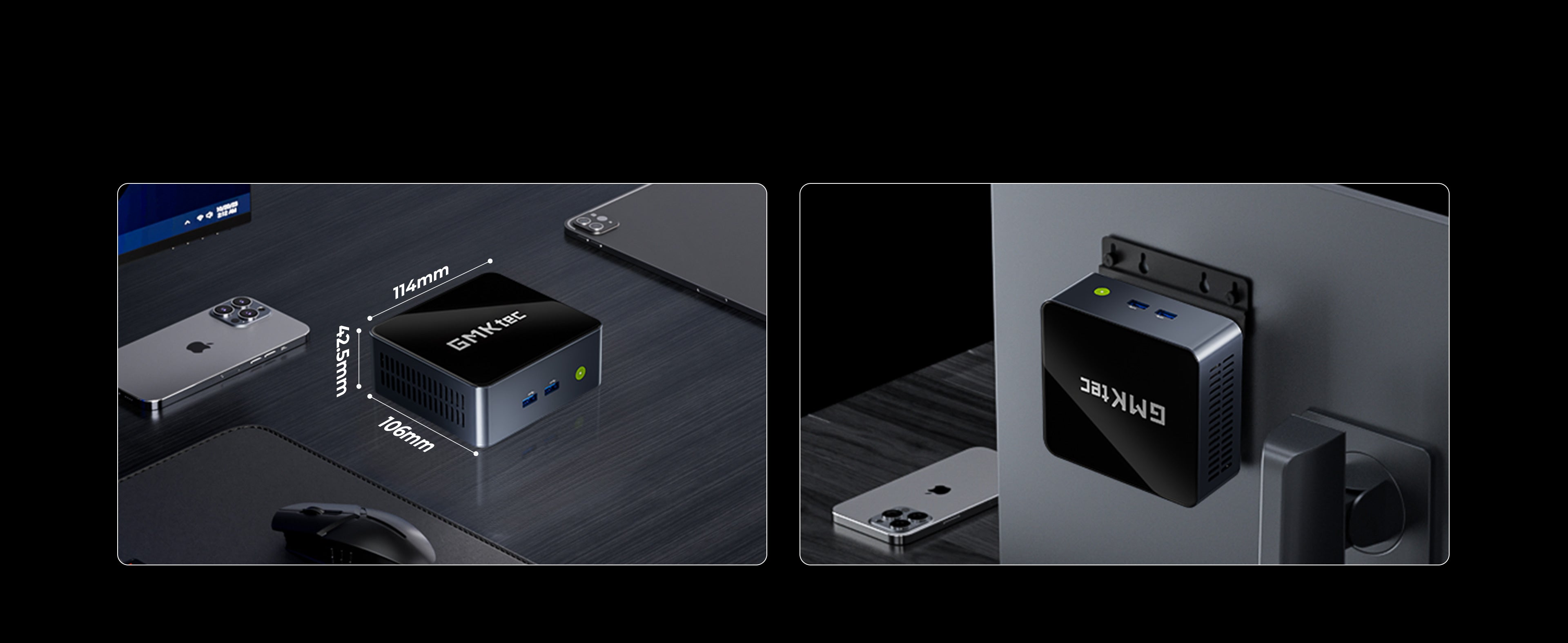

| Chassis Dimensions | 114 × 106 × 42.5 mm |
| Weight | 430 g |
| Color | Gray Black |
| Working Temperature | 0°C to 40°C |
| Warranty | 1-Year Limited Warranty |
| Certifications | CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |

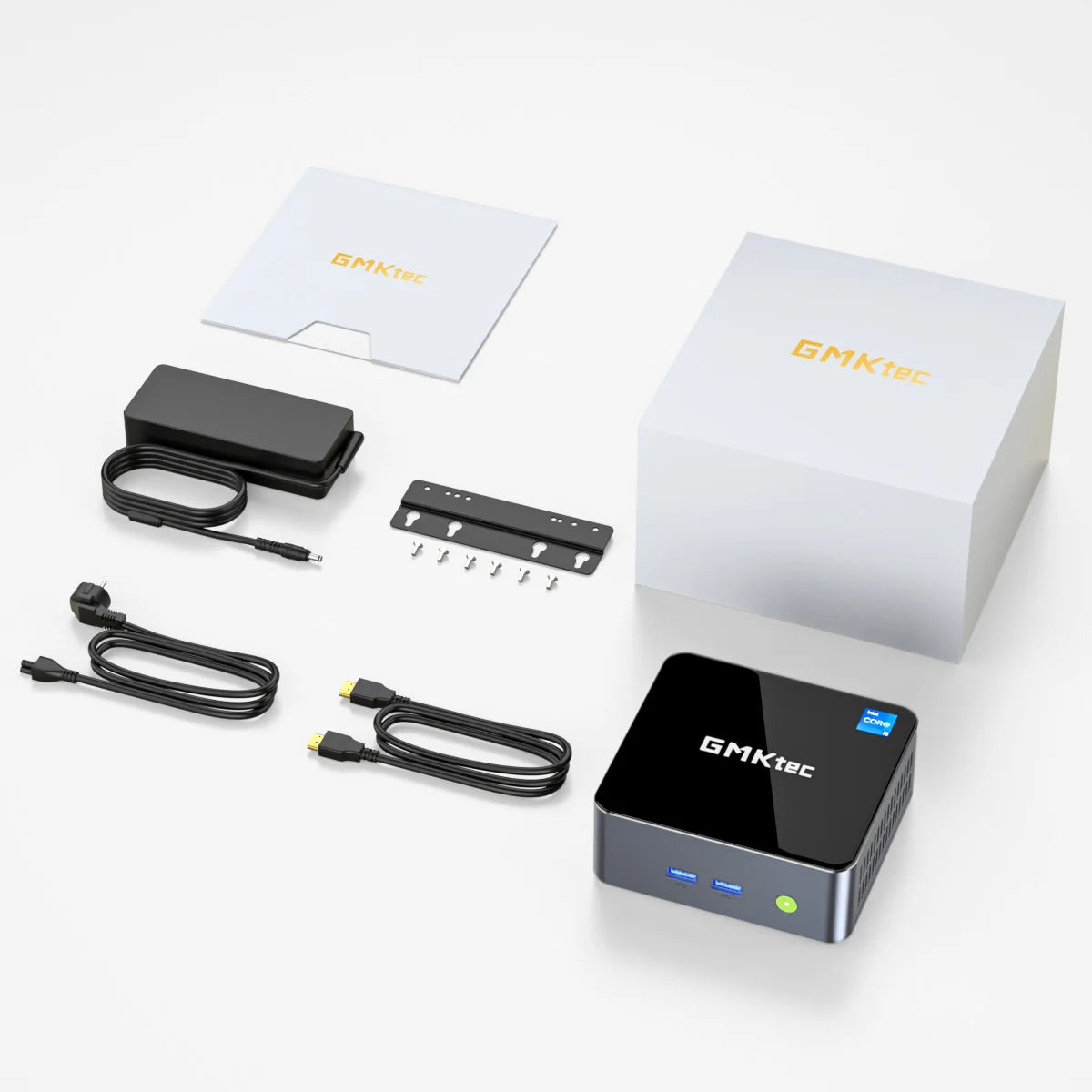

| Packaging List |
User Manual Warranty Card Power Adapter HDMI Cable VESA Mount Bracket |
9 Premium Features
Intel® 12th Core i7 12700H
14 Cores, 20 Threads，4.7GHz
Intel® Iris® Xe Graphics
1400 MHz, 96 Execution Units
Type-C Power Supply
20V / 5A
WINDOWS 11Pro
Pre-installed

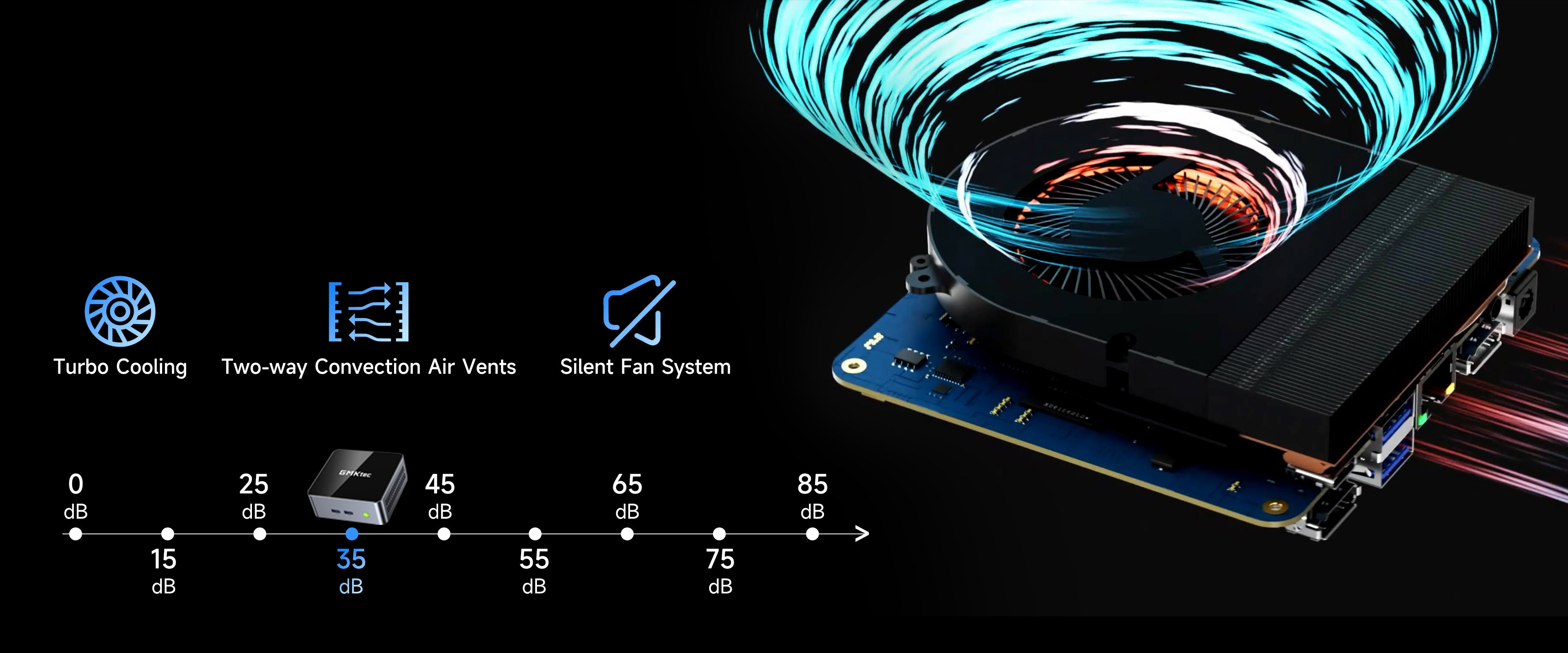

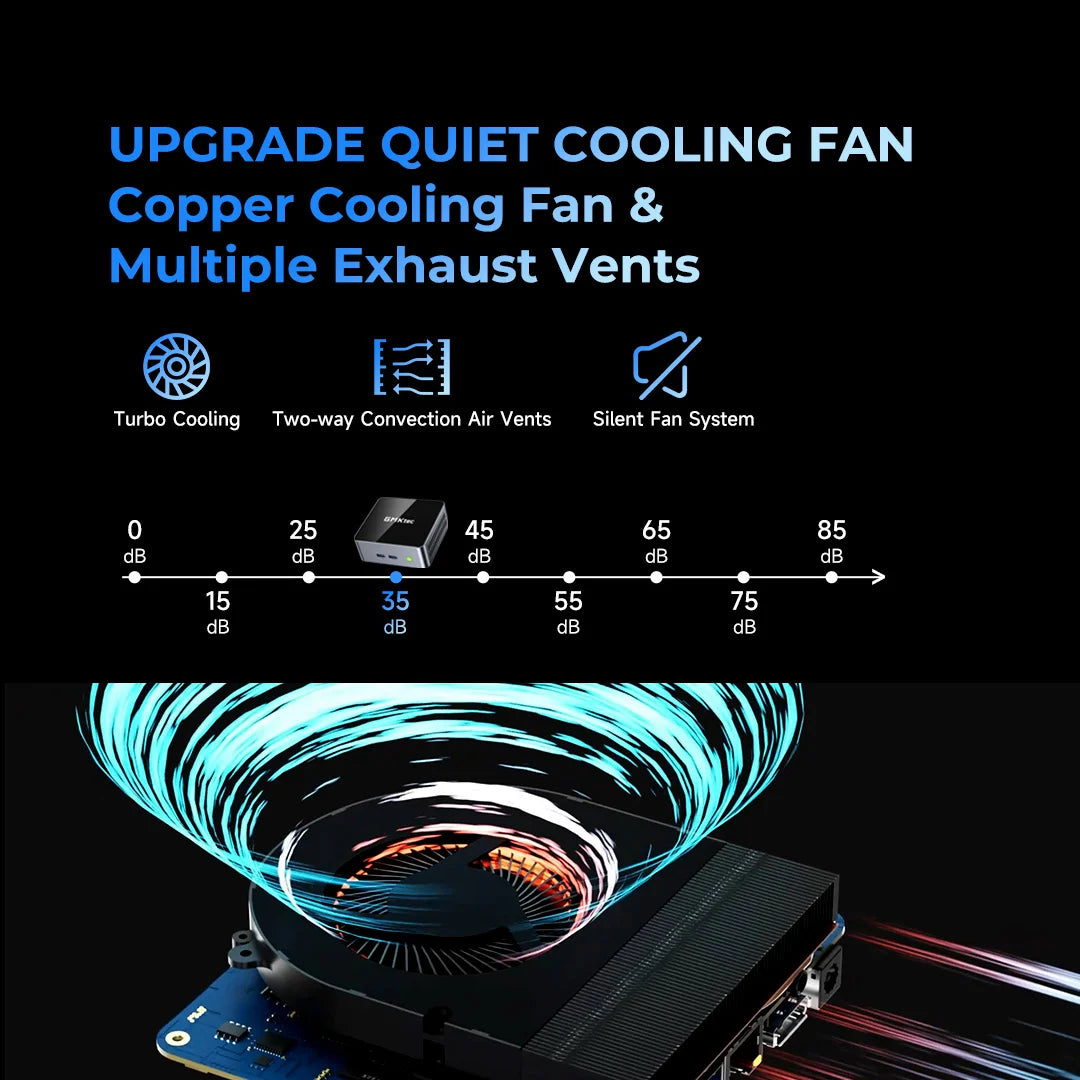

Twin Cooling Pipes
Turbofan System

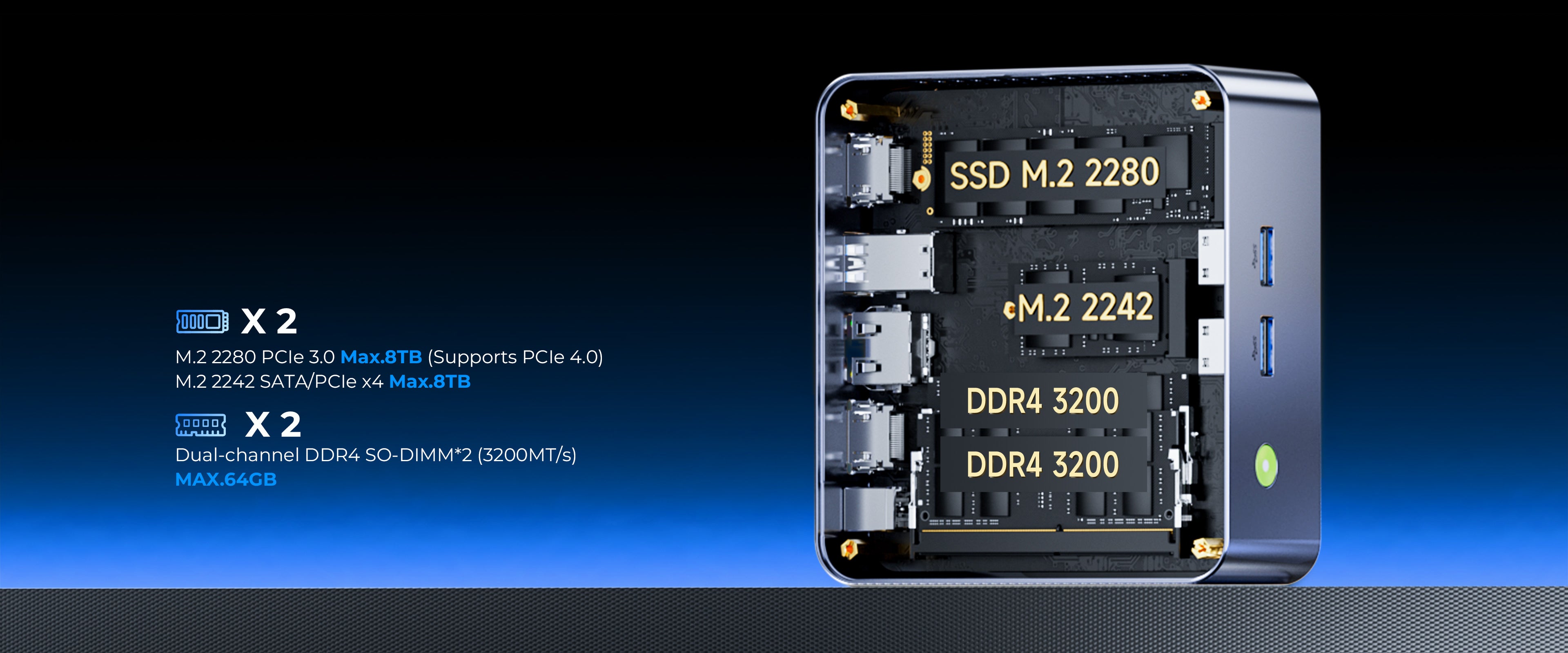

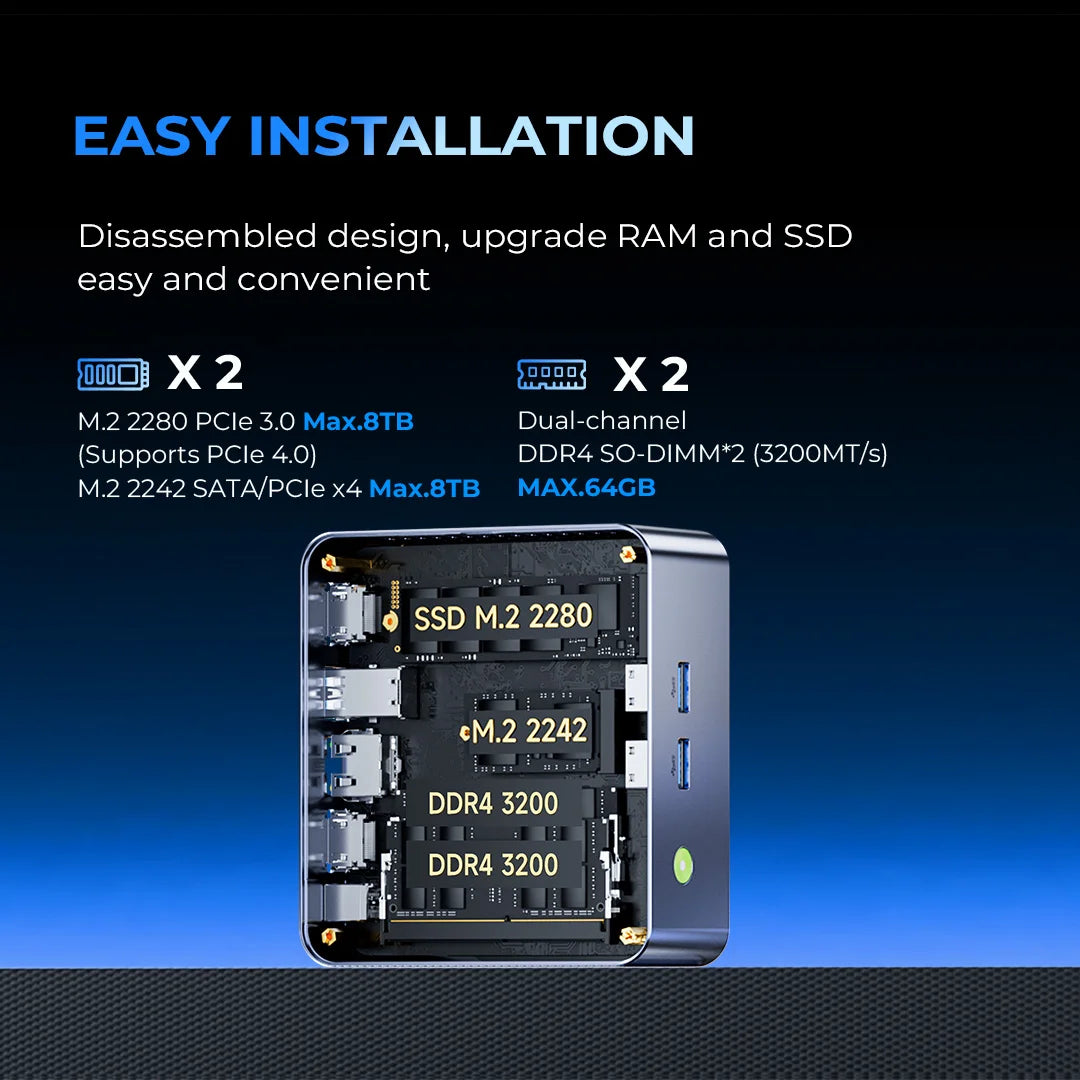

Dual SSD Slots
PCle3.0 M.2 2280 PCle(Max to 8TB)
M.2 SATA/PCIEX4 2242(Max to 8TB)

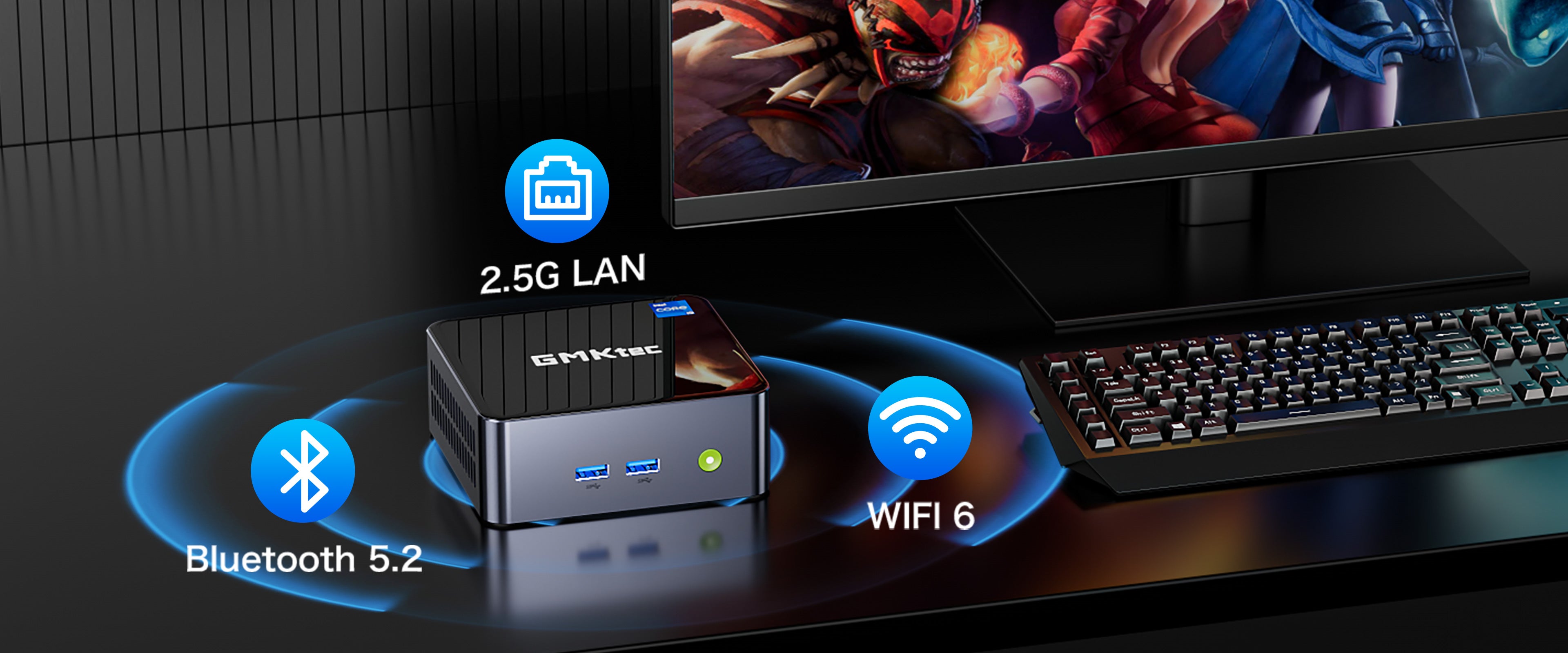

Wireless Connection
WIFi 6+BT5.2

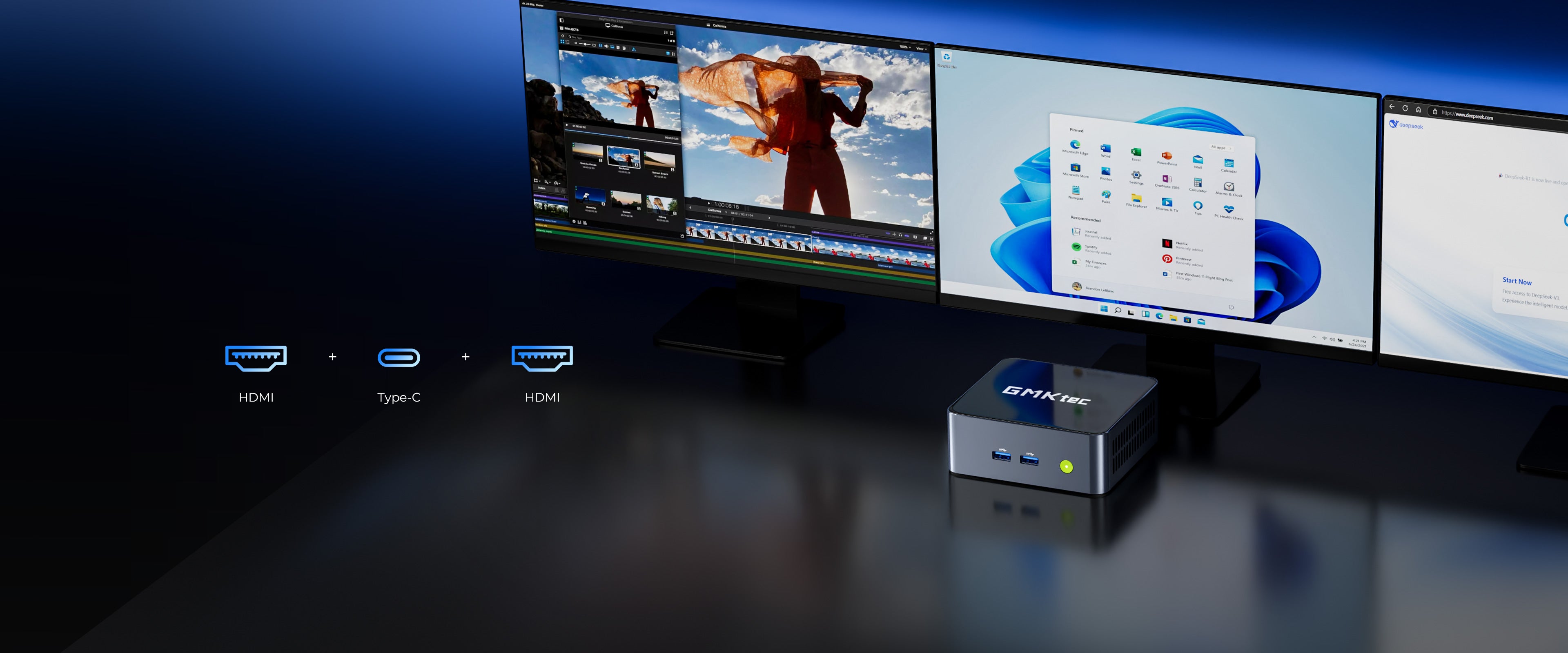

Triple Screens Display
2*HDMI + Type-C
Dual DDR4
3200MT/*2 (Max. 64GB)
One PC, Many Roles —Home, Work
