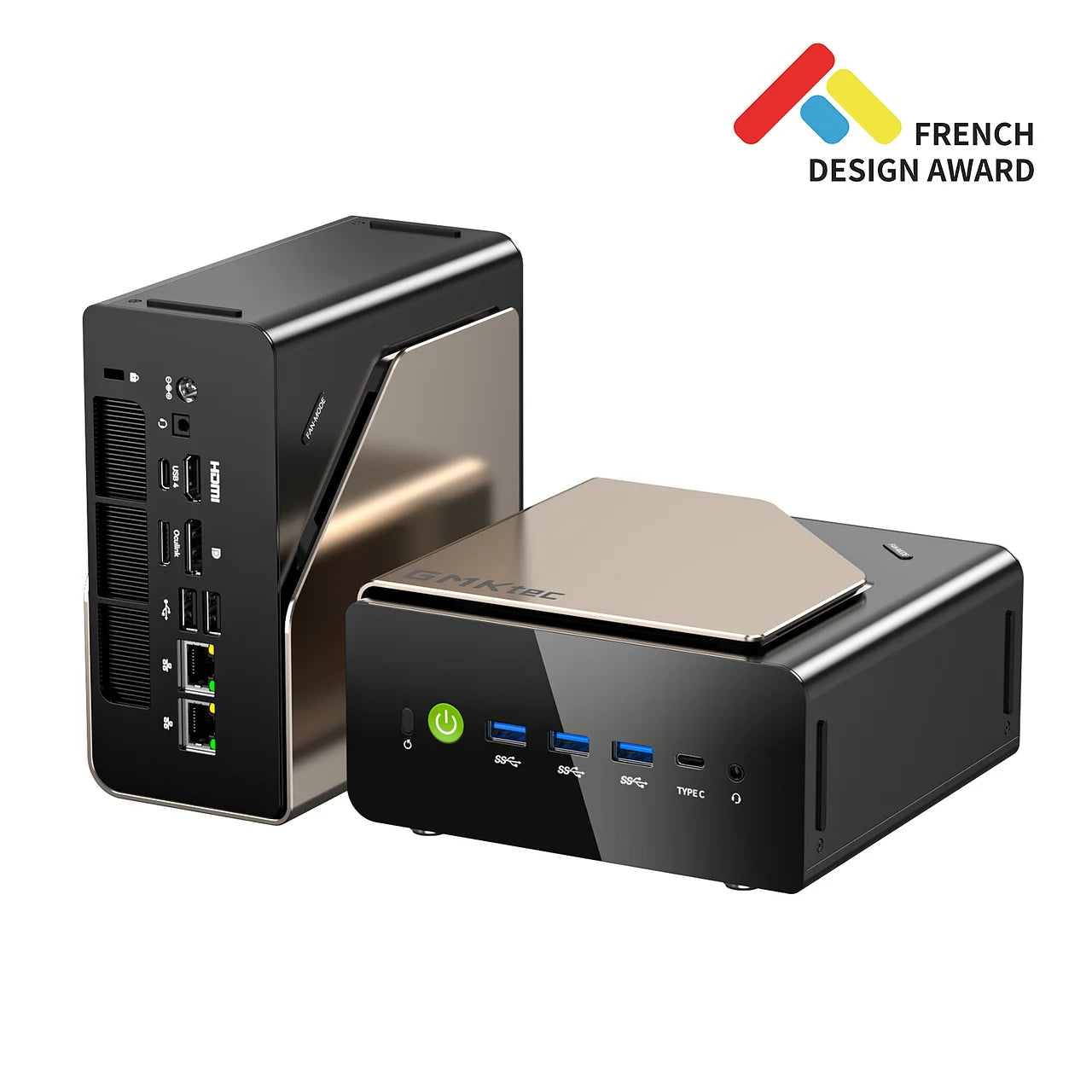

GMKtec EVO-T1 AI Mini PC Intel® Core™ Ultra 9 285H

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

Sale

GMKtec EVO-T1 AI Mini PC Intel® Core™ Ultra 9 285H

$819.00

$819.00 ~~$1,199.99~~

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

DDR + SSD: Barebone (No DDR & SSD & OS）

Barebone (No DDR & SSD & OS） 32GB RAM +1TB SSD 32GB RAM +2TB SSD

Power Plug: US

US EU UK AU

Payment & Security

GMKtec EVO-T1 AI Mini PC Intel® Core™ Ultra 9 285H

$819.00

$819.00 ~~$1,199.99~~

Parameter	Details
Model	GMKtec EVO T1
CPU Model	Intel® Core™ Ultra 9 285H
CPU	Intel® Core™ Ultra Processor (Series 2), 16 Cores, 16 Threads TSMC N3B Process Max Turbo Frequency up to 5.4GHz 24MB Cache TDP 45W–80W Up to 99 TOPS (Int8)
CPU Socket / Package	FCBGA2049 Package, 50 × 25 mm
GPU	Intel® Arc™ 140T GPU Max Dynamic Frequency up to 2.35GHz Up to 77 TOPS (Int8)
NPU	Intel® AI Boost Up to 13 TOPS (Int8)
Memory (RAM)	2 × DDR5 SO-DIMM Slots Dual-Channel 64GB (32GB × 2) standard configuration DDR5-5600 Memory

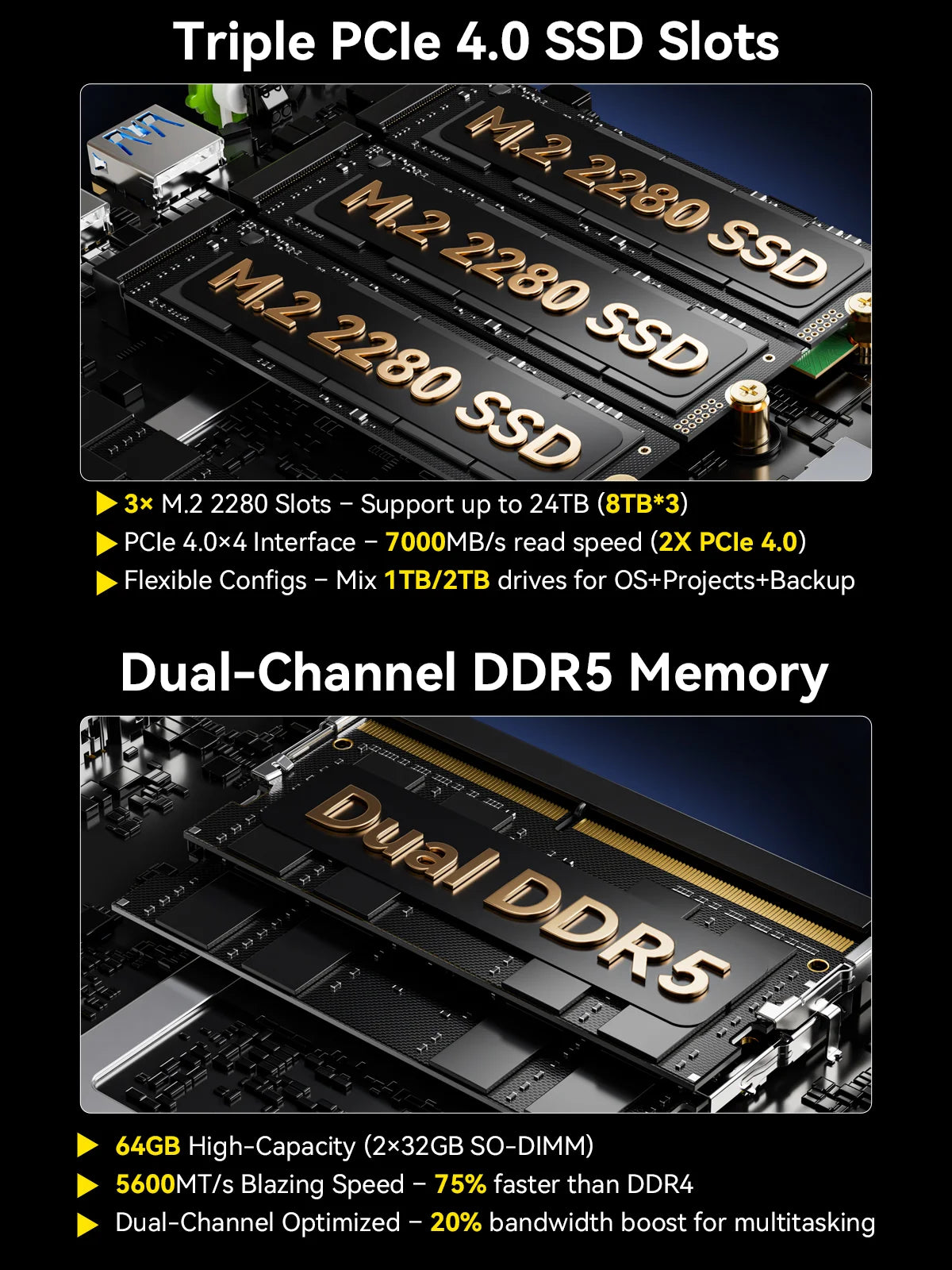

Storage (ROM)	3 × M.2 2280 PCIe 4.0 ×4 SSD Slots 1TB / 2TB options
Storage Expansion	3 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 24TB)
Graphics Output	Quad display output via HDMI 2.1 + DisplayPort + USB4 + USB Type-C Supports simultaneous multi-display output
Network	Wi-Fi 6 (Intel AX201, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek 8125BG)
Power	Built-in coin cell battery DC Power Adapter 19V / 7.8A, 148.2W

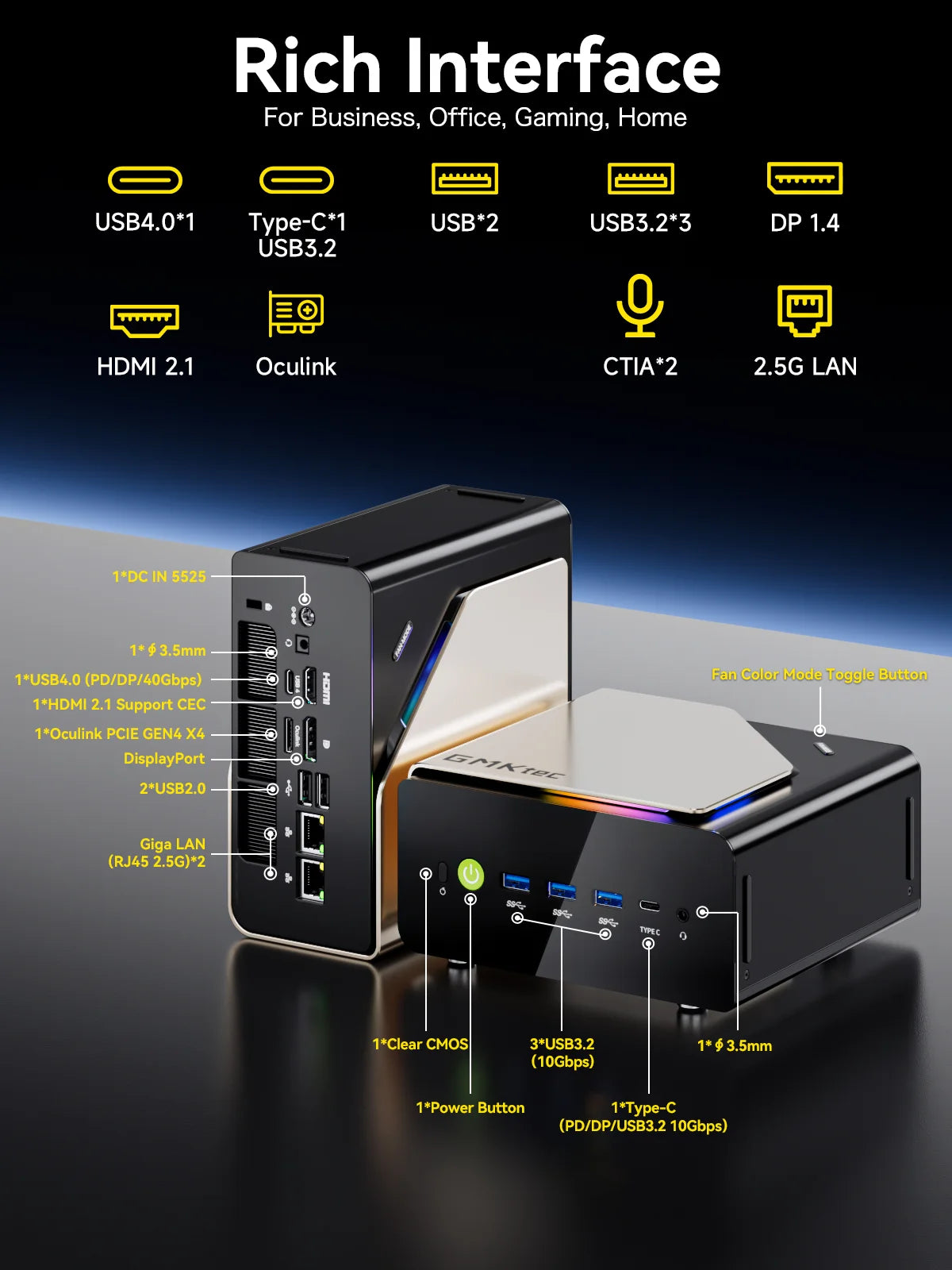

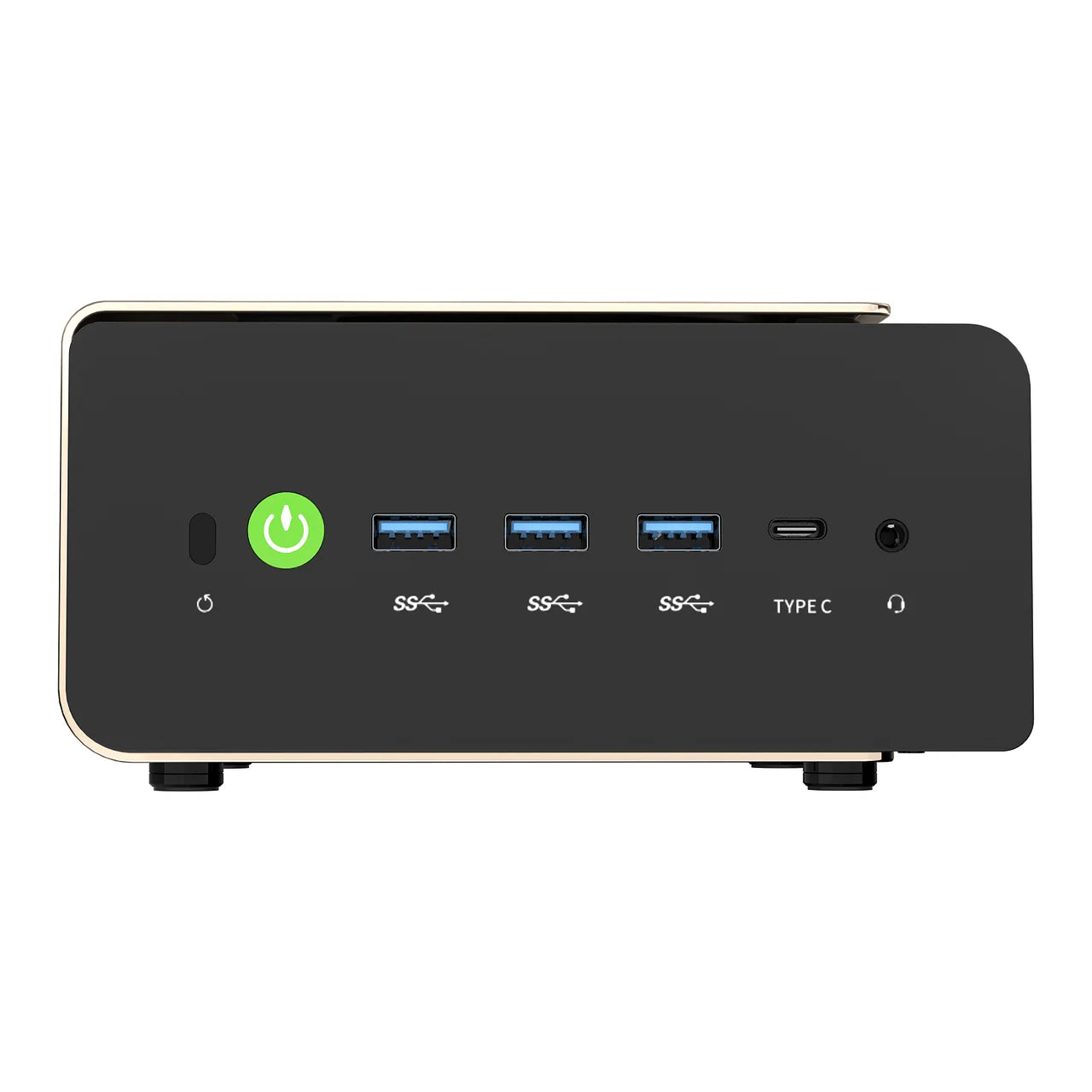

Front I/O	Audio: 1 × 3.5mm Combo Jack USB-C: 1 × USB 3.2 Gen2 Type-C (PD / DP / Data) USB-A: 3 × USB 3.2 Gen2 Power Button: 1 × Power Button with White LED Indicator Reset: 1 × Clear CMOS Button

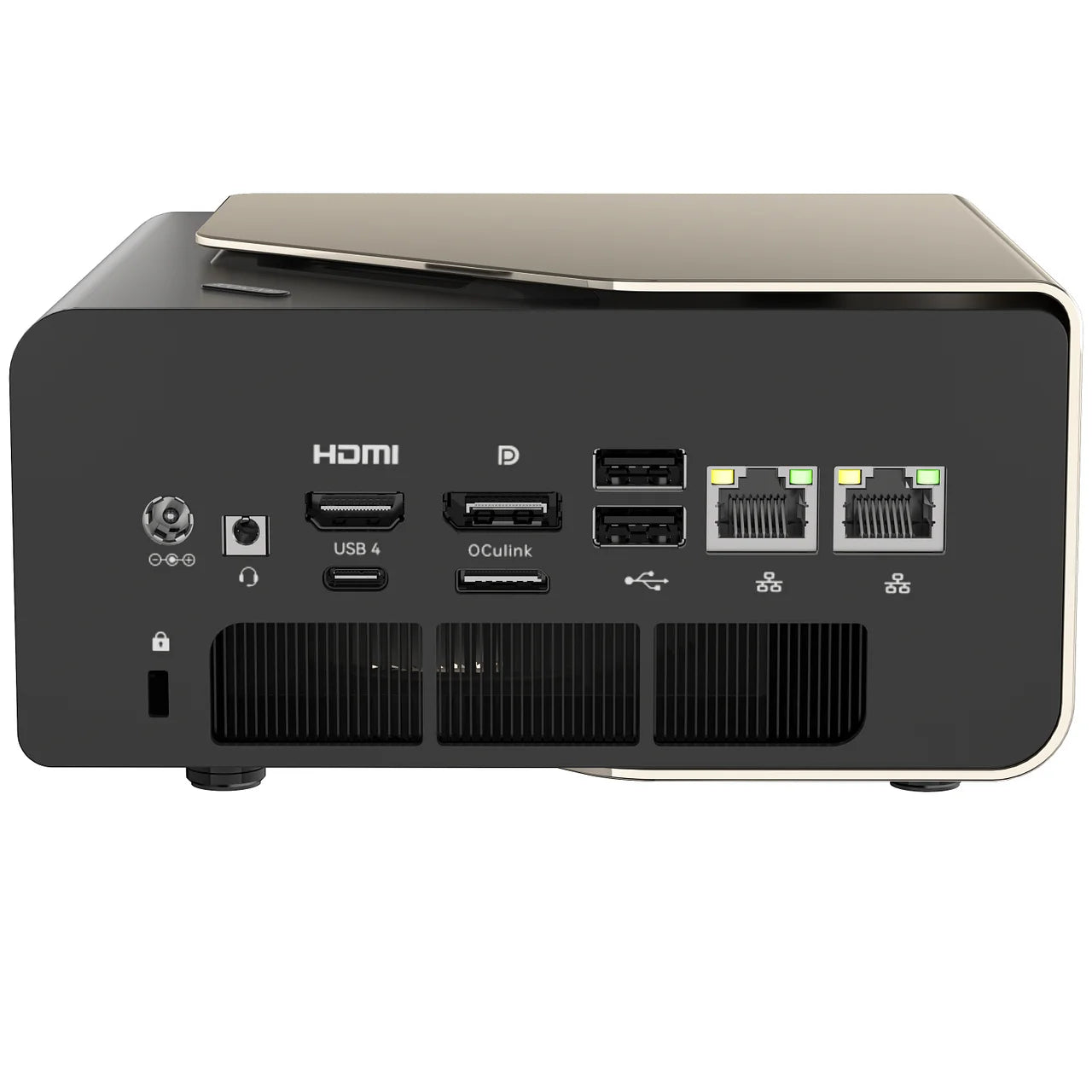

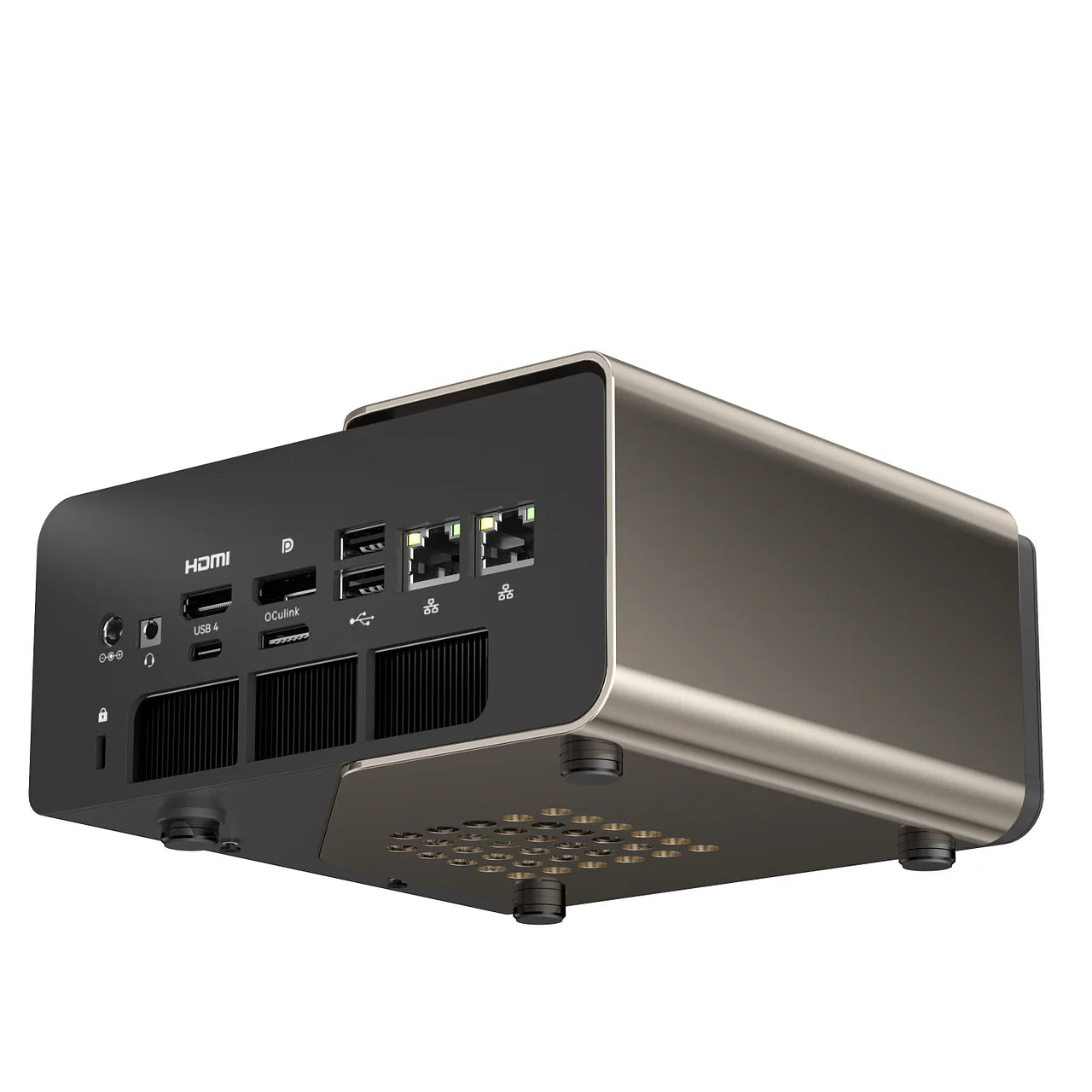

Rear I/O	Power: 1 × DC IN (5.5 × 2.5mm) Audio: 1 × 3.5mm Combo Jack HDMI: 1 × Standard HDMI 2.1 (up to 8K@60Hz / 4K@144Hz) DisplayPort: 1 × DisplayPort 1.4 (DP++) OCulink: 1 × PCIe Gen4 ×4 OCulink Port USB-A: 2 × USB 2.0 USB4: 1 × USB4.0 Full-Function Port LAN: 2 × RJ45 2.5G Ethernet
RGB / Fan Control Button	1 × System Fan Control Button Supports multiple RGB lighting modes

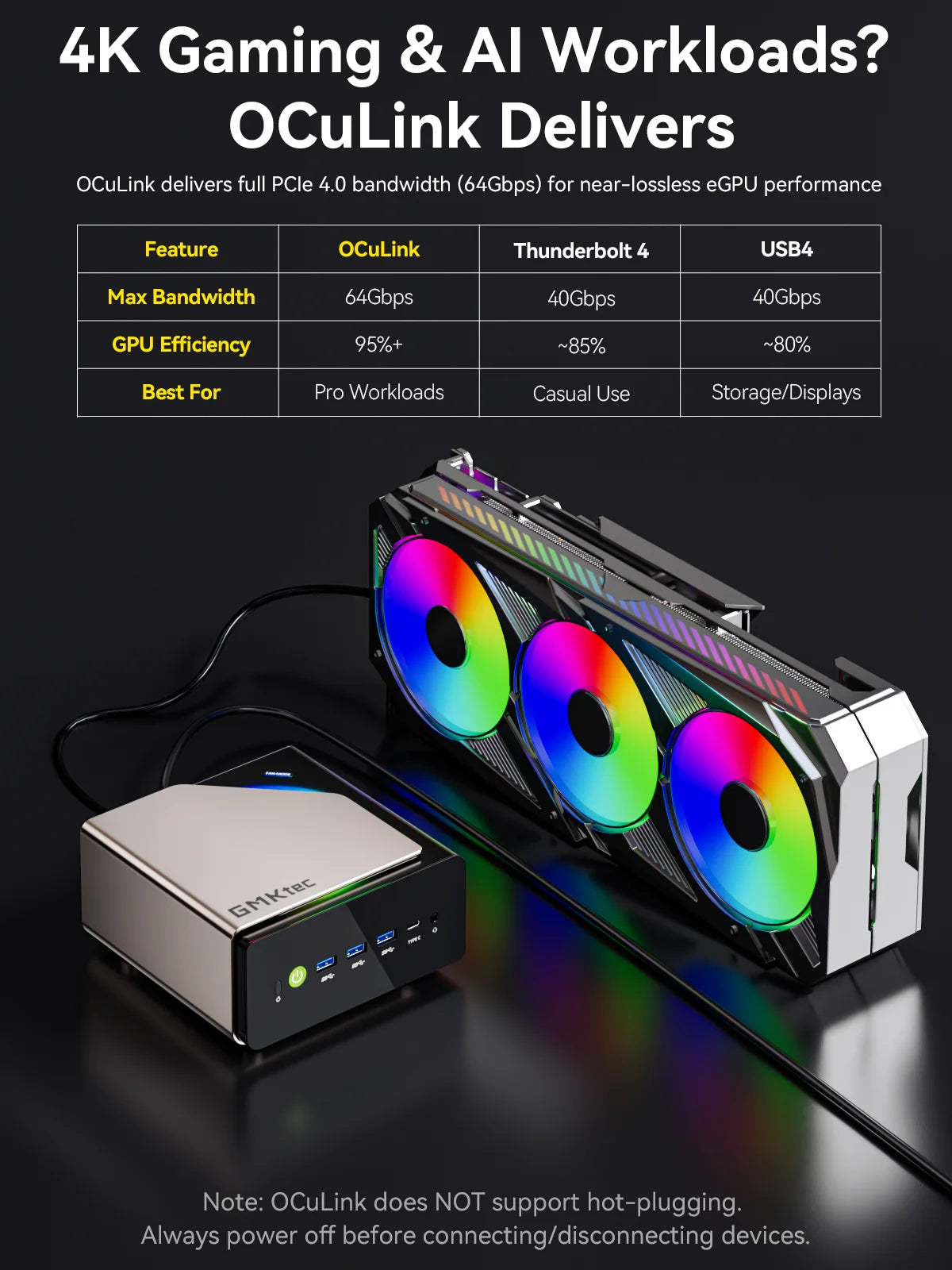

OCulink Notice	The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off.
Operating System	Windows 11 Pro
Language Support	14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
Special Features	Built-in local AI model support
Chassis Dimensions	154 × 151 × 73.6 mm
Color	Multiple color options available
Working Temperature	0°C – 40°C
Warranty	1-Year Limited Warranty
Certifications	CE, FCC, CCC, RoHS
Packaging List	User Manual Warranty Card Power Adapter HDMI Cable VESA Mount

GMKtec EVO T1

Intel® Core™ Ultra 9 285H
RUNS DEEPSEEK 32B L-LLM AT ~15 TOKENS/S WITH 64GB RAM
DESKTOP AI SUPERCOMPUTING CENTER

9 Premium Features

Intel® Core™ Ultra 9 285H

16 Cores, 16 Threads，5.4GHz

Intel® Arc™ 140T GPU

2350MH

Power

DC IN 19V 6.32A

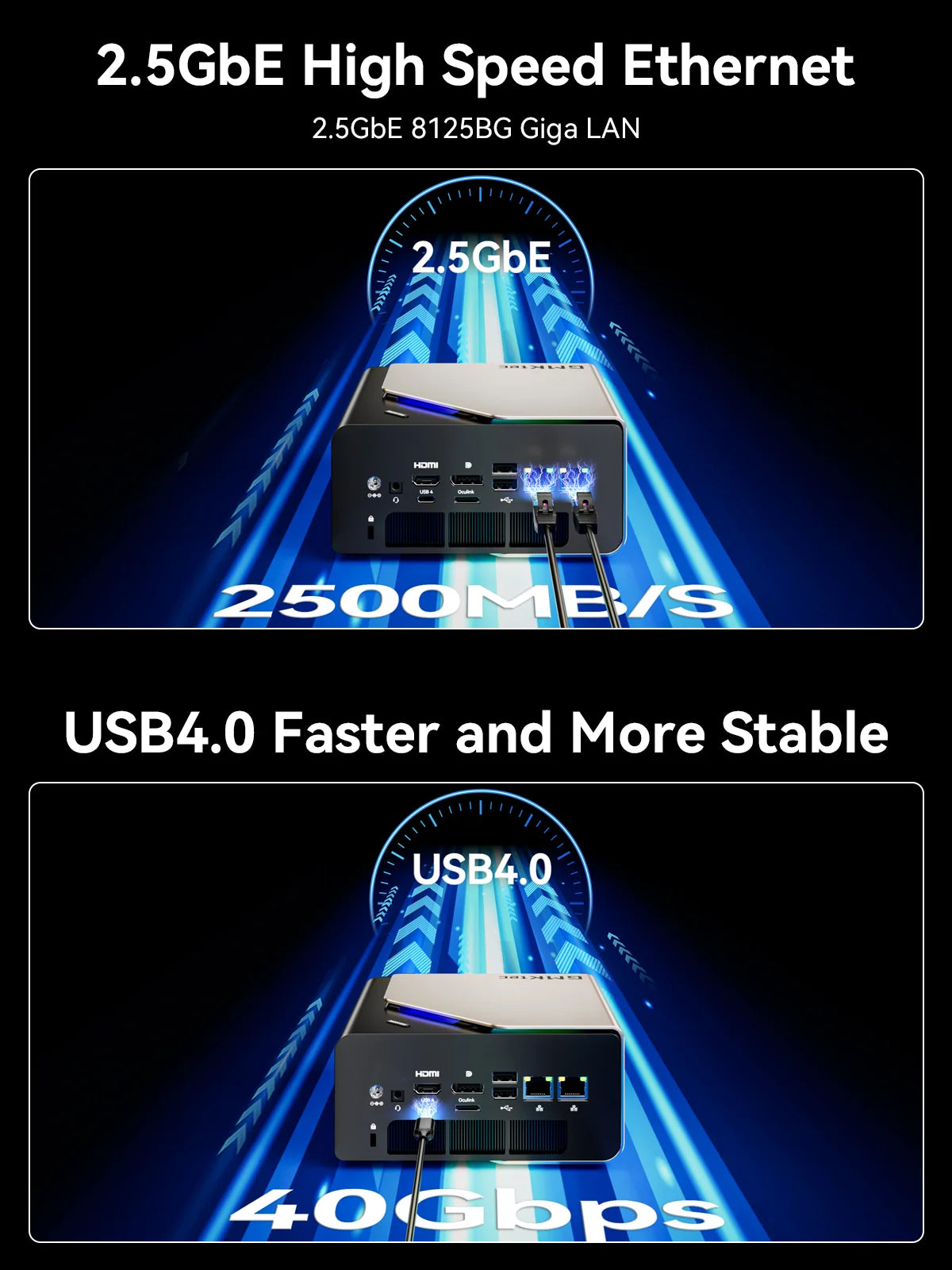

Dual LAN

2500Mbps

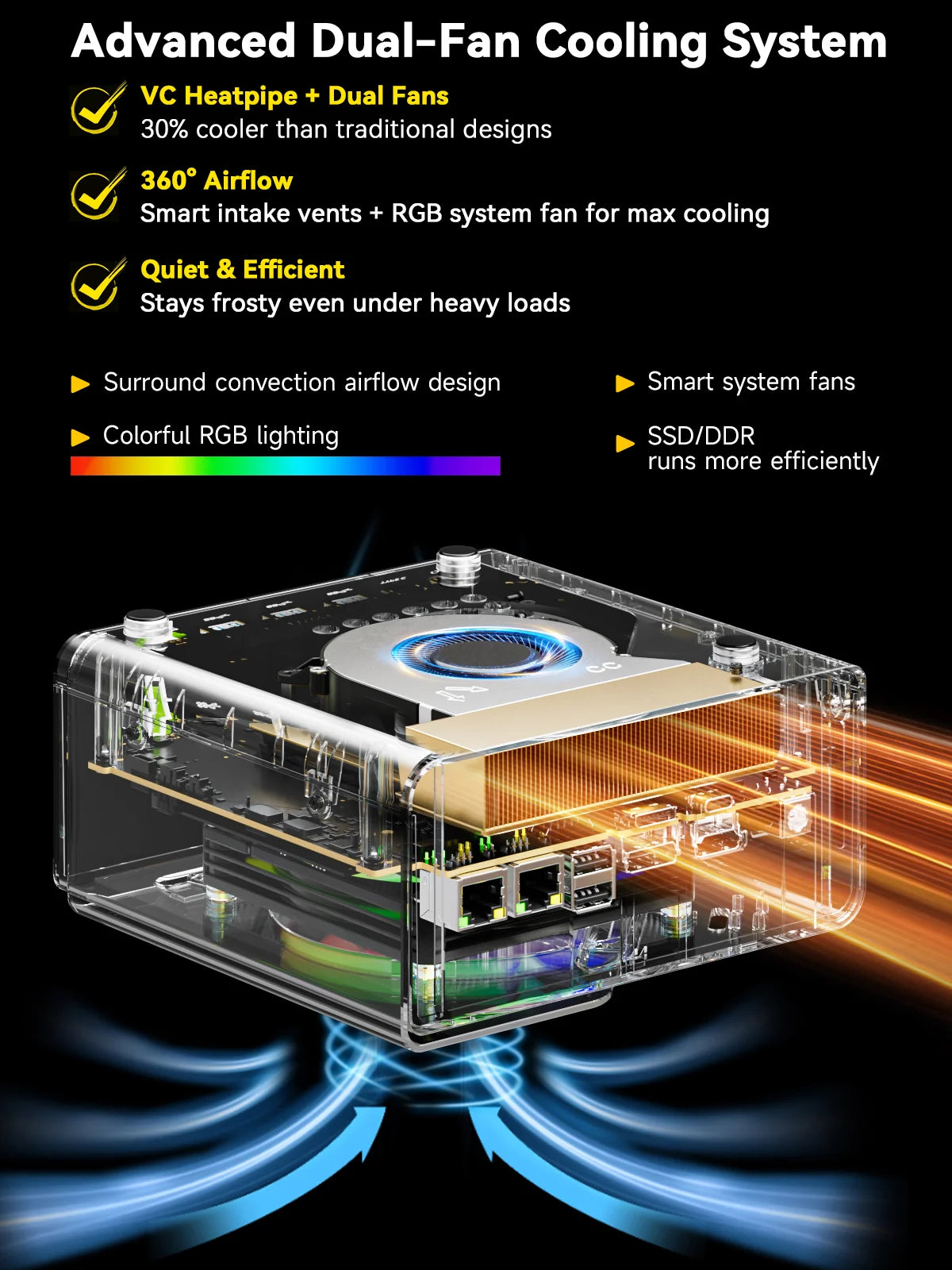

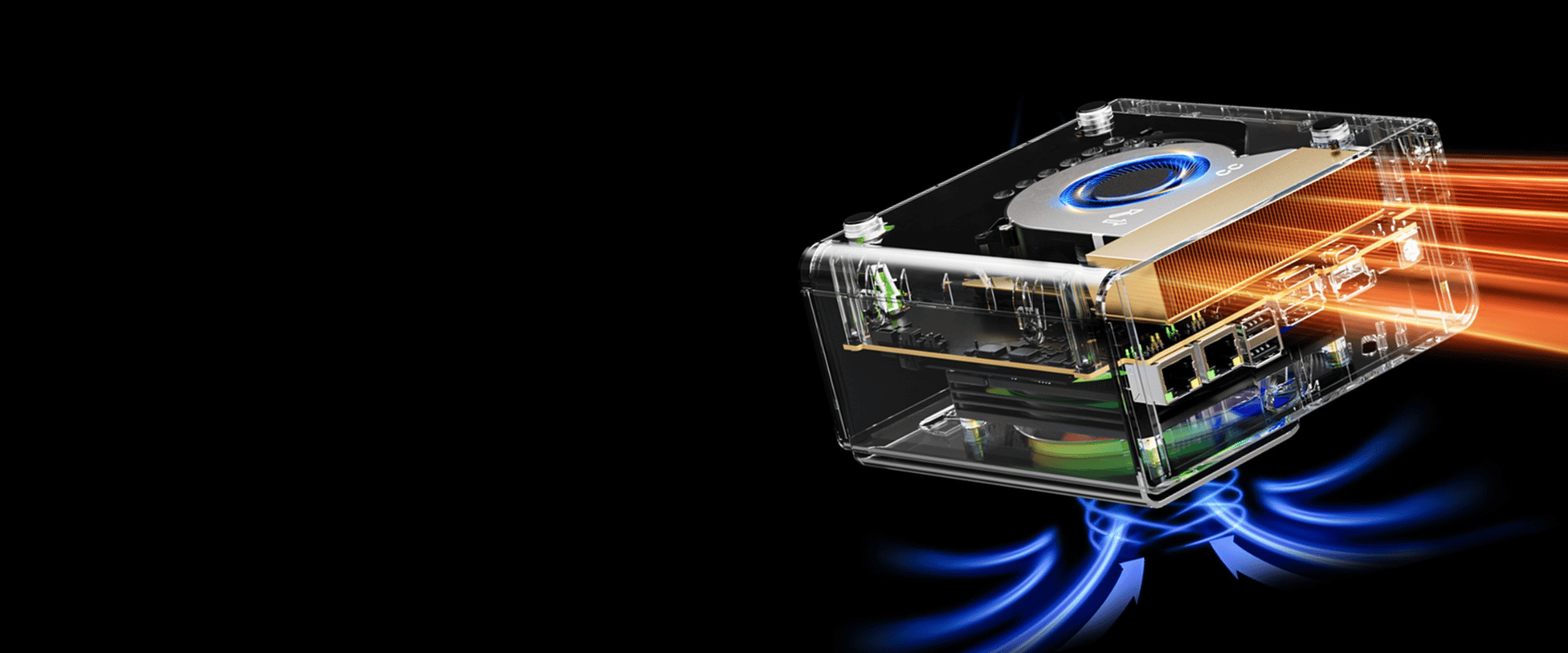

TwinTurbofan System

CoolingFan*2

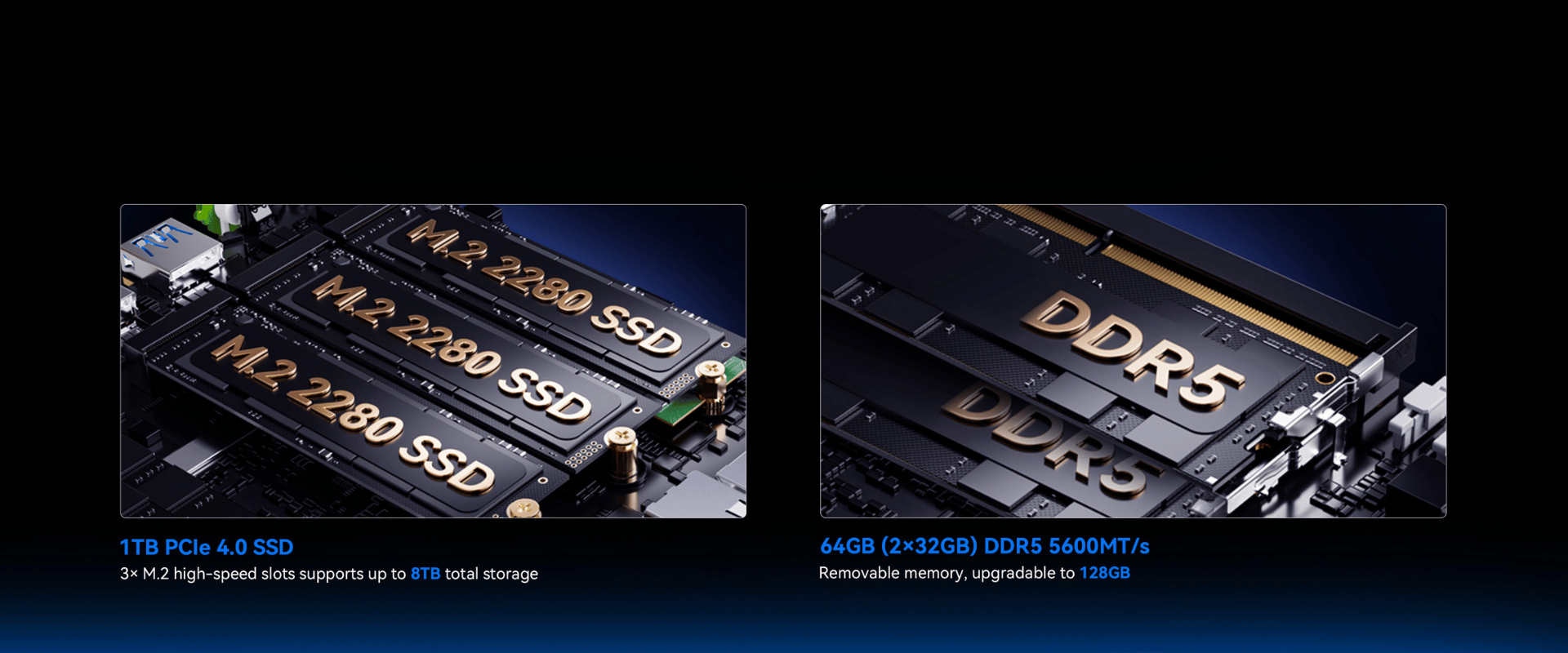

3*M.2 2280 PCIe4.0×4 SSD

MAX 12TB

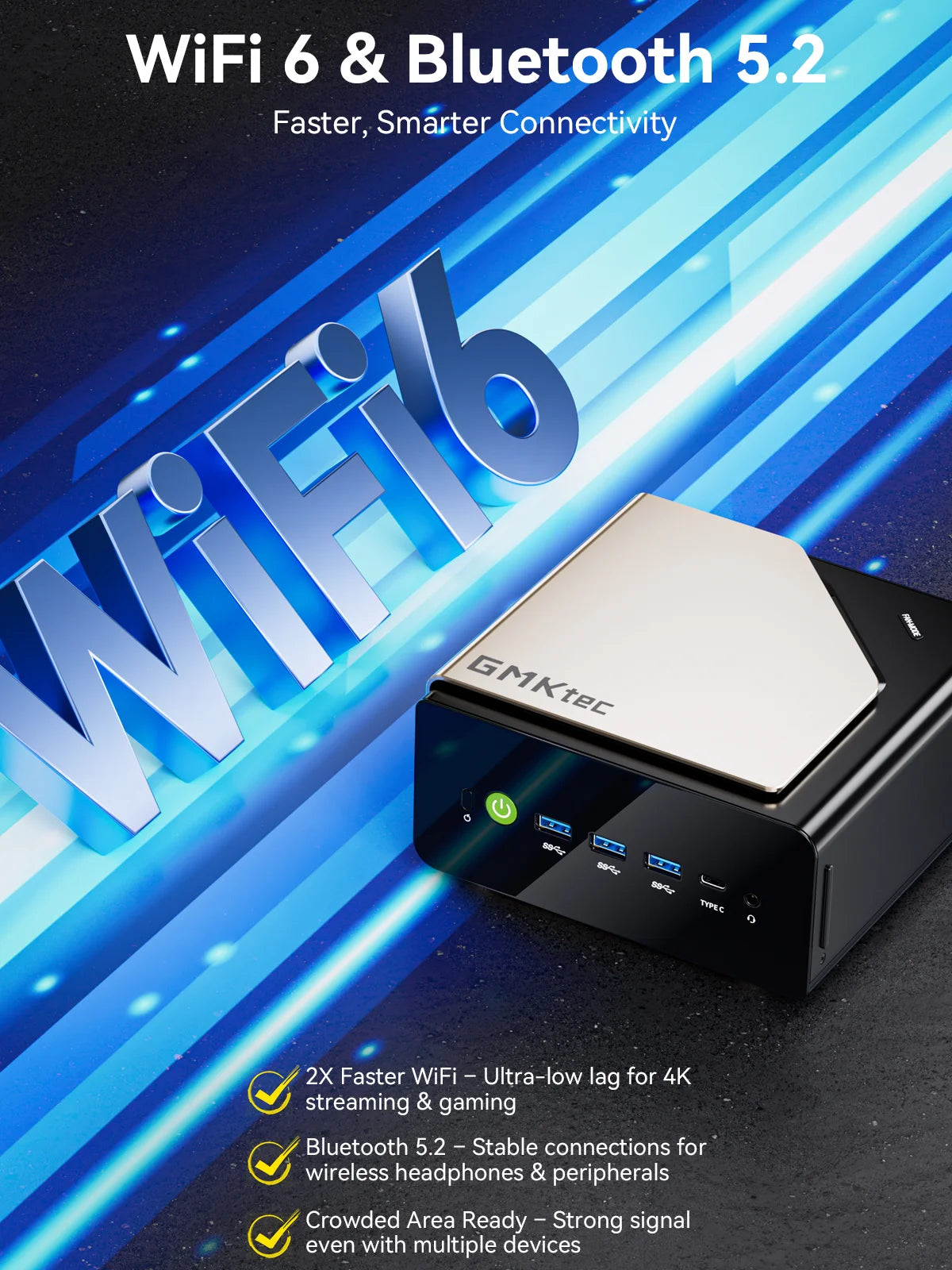

WiFi 6 (2.4Gbps)

BT5.2

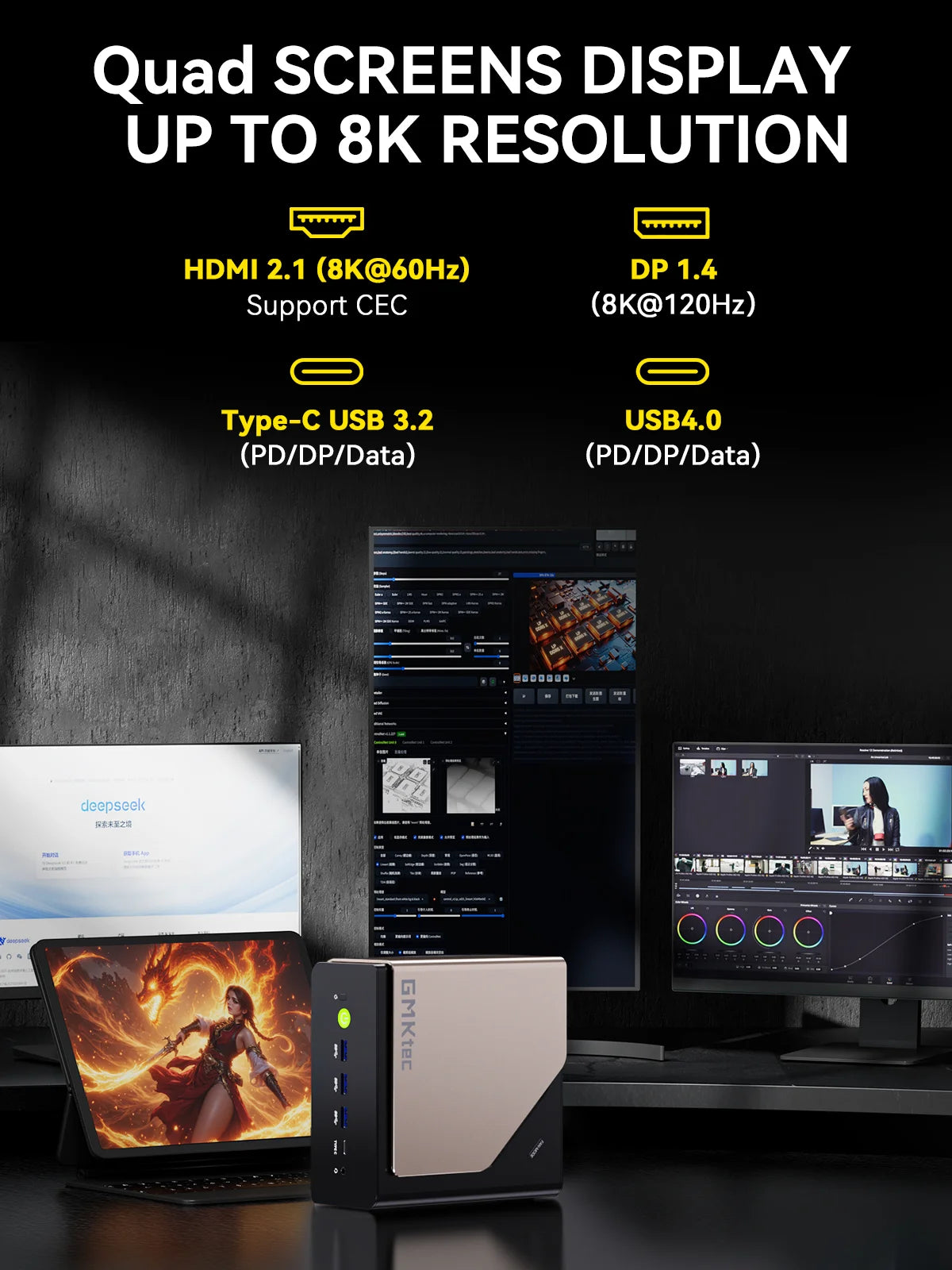

Quad Screens 8K Display

HDMI 2.1×1+DP1.4×1+USB4×1+Type-C×1

Dual DDR5 5600MHz

2*SO-DIMM MAX 64GB

3nm Ultra 9 285H Chip

As the second-generation Intel Core Ultra 9 285H flagship processor, it is built on
the advanced Arrow Lake architecture using a chiplet design and TSMC's 3nm N3B
process. It features 16 cores and 16 threads,
including 6 Performance-cores, 8 Efficient-cores, and 2 Low-Power
Efficient cores. With a 24MB L3 cache and a maximum turbo frequency of 5.4GHz,
and a base frequency of 2.9GHz.

Intel Arc 140T GPU Effortlessly Handles 32B Local LLM Workloads

The Intel Core Ultra 9 285H integrates the Arc 140T graphics, featuring 8
Xe cores with a maximum dynamic frequency of 2.35GHz. It delivers up
to 77 TOPS (INT8) peak GPU performance, enabling smooth operation
of 32B large language models locally.

CPU+GPU+NPUTri Core Al Engine

Up to 99 TOPS

Powered by Intel Al Boost NPU (13 TOPS)
combined with CPU and Arc 140T GPU for a total of 99 TOPS (INT8).
Preloaded with DeepSeek-R1-32B: running at ~15 tokens/s.
Supports Al acceleration for matrix multiplicationconvolution,
and general-purpose vector tasks.
