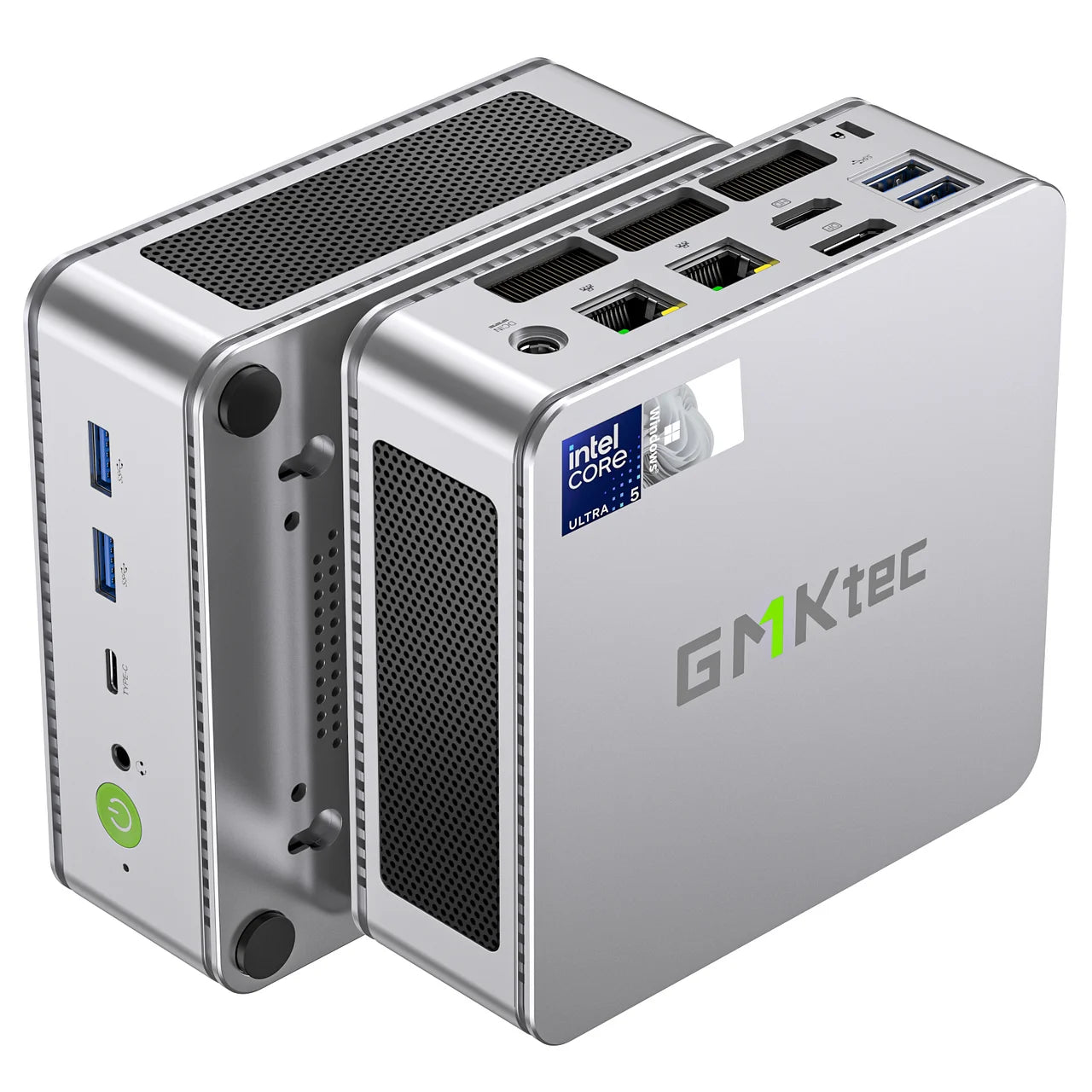

GMKtec NucBox K9 Mini PC Intel® Ultra 5 125H

Parameter	Details
Model	GMKtec NucBox K9
CPU Model	Intel® Core™ Ultra 125H

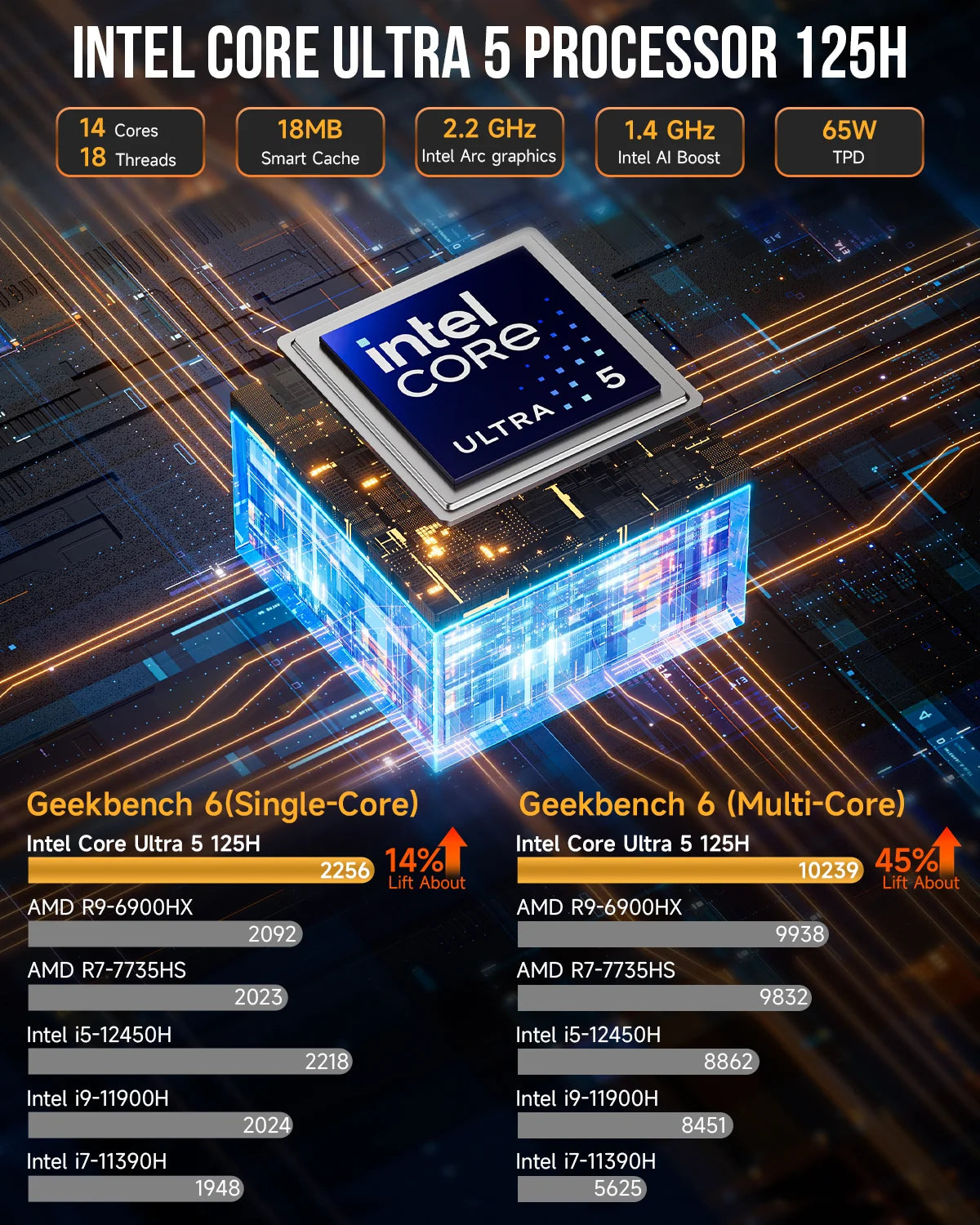

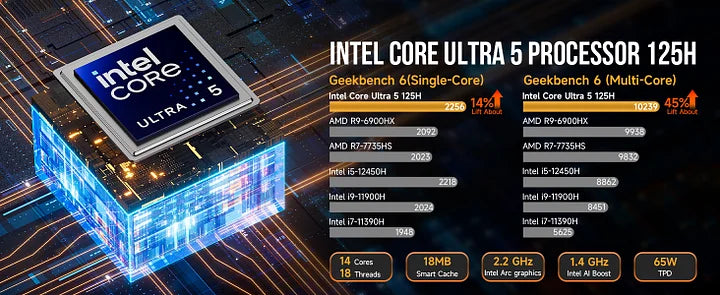

CPU	Intel® Core™ Ultra Processor, 14 Cores, 18 Threads Intel 4 Process Base Frequency 3.6GHz, Max Turbo up to 4.5GHz 18MB Cache TDP 28W–65W Integrated AI Engine up to 16 TOPS
CPU Socket / Package	FCBGA2049 Package, 50 × 25 mm
GPU	Intel® Arc™ Graphics 7 Xe-Cores (112 EUs) Up to 2.2GHz
NPU	Intel® AI Boost Up to 1.4GHz Supports OpenVINO™, Windows ML, DirectML, and ONNX Runtime

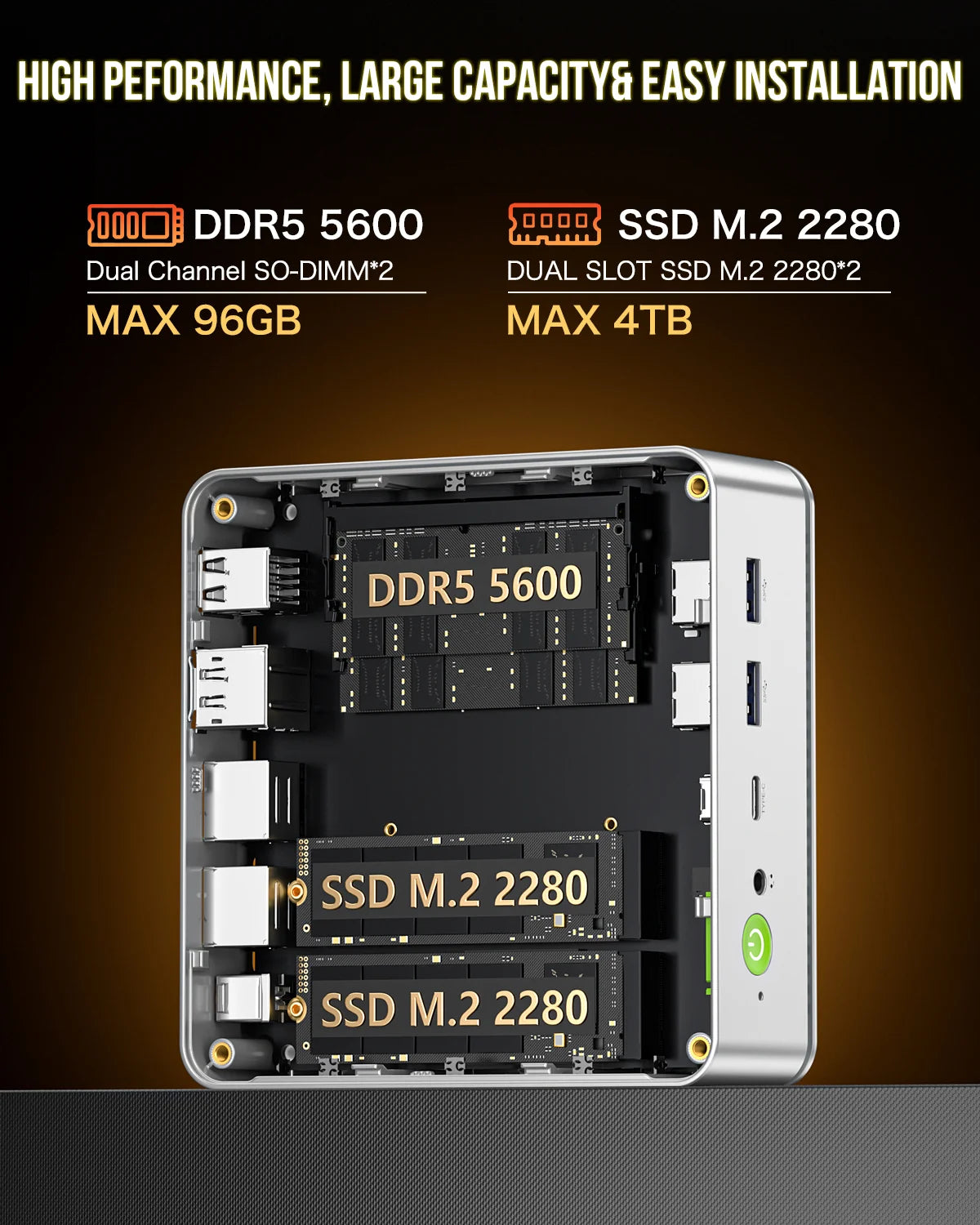

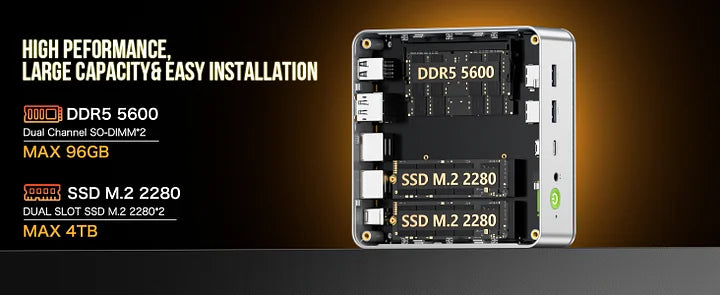

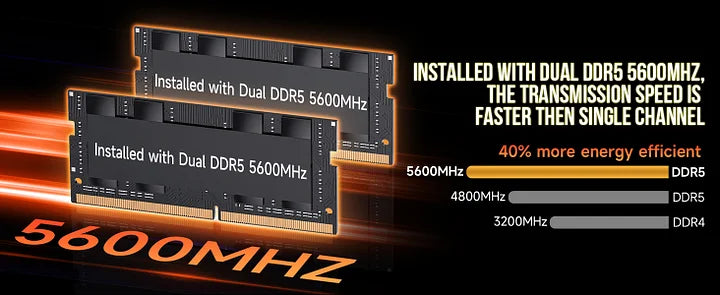

Memory (RAM)	2 × SO-DIMM Slots Dual-Channel DDR5-5600 Memory 32GB standard configuration Supports up to 96GB

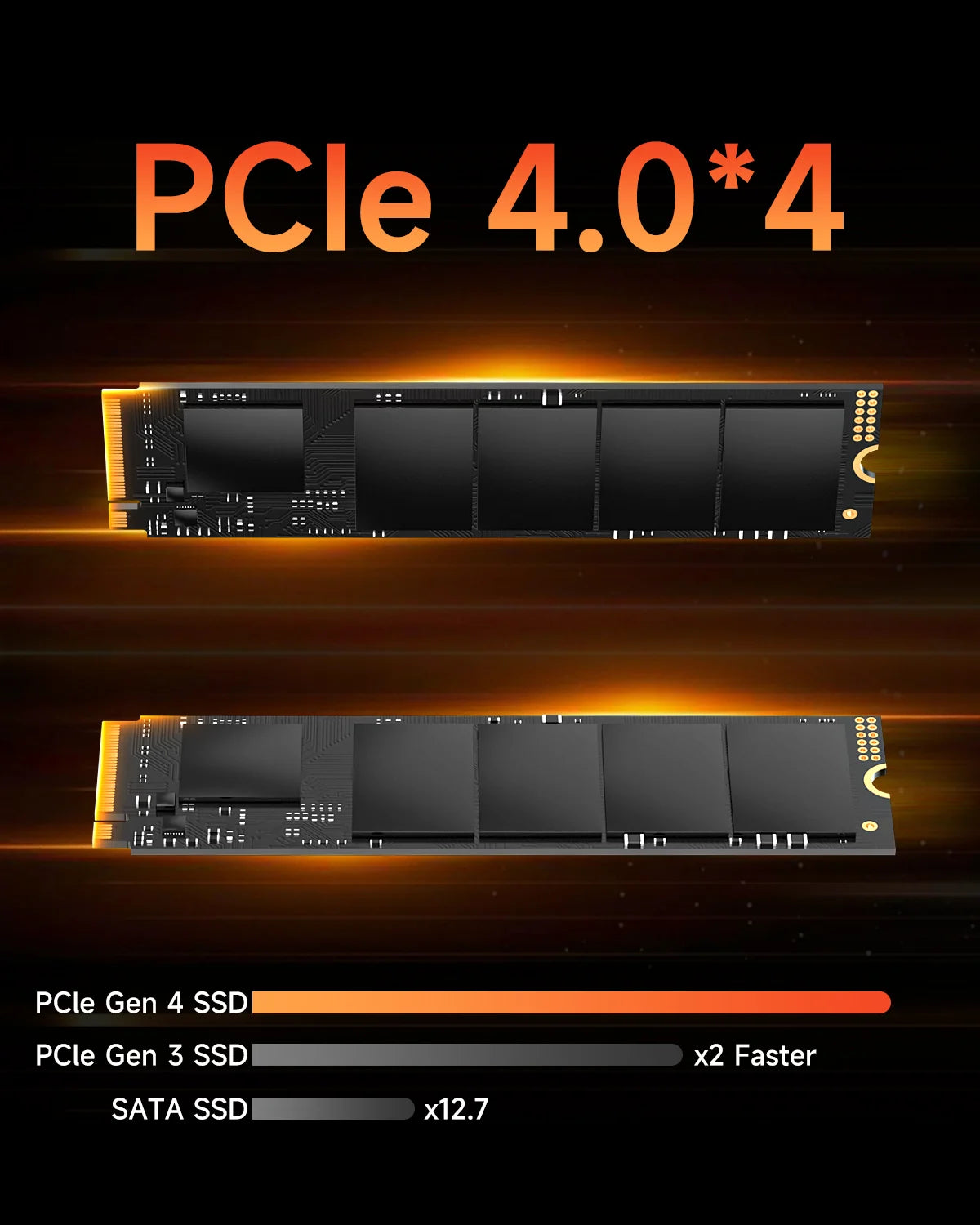

Storage (ROM)	PCIe 4.0 ×4 M.2 2280 SSD 1TB standard configuration
Storage Expansion	2 × M.2 2280 SSD slots Supports PCIe 3.0 / 4.0 and SATA Maximum storage expansion up to 4TB

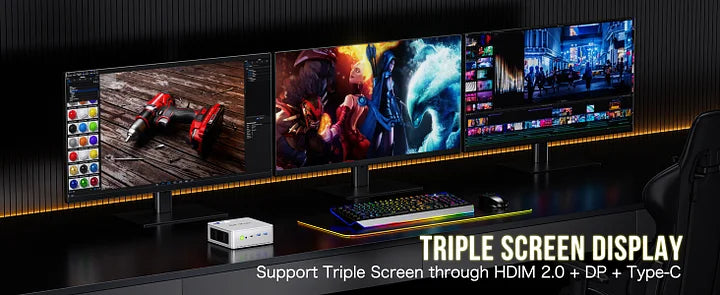

Graphics Output	Triple display output via HDMI + DisplayPort + Thunderbolt 4 / USB4 Supports up to 7680 × 4320 @ 60Hz

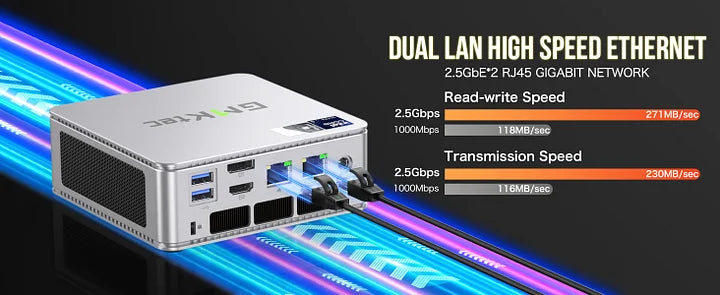

Network	Wi-Fi 6 (Intel AX201, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek Gaming 2.5GbE)
Power	Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W

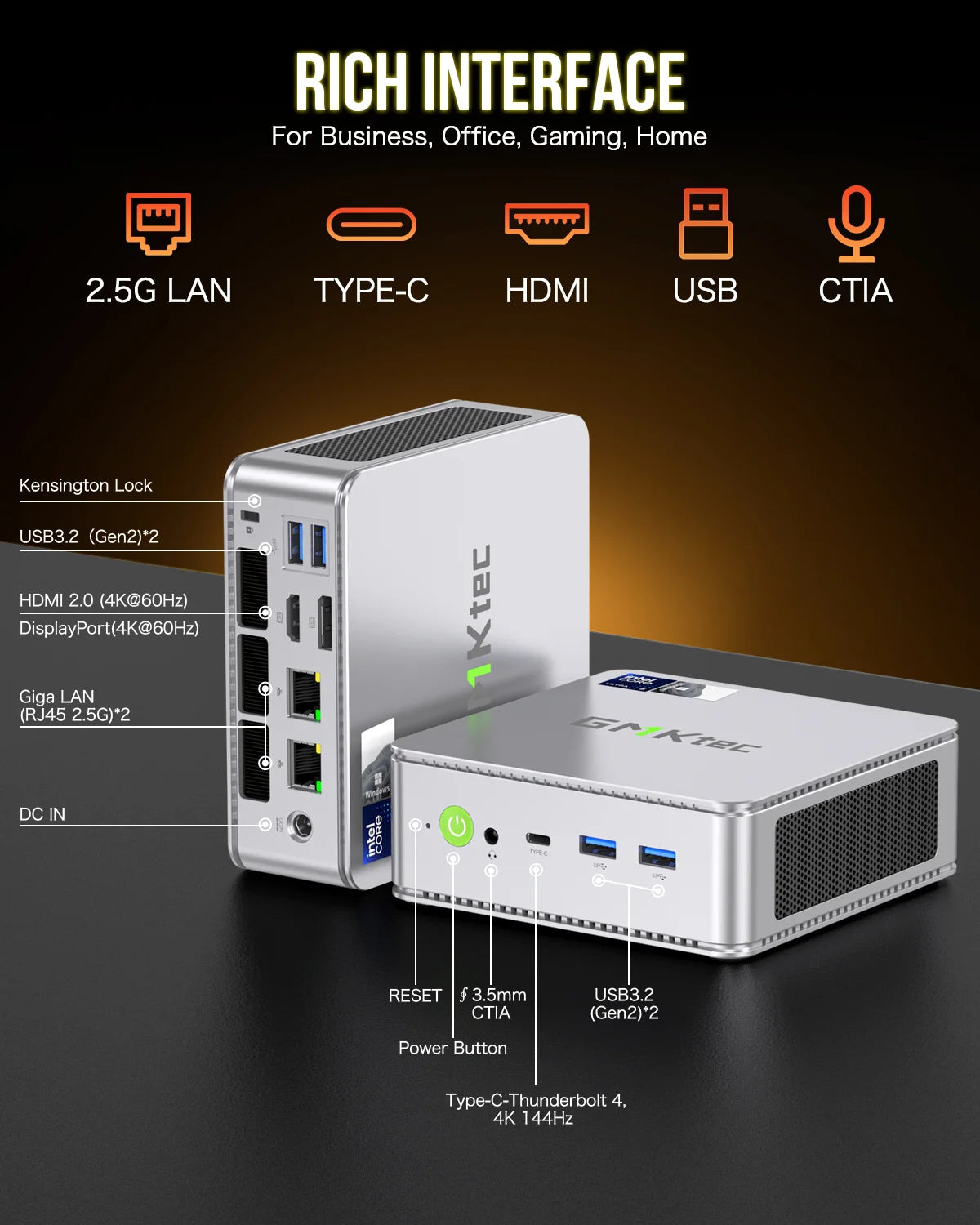

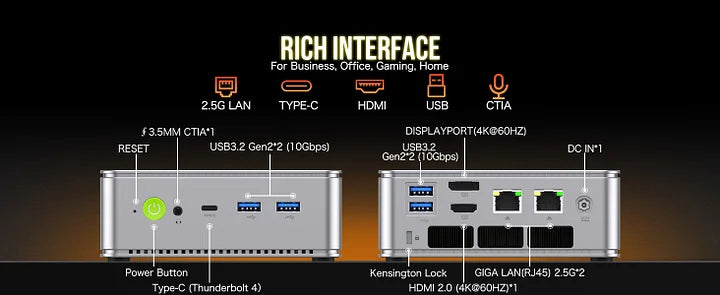

External Ports	USB-A: 4 × USB 3.2 Gen2 (10Gbps) HDMI: 1 × HDMI 2.0 DisplayPort: 1 × DisplayPort Thunderbolt 4 / USB4: 1 × Full-Function Type-C Port (PD / DP / Data) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button
Thunderbolt 4 / USB4 Notice	The front Type-C port supports full-function USB4 / Thunderbolt 4 features, including data transfer, video output, and PD power input.
Operating System	Windows 11 Pro / Linux Supported
Language Support	13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
Special Features	AI PC with built-in AI model support
Chassis Dimensions	128.8 × 127 × 47.8 mm
Weight	528 g
Working Temperature	0°C – 40°C
Warranty	1-Year Limited Warranty
Certifications	CE, FCC, CCC, RoHS

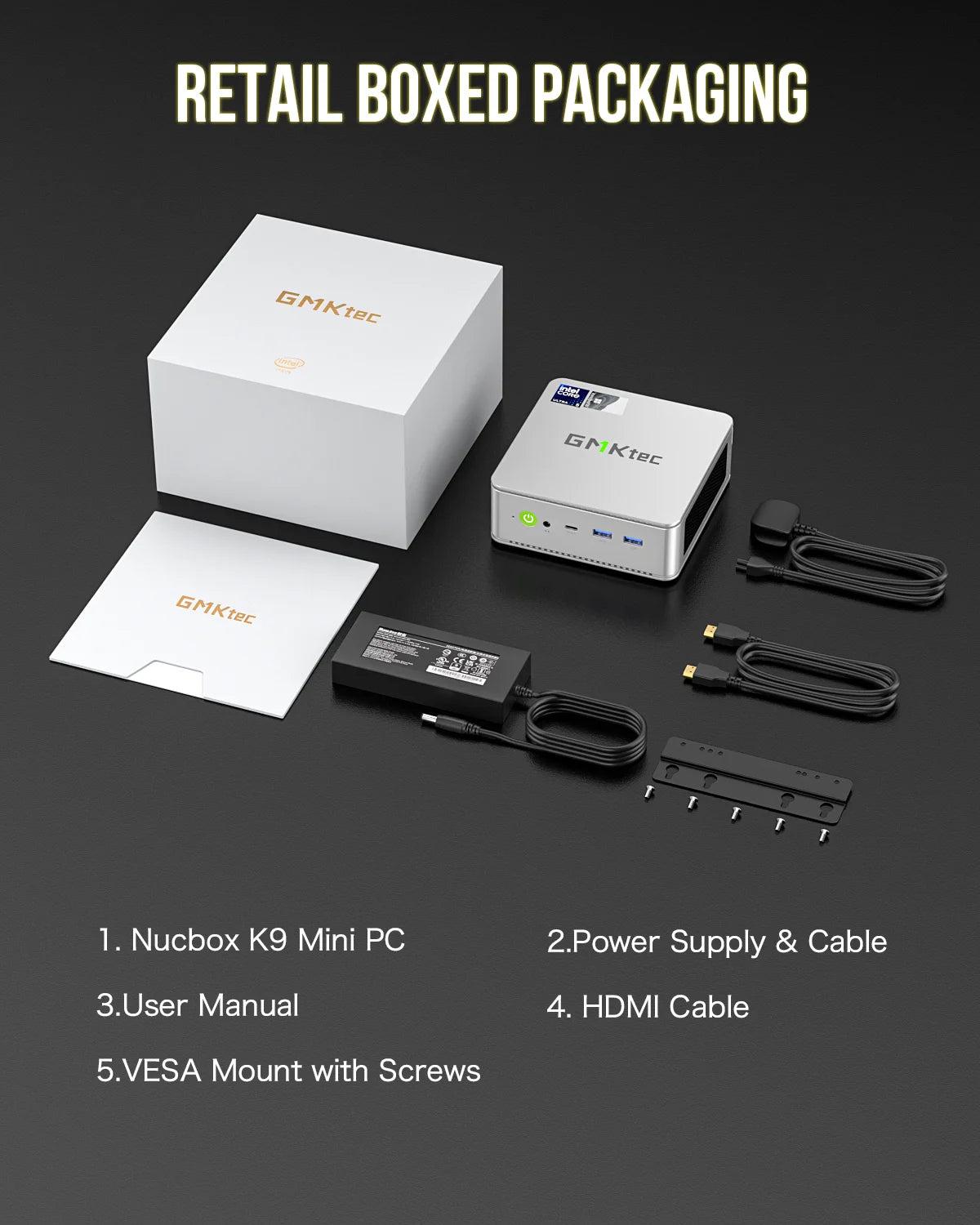

Packaging List	User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable
