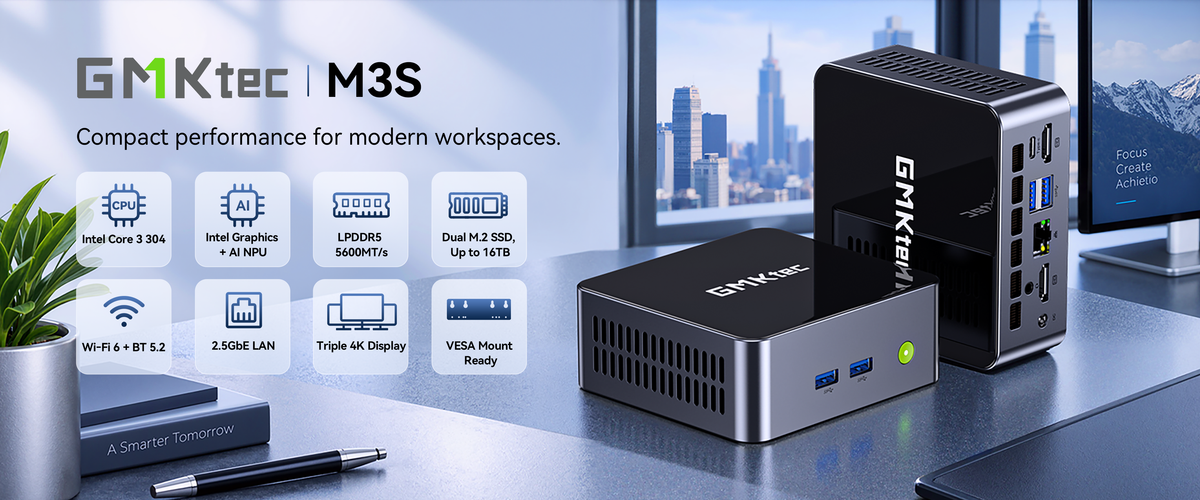

GMKtec M3S Intel® Core™ 3 304 Mini PC

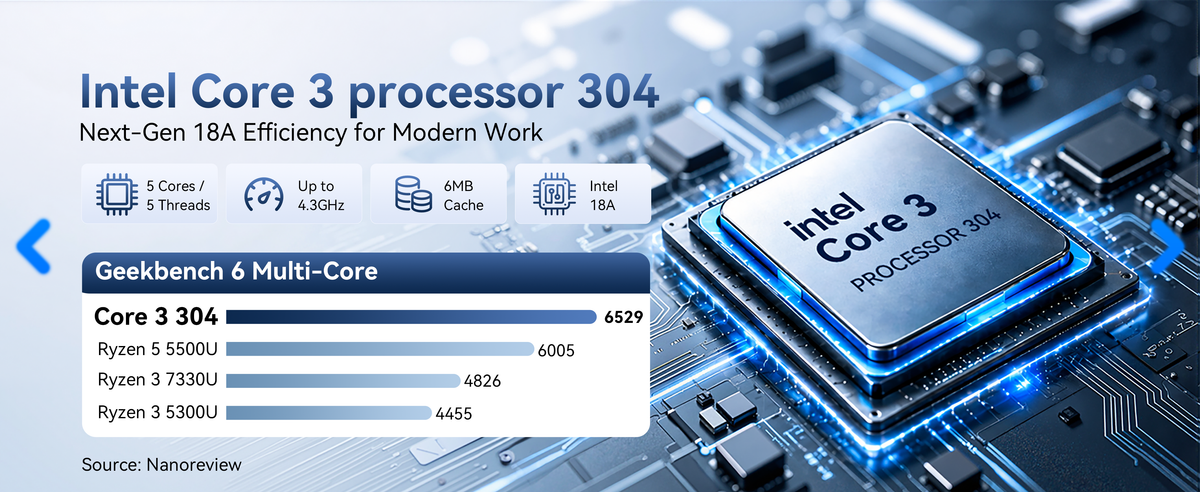

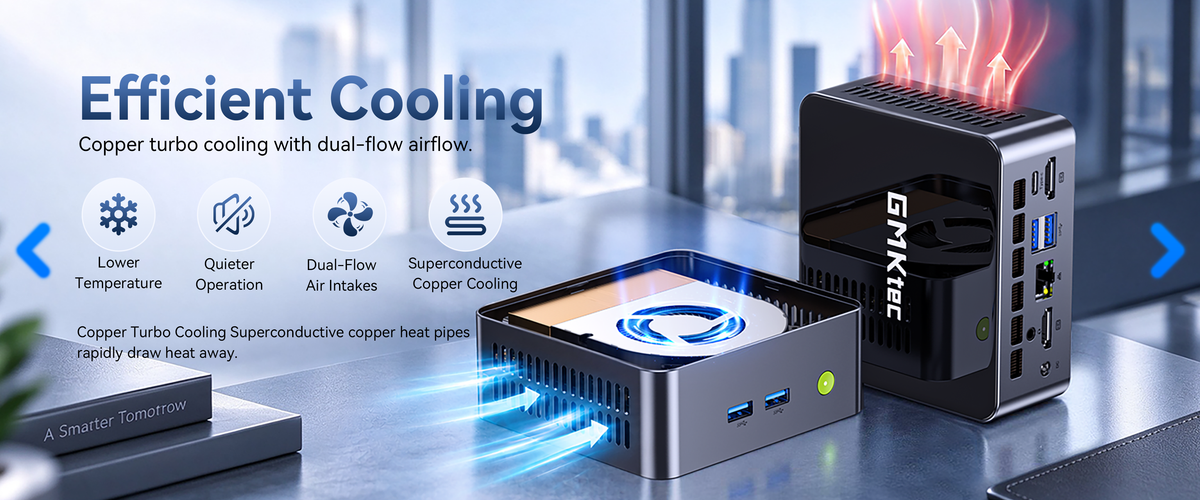

CPU	Intel® Core™ 3 Processor 304 5 Cores / 5 Threads 1 Performance Core + 4 Efficient Cores Intel 18A Process Max Turbo Frequency: 4.3GHz 6MB Intel® Smart Cache Power Modes: Silent Mode: 15W Balanced Mode: 20W Performance Mode: 25W Copper Heat Pipe + Single-Fan Cooling
GPU	Intel® Graphics Max Dynamic Frequency: 2.3GHz GPU Peak Performance: Up to 9 TOPS (INT8)
NPU	NPU Peak Performance: Up to 15 TOPS (INT8)
Memory	12GB LPDDR5 Memory Speed: 5600MT/s Onboard Memory Not Replaceable or Upgradeable
Storage	Pre-installed Storage: M.2 2280 NVMe PCIe 3.0 SSD 256GB / 512GB Options Storage Expansion: 2× M.2 2280 PCIe 4.0 ×2 NVMe SSD Slots Maximum Combined Capacity: Up to 16TB The SSD slot near the rear I/O has boot priority
Video Output	Dual HDMI + USB4 Triple Display Output Supports up to Three 4K Displays 2× HDMI 2.0: Up to 4K@60Hz USB4: Up to 4K@60Hz

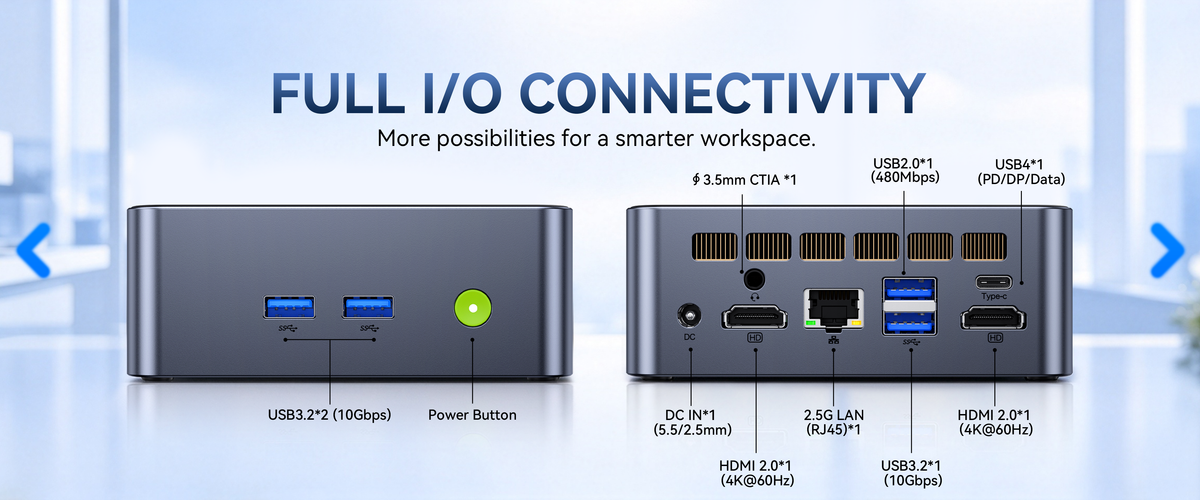

Front I/O	• 2× USB 3.2 Gen 2 Type-A (10Gbps) • 1× Power Button
Rear I/O	• 1× USB 3.2 Gen 2 Type-A (10Gbps) • 1× USB 2.0 Type-A (480Mbps) • 1× USB4 Type-C (40Gbps / 4K@60Hz / PD 3.0 up to 100W) • 2× HDMI 2.0 (4K@60Hz) • 1× 3.5mm Audio Jack (CTIA) • 1× RJ45 2.5GbE LAN • 1× DC IN (5.5/2.5mm)

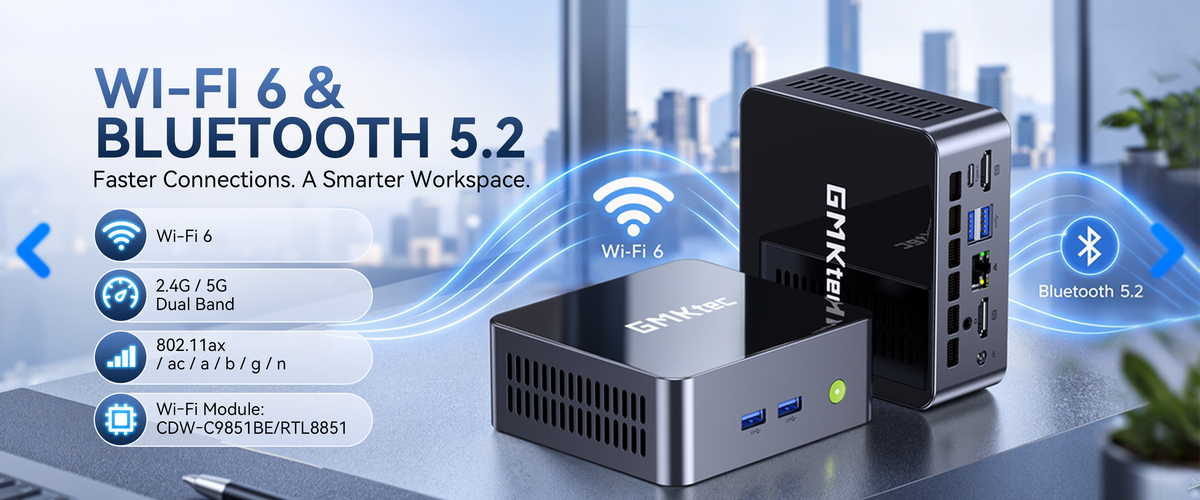

Wireless Network	Wi-Fi 6 Bluetooth 5.2

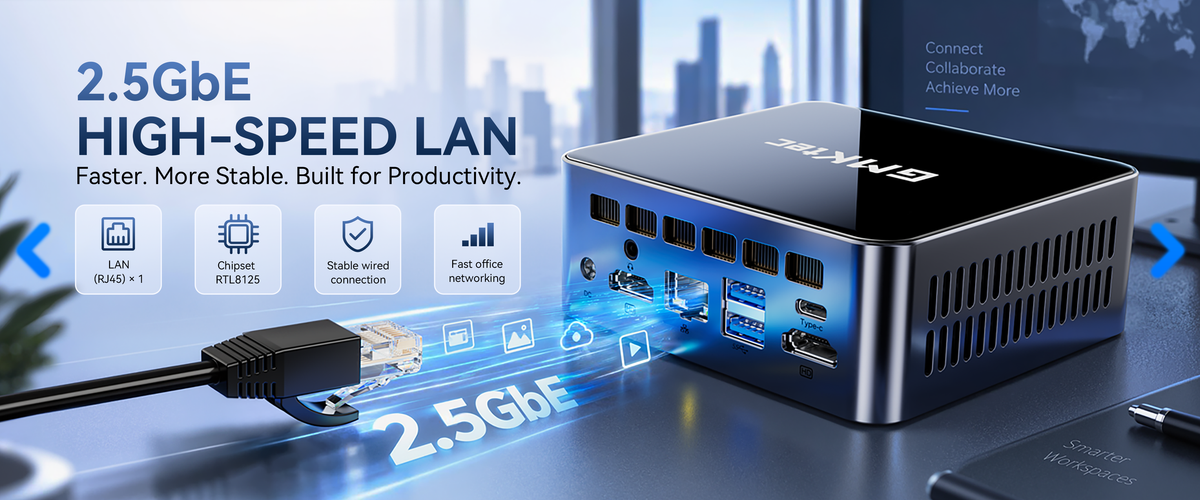

Ethernet	1× RJ45 2.5GbE LAN Supports 2500Mbps / 1000Mbps / 100Mbps / 10Mbps
Power	Built-in Button Cell Battery DC IN: 5.5/2.5mm Power Adapter: 19V/3.42A
Dimensions	114 × 106 × 42.5mm
Weight	Approx. 430g (Unit Only)
OS Support	Windows 11 Pro Pre-installed

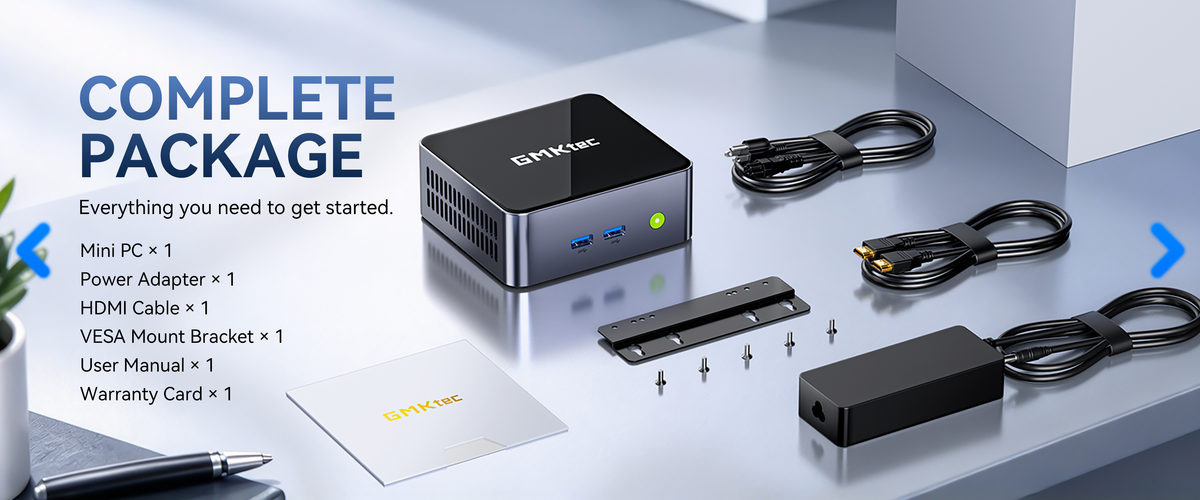

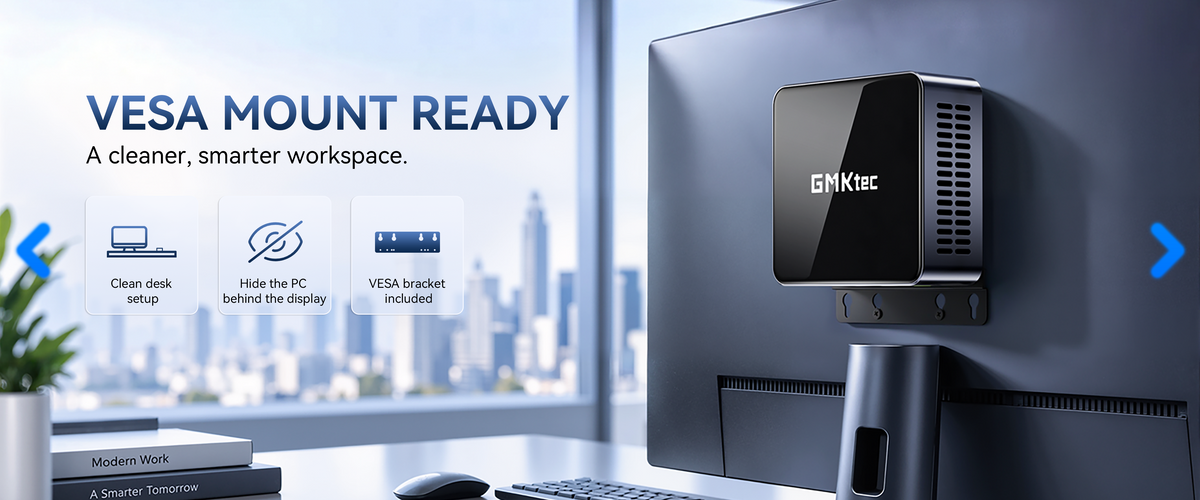

Package Contents	GMKtec NucBox M3S Power Adapter HDMI Cable VESA Mount User Manual Warranty Card
